CW-3504-4MGH, CW-3504-4MGR, CW-3504-4MGV Frame Assembly Parts By MI-T-M

CW-3504-4MGH, CW-3504-4MGR, CW-3504-4MGV Frame Assembly Parts By MI-T-M

  • CW-3504-4MGH, CW-3504-4MGR, CW-3504-4MGV Frame Assembly Parts By MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
2
14-0092 Wheel for MiTM Pressure Washers 140092
$191.66
4
7-0175A42 Rear Handle for MiTM Pressure Washers 70175A42
$156.27
5
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
6
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
8
5-0078A42 Base Plate for MiTM Pressure Washers 50078A42
$630.53
9
7-0174A42 Front Handle for MiTM Pressure Washers 70174A42
$286.43
10
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
11
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
12
13-0137A42 Underbracket for MiTM Pressure Washers 130137A42
$119.19
13
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
14
1-0086 Engine Honda 13Hp Recoil for AC2-PH08-30M Air Compressor by Mi-T-M 10086
$1,902.75
14
1-0090 Engine Vanguard 13 Hp Recoil for AC2-PH08-20M  Air Compressor by Mi-T-M 10090
$1,990.04
14
1-0156 Engine (Subaru) for MiTM Air Compressors by MiTM 10156
Call for Price call for price call for price
17
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
18
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
19
851-0349 Beltguard Back Assembly (Inc. 20-24) for MiTM Pressure Washers 8510349
$228.77
24
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
25
10-0030 Sheave 2Ak46H for AC2-PR09-08AB Air Compressor by Mi-T-M 100030
$83.22
28
851-0348 Beltguard Cover Assembly (Inc. 29-34) for MiTM Pressure Washers 8510348
$270.99
32
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
33
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
35
62-0086 Decal- Mi-T-M Small Logo for MiTM Air Compressors by MiTM 620086
Call for Price call for price call for price
36
34-0501 Decal- Mi-T-M Stripe for MiTM Pressure Washers 340501
Call for Price call for price call for price
37
34-0034 Decal- Die Cut 3504 for MiTM Pressure Washers 340034
Call for Price call for price call for price
38
18-0028 Nozzle- 0004 for MiTM Air Compressors by MiTM 180028
$10.85
38
18-0029 Nozzle- 1504 for MiTM Air Compressors by MiTM 180029
$10.85
38
18-0030 Nozzle- 2504 for MiTM Air Compressors by MiTM 180030
$10.85
38
18-0031 - Nozzle- 4004 for MiTM Air Compressors by MiTM 180031
$10.85
40
11-0035 Belt for MiTM Pressure Washers 110035
$58.91
41
10-0040 Sheave 2Ak104H for AC1-HR45-05M Air Compressor by Mi-T-M 100040
$90.41
43
3-0203 Pump 4.0 Gpm At 3500 Psi for MiTM Pressure Washers 30203
$1,944.18
44
30-0161 Locknut for MiTM Pressure Washers by MiTM 300161
$4.49
45
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
46
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
48
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
49
27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
53
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
55
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
56
23-0358 Hose Barb for AC1-PE15-08M Air Compressor by Mi-T-M 230358
$22.20
57
23-0359 Nipple 1/2M X 3/4M 45Deg Flare for AC1-PE15-08M Air Compressor by Mi-T-M 230359
$21.36
58
8-0270 Unloader for MiTM Pressure Washers 80270
$597.20
59
24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031
$7.89
60
51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012
$21.03
62
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
63
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
64
24-0006 Elbow for MiTM Pressure Washers 240006
$52.50
65
15-0024 Hose 3/8X24" 3500Psi R2 Black for AC1-PE02-08M Air Compressor by Mi-T-M 150024
$32.65
67
23-0007 Hose Barb for MiTM Pressure Washers 230007
$48.00
68
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
69
23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043
$25.06
70
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
72
19-0207 Filter 1/2Mx3/4F Garden W/Byp for AS2-PH08-30M Air Compressor by Mi-T-M 190207
$72.32
74
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
75
22-0242 Valve-Easy Start 6000 Psi for AC1-PE03-20M Air Compressor by Mi-T-M 220242
$36.28
76
15-0140 Bypass Hose 1/4X10" 250Psi Blk for AC1-PE03-20M Air Compressor by Mi-T-M 150140
$28.94
77
851-0006 Hose 3/8X50' 4500Psi R2 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 8510006
$263.34
78
15-0209 Hose 3/8X50' 4000Psi R1 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150209
$151.52
80
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
81
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
82
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
84
16-0120A01 Wand for MiTM Air Compressors by MiTM 160120A01
$54.74
85
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
86
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
88
25-0122 O-Ring 3/8 X 9/16 for AC2-PR09-30M Air Compressor by Mi-T-M 250122
$2.99
-
34-9017 Safety Decal Kit (Inc. 2-3, 40-41, 49, 63) for MiTM Air Compressors by MiTM 349017
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

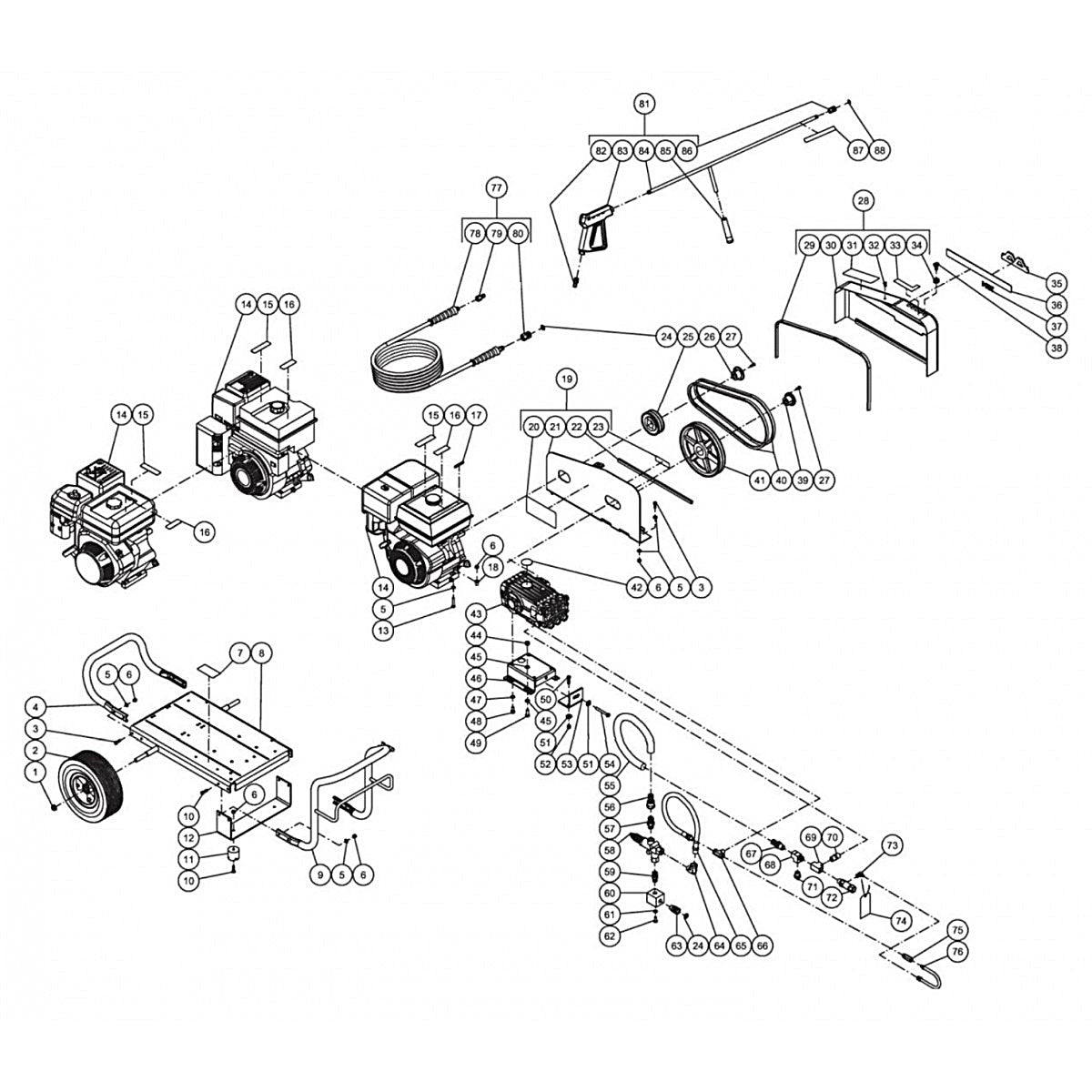

How do I use this diagram?
