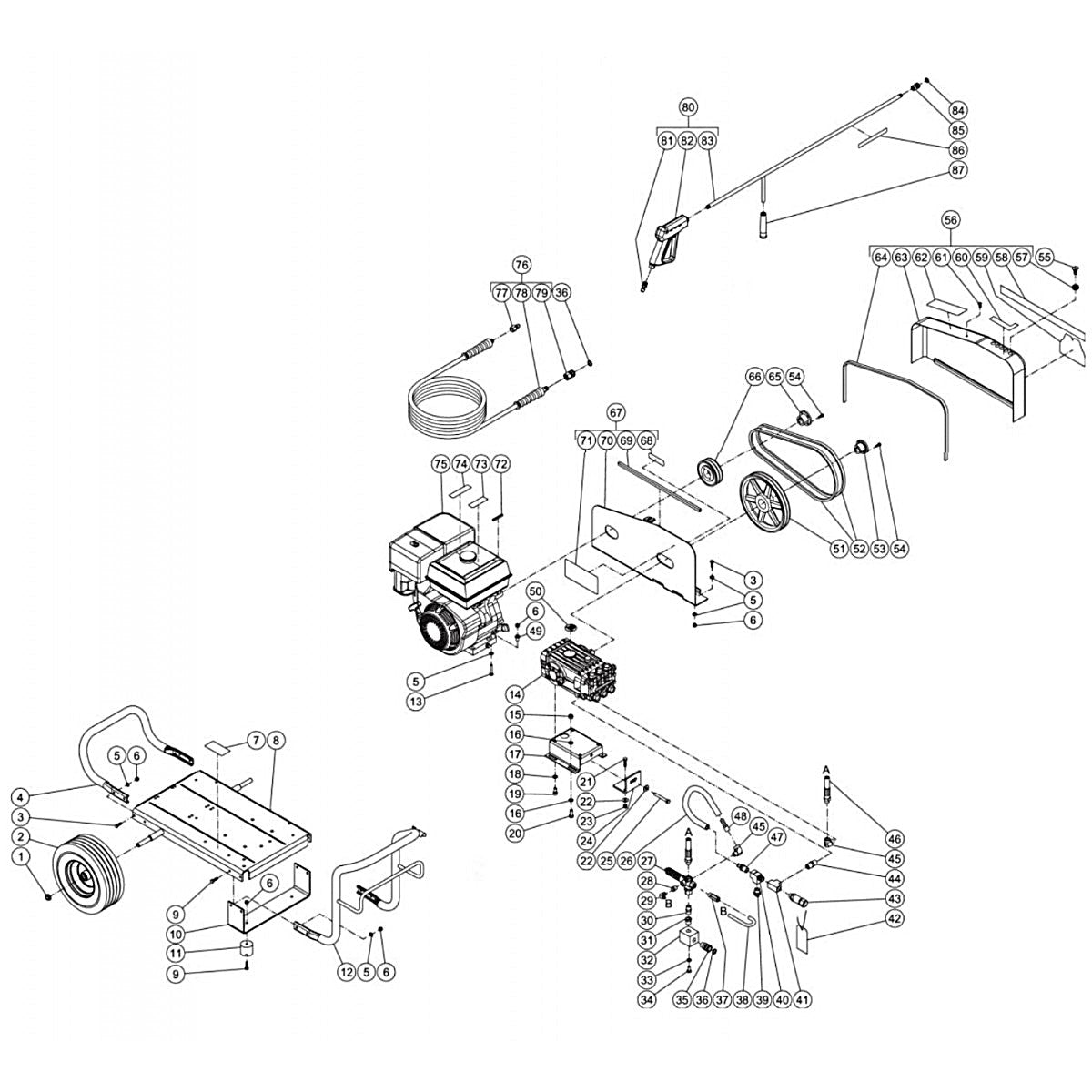

CW-3504-4MGH, CW-3504-4MGR (sn:10552632-10759196) Frame Assembly Parts By MI-T-M

CW-3504-4MGH, CW-3504-4MGR (sn:10552632-10759196) Frame Assembly Parts By MI-T-M

  • CW-3504-4MGH, CW-3504-4MGR (sn:10552632-10759196) Frame Assembly Parts By MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
2
14-0092 Wheel for MiTM Pressure Washers 140092
$191.66
4
7-0175A01 Handle for MiTM Pressure Washers 70175A01
$126.84
5
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
6
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
8
5-0078A01 Base Plate for MiTM Pressure Washers 50078A01
$634.35
9
7-0174A01 Handle for MiTM Pressure Washers 70174A01
$324.50
10
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
11
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
12
13-0137A01 Underbracket for MiTM Pressure Washers 130137A01
$119.60
13
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
14
1-0086 Engine Honda 13Hp Recoil for AC2-PH08-30M Air Compressor by Mi-T-M 10086
$1,902.75
14
1-0176 Engine - Robin (0Mrb) for MiTM Pressure Washers by MiTM 10176
$2,042.64
17
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
18
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
19
851-0310 Beltguard Back for MiTM Pressure Washers 8510310
$303.80
24
10-0030 Sheave 2Ak46H for AC2-PR09-08AB Air Compressor by Mi-T-M 100030
$83.22
27
851-0311 Beltguard Cover for MiTM Pressure Washers 8510311
$361.85
29
6-0064A01 Beltguard Cover for MiTM Pressure Washers 60064A01
$187.11
30
34-0813 Decal- Warning: Muffler Hot (E/S) for MiTM Pressure Washers 340813
$20.40
31
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
32
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
34
34-2215 Decal - Die Cut for MiTM Pressure Washers by MiTM 342215
Call for Price call for price call for price
36
18-0028 Nozzle- 0004 for MiTM Air Compressors by MiTM 180028
$10.85
36
18-0029 Nozzle- 1504 for MiTM Air Compressors by MiTM 180029
$10.85
36
18-0030 Nozzle- 2504 for MiTM Air Compressors by MiTM 180030
$10.85
36
18-0031 - Nozzle- 4004 for MiTM Air Compressors by MiTM 180031
$10.85
39
11-0035 Belt for MiTM Pressure Washers 110035
$58.91
40
10-0040 Sheave 2Ak104H for AC1-HR45-05M Air Compressor by Mi-T-M 100040
$90.41
41
34-2290 Decal - Pump for MiTM Pressure Washers 342290
$30.60
42
3-0203 Pump 4.0 Gpm At 3500 Psi for MiTM Pressure Washers 30203
$1,944.18
43
30-0161 Locknut for MiTM Pressure Washers by MiTM 300161
$4.49
44
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
45
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
47
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
48
27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
51
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
53
8-0270 Unloader for MiTM Pressure Washers 80270
$597.20
54
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
56
24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031
$7.89
57
51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012
$21.03
59
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
60
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
61
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
62
22-0146 Easy Start Valve for MiTM Pressure Washers 220146
$110.16
63
15-0140 Bypass Hose 1/4X10" 250Psi Blk for AC1-PE03-20M Air Compressor by Mi-T-M 150140
$28.94
65
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
66
23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043
$25.06
67
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
68
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
69
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
70
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
71
15-0024 Hose 3/8X24" 3500Psi R2 Black for AC1-PE02-08M Air Compressor by Mi-T-M 150024
$32.65
72
23-0005 Barb 1/2Mp X 1/2 Lock Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230005
$12.39
73
23-0035 Elbow 1/2M X 1/2F 90 Str Brass for MiTM Pressure Washers by MiTM 230035
$36.27
74
15-0022 By-Pass Hose for MiTM Pressure Washers 150022
$20.88
76
851-0006 Hose 3/8X50' 4500Psi R2 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 8510006
$263.34
77
15-0209 Hose 3/8X50' 4000Psi R1 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150209
$151.52
79
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
80
851-0371 Gun/Black Wand Grip W/Qc for AM1-PH65-20M Air Compressor by Mi-T-M 8510371
$196.02
81
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
83
16-0439 Wand-45 W/Handle Chrome for MiTM Pressure Washers by MiTM 160439
$60.63
84
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
85
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
86
34-1253 Decal- Warning: Risk Of Injection (E/S) for MiTM Pressure Washers 341253
$15.30
87
25-0122 O-Ring 3/8 X 9/16 for AC2-PR09-30M Air Compressor by Mi-T-M 250122
$2.99
-
34-9017 Safety Decal Kit (Inc. 2-3, 40-41, 49, 63) for MiTM Air Compressors by MiTM 349017
Call for Price call for price call for price
