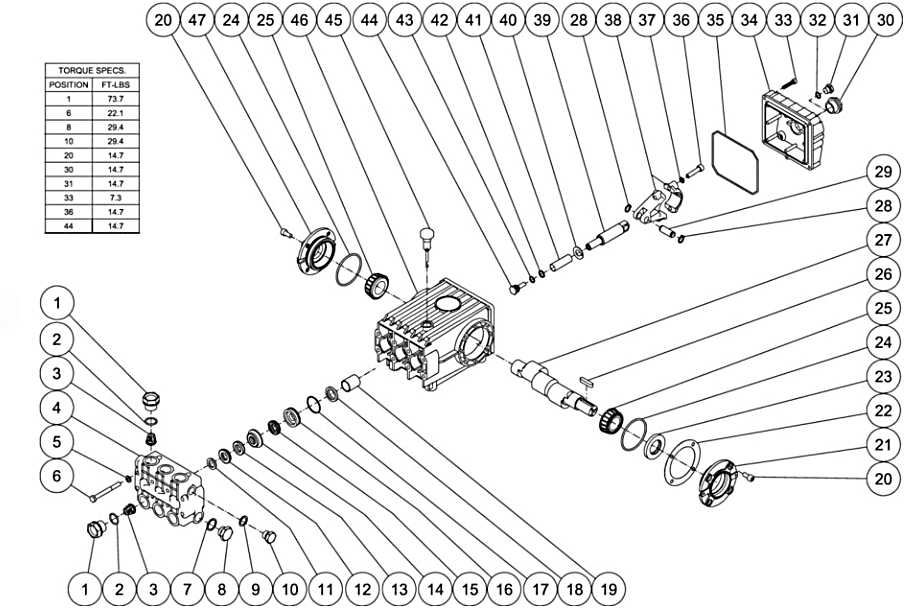

CW-4003, CW-4004 Pump Assembly Parts by MI-T-M

CW-4003, CW-4004 Pump Assembly Parts by MI-T-M

  • CW-4003, CW-4004 Pump Assembly Parts by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
46-0282 Cap Valve for MiTM Pressure Washers 460282
$148.46
4
46-0291 Manifold for MiTM Pressure Washers by MiTM 460291
$2,085.72
5
28-1039 Washer for MiTM Pressure Washers by MiTM 281039
$7.49
6
27-8185 Bolt for MiTM Pressure Washers by MiTM 278185
$17.55
7
28-1038 Washer for MiTM Pressure Washers by MiTM 281038
$15.93
8
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
9
28-1002 Washer for MiTM Pressure Washers by MiTM 281002
$14.01
11
70-0031 Head Ring (Inc. 3 Of 11) for MiTM Pressure Washers by MiTM 700031
$45.30
-
70-0031 Head Ring (Inc. 3 Of 11) for MiTM Pressure Washers by MiTM 700031
$45.30
12
46-0338 Packing (See Kit 70-0042 & 852-0064) for MiTM Pressure Washers by MiTM 460338
$75.44
13
46-0290 Long Life Ring (See Kit 70-0042 & 852-0064) for MiTM Pressure Washers by MiTM 460290
Call for Price call for price call for price
14
46-0289 Intermediate Ring (See Kit 70-0210) for MiTM Pressure Washers by MiTM 460289
$116.33
15
46-0287 V-Packing (See Kit 70-0072 & 852-0064) for MiTM Pressure Washers by MiTM 460287
$74.60
16
46-0286 Packing Retainer for MiTM Pressure Washers by MiTM 460286
$115.73
17
25-0015 O-Ring 1-3/8 X 1-1/2 for AC1-HE15-05M Air Compressor by Mi-T-M 250015
$1.99
18
26-0047 Seal Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260047
$11.20
19
9-0029 Bushing for AC1-HE15-05M Air Compressor by Mi-T-M 90029
$40.69
20
27-8431 Bolt for MiTM Air Compressors by MiTM 278431
$8.93
21
46-0296 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460296
$92.07
22
46-0113 Shim for AC1-HE15-05M Air Compressor by Mi-T-M 460113
$15.72
23
26-0049 Seal/Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260049
$30.95
24
25-0013 O-Ring 2-11/16 X 2-7/8 for AC1-HE15-05M Air Compressor by Mi-T-M 250013
$3.99
25
48-0012 Bearing Tapered Roller for AC1-HE15-05M Air Compressor by Mi-T-M 480012
$74.16
26
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
27
46-0050 Crankshaft for MiTM Pressure Washers by MiTM 460050
$927.36
28
46-0103 Retaining Ring for AC1-HE15-05M Air Compressor by Mi-T-M 460103
$5.99
29
43-0032 Pin/Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 430032
$27.27
30
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
32
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
34
46-0295 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460295
$130.91
35
25-0339 O-Ring for AC1-HE15-05M Air Compressor by Mi-T-M 250339
$12.01
36
27-8435 Bolt for MiTM Pressure Washers by MiTM 278435
$8.88
37
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
38
46-0051 Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 460051
$137.16
39
46-0294 Piston Guide for MiTM Pressure Washers by MiTM 460294
$171.81
40
46-0283 Slinger Washer for MiTM Pressure Washers by MiTM 460283
$17.43
41
46-0337 Ceramic Plunger for MiTM Pressure Washers by MiTM 460337
$316.49
42
25-0137 Ring Anti Extrusion M8X11 for MiTM Pressure Washers by MiTM 250137
$10.31
43
25-0138 O-Ring 7.66 X 1.78 for MiTM Pressure Washers by MiTM 250138
Call for Price call for price call for price
44
46-0285 Piston Screw for MiTM Pressure Washers by MiTM 460285
$68.25
45
46-0144 Dipstick 3-1/8Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460144
$27.70
46
46-0047 Crankcase for AC1-HE15-05M Air Compressor by Mi-T-M 460047
$625.54
47
46-0336 Crankcase Cover Closed for AC1-HE15-05M Air Compressor by Mi-T-M 460336
$89.33
-
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
-
70-0042 V-Packing (Inc. 3 Of 12, 13, 15) for MiTM Pressure Washers 700042
$566.60
-
70-0210 Intermediate Retainer (Inc. 3 Of 14) for MiTM Pressure Washers by MiTM 700210
$212.93
-
852-0064 V-Packing Assy (Inc. 3 Of 11, 12, 13, 15, 17) for MiTM Pressure Washers by MiTM 8520064
$400.23
2
25-0012 O-Ring 20.69 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250012
$1.99
10
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
31
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
33
27-8404 Hshcs M6-1.0P X 30Mm for MI-T-M 3004-0ME1 CW Series by MiTM 278404
$7.51
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

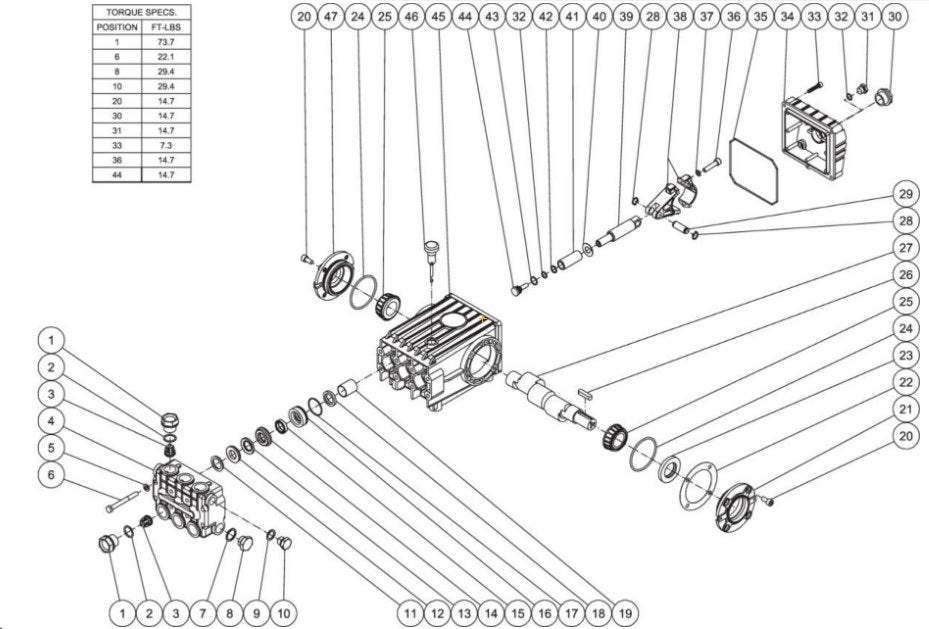

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
