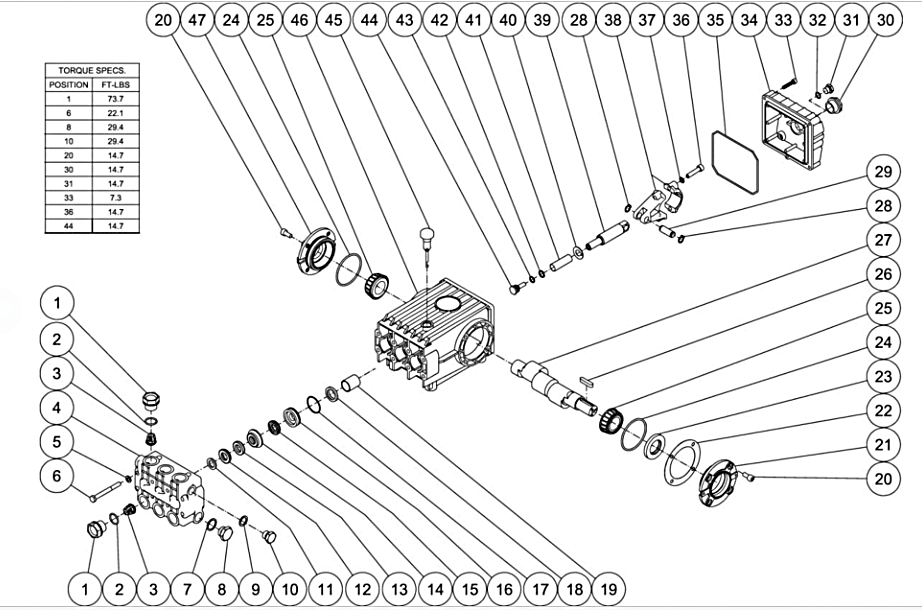

CW-4004-5MGH, CW-4004-5MV0 Pump Assembly Parts by MI-T-M

CW-4004-5MGH, CW-4004-5MV0 Pump Assembly Parts by MI-T-M

  • CW-4004-5MGH, CW-4004-5MV0 Pump Assembly Parts by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
25-0012 O-Ring 20.69 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250012 25-0012 O-Ring 20.69 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250012
$1.99
4
46-0291 Manifold for MiTM Pressure Washers by MiTM 460291 46-0291 Manifold for MiTM Pressure Washers by MiTM 460291
$2,085.72
5
28-1039 Washer for MiTM Pressure Washers by MiTM 281039 28-1039 Washer for MiTM Pressure Washers by MiTM 281039
$7.49
6
27-8185 Bolt for MiTM Pressure Washers by MiTM 278185 27-8185 Bolt for MiTM Pressure Washers by MiTM 278185
$17.55
7
28-1038 Washer for MiTM Pressure Washers by MiTM 281038 28-1038 Washer for MiTM Pressure Washers by MiTM 281038
$15.93
8
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019 39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
9
28-1002 Washer for MiTM Pressure Washers by MiTM 281002 28-1002 Washer for MiTM Pressure Washers by MiTM 281002
$14.01
10
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018 39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
12
46-0338 Packing (See Kit 70-0042 & 852-0064) for MiTM Pressure Washers by MiTM 460338 46-0338 Packing (See Kit 70-0042 & 852-0064) for MiTM Pressure Washers by MiTM 460338
$75.44
13
46-0290 Long Life Ring (See Kit 70-0042 & 852-0064) for MiTM Pressure Washers by MiTM 460290 46-0290 Long Life Ring (See Kit 70-0042 & 852-0064) for MiTM Pressure Washers by MiTM 460290
Call for Price call for price call for price
14
46-0289 Intermediate Ring (See Kit 70-0210) for MiTM Pressure Washers by MiTM 460289 46-0289 Intermediate Ring (See Kit 70-0210) for MiTM Pressure Washers by MiTM 460289
$116.33
15
46-0287 V-Packing (See Kit 70-0072 & 852-0064) for MiTM Pressure Washers by MiTM 460287 46-0287 V-Packing (See Kit 70-0072 & 852-0064) for MiTM Pressure Washers by MiTM 460287
$74.60
16
46-0286 Packing Retainer for MiTM Pressure Washers by MiTM 460286 46-0286 Packing Retainer for MiTM Pressure Washers by MiTM 460286
$115.73
17
25-0015 O-Ring (See Kit 70-0434) for MiTM Pressure Washers 250015 25-0015 O-Ring (See Kit 70-0434) for MiTM Pressure Washers 250015
$4.55
18
26-0047 Seal Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260047 26-0047 Seal Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260047
$11.20
19
9-0029 Bushing for AC1-HE15-05M Air Compressor by Mi-T-M 90029 9-0029 Bushing for AC1-HE15-05M Air Compressor by Mi-T-M 90029
$40.69
20
27-8431 Bolt for MiTM Air Compressors by MiTM 278431 27-8431 Bolt for MiTM Air Compressors by MiTM 278431
$8.93
21
46-0296 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460296 46-0296 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460296
$92.07
22
46-0113 Shim for AC1-HE15-05M Air Compressor by Mi-T-M 460113 46-0113 Shim for AC1-HE15-05M Air Compressor by Mi-T-M 460113
$15.72
23
26-0049 Seal/Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260049 26-0049 Seal/Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260049
$30.95
24
25-0013 O-Ring 2-11/16 X 2-7/8 for AC1-HE15-05M Air Compressor by Mi-T-M 250013 25-0013 O-Ring 2-11/16 X 2-7/8 for AC1-HE15-05M Air Compressor by Mi-T-M 250013
$3.99
25
48-0012 Bearing Tapered Roller for AC1-HE15-05M Air Compressor by Mi-T-M 480012 48-0012 Bearing Tapered Roller for AC1-HE15-05M Air Compressor by Mi-T-M 480012
$74.16
26
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048 43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
27
46-0050 Crankshaft for MiTM Pressure Washers by MiTM 460050 46-0050 Crankshaft for MiTM Pressure Washers by MiTM 460050
$927.36
28
46-0103 Retaining Ring for AC1-HE15-05M Air Compressor by Mi-T-M 460103 46-0103 Retaining Ring for AC1-HE15-05M Air Compressor by Mi-T-M 460103
$5.99
29
43-0032 Pin/Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 430032 43-0032 Pin/Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 430032
$27.27
30
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114 46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
31
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017 39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
32
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014 25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
33
27-8404 Hshcs M6-1.0P X 30Mm for MI-T-M 3004-0ME1 CW Series by MiTM 278404 27-8404 Hshcs M6-1.0P X 30Mm for MI-T-M 3004-0ME1 CW Series by MiTM 278404
$7.51
34
46-0295 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460295 46-0295 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460295
$130.91
35
25-0339 O-Ring for AC1-HE15-05M Air Compressor by Mi-T-M 250339 25-0339 O-Ring for AC1-HE15-05M Air Compressor by Mi-T-M 250339
$12.01
36
27-8435 Bolt for MiTM Pressure Washers by MiTM 278435 27-8435 Bolt for MiTM Pressure Washers by MiTM 278435
$8.88
37
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154 29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
38
46-0051 Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 460051 46-0051 Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 460051
$137.16
39
46-0294 Piston Guide for MiTM Pressure Washers by MiTM 460294 46-0294 Piston Guide for MiTM Pressure Washers by MiTM 460294
$171.81
40
46-0283 Slinger Washer for MiTM Pressure Washers by MiTM 460283 46-0283 Slinger Washer for MiTM Pressure Washers by MiTM 460283
$17.43
41
46-0337 Ceramic Plunger for MiTM Pressure Washers by MiTM 460337 46-0337 Ceramic Plunger for MiTM Pressure Washers by MiTM 460337
$316.49
42
25-0137 Ring Anti Extrusion M8X11 for MiTM Pressure Washers by MiTM 250137 25-0137 Ring Anti Extrusion M8X11 for MiTM Pressure Washers by MiTM 250137
$10.31
43
25-0138 O-Ring 7.66 X 1.78 for MiTM Pressure Washers by MiTM 250138 25-0138 O-Ring 7.66 X 1.78 for MiTM Pressure Washers by MiTM 250138
Call for Price call for price call for price
44
46-0285 Piston Screw for MiTM Pressure Washers by MiTM 460285 46-0285 Piston Screw for MiTM Pressure Washers by MiTM 460285
$68.25
45
46-0144 Dipstick 3-1/8Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460144 46-0144 Dipstick 3-1/8Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460144
$27.70
46
46-0047 Crankcase for AC1-HE15-05M Air Compressor by Mi-T-M 460047 46-0047 Crankcase for AC1-HE15-05M Air Compressor by Mi-T-M 460047
$625.54
47
46-0336 Crankcase Cover Closed for AC1-HE15-05M Air Compressor by Mi-T-M 460336 46-0336 Crankcase Cover Closed for AC1-HE15-05M Air Compressor by Mi-T-M 460336
$89.33
-
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009 70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
-
70-0745 Cap Valve (Inc. 6 Of 1) for MiTM Pressure Washers by MiTM 700745 70-0745 Cap Valve (Inc. 6 Of 1) for MiTM Pressure Washers by MiTM 700745
$409.86
-
70-0031 Head Ring (Inc. 3 Of 11) for MiTM Pressure Washers by MiTM 700031 70-0031 Head Ring (Inc. 3 Of 11) for MiTM Pressure Washers by MiTM 700031
$45.30
-
70-0042 V-Packing (Inc. 3 Of 12, 13, 15) for MiTM Pressure Washers 700042 70-0042 V-Packing (Inc. 3 Of 12, 13, 15) for MiTM Pressure Washers 700042
$566.60
-
70-0210 Intermediate Retainer (Inc. 3 Of 14) for MiTM Pressure Washers by MiTM 700210 70-0210 Intermediate Retainer (Inc. 3 Of 14) for MiTM Pressure Washers by MiTM 700210
$212.93
-
852-0064 V-Packing Assy (Inc. 3 Of 11, 12, 13, 15, 17) for MiTM Pressure Washers by MiTM 8520064 852-0064 V-Packing Assy (Inc. 3 Of 11, 12, 13, 15, 17) for MiTM Pressure Washers by MiTM 8520064
$400.23
