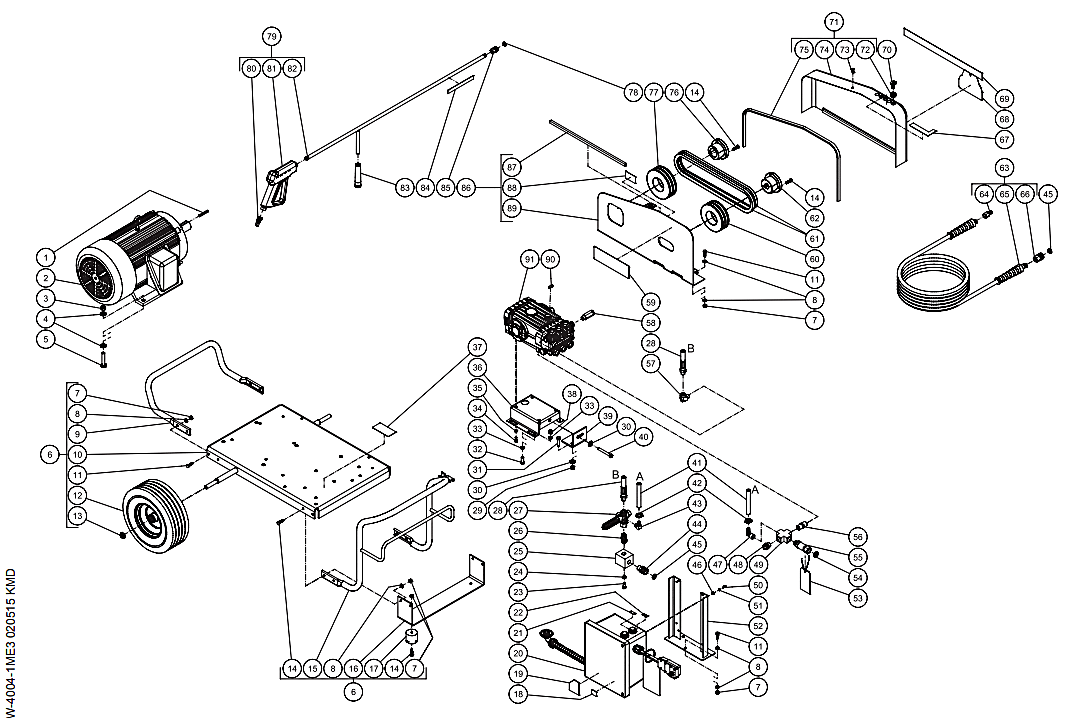

CW-4004-1ME3 (sn:0-99999999) Frame Assembly Parts By Mi-T-M

CW-4004-1ME3 (sn:0-99999999) Frame Assembly Parts By Mi-T-M

  • CW-4004-1ME3 (sn:0-99999999) Frame Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078 43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
2
2-0018 Motor- 15 H.P. for MiTM Pressure Washers 20018 2-0018 Motor- 15 H.P. for MiTM Pressure Washers 20018
$6,055.98
3
30-0163 LOCKNUT BY MITM 30-0163 LOCKNUT BY MITM
$2.55
4
28-0006 Washer for MiTM Pressure Washers by MiTM 280006 28-0006 Washer for MiTM Pressure Washers by MiTM 280006
$4.49
5
851-0333 Base Plate Assembly (Inc. 3-13) for MiTM Pressure Washers 8510333 851-0333 Base Plate Assembly (Inc. 3-13) for MiTM Pressure Washers 8510333
$1,176.74
7
30-0157 Locknut for MiTM Pressure Washers 300157 30-0157 Locknut for MiTM Pressure Washers 300157
$5.93
8
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003 28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
9
7-0105A01 Rear Handle for MiTM Pressure Washers 70105A01 7-0105A01 Rear Handle for MiTM Pressure Washers 70105A01
$131.61
11
27-0067 Bolt for MiTM Pressure Washers 270067 27-0067 Bolt for MiTM Pressure Washers 270067
$5.93
12
14-0150 Wheel-13" White-Super Duty for AC1-HE02-05M by Mi-T-M 140150 14-0150 Wheel-13" White-Super Duty for AC1-HE02-05M by Mi-T-M 140150
Call for Price call for price call for price
13
30-0117 Nut for MiTM Air Compressors by MiTM 300117 30-0117 Nut for MiTM Air Compressors by MiTM 300117
$4.43
14
27-0068 Bolt for MiTM Pressure Washers by MiTM 270068 27-0068 Bolt for MiTM Pressure Washers by MiTM 270068
$4.49
15
7-0102A01 Front Handle for MiTM Pressure Washers 70102A01 7-0102A01 Front Handle for MiTM Pressure Washers 70102A01
$329.57
16
13-0015A01 Bracket for MiTM Pressure Washers 130015A01 13-0015A01 Bracket for MiTM Pressure Washers 130015A01
$140.39
17
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008 14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
23
27-0116 Bolt for MiTM Pressure Washers 270116 27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
24
29-0008 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290008 29-0008 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290008
$1.99
25
51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012 51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012
$21.03
26
24-0024 Nipple 1/2Mpx3/8Mp Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240024 24-0024 Nipple 1/2Mpx3/8Mp Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240024
$12.52
27
8-0634 Unloader for MiTM Pressure Washers 80634 8-0634 Unloader for MiTM Pressure Washers 80634
$276.21
28
15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194 15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194
$30.64
29
30-0159 LOCKNUT BY MITM 30-0159 LOCKNUT BY MITM
$0.68
30
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
31
27-0119 Bolt for MiTM Pressure Washers 270119 27-0119 Bolt for MiTM Pressure Washers 270119
$5.93
32
27-0166 Bolt for MiTM Pressure Washers 270166 27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
33
28-0030 Washer for MiTM Pressure Washers 280030 28-0030 Washer for MiTM Pressure Washers 280030
$7.65
34
27-8042 BOLT-WITH PUMP BY MITM 27-8042 BOLT-WITH PUMP BY MITM
$2.55
35
29-0054 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290054 29-0054 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290054
$1.99
36
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01 5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
38
30-0161 Locknut for MiTM Pressure Washers 300161 30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
39
13-0003A01 Bracket for MiTM Pressure Washers 130003A01 13-0003A01 Bracket for MiTM Pressure Washers 130003A01
$60.93
40
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576 27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
41
15-0007 HOSE *(TWO FEET REQUIRED) BY MITM 15-0007 HOSE *(TWO FEET REQUIRED) BY MITM
$3.51
42
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011 42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
43
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050 23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
44
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029 17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
45
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123 25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
46
28-0001 Washer for MiTM Pressure Washers 280001 28-0001 Washer for MiTM Pressure Washers 280001
$5.93
47
23-0418 Elbow 1/2 Mnpt X 1/2 Barb for Mi-T-M CA-2703-8MRB by MiTM 230418 23-0418 Elbow 1/2 Mnpt X 1/2 Barb for Mi-T-M CA-2703-8MRB by MiTM 230418
$15.76
48
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005 22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
49
23-0071 Cross 1/2" All F Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230071 23-0071 Cross 1/2" All F Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230071
$43.47
51
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009 28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
52
13-0227A01 Bracket-Electric Box-Black for MiTM Pressure Washers 130227A01 13-0227A01 Bracket-Electric Box-Black for MiTM Pressure Washers 130227A01
$144.48
53
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097 34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
54
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001 26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
55
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206 19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
56
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012 23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
57
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105 24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
58
16-0319 Protector/Nozzle for AC1-PV06-20M (AFTER S/N 20005189) Air Compressor by Mi-T-M 160319 16-0319 Protector/Nozzle for AC1-PV06-20M (AFTER S/N 20005189) Air Compressor by Mi-T-M 160319
$22.37
60
10-0108 Sheave for MiTM Pressure Washers 100108 10-0108 Sheave for MiTM Pressure Washers 100108
$455.36
61
11-0047 Belt for MiTM Pressure Washers 110047 11-0047 Belt for MiTM Pressure Washers 110047
$117.12
62
9-0073 Bushing for MiTM Pressure Washers 90073 9-0073 Bushing for MiTM Pressure Washers 90073
$145.31
63
851-0006 Hose 3/8X50' 4500Psi R2 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 8510006 851-0006 Hose 3/8X50' 4500Psi R2 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 8510006
$263.34
64
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006 17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
65
15-0004 Hose 3/8X50' 4500Psi R2 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150004 15-0004 Hose 3/8X50' 4500Psi R2 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150004
$203.08
66
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004 17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
68
34-2169 Decal - Mi-T-M for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 342169 34-2169 Decal - Mi-T-M for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 342169
$1.99
69
34-2586 Decal - Mi-T-M Stripe (See 71-1039) for MiTM Pressure Washers 342586 34-2586 Decal - Mi-T-M Stripe (See 71-1039) for MiTM Pressure Washers 342586
Call for Price call for price call for price
70
18-0397 Nozzle 00040 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180397 18-0397 Nozzle 00040 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180397
$7.95
70
18-0399 Nozzle 15040 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180399 18-0399 Nozzle 15040 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180399
$7.95
70
18-0400 Nozzle 25040 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180400 18-0400 Nozzle 25040 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180400
$7.95
70
18-0401 Nozzle 40040 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180401 18-0401 Nozzle 40040 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180401
$7.95
71
850-0242 Beltguard Cover Assy for AC1-PH65-08M Air Compressor by Mi-T-M 8500242 850-0242 Beltguard Cover Assy for AC1-PH65-08M Air Compressor by Mi-T-M 8500242
$107.97
72
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001 33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
73
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197 33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
75
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020 33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
76
9-0072 Bushing for MiTM Pressure Washers 90072 9-0072 Bushing for MiTM Pressure Washers 90072
$145.31
77
10-0106 Sheave for MiTM Pressure Washers 100106 10-0106 Sheave for MiTM Pressure Washers 100106
$461.24
78
25-0122 O-Ring (Replacement Only) for MiTM Pressure Washers 250122 25-0122 O-Ring (Replacement Only) for MiTM Pressure Washers 250122
$4.68
79
851-0371 Gun/Black Wand Grip W/Qc for AM1-PH65-20M Air Compressor by Mi-T-M 8510371 851-0371 Gun/Black Wand Grip W/Qc for AM1-PH65-20M Air Compressor by Mi-T-M 8510371
$196.02
80
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005 17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
81
16-0001 Trigger Gun 5000 Psi for AC1-HE02-05M by Mi-T-M 160001 16-0001 Trigger Gun 5000 Psi for AC1-HE02-05M by Mi-T-M 160001
$63.36
82
16-0439 Wand-45 W/Handle Chrome for MiTM Pressure Washers by MiTM 160439 16-0439 Wand-45 W/Handle Chrome for MiTM Pressure Washers by MiTM 160439
$60.63
83
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002 7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
85
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001 17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
86
851-0335 Beltguard Back Assy - Electric for MiTM Pressure Washers 8510335 851-0335 Beltguard Back Assy - Electric for MiTM Pressure Washers 8510335
$266.09
87
33-0020 Edging 1" for AC1-HE15-05M Air Compressor by Mi-T-M 330020 33-0020 Edging 1" for AC1-HE15-05M Air Compressor by Mi-T-M 330020
Call for Price call for price call for price
90
43-0028 Key 25 X 8 X 7 for AC1-HE15-04M Air Compressor by Mi-T-M 430028 43-0028 Key 25 X 8 X 7 for AC1-HE15-04M Air Compressor by Mi-T-M 430028
$12.31
91
3-0075 PUMP BY MITM 3-0075 PUMP BY MITM
$1,804.28
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
