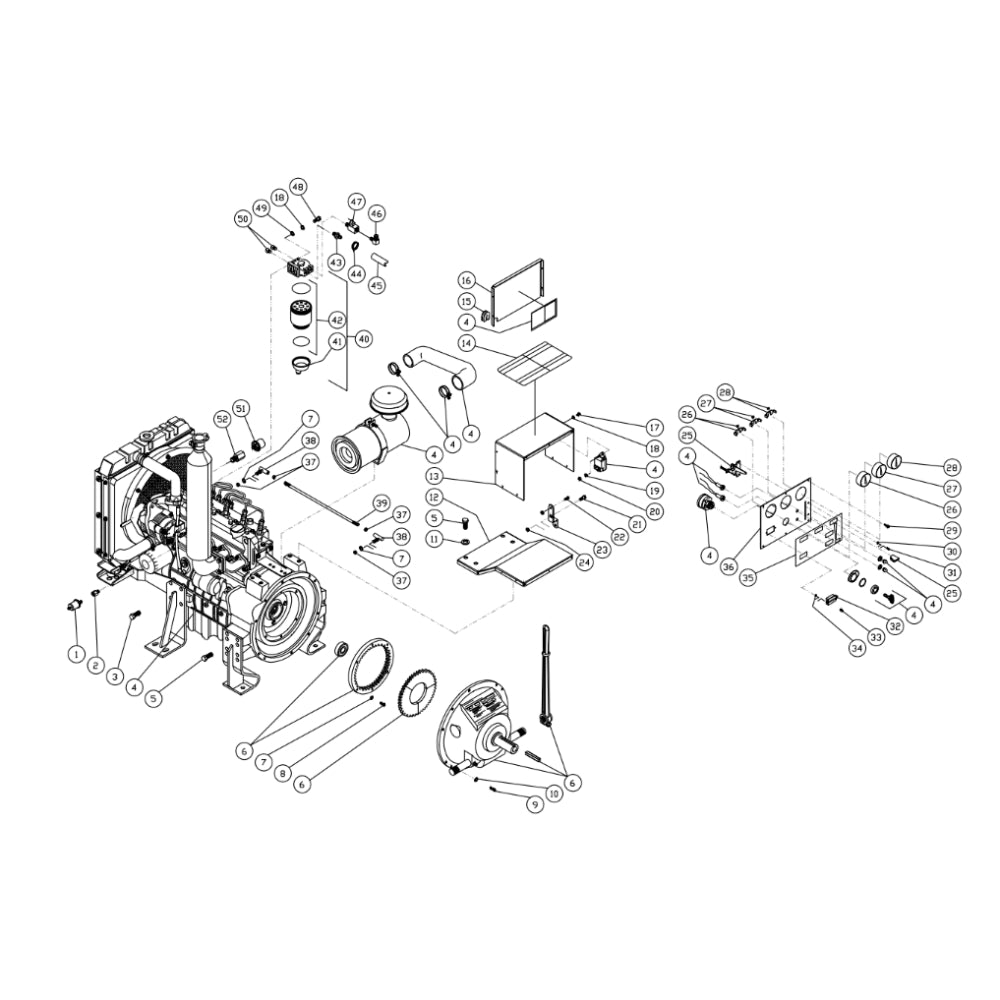

CW-6106-2MDK (sn:0-99999999) Engine Assembly Parts by MI-T-M

CW-6106-2MDK (sn:0-99999999) Engine Assembly Parts by MI-T-M

  • CW-6106-2MDK (sn:0-99999999) Engine Assembly Parts by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
22-0102 Oil Pressure Sensor for MiTM Pressure Washers 220102
$265.95
2
24-0134 Hex Nipple for AC1-PE02-08M Air Compressor by Mi-T-M 240134
$9.61
3
1-0096 Engine Kubota Diesel 29Hp Cont for MiTM Pressure Washers 10096
$36,725.09
4
28-0006 Washer for MiTM Pressure Washers by MiTM 280006
$4.49
5
27-0216 Bolt for MiTM Pressure Washers 270216
$7.65
6
13-0116A01 Control Box Bracket for MiTM Pressure Washers 130116A01
$191.55
7
20-0393A01 Control Box- Front for MiTM Pressure Washers 200393A01
$123.38
8
34-0739 Decal- Warning/Caution/Operating for MiTM Pressure Washers 340739
Call for Price call for price call for price
10
20-0394A01 Control Box- Rear for MiTM Pressure Washers 200394A01
$102.36
11
27-0016 Bolt for MiTM Pressure Washers 270016
$5.93
12
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
13
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
15
27-8883 Stripper Bolt for MiTM Pressure Washers 278883
$25.50
16
33-0109 Connector Throttle Cable for AC1-PE02-20M1 Air Compressor by Mi-T-M 330109
$24.66
17
20-0396A01 Throttle Linkage for MiTM Pressure Washers 200396A01
$65.78
18
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
19
33-0274 Throttle Control for MiTM Pressure Washers 330274
$216.99
20
22-0100 Ammeter for AC1-PE02-20M1 Air Compressor by Mi-T-M 220100
$97.73
21
22-0101 Gauge Oil Pressure for AC1-PE02-20M1 Air Compressor by Mi-T-M 220101
$101.04
22
22-0103 Gauge Water Temperature for AC1-PE02-20M1 Air Compressor by Mi-T-M 220103
$136.95
23
27-3062 Screw for MiTM Pressure Washers 273062
$5.93
24
30-0154 Locknut for MiTM Pressure Washers 300154
$5.93
25
27-2930 Screw for MiTM Pressure Washers 272930
$7.65
26
32-0431 Hourmeter-Ac/Dc for AC1-PE15-08M Air Compressor by Mi-T-M 320431
$112.99
27
27-2048 Screw for MiTM Pressure Washers 272048
Call for Price call for price call for price
28
30-0152 Locknut for MiTM Pressure Washers 300152
$7.65
29
34-0740 Decal- Control Panel for MiTM Pressure Washers 340740
Call for Price call for price call for price
30
20-0395A01 Control Panel Box for MiTM Pressure Washers 200395A01
$116.01
31
30-0005 Nut for MiTM Pressure Washers 300005
Call for Price call for price call for price
33
33-0256 Throttle Ball Joint for MiTM Pressure Washers 330256
$140.00
34
20-0397A01 Throttle Rod for MiTM Pressure Washers 200397A01
$109.17
35
19-0049 Fuel Water Seperator (Includes 41-42) for MiTM Pressure Washers 190049
$527.63
36
19-0071 Bowl For Fuel Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190071
$124.62
37
19-0053 Filter Element for AC1-PE02-08M Air Compressor by Mi-T-M 190053
$67.87
38
23-0299 1/4 Mnpt X 5/16 Hose Barb for AC1-PE02-20M Air Compressor by Mi-T-M 230299
$6.96
39
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
40
15-0031 Hose 5/16 Fuel Line Diesel for AC1-PE02-08M Air Compressor by Mi-T-M 150031
$6.48
41
23-0300 Elbow for MiTM Pressure Washers 230300
$49.98
42
22-0219 Shut Off Valve for MiTM Pressure Washers 220219
$70.91
43
27-8002 Bolt for MiTM Pressure Washers 278002
$7.65
44
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
45
23-0238 Plug-Square Head 1/4 Brass for AC1-PR07-20M Air Compressor by Mi-T-M 230238
$10.73
46
22-0104 Sensor Water Temperature for AC1-PE02-08M Air Compressor by Mi-T-M 220104
$36.57
9
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
14
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
32
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
47
24-0048 Reducer 1/2F X 3/8M Hex-Steel for AC1-HE02-05M1 Air Compressor by Mi-T-M 240048
$13.29
