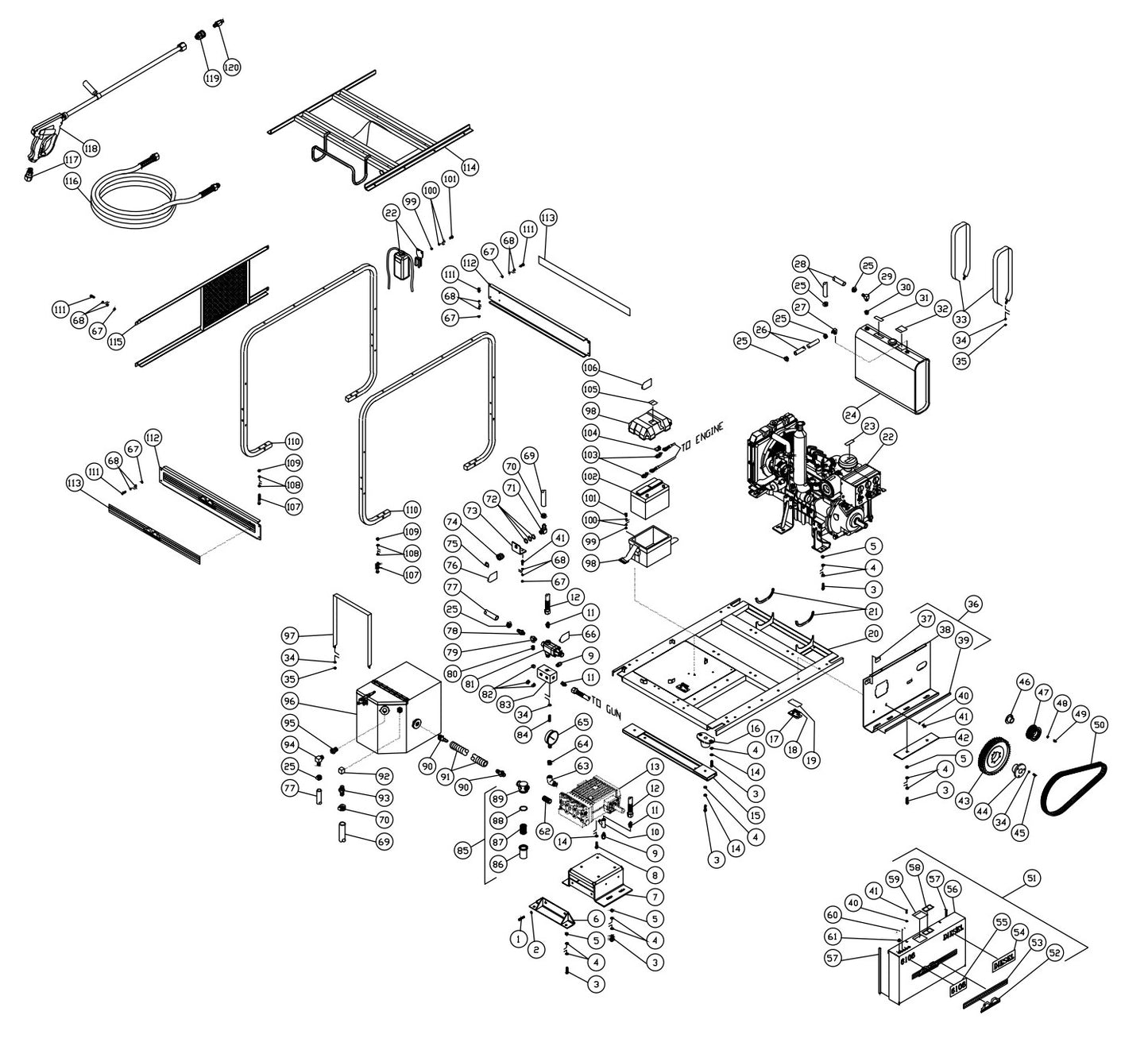

CW-6106-2MDK (sn:0-99999999) Frame Assembly by MI-T-M

CW-6106-2MDK (sn:0-99999999) Frame Assembly by MI-T-M

  • CW-6106-2MDK (sn:0-99999999) Frame Assembly by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-8478 Bolt for MiTM Pressure Washers 278478
$8.33
2
29-0009 Lockwasher for MiTM Pressure Washers 290009
$7.65
3
27-0218 Bolt for MiTM Pressure Washers 270218
$7.65
4
28-0006 Washer for MiTM Pressure Washers by MiTM 280006
$4.49
5
30-0163 Locknut for MiTM Pressure Washers 300163
$7.65
6
13-0115A01 Angle Bracket for MiTM Pressure Washers 130115A01
$220.14
7
5-0127A01 Pump Mount Bracket for MiTM Pressure Washers 50127A01
$467.09
8
27-8301 Bolt for MiTM Pressure Washers 278301
$15.30
10
24-0144 Branch Tee for MiTM Pressure Washers 240144
$117.32
11
24-0054 Connector for MiTM Pressure Washers 240054
$18.87
12
15-0132 High Pressure Hose for MiTM Pressure Washers 150132
Call for Price call for price call for price
13
3-0048 Pump for MiTM Pressure Washers 30048
$21,677.67
14
29-0010 Lockwasher for MiTM Pressure Washers by MiTM 290010
$7.49
15
20-0391A01 Frame Support for MiTM Pressure Washers 200391A01
$463.85
16
14-0024 Isolator 2" Od X 1.91 for AM2-PR09-30M Air Compressor by Mi-T-M 140024
$11.76
9
22-0217 Safety Relief / Burst Disc for MiTM Pressure Washers 220217
$1,681.62
20
5-0126A01 Frame Assembly for MiTM Pressure Washers 50126A01
Call for Price call for price call for price
22
851-0287 Engine- 37.5 H.P. Kubota for MiTM Pressure Washers 8510287
Call for Price call for price call for price
23
34-0141 Decal-Do Not Use Ether for MiTM Pressure Washers 340141
Call for Price call for price call for price
24
12-0053A01 Fuel Tank 9.8 Gallons for MiTM Pressure Washers 120053A01
$807.89
25
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
26
15-0008 Hose Fuel 1/4" Low Perm for AC1-HE15-05M Air Compressor by Mi-T-M 150008
Call for Price call for price call for price
27
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054
$11.28
28
15-0031 Hose 5/16 Fuel Line Diesel for AC1-PE02-08M Air Compressor by Mi-T-M 150031
$6.48
29
23-0300 Elbow for MiTM Pressure Washers 230300
$49.98
30
23-0017 Bushing 1/4F X 3/8M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230017
$5.99
31
34-0089 Decal- Caution: Diesel Fuel Only for MiTM Pressure Washers 340089
Call for Price call for price call for price
32
34-0284 Decal-Caution: Risk Of Fire for MiTM Pressure Washers 340284
Call for Price call for price call for price
33
20-0400A01 Fuel Tank Strap for MiTM Pressure Washers 200400A01
$299.42
35
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
36
851-0289 Beltguard Back Assembly (Inc. 37-39) for MiTM Pressure Washers 8510289
$412.50
42
20-0392A01 Beltguard Spacer for MiTM Pressure Washers 200392A01
$86.85
43
10-0079 Pump Sprocket for MiTM Pressure Washers 100079
$1,679.70
44
9-0039 Pump Bushing for MiTM Pressure Washers 90039
Call for Price call for price call for price
45
27-0138 Bolt for MiTM Pressure Washers 270138
$7.65
46
9-0063 Pump Bushing for MiTM Pressure Washers 90063
$131.93
47
10-0078 Pump Sprocket for MiTM Pressure Washers 100078
$780.57
48
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
49
27-0037 Bolt for MiTM Pressure Washers 270037
$7.65
50
11-0038 Belt for MiTM Pressure Washers 110038
$738.99
51
851-0290 Beltguard Cover Assembly (Inc. 52-61) for MiTM Pressure Washers 8510290
Call for Price call for price call for price
52
62-0087 Plastic Mi-T-M Small Logo/Gold for AC1-PE15-08M Air Compressor by Mi-T-M 620087
$10.72
53
34-0501 Decal- Mi-T-M Stripe for MiTM Pressure Washers 340501
Call for Price call for price call for price
54
34-0046 Decal- Die Cut Diesel for MiTM Pressure Washers 340046
Call for Price call for price call for price
55
34-0296 Decal- Die Cut 6106 for MiTM Pressure Washers 340296
Call for Price call for price call for price
58
34-0130 Decal- Warning: Muffler Hot for MiTM Pressure Washers 340130
$5.93
59
34-0546 Decal- Caution: Risk Of Injection for MiTM Pressure Washers 340546
Call for Price call for price call for price
60
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
62
23-0092 Nipple for MiTM Pressure Washers 230092
$67.17
63
24-0006 Elbow for MiTM Pressure Washers 240006
$52.50
64
24-0053 Reducer for MiTM Pressure Washers 240053
$21.57
65
22-0079 Gauge for MiTM Pressure Washers 220079
$186.60
66
34-0099 Tag- Preset Unloader for MiTM Pressure Washers 340099
Call for Price call for price call for price
67
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
68
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
69
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
70
42-0018 Hose Clamp for MiTM Pressure Washers 420018
$25.50
71
23-0037 Elbow 1/2M X 3/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230037
$41.29
72
28-0051 Washer for MiTM Pressure Washers 280051
$20.40
73
13-0117A01 Bracket for MiTM Pressure Washers 130117A01
$65.78
75
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
76
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
79
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
81
8-0436 Unloader for MiTM Pressure Washers 80436
$2,504.79
83
51-0014 Unloader Block for MiTM Pressure Washers 510014
$380.79
85
19-0035 Strainer Complete (Inc. 86-89) for MiTM Pressure Washers 190035
$283.71
86
19-0046 Strainer Bowl for MiTM Pressure Washers 190046
$191.66
87
19-0037 Strainer Screen for MiTM Pressure Washers 190037
$79.23
88
19-0048 Strainer Gasket for MiTM Pressure Washers 190048
$16.08
89
19-0047 Strainer Cap for MiTM Pressure Washers 190047
Call for Price call for price call for price
90
23-0091 Hose Barb for MiTM Pressure Washers 230091
$62.40
91
15-0172 Hose *(Two Feet Required) for MiTM Pressure Washers 150172
$53.91
92
23-0391 Elbow 3/4Fx3/4F 90 Cast Brass for AC1-PE02-20M Air Compressor by Mi-T-M 230391
$32.40
93
23-0023 Bushing 3/4M X 1/2F Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230023
$12.75
94
23-0036 Barb 1/2Mp X 3/4 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230036
$14.53
95
23-0053 Elbow 1/2Mx1/2 Barb Nspm 90 Br for AC1-HE15-05M Air Compressor by Mi-T-M 230053
$46.93
96
851-0288 Float Tank Assembly for MiTM Pressure Washers 8510288
$1,678.23
97
20-0401A01 Float Tank Strap for MiTM Pressure Washers 200401A01
$403.28
98
33-0093 Battery Box-22F 13X9X10-3/4H for AC1-PE02-08M Air Compressor by Mi-T-M 330093
$25.87
100
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
101
27-0016 Bolt for MiTM Pressure Washers 270016
$5.93
102
32-0177 Battery for MiTM Pressure Washers 320177
$673.25
103
32-0066 Ends Marine Battery for AC1-PE02-20M1 Air Compressor by Mi-T-M 320066
$17.99
104
33-0036 Terminal Cover for MiTM Pressure Washers 330036
$63.17
105
34-0589 Decal-Caution: Battery Terminal for MiTM Pressure Washers 340589
$15.30
106
34-0096 Tag- Battery for MiTM Pressure Washers 340096
Call for Price call for price call for price
107
27-0171 Bolt for MiTM Pressure Washers 270171
$7.65
108
28-0005 Washer for MiTM Pressure Washers by MiTM 280005
$4.49
109
30-0161 Locknut for MiTM Pressure Washers by MiTM 300161
$4.49
110
20-0398A01 Side Rail for MiTM Pressure Washers 200398A01
$874.56
111
27-0071 Bolt for MiTM Pressure Washers 270071
$5.93
112
20-0402A01 Rail Support for MiTM Pressure Washers 200402A01
$298.07
113
34-0725 Decal-Mi-T-M Stripe for MiTM Pressure Washers 340725
Call for Price call for price call for price
114
20-0399A01 Lifting Hook for MiTM Pressure Washers 200399A01
$808.67
115
12-0063 Anitfreeze Recovery Tank for MiTM Pressure Washers 120063
$233.37
116
6-0072A01 Radiator Guard for MiTM Pressure Washers 60072A01
Call for Price call for price call for price
117
24-0115 Connector for MiTM Pressure Washers 240115
$53.07
118
15-0131 High Pressure Hose for MiTM Pressure Washers 150131
$1,293.30
119
16-0107 Gun W/Lance for MiTM Pressure Washers 160107
$3,118.70
120
17-0020 Quick Connect Socket for MiTM Pressure Washers 170020
Call for Price call for price call for price
121
851-0039 Spray Nozzle- 0005 for MiTM Pressure Washers 8510039
Call for Price call for price call for price
121
851-0042 Spray Nozzle- 1505 for MiTM Pressure Washers 8510042
Call for Price call for price call for price
121
851-0040 Spray Nozzle- 2505 for MiTM Pressure Washers 8510040
Call for Price call for price call for price
121
851-0017 Spray Nozzle- 4004 for MiTM Pressure Washers 8510017
Call for Price call for price call for price
21
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
39
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
57
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
34
29-0008 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290008
$1.99
37
34-0575 Decal - Beltguard In Place (See 71-0086) for ABS Air Compressor by Mi-T-M 340575
Call for Price call for price call for price
40
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
41
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
61
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
74
23-0001 Garden Hose-Swiv 1/2Fx3/4F-Br for AC1-HE02-05M by Mi-T-M 230001
$13.87
77
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
78
23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045
$11.46
80
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
82
39-0016 Plug 1/2" Zinc for AC1-HE02-05M by Mi-T-M 390016
$5.99
84
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
99
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
