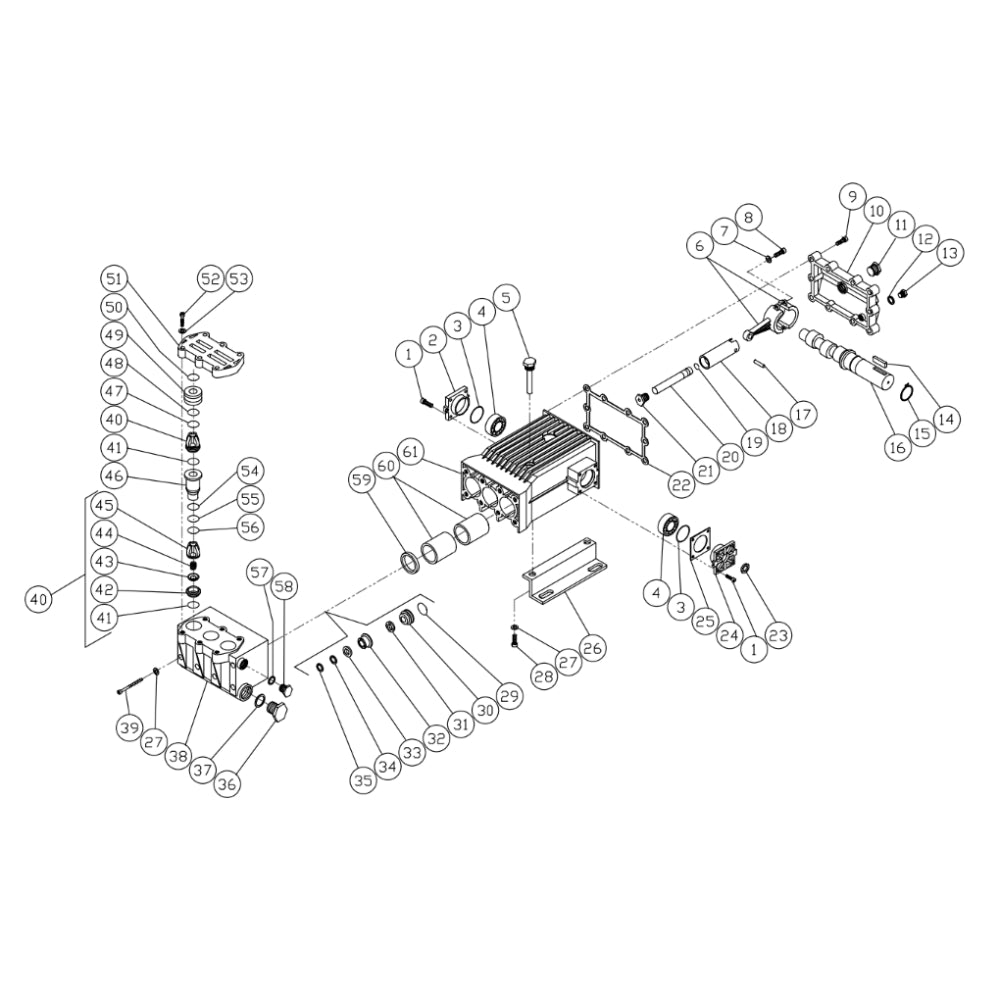

CW-6106-2MDK (sn:0-99999999) Pump Assembly Parts by MI-T-M

CW-6106-2MDK (sn:0-99999999) Pump Assembly Parts by MI-T-M

  • CW-6106-2MDK (sn:0-99999999) Pump Assembly Parts by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-8461 Bolt for MiTM Pressure Washers 278461
$30.60
2
46-0172 Cover-Crankcase for MiTM Pressure Washers 460172
$114.60
3
25-0062 O-Ring for MiTM Pressure Washers 250062
$4.41
4
48-0020 Bearing for MiTM Pressure Washers 480020
$357.98
5
46-0174 Dipstick for MiTM Pressure Washers 460174
$109.17
6
46-0178 Connecting Rods for MiTM Pressure Washers 460178
$668.64
7
29-0155 Lockwasher for MiTM Pressure Washers 290155
$7.49
8
27-8466 Bolt for MiTM Pressure Washers 278466
$20.40
9
27-8403 Bolt for MiTM Pressure Washers 278403
$17.82
10
46-0391 Cover-Crankcase Rear for MiTM Pressure Washers 460391
$378.17
11
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
14
43-0045 Key for MiTM Pressure Washers 430045
$15.30
15
46-0105 Clip for MiTM Pressure Washers 460105
$15.30
16
46-0176 Crankshaft for MiTM Pressure Washers 460176
$1,507.08
17
43-0046 Piston Pin for MiTM Pressure Washers 430046
$45.87
18
46-0179 Piston Guides for MiTM Pressure Washers 460179
$691.59
19
46-0180 Snap Ring for MiTM Pressure Washers 460180
$20.76
20
46-0181 Piston for MiTM Pressure Washers 460181
$1,749.98
21
46-0182 Piston Screw for MiTM Pressure Washers 460182
$335.57
22
46-0175 Gasket Cover for MiTM Pressure Washers 460175
$131.61
23
26-0051 Oil Seal for MiTM Pressure Washers 260051
$77.54
25
46-0184 Shim for MiTM Pressure Washers 460184
$25.50
26
46-0185 Pump Foot for MiTM Pressure Washers 460185
$61.17
27
29-0156 Lockwasher for MiTM Pressure Washers 290156
$15.98
28
27-8301 Bolt for MiTM Pressure Washers 278301
$15.30
29
25-0147 O-Ring for MiTM Pressure Washers 250147
$21.45
30
46-0186 Low Pressure Seal Retainer for MiTM Pressure Washers 460186
Call for Price call for price call for price
32
46-0188 High Pressure Seal Retainer for MiTM Pressure Washers 460188
$250.97
33
25-0148 Re-Stop V-Packing for MiTM Pressure Washers 250148
$79.64
34
26-0098 V-Packing 20 X 35 X 7.5/4.5 for AC1-PH65-08M Air Compressor by Mi-T-M 260098
$21.36
36
39-0036 Cap for MiTM Pressure Washers 390036
$86.85
37
28-0603 Washer for MiTM Pressure Washers 280603
$15.30
38
46-0556 Manifold for MiTM Pressure Washers 460556
$11,297.03
39
27-8387 Screw for MiTM Pressure Washers 278387
$60.00
46
46-0559 Guide for MiTM Pressure Washers 460559
$1,133.78
47
25-0303 O-Ring for MiTM Pressure Washers 250303
$17.55
48
25-0304 Anti-Extrusion Ring for MiTM Pressure Washers 250304
$56.19
49
39-0069 Cap for MiTM Pressure Washers 390069
$220.05
50
46-0557 Circle Clip for MiTM Pressure Washers 460557
$19.98
51
46-0558 Valve Cover for MiTM Pressure Washers 460558
$1,135.16
52
27-8180 Screw for MiTM Pressure Washers 278180
$53.31
53
28-0206 Washer for MiTM Pressure Washers 280206
$16.17
54
25-0056 O-Ring 1-3/8 X 1-9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250056
$5.99
55
25-0301 O-Ring for MiTM Pressure Washers 250301
$19.40
56
25-0300 Anti-Extrusion Ring for MiTM Pressure Washers 250300
$57.20
57
28-0601 Washer for MiTM Pressure Washers 280601
$85.11
58
39-0037 Cap for MiTM Pressure Washers 390037
$60.00
59
26-0108 Seal for MiTM Pressure Washers 260108
$74.21
61
46-0173 Crankcase for MiTM Pressure Washers 460173
$1,153.13
-
70-0011 Valve Kit (Inc. 6 Each 41-45) for MiTM Pressure Washers 700011
$1,870.11
-
70-0014 Packing Kit (Inc. 3 Each. 31, 33, 34) for MiTM Pressure Washers 700014
$571.46
12
25-0052 O-Ring 9/16 X 3/4 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250052
$5.99
13
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
-
70-0030 Kit Head Ring for AC1-HE02-05M1 Air Compressor by Mi-T-M 700030
$39.96
