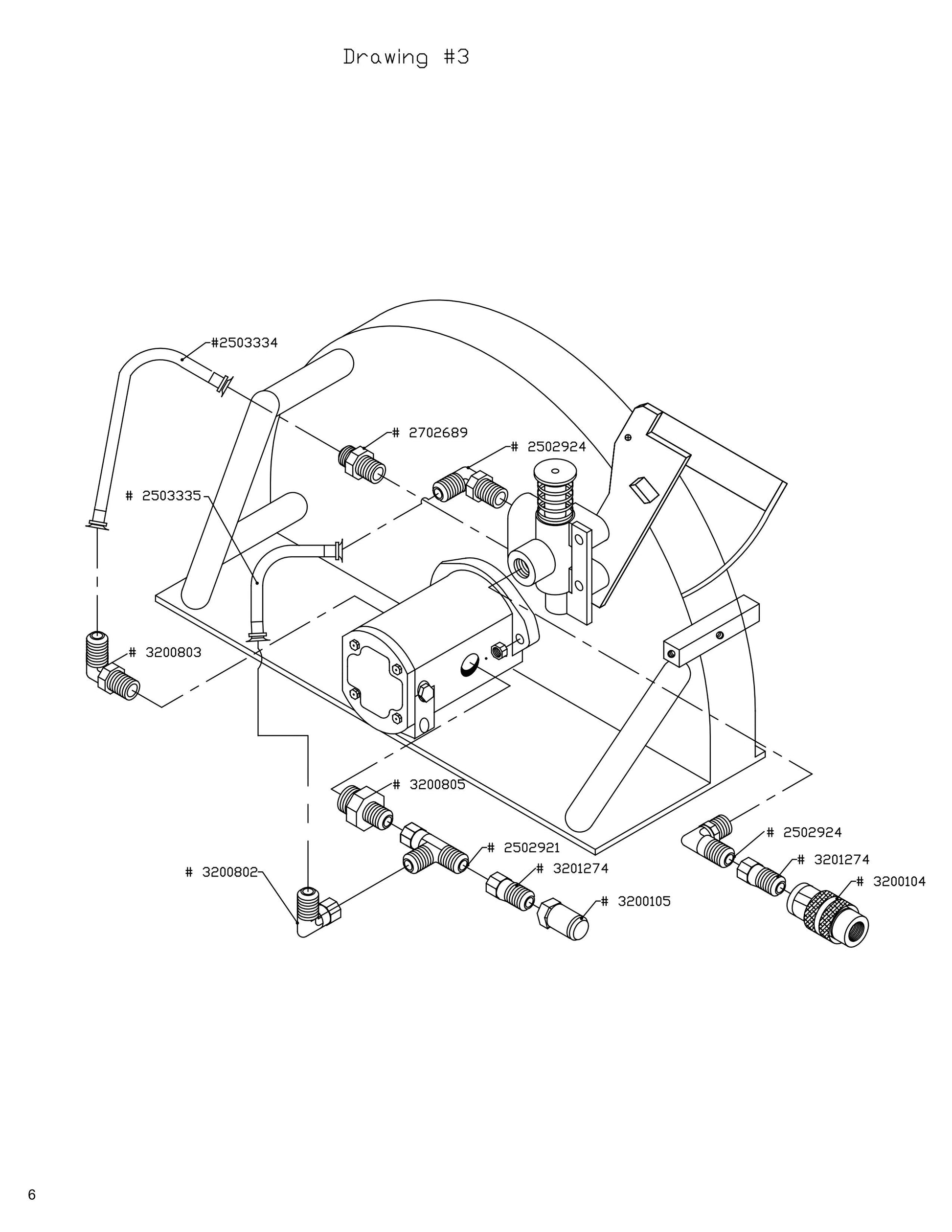

CW Hand Saw Parts List Drawing #3 Parts By Diamond Products

CW Hand Saw Parts List Drawing #3 Parts By Diamond Products

  • CW Hand Saw Parts List Drawing #3 Parts By Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2502921 Fitting for CW Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
2502924 1/2 inch MOR X 1/2 inch MJIC 90 for CW Hand Saw by Diamond Products
$14.93
3
2503334 Tube Assembly for CW Hydraulic Hand Saw Core Cut by Diamond Products
$109.00
4
2503335 Tube Assembly for CW Hydraulic Hand Saw Core Cut by Diamond Products
$104.67
5
2702689 Fitting for CW Hydraulic Hand Saw Core Cut by Diamond Products
$6.91
6
3200104 1/2inch QD Coupler - 1/2NPSM (Flat Face Style) for CW Hand Saw by Diamond Products
$102.89
7
3200105 1/2 QD Nipple - 1/2 NPSF (Flat Face Style) for CW Hand Saw by Diamond Products
$57.87
8
3200802 Fitting for CW Hydraulic Hand Saw Core Cut by Diamond Products
$15.07
9
3200803 08MJ X 10MAOR 90DG for CW Hand Saw by Diamond Products
$15.07
10
3200805 Fitting for CW Hydraulic Hand Saw Core Cut by Diamond Products
$21.52
11
3201274 Fitting for CW Hydraulic Hand Saw Core Cut by Diamond Products
$20.45
