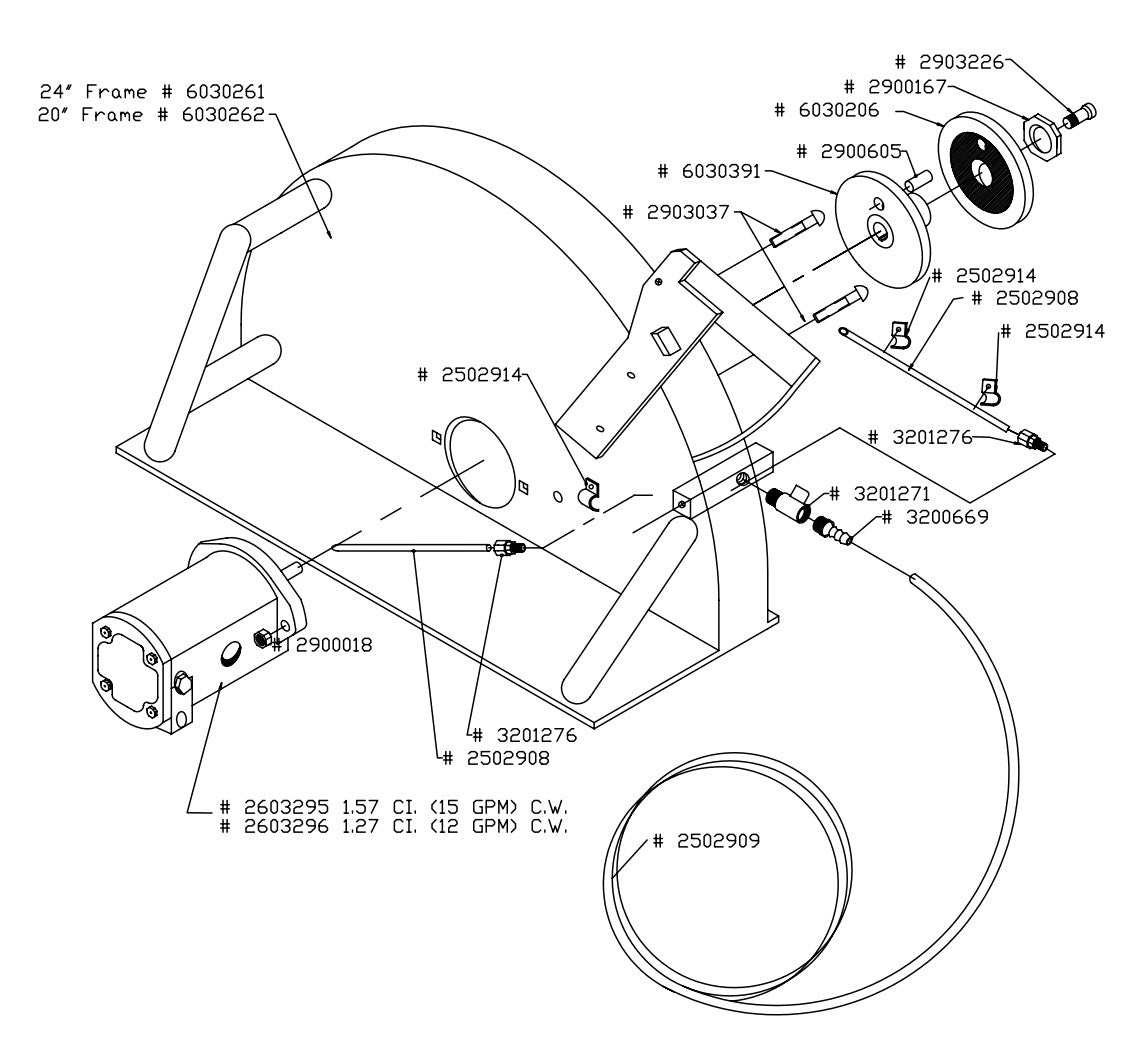

CW Hand Saw Parts List Drawing #1 Parts By Diamond Products

CW Hand Saw Parts List Drawing #1 Parts By Diamond Products

  • CW Hand Saw Parts List Drawing #1 Parts By Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2502908 Water Way Tubing for CW Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
2502909 Water Hose for CW Hydraulic Hand Saw Core Cut by Diamond Products
Call for Price call for price call for price
3
2502914 1/4" Cable/Hose Loop Clamp for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.48
4
2603295 15GPM Motor for CW Hydraulic Hand Saw Core Cut by Diamond Products
$2,578.95
5
2603296 12GPM Motor for CW Hydraulic Hand Saw Core Cut by Diamond Products
$1,370.40
6
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900167 Jam Nut for CW Hydraulic Hand Saw Core Cut by Diamond Products
$24.70
8
2900605 Dowel Pin for CW Hydraulic Hand Saw Core Cut by Diamond Products
$6.16
9
2903037 Carriage Bolt for CW Hydraulic Hand Saw Core Cut by Diamond Products
$4.99
10
2903226 Cap Screw for CW Hydraulic Hand Saw Core Cut by Diamond Products
$62.41
11
3200669 Hose Barb for CW Hydraulic Hand Saw Core Cut by Diamond Products
$6.85
12
3201271 Water Valve for CW Hydraulic Hand Saw Core Cut by Diamond Products
$32.28
13
3201276 1/4" Compression Tube Fitting for CS-2000-100 CURB SAW Core Cut by Diamond Products
$12.00
14
6030206 Outer Flange 4" for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$59.62
15
6030261 24" Hand Saw Frame for CW Hydraulic Hand Saw Core Cut by Diamond Products
$1,000.89
16
6030262 20.00" Hand Saw Frame for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$965.25
17
6030391 Inner Hub & Shaft for CW Hydraulic Hand Saw Core Cut by Diamond Products
$469.26
View full details
