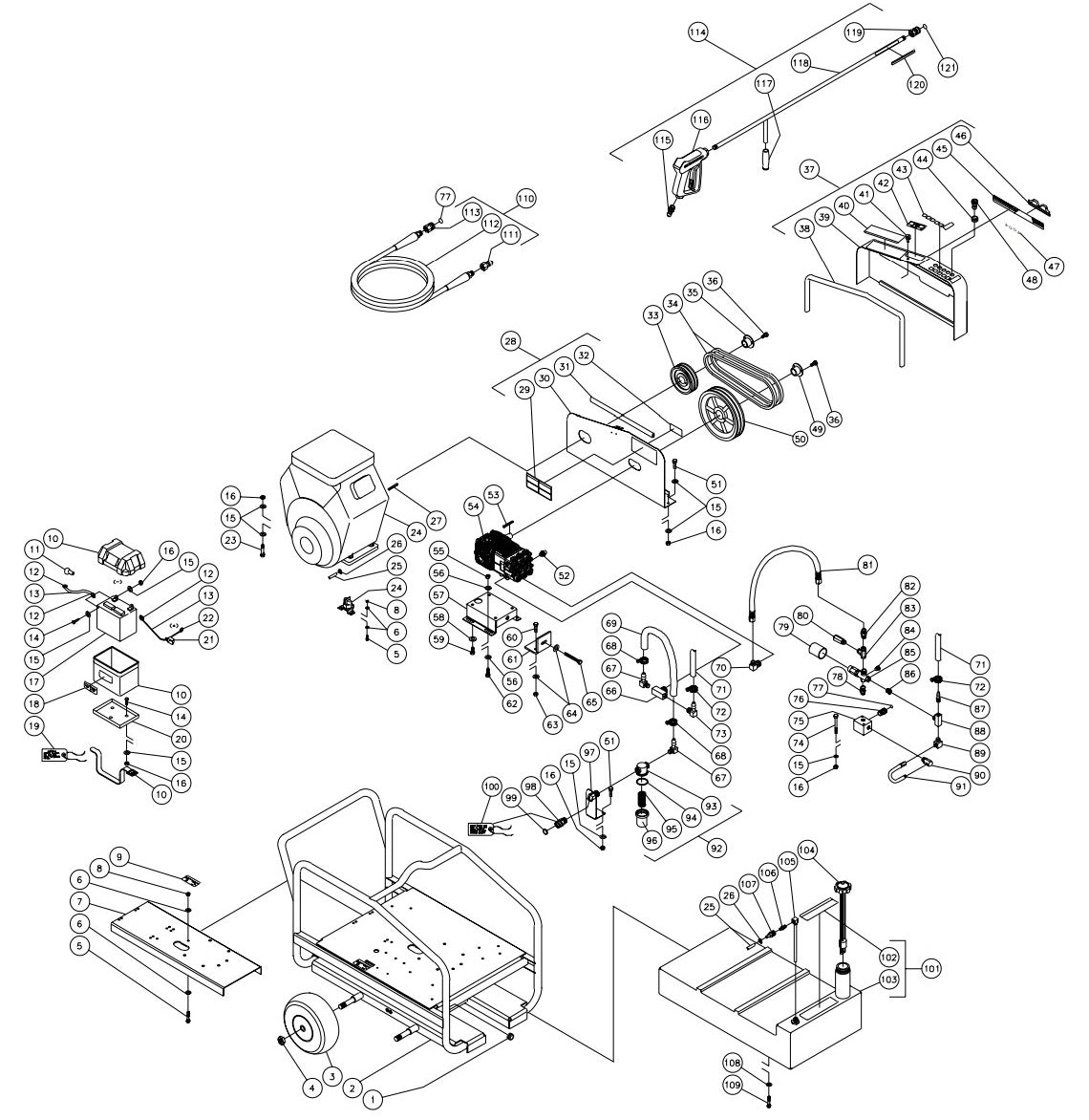

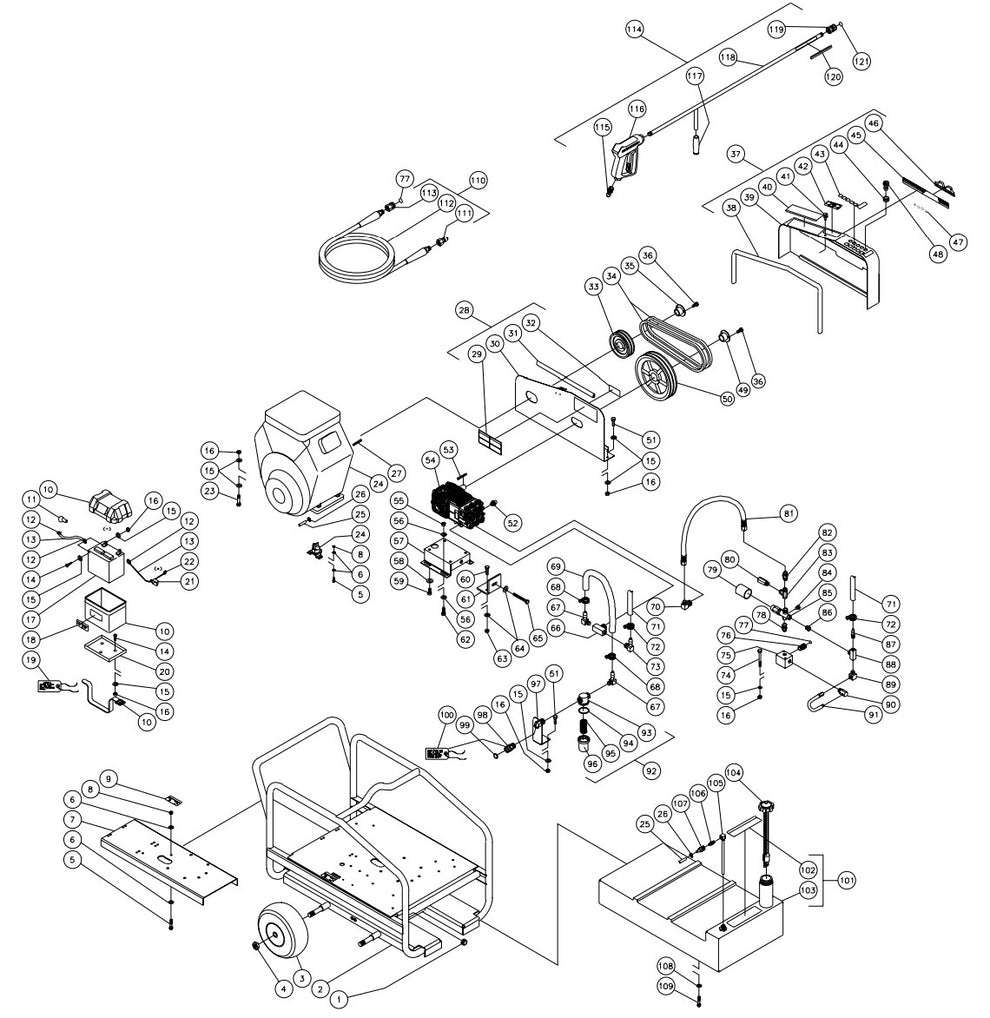

CWC-4004-1MGV (sn:0-10005894) Frame Assembly Parts by Mi-T-M

CWC-4004-1MGV (sn:0-10005894) Frame Assembly Parts by Mi-T-M

  • CWC-4004-1MGV (sn:0-10005894) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
33-0002 Grommet 1/2Id X 13/16Gd-1/4Gw for AM2-PH09-30M Air Compressor by Mi-T-M 330002
$2.99
2
50136A01 Frame Assembly for MiTM Pressure Washers
$1,439.93
3
14-0006 Wheel-13 White-Super Duty for MiTM Air Compressors by MiTM 140006
$128.67
4
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
5
27-0016 Bolt for MiTM Pressure Washers 270016
$5.93
6
28-0021 Washer for MiTM Pressure Washers 280021
$5.93
7
130120A01 Support Bracket for MiTM Pressure Washers
$166.83
10
33-0092 Battery Box-U1 11X7-1/2X8-3/4 for AC1-HH04-05M Air Compressor by Mi-T-M 330092
$34.70
11
33-0273 Terminal Protector Rubber for AC1-PE03-20M Air Compressor by Mi-T-M 330273
$5,151.27
12
32-0097 Terminal 4Ga 5/16 Ring for AC1-PE03-20M Air Compressor by Mi-T-M 320097
$5.99
13
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
15
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
16
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
17
32-0058 Battery Sm Bci#Vi 165Cca for AC1-HH04-05M Air Compressor by Mi-T-M 320058
$112.31
18
34-0589 Decal-Caution: Battery Terminal for MiTM Pressure Washers 340589
$15.30
19
34-0096 Tag- Battery for MiTM Pressure Washers 340096
Call for Price call for price call for price
20
20-0264A01 Battery Retainer for MiTM Pressure Washers 200264A01
$79.64
21
33-0004 Battery Cable Cover Red for AC1-PE03-20M Air Compressor by Mi-T-M 330004
$5.99
22
32-0098 Terminal 4Ga 1/4 Ring for AC1-HE15-05M Air Compressor by Mi-T-M 320098
$5.99
23
27-0071 Bolt for MiTM Pressure Washers 270071
$5.93
24
8510345 Motor Assembly for MiTM Pressure Washers
$207.78
25
15-0031 Hose 5/16 Fuel Line Diesel for AC1-PE02-08M Air Compressor by Mi-T-M 150031
$6.48
26
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
27
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
28
851-0310 Beltguard Back for MiTM Pressure Washers 8510310
$303.80
29
34-0812 Decal - Warning (See 71-1040) for MiTM Pressure Washers 340812
$30.60
31
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
38
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
32
34-0826 Decal- Warning: Beltguard In Place (E/S) for MiTM Pressure Washers 340826
$15.30
33
100118 Sheave for MiTM Pressure Washers
$104.15
34
110055 Belt for MiTM Pressure Washers
$62.49
37
851-0311 Beltguard Cover for MiTM Pressure Washers 8510311
$361.85
40
34-0813 Decal- Warning: Muffler Hot (E/S) for MiTM Pressure Washers 340813
$20.40
41
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
42
34-0598 Decal- Warning: Muffler Hot (E/S) for MiTM Pressure Washers 340598
$5.93
43
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
45
34-0501 Decal- Mi-T-M Stripe for MiTM Pressure Washers 340501
Call for Price call for price call for price
46
62-0086 Decal- Mi-T-M Small Logo for MiTM Air Compressors by MiTM 620086
Call for Price call for price call for price
47
34-0261 Decal- Die Cut 4004 for MiTM Pressure Washers 340261
Call for Price call for price call for price
48
18-0028 Nozzle- 0004 for MiTM Air Compressors by MiTM 180028
$10.85
48
18-0029 Nozzle- 1504 for MiTM Air Compressors by MiTM 180029
$10.85
48
18-0030 Nozzle- 2504 for MiTM Air Compressors by MiTM 180030
$10.85
48
18-0031 - Nozzle- 4004 for MiTM Air Compressors by MiTM 180031
$10.85
50
10-0037 Sheave 2Bk100H for AC1-PE03-08M Air Compressor by Mi-T-M 100037
$99.22
54
3-0213 Pump for MiTM Pressure Washers 30213
$2,465.87
55
30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
56
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
57
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
59
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
61
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
62
27-0167 Bolt for MiTM Pressure Washers by MiTM 270167
$4.49
67
23-0037 Elbow 1/2M X 3/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230037
$41.29
68
420003 Hose Clamp for MiTM Pressure Washers
$7.43
69
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
73
23-0053 Elbow 1/2Mx1/2 Barb Nspm 90 Br for AC1-HE15-05M Air Compressor by Mi-T-M 230053
$46.93
74
27-0074 Bolt for MiTM Pressure Washers 270074
$5.93
75
51-0020 Manifold Block-Steel 3/8Nptx3 for AM2-PE05-08AB Air Compressor by Mi-T-M 510020
$92.82
77
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
78
24-0010 Nipple 3/8" Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240010
$7.97
79
33-0272 Heat Shrink Tubing-1-3/8 Od for AM2-PE05-08AB Air Compressor by Mi-T-M 330272
$115.85
80
22-0319 Safety Valve 3/8M 6Kpsi 6Gpm for MiTM Pressure Washers by MiTM 220319
$69.68
81
15-0177 Hose for MiTM Pressure Washers 150177
$76.49
83
24-0026 Tee 3/8" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240026
$25.92
85
8-0522 Unloader-General 5100 Psi 6.5G for AM2-PE05-08M Air Compressor by Mi-T-M 80522
$411.54
88
23-0117 Tee 3/8" Branch Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230117
Call for Price call for price call for price
89
23-0324 Elbow 3/8M X 1/4 45Deg Flare for AM2-PE05-08AB Air Compressor by Mi-T-M 230324
$29.67
90
22-0242 Valve-Easy Start 6000 Psi for AC1-PE03-20M Air Compressor by Mi-T-M 220242
$36.28
91
15-0140 Bypass Hose 1/4X10" 250Psi Blk for AC1-PE03-20M Air Compressor by Mi-T-M 150140
$28.94
92
19-0057 Strainer-W/Garden Hose Fitting for AC1-PR06-20M Air Compressor by Mi-T-M 190057
$81.56
93
19-0058 Head-Strainer Polyp Reinforced for AC1-PE15-08M Air Compressor by Mi-T-M 190058
$22.96
94
26-0160 Gasket Strainer Epdm Rubber for AC1-PE15-08M Air Compressor by Mi-T-M 260160
$14.81
95
19-0059 Screen-Strainer 304Ss 80 Mesh for AC1-PE15-08M Air Compressor by Mi-T-M 190059
$21.79
96
19-0060 Bowl-Strainer, Clear for AC1-PE15-08M Air Compressor by Mi-T-M 190060
$26.34
97
20-0428A01 INLET BRACKET BY MITM
$84.08
98
23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095
$12.57
99
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
100
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
101
8510319 Fuel Tank Assembly (Inc. 101, 102) for MiTM Pressure Washers
Call for Price call for price call for price
102
340835 Decal- Caution: Gas Only (E/S) for MiTM Pressure Washers
$22.43
104
12-0061 FUEL CAP W/GAUGE BY MITM
Call for Price call for price call for price
105
33-0271 Fuel Pick Up 1/4Fnpt X 1/4Mnpt for AC1-PE02-20M Air Compressor by Mi-T-M 330271
$31.48
106
170038 Quick Connect Plug for MiTM Pressure Washers
$49.20
107
170018 Quick Connect Socket for MiTM Pressure Washers
Call for Price call for price call for price
108
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
110
851-0006 Hose 3/8X50' 4500Psi R2 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 8510006
$263.34
112
15-0004 Hose 3/8X50' 4500Psi R2 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150004
$203.08
113
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
114
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
115
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
116
16-0001 Gun for MiTM Pressure Washers 160001
$151.43
117
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
118
16-0120A01 Wand for MiTM Air Compressors by MiTM 160120A01
$54.74
119
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
120
34-1253 Decal- Warning: Risk Of Injection (E/S) for MiTM Pressure Washers 341253
$15.30
121
25-0122 O-Ring (Replacement Only) for MiTM Pressure Washers 250122
$4.68
8
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
14
27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066
$1.99
35
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
36
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
44
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
49
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
51
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
52
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
53
43-0091 Key 8 X 7 X 40Mm for AC1-HE02-05M by Mi-T-M 430091
$12.87
58
29-0055 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290055
$1.99
60
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
63
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
64
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
65
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
66
23-0235 Tee for ABS Air Compressor by Mi-T-M 230235
Call for Price call for price call for price
70
24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092
$13.46
71
17-0007 Qc 3/8M X 3/8 Socket Brass for AM2-PE05-08M Air Compressor by Mi-T-M 170007
$26.75
72
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
76
17-0007 Qc 3/8M X 3/8 Socket Brass for AC1-HE02-05M by Mi-T-M 170007
$17.83
82
*24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002
$6.04
84
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
86
23-0016 Bushing 1/2M X 3/8F Hex Brass for AC1-HE02-05M by Mi-T-M 230016
$6.03
87
23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105
$7.58
109
27-9524 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 279524
$1.99
111
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
