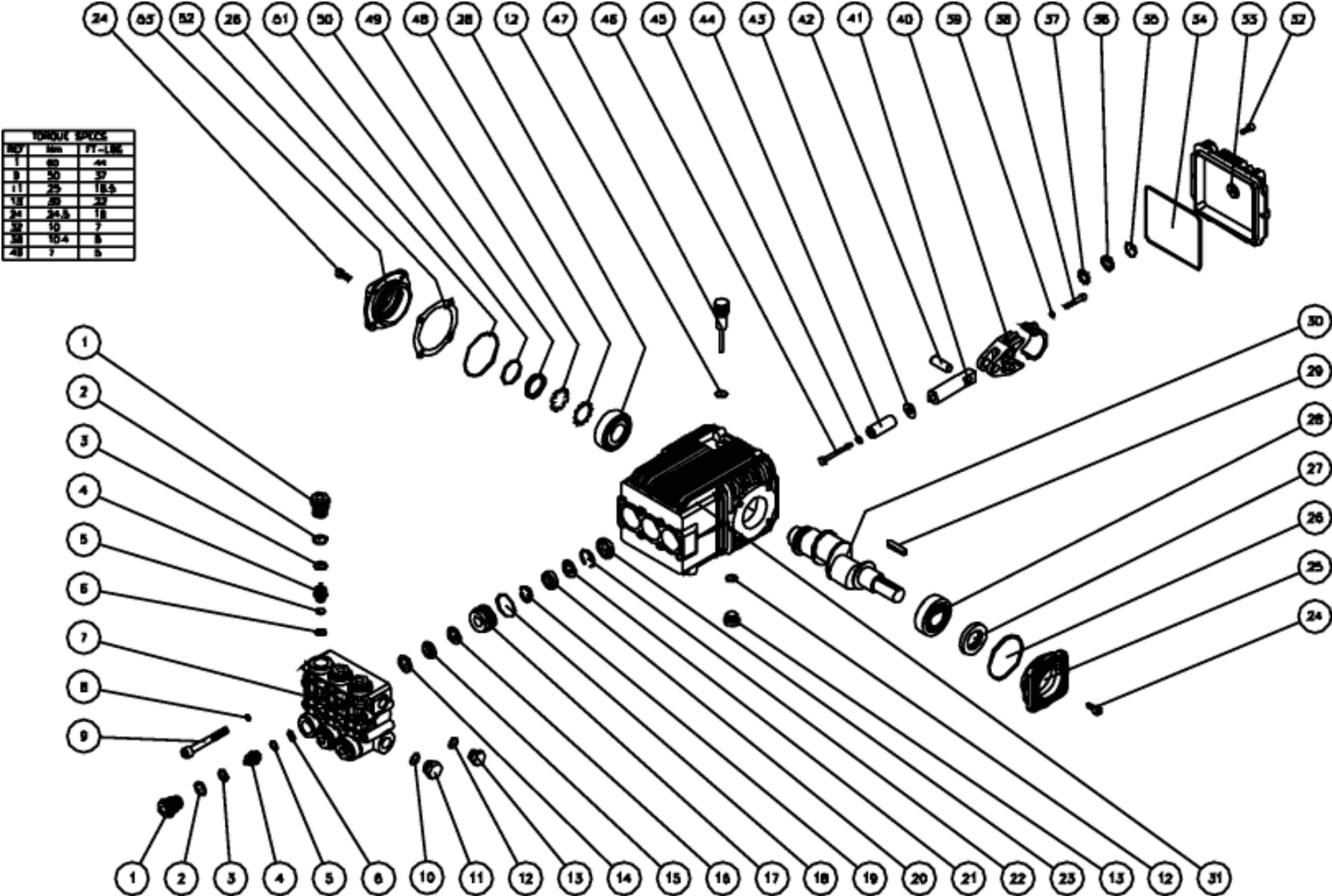

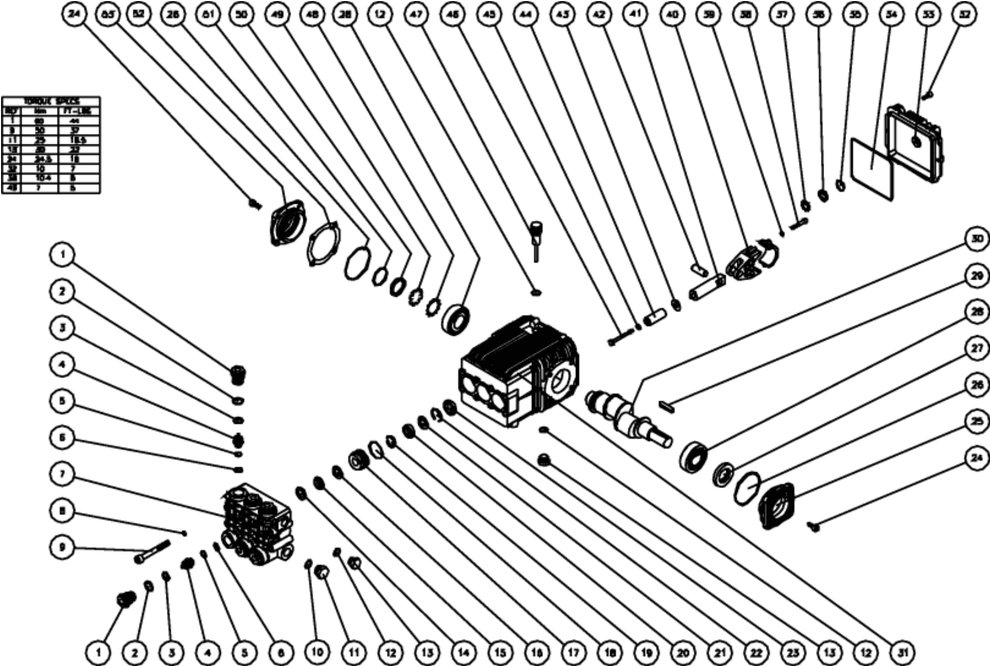

CWC-5004-1MGH (sn:10020493-10073561), HS-4004-1MAH (sn:15011231-15019140), (sn:0-15008085), (sn:15008086-15011230) Pump Assembly Parts by Mi-T-M

CWC-5004-1MGH (sn:10020493-10073561), HS-4004-1MAH (sn:15011231-15019140), (sn:0-15008085), (sn:15008086-15011230) Pump Assembly Parts by Mi-T-M

  • CWC-5004-1MGH (sn:10020493-10073561), HS-4004-1MAH (sn:15011231-15019140), (sn:0-15008085), (sn:15008086-15011230) Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
39-0201 Valve Cap for MiTM Pressure Washers 390201
$107.46
2
25-0509 Back-Up Ring for MiTM Pressure Washers 250509
$24.18
3
25-0386 O-Ring 15.54 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250386
$4.85
5
25-0516 Back-Up Ring (See Kit 70-0314) for MiTM Pressure Washers 250516
$20.40
6
25-0515 O-RING BY MITM
$1.47
7
46-0900 Pump Manifold for MiTM Pressure Washers 460900
$1,728.71
8
29-0155 Lockwasher for MiTM Pressure Washers 290155
$7.49
9
27-8470 Bolt for MiTM Pressure Washers 278470
$47.70
10
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
11
39-0202 Plug for MiTM Pressure Washers by MiTM 390202
$28.80
12
25-0510 O-Ring I.D. 14X1.75Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250510
$7.28
13
39-0203 Outlet Plug for MiTM Air Compressors by MiTM 390203
$11.42
17
46-0904 PISTON GUIDE BY MITM
Call for Price call for price call for price
21
46-0907 SPACER BY MITM
$24.05
22
46-0908 SNAP-RING BY MITM
$8.24
23
26-0242 OIL SEAL BY MITM
$38.09
24
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
26
25-0512 O-RING BY MITM
$5.64
27
26-0243 OIL SEAL BY MITM
$41.84
28
48-0073 BEARING BY MITM
$272.54
29
43-0091 Key 8 X 7 X 40Mm for AC1-HE02-05M by Mi-T-M 430091
$12.87
31
46-0911 CRANKCASE BY MITM
$490.68
32
27-8888 Screw for MiTM Air Compressors by MiTM 278888
$8.93
33
46-0912 COVER BY MITM
$187.86
34
25-0513 O-Ring for MiTM Pressure Washers 250513
Call for Price call for price call for price
35
25-0370 O-Ring 20.24 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250370
$4.85
36
46-0670 Oil Sight Glass for AC1-HE02-05M by Mi-T-M 460670
$7.76
37
46-0671 Spring Retainer-Oil Sight Glas for AC1-HE02-05M by Mi-T-M 460671
$5.99
40
46-0913 CONNECTING ROD BY MITM
$202.53
41
46-0915 PLUNGER ROD BY MITM
$164.15
42
46-0914 PIN BY MITM
$39.24
43
46-0916 WASHER BY MITM
Call for Price call for price call for price
44
46-0917 PISTON BY MITM
$195.59
45
28-1041 WASHER BY MITM
$7.65
46
27-8965 BOLT BY MITM
$34.62
47
39-0204 DIPSTICK BY MITM
$39.38
48
46-0924 RETAINER BY MITM
$10.34
49
46-0925 PUMP BY MITM
$3.68
50
46-0926 OIL SIGHT GLASS BY MITM
$10.70
51
25-0514 O-RING BY MITM
$2.55
52
46-0947 SHIM - .05MM BY MITM
$5.70
53
46-0918 COVER BY MITM
$126.90
-
70-0314 VALVES KIT (INC. 6 EACH 35, 36, 37) BY MITM
$344.19
-
70-0317 Water Seals Kit (Inc. 3 Each 42, 43, 44, 46, 47, 48) for MiTM Pressure Washers 700317
$534.00
