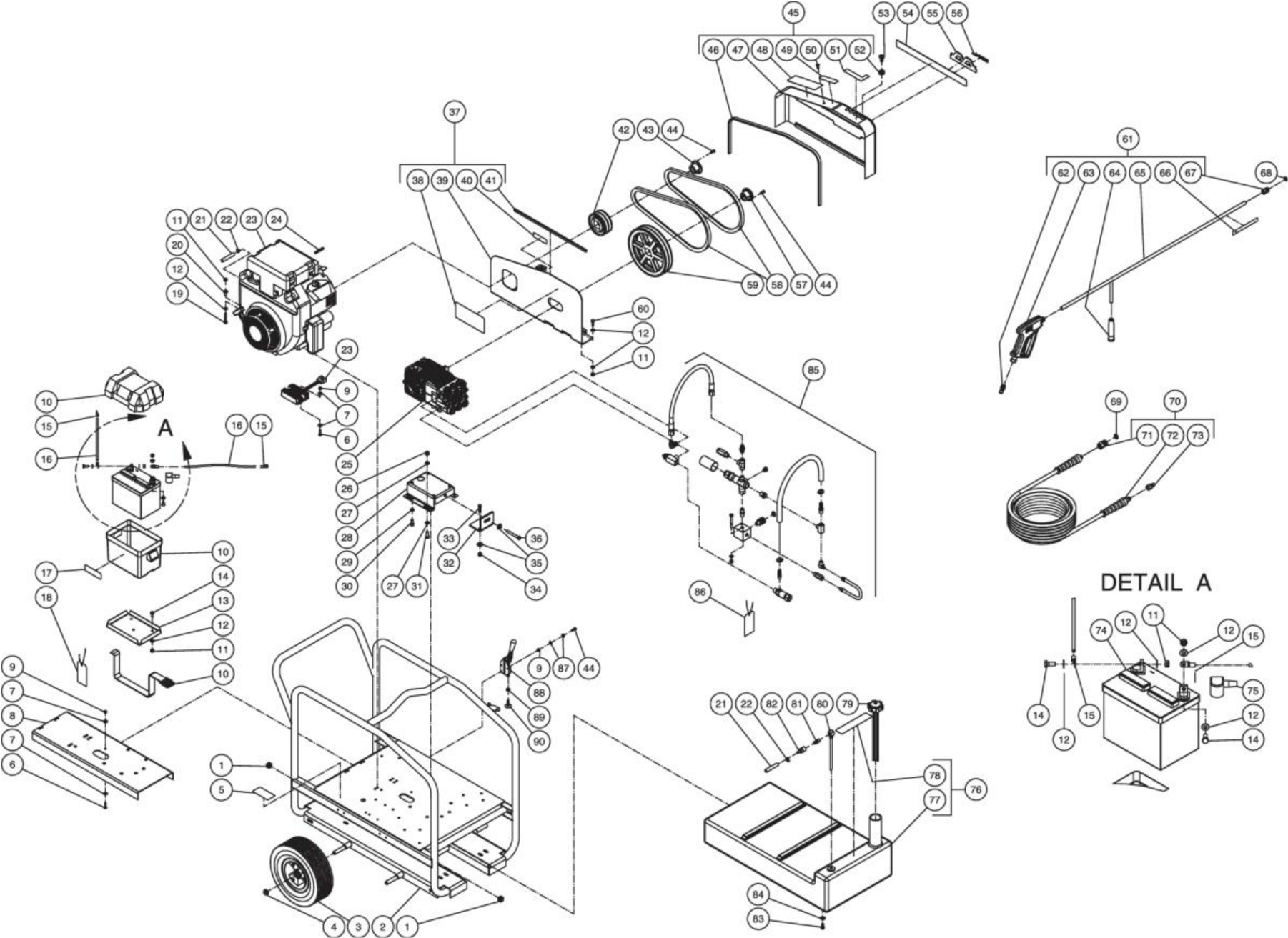

CWC-5004-1MGH (sn:10182544-10230792) Frame Assembly Parts by Mi-T-M

CWC-5004-1MGH (sn:10182544-10230792) Frame Assembly Parts by Mi-T-M

  • CWC-5004-1MGH (sn:10182544-10230792) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
33-0002 Grommet 1/2Id X 13/16Gd-1/4Gw for AM2-PH09-30M Air Compressor by Mi-T-M 330002
$2.99
2
5-0136A42 FRAME ASSEMBLY BY MITM
$1,311.95
3
14-0092 Wheel for MiTM Pressure Washers 140092
$191.66
4
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
6
27-0016 Bolt for MiTM Pressure Washers 270016
$5.93
7
28-0021 Washer for MiTM Pressure Washers 280021
$5.93
8
13-0120A01 SUPPORT BRACKET BY MITM
$151.67
9
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
10
33-0092 Battery Box-U1 11X7-1/2X8-3/4 for AC1-HH04-05M Air Compressor by Mi-T-M 330092
$34.70
11
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
12
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
13
20-0264A01 Battery Retainer for MiTM Pressure Washers 200264A01
$79.64
14
27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066
$1.99
15
32-0097 Terminal 4Ga 5/16 Ring for AC1-PE03-20M Air Compressor by Mi-T-M 320097
$5.99
16
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
16
32-0065 Cable #4 Welding-Neop for AC1-HH04-05M Air Compressor by Mi-T-M 320065
$13.46
18
34-0096 TAG- BATTERY BY MITM
Call for Price call for price call for price
19
27-0071 Bolt for MiTM Pressure Washers 270071
$5.93
20
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
21
15-0031 Hose 5/16 Fuel Line Diesel for AC1-PE02-08M Air Compressor by Mi-T-M 150031
$6.48
22
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
23
851-0307 MOTOR ASSEMBLY (OMGH) BY MITM
$5,210.88
24
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
25
3-0213 Pump for MiTM Pressure Washers 30213
$2,465.87
26
30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
27
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
28
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
29
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
30
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
31
27-0167 Bolt for MiTM Pressure Washers by MiTM 270167
$4.49
32
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
33
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
34
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
35
28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
36
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
37
851-0310 Beltguard Back for MiTM Pressure Washers 8510310
$303.80
41
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM
$6.57
42
10-0037 Sheave 2Bk100H for AC1-PE03-08M Air Compressor by Mi-T-M 100037
$99.22
43
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
44
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
45
851-0348 Beltguard Cover Assembly (Inc. 29-34) for MiTM Pressure Washers 8510348
$270.99
46
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
50
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
51
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
52
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
53
18-0257 Nozzle- 0003.5 for MiTM Air Compressors by MiTM 180257
Call for Price call for price call for price
53
18-0258 Nozzle- 1503.5 for MiTM Air Compressors by MiTM 180258
$10.85
53
18-0259 Nozzle- 2503.5 for MiTM Air Compressors by MiTM 180259
$10.85
53
18-0260 Nozzle- 4003.5 for MiTM Air Compressors by MiTM 180260
$10.85
54
34-0501 DECAL- MI-T-M STRIPE BY MITM
Call for Price call for price call for price
55
62-0086 Mi-T-M Logo for MiTM Pressure Washers 620086
Call for Price call for price call for price
56
34-0834 Decal- Die Cut 5004 for MiTM Pressure Washers 340834
Call for Price call for price call for price
57
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
58
11-0055 BELT BY MITM
$22.95
59
10-0118 SHEAVE BY MITM
$41.85
60
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
61
851-0309 Gun/Wand Assembly (Inc. 94-98) for MiTM Pressure Washers 8510309
$622.25
62
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
63
16-0343 Gun for MiTM Pressure Washers 160343
$221.22
64
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
65
16-0342A01 Wand- W/ 36" Handle for MiTM Pressure Washers 160342A01
$315.48
67
17-0036 Quick Connect Socket for MiTM Pressure Washers 170036
$134.60
68
25-0122 O-RING (REPLACEMENT ONLY) BY MITM
$1.56
69
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
70
851-0317 Pressure Hose Assembly (Inc. 94-96) for MiTM Pressure Washers 8510317
$639.68
71
17-0041 Quick Connect Socket for MiTM Pressure Washers 170041
$150.66
72
15-0178 Pressure Hose for MiTM Pressure Washers 150178
$639.68
73
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
74
32-0058 Battery Sm Bci#Vi 165Cca for AC1-HH04-05M Air Compressor by Mi-T-M 320058
$112.31
75
33-0004 Battery Cable Cover Red for AC1-PE03-20M Air Compressor by Mi-T-M 330004
$5.99
76
851-0319 FUEL TANK ASSEMBLY (INC. 101, 102) BY MITM
Call for Price call for price call for price
79
12-0061 FUEL CAP W/GAUGE BY MITM
Call for Price call for price call for price
80
33-0271 Fuel Pick Up 1/4Fnpt X 1/4Mnpt for AC1-PE02-20M Air Compressor by Mi-T-M 330271
$31.48
81
17-0038 QUICK CONNECT PLUG BY MITM
$44.73
82
17-0018 QUICK CONNECT SOCKET BY MITM
Call for Price call for price call for price
83
27-9524 Bolt for ABS Air Compressor by Mi-T-M 279524
$1.99
84
28-0022 Washer for MiTM Pressure Washers by MiTM 280022
$4.49
86
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
87
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
88
33-0400 Push/Pull-Action Toggle Clamp for AC1-HE02-05M by Mi-T-M 330400
$66.15
89
30-0004 Nut BY MITM
$0.68
90
27-9550 BOLT BY MITM
$2.55
-
34-9017 Safety Decal Kit (Inc. 2-3, 40-41, 49, 63) for MiTM Air Compressors by MiTM 349017
Call for Price call for price call for price
