CWC-5004-1MGH (sn:10073562-10182543), CWC-5004-1MGV (sn:10073652-10182543) Frame Assembly Parts by Mi-T-M

CWC-5004-1MGH (sn:10073562-10182543), CWC-5004-1MGV (sn:10073652-10182543) Frame Assembly Parts by Mi-T-M

  • CWC-5004-1MGH (sn:10073562-10182543), CWC-5004-1MGV (sn:10073652-10182543) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
33-0002 Grommet 1/2Id X 13/16Gd-1/4Gw for AM2-PH09-30M Air Compressor by Mi-T-M 330002
$2.99
2
50136A42 Frame Assembly for MiTM Pressure Washers
$1,443.14
3
14-0092 Wheel for MiTM Pressure Washers 140092
$191.66
4
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
5
27-0016 Bolt for MiTM Pressure Washers 270016
$5.93
6
28-0021 Washer for MiTM Pressure Washers 280021
$5.93
7
130120A01 Support Bracket for MiTM Pressure Washers
$166.83
10
33-0092 Battery Box-U1 11X7-1/2X8-3/4 for AC1-HR45-05M Air Compressor by Mi-T-M 330092
$34.70
11
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
12
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
12
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
13
20-0264A01 Battery Retainer for MiTM Pressure Washers 200264A01
$79.64
15
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
15
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
16
33-0004 Battery Cable Cover Red for AC1-PE03-20M Air Compressor by Mi-T-M 330004
$5.99
17
32-0097 Terminal 4Ga 5/16 Ring for AC1-PE03-20M Air Compressor by Mi-T-M 320097
$5.99
18
34-0096 Tag- Battery for MiTM Pressure Washers 340096
Call for Price call for price call for price
20
32-0058 Battery Sm Bci#Vi 165Cca for AC1-HH04-05M Air Compressor by Mi-T-M 320058
$112.31
21
27-0071 Bolt for MiTM Pressure Washers 270071
$5.93
22
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
23
15-0031 Hose 5/16 Fuel Line Diesel for AC1-PE02-08M Air Compressor by Mi-T-M 150031
$6.48
23
15-0031 Hose 5/16 Fuel Line Diesel for AC1-PE02-08M Air Compressor by Mi-T-M 150031
$6.48
24
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
25
8510318 Motor Assembly (Omgv) for MiTM Pressure Washers
$4,568.16
26
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
27
851-0310 Beltguard Back for MiTM Pressure Washers 8510310
$303.80
30
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
37
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
32
100118 Sheave for MiTM Pressure Washers
$104.15
33
110055 Belt for MiTM Pressure Washers
$62.49
36
851-0348 Beltguard Cover Assembly (Inc. 29-34) for MiTM Pressure Washers 8510348
$270.99
40
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
42
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
44
34-0501 Decal- Mi-T-M Stripe for MiTM Pressure Washers 340501
Call for Price call for price call for price
45
62-0086 Decal- Mi-T-M Small Logo for MiTM Air Compressors by MiTM 620086
Call for Price call for price call for price
46
34-0834 Decal- Die Cut 5004 for MiTM Pressure Washers 340834
Call for Price call for price call for price
47
18-0257 Nozzle- 0003.5 for MiTM Air Compressors by MiTM 180257
Call for Price call for price call for price
47
18-0258 Nozzle- 1503.5 for MiTM Air Compressors by MiTM 180258
$10.85
47
18-0259 Nozzle- 2503.5 for MiTM Air Compressors by MiTM 180259
$10.85
47
18-0260 Nozzle- 4003.5 for MiTM Air Compressors by MiTM 180260
$10.85
49
10-0037 Sheave 2Bk100H for AC1-PE03-08M Air Compressor by Mi-T-M 100037
$99.22
52
3-0213 Pump for MiTM Pressure Washers 30213
$2,465.87
53
30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
54
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
55
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
57
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
59
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
60
27-0167 Bolt for MiTM Pressure Washers by MiTM 270167
$4.49
69
23-0120 Barb 1/4M X 1/2 Hose Brass for AC1-PE02-08M Air Compressor by Mi-T-M 230120
$5.84
70
19-0207 Filter 1/2Mx3/4F Garden W/Byp for AS2-PH08-30M Air Compressor by Mi-T-M 190207
$72.32
71
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
72
27-0074 Bolt for MiTM Pressure Washers 270074
$5.93
73
51-0020 Manifold Block-Steel 3/8Nptx3 for AM2-PE05-08AB Air Compressor by Mi-T-M 510020
$92.82
74
170042 Quick Connect for MiTM Pressure Washers
$110.12
75
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
76
24-0010 Nipple 3/8" Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240010
$7.97
77
33-0272 Heat Shrink Tubing-1-3/8 Od for AM2-PE05-08AB Air Compressor by Mi-T-M 330272
$115.85
78
22-0319 Safety Valve 3/8M 6Kpsi 6Gpm for MiTM Pressure Washers by MiTM 220319
$69.68
79
15-0177 Hose for MiTM Pressure Washers 150177
$76.49
81
24-0026 Tee 3/8" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240026
$25.92
83
8-0522 Unloader-General 5100 Psi 6.5G for AM2-PE05-08M Air Compressor by Mi-T-M 80522
$411.54
86
23-0117 Tee 3/8" Branch Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230117
Call for Price call for price call for price
87
23-0324 Elbow 3/8M X 1/4 45Deg Flare for AM2-PE05-08AB Air Compressor by Mi-T-M 230324
$29.67
88
22-0242 Valve-Easy Start 6000 Psi for AC1-PE03-20M Air Compressor by Mi-T-M 220242
$36.28
89
15-0140 Bypass Hose 1/4X10" 250Psi Blk for AC1-PE03-20M Air Compressor by Mi-T-M 150140
$28.94
91
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
93
300004 Hex Nut for MiTM Pressure Washers
$4.43
94
279550 Bolt for MiTM Pressure Washers
$4.43
95
8510319 Fuel Tank Assembly (Inc. 101, 102) for MiTM Pressure Washers
Call for Price call for price call for price
98
120061 Fuel Cap W/Gauge for MiTM Pressure Washers
Call for Price call for price call for price
99
33-0271 Fuel Pick Up 1/4Fnpt X 1/4Mnpt for AC1-PE02-20M Air Compressor by Mi-T-M 330271
$31.48
100
170038 Quick Connect Plug for MiTM Pressure Washers
$49.20
101
170018 Quick Connect Socket for MiTM Pressure Washers
Call for Price call for price call for price
102
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
104
851-0317 Pressure Hose Assembly (Inc. 94-96) for MiTM Pressure Washers 8510317
$639.68
106
15-0178 Pressure Hose for MiTM Pressure Washers 150178
$639.68
107
17-0041 Quick Connect Socket for MiTM Pressure Washers 170041
$150.66
108
851-0309 Gun/Wand Assembly (Inc. 94-98) for MiTM Pressure Washers 8510309
$622.25
109
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
110
16-0343 Gun for MiTM Pressure Washers 160343
$221.22
111
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
112
16-0342A01 Wand- W/ 36" Handle for MiTM Pressure Washers 160342A01
$315.48
114
17-0036 Quick Connect Socket for MiTM Pressure Washers 170036
$134.60
115
25-0122 O-Ring (Replacement Only) for MiTM Pressure Washers 250122
$4.68
-
34-9017 Safety Decal Kit (Inc. 2-3, 40-41, 49, 63) for MiTM Air Compressors by MiTM 349017
Call for Price call for price call for price
8
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
14
27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066
$1.99
25
851-0307 MOTOR ASSEMBLY (OMGH) BY MITM
$5,210.88
34
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
35
27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015
$5.93
90
27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015
$5.93
43
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
48
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
50
27-0067 Bolt for ABS Air Compressor by Mi-T-M 270067
Call for Price call for price call for price
51
43-0028 Key 25 X 8 X 7 for AC1-HE02-05M1 Air Compressor by Mi-T-M 430028
$12.31
56
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
58
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
61
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
62
28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
63
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
64
23-0235 Tee for ABS Air Compressor by Mi-T-M 230235
Call for Price call for price call for price
65
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
66
24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092
$13.46
67
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
68
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
80
*24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002
$6.04
82
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
84
23-0016 Bushing 1/2M X 3/8F Hex Brass for AC1-HE02-05M by Mi-T-M 230016
$6.03
85
23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105
$7.58
92
33-0400 Push/Pull-Action Toggle Clamp for AC1-HE02-05M by Mi-T-M 330400
$66.15
103
27-9524 Bolt for MiTM Pressure Washers 279524
$5.93
105
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

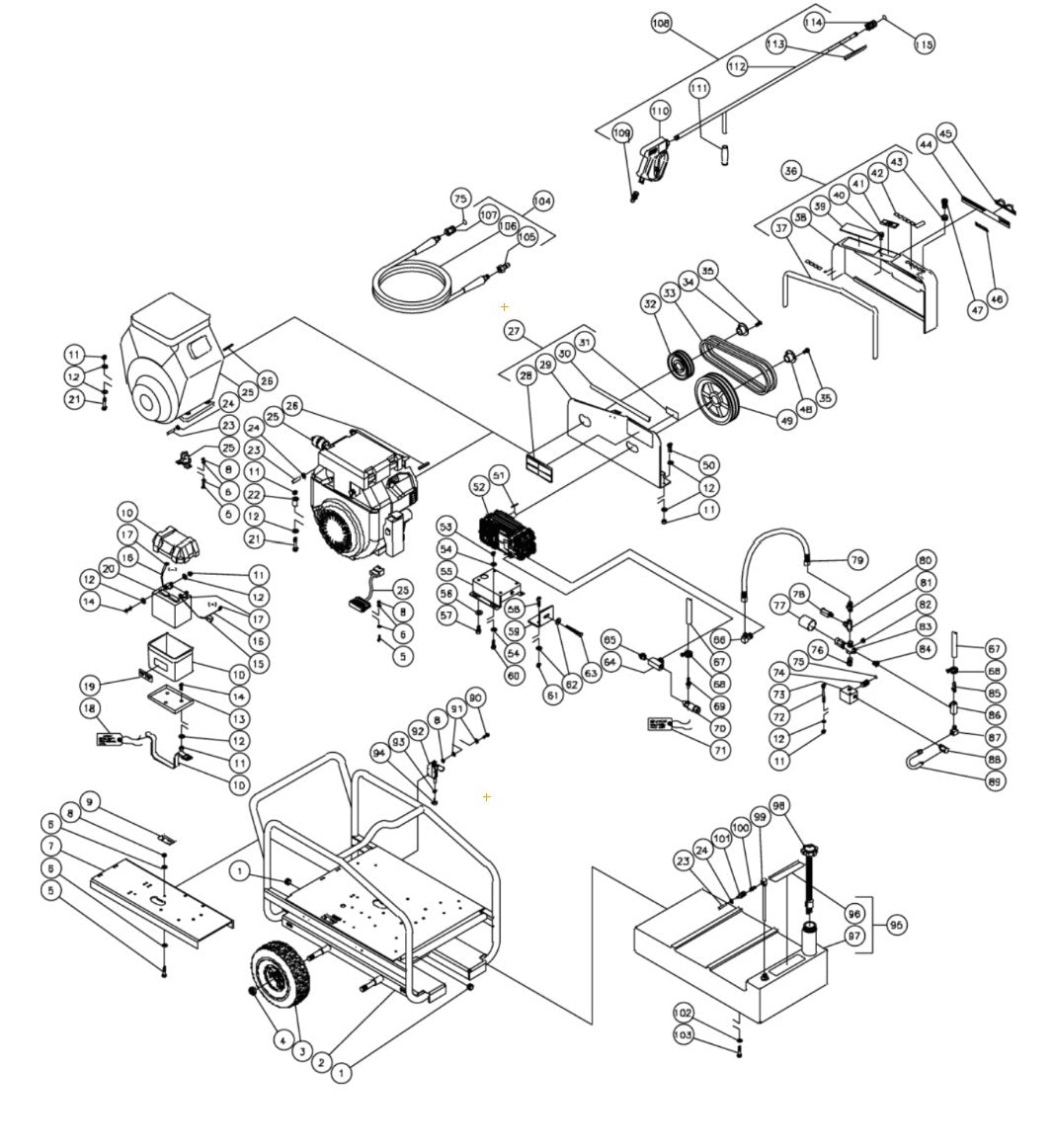

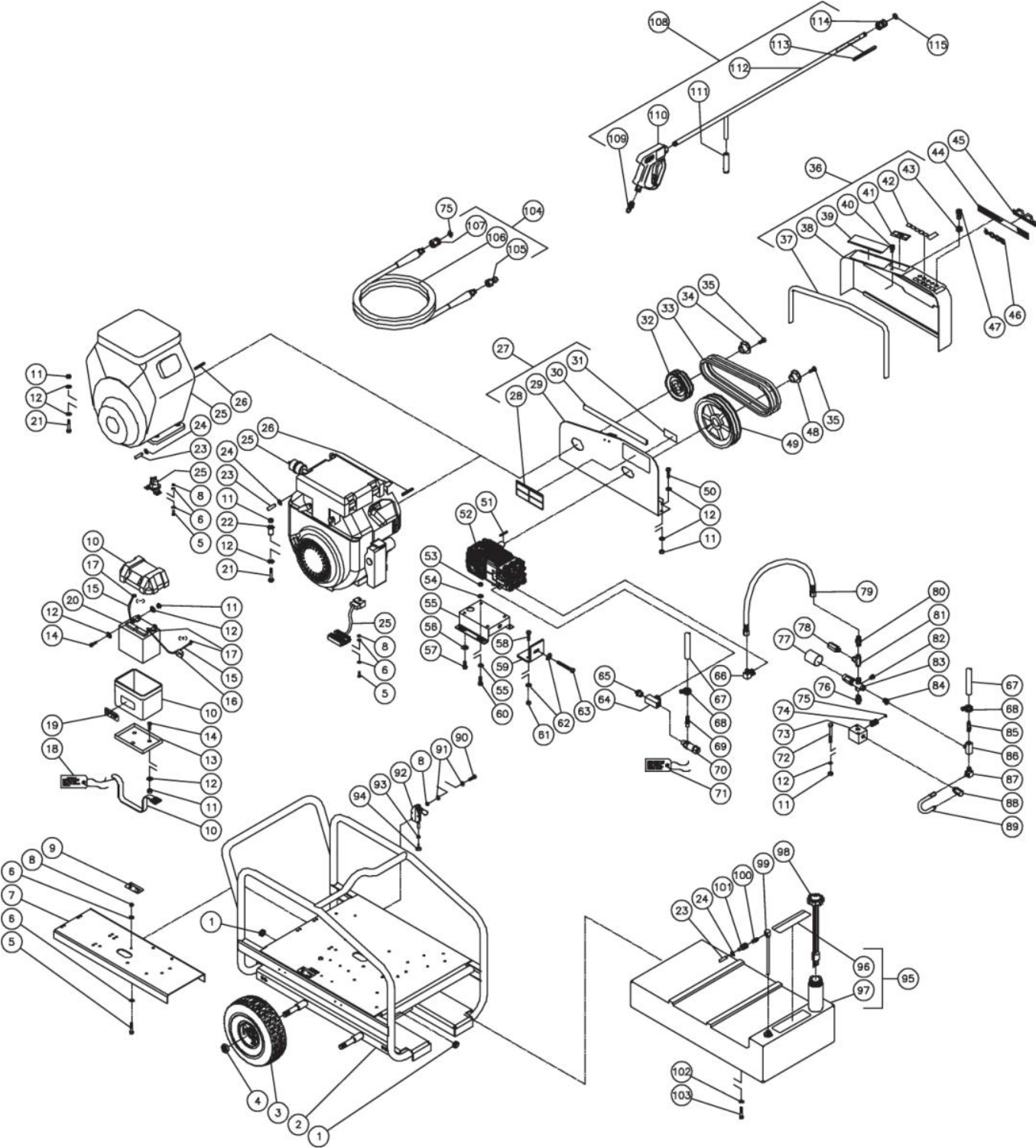

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
