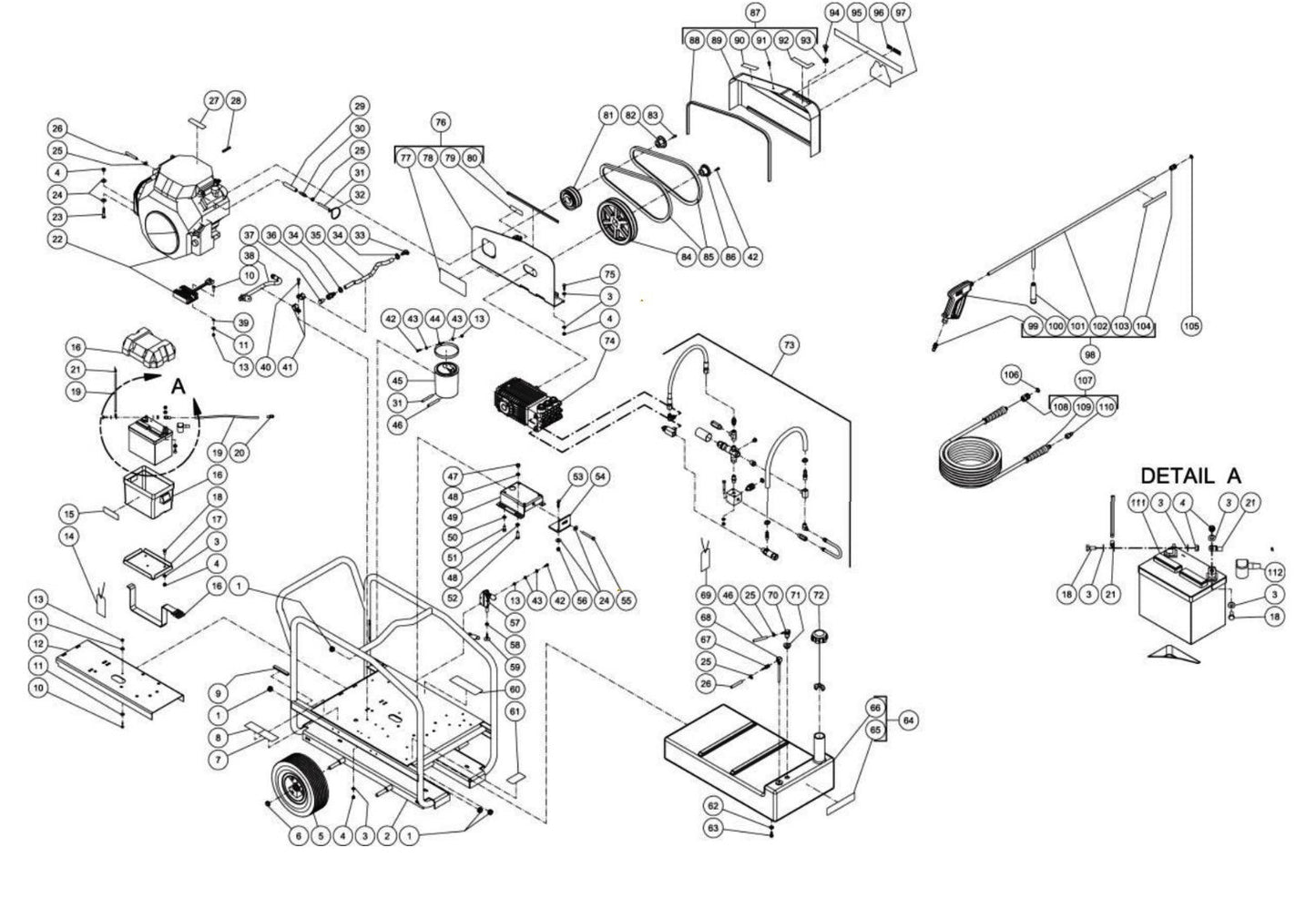

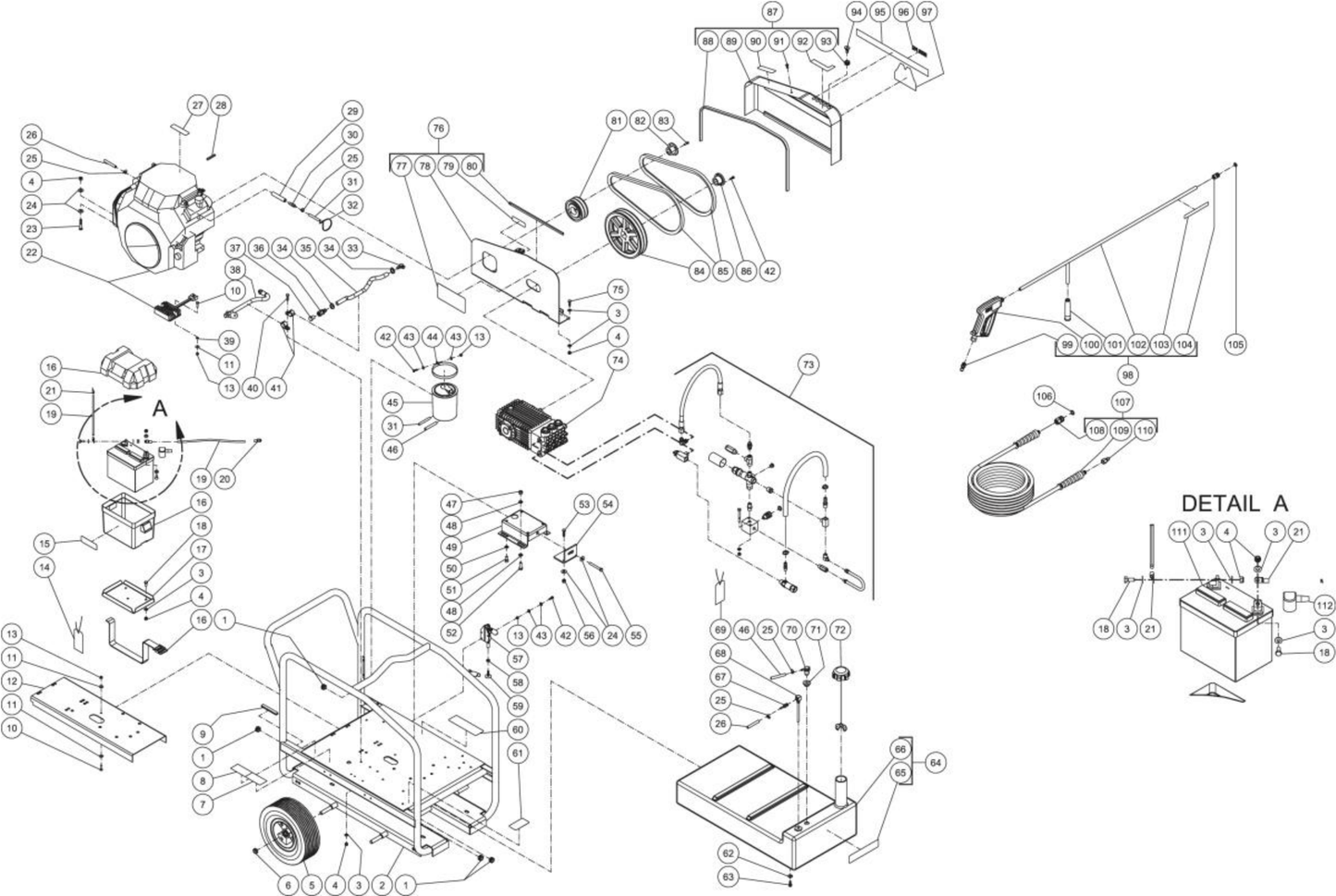

CWC-5004-3MGH (sn:0-10552631) Frame Assembly Parts by Mi-T-M

CWC-5004-3MGH (sn:0-10552631) Frame Assembly Parts by Mi-T-M

  • CWC-5004-3MGH (sn:0-10552631) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
33-0002 Grommet 1/2Id X 13/16Gd-1/4Gw for AM2-PH09-30M Air Compressor by Mi-T-M 330002
$2.99
2
50136A42 Frame Assembly for MiTM Pressure Washers
$1,443.14
3
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
4
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
5
14-0092 Wheel for MiTM Pressure Washers 140092
$191.66
6
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
9
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
80
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
88
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
10
27-0016 Bolt for MiTM Pressure Washers 270016
$5.93
11
28-0021 Washer for MiTM Pressure Washers 280021
$5.93
12
130120A01 Support Bracket for MiTM Pressure Washers
$166.83
14
34-0096 Tag- Battery for MiTM Pressure Washers 340096
Call for Price call for price call for price
16
33-0092 Battery Box-U1 11X7-1/2X8-3/4 for AC1-HH04-05M Air Compressor by Mi-T-M 330092
$34.70
17
20-0264A01 Battery Retainer for MiTM Pressure Washers 200264A01
$79.64
19
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
20
320744 Terminal Ring for MiTM Pressure Washers
$8.81
21
32-0097 Terminal 4Ga 5/16 Ring for AC1-PE03-20M Air Compressor by Mi-T-M 320097
$5.99
25
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
26
15-0008 Hose Fuel 1/4" Low Perm for AC1-HE15-05M Air Compressor by Mi-T-M 150008
Call for Price call for price call for price
46
15-0008 Hose Fuel 1/4" Low Perm for AC1-HE15-05M Air Compressor by Mi-T-M 150008
Call for Price call for price call for price
28
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
30
550700 Coupling for MiTM Pressure Washers
$8.42
31
150261 Fuel Hose for MiTM Pressure Washers
Call for Price call for price call for price
32
33-0022 Cable Tie for MiTM Pressure Washers 330022
$4.41
35
150305 Hose *(Two Feet Required) for MiTM Pressure Washers
$11.55
37
23-0411 Plug-1/2Npt Flared Seal for AC1-PE03-20M Air Compressor by Mi-T-M 230411
$12.87
38
700555 Honda Drainzit Hose for MiTM Pressure Washers
$108.05
39
28-1028 Lockwasher for MiTM Pressure Washers 281028
$7.65
40
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
41
33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291
$4.85
43
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
44
201187A01 Carb Canister Strap for MiTM Pressure Washers
$22.43
45
620212 Carb Canister for MiTM Pressure Washers
$137.16
47
30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
48
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
49
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
51
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
52
27-0167 Bolt for MiTM Pressure Washers by MiTM 270167
$4.49
54
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
58
300004 Hex Nut for MiTM Pressure Washers
$4.43
59
279550 Bolt for MiTM Pressure Washers
$4.43
62
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
64
8510319 Fuel Tank Assembly (Inc. 101, 102) for MiTM Pressure Washers
Call for Price call for price call for price
66
120060 Fuel Tank for MiTM Pressure Washers
Call for Price call for price call for price
68
33-0271 Fuel Pick Up 1/4Fnpt X 1/4Mnpt for AC1-PE02-20M Air Compressor by Mi-T-M 330271
$31.48
69
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
70
620216 Vent for MiTM Pressure Washers
$20.81
71
620214 Rollover Valve Grommet for MiTM Pressure Washers
$4.43
72
120220 Fuel Cap - Sealed/Tethered for MiTM Pressure Washers
$78.41
73
8510358 Plumbing Assembly for MiTM Pressure Washers
Call for Price call for price call for price
74
30261 Pump for MiTM Pressure Washers
$3,433.19
76
851-0310 Beltguard Back for MiTM Pressure Washers 8510310
$303.80
78
6-0083A01 Beltguard Back for MiTM Pressure Washers 60083A01
$222.06
81
10-0043 Sheave for MiTM Pressure Washers 100043
$138.23
83
270771 Bolt for MiTM Pressure Washers
$4.43
85
110054 Belt for MiTM Pressure Washers
$61.49
87
851-0348 Beltguard Cover Assembly (Inc. 29-34) for MiTM Pressure Washers 8510348
$270.99
89
60064A42 Beltguard Cover for MiTM Pressure Washers
$166.77
91
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
92
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
94
18-0258 Nozzle- 1503.5 for MiTM Air Compressors by MiTM 180258
$10.85
94
18-0259 Nozzle- 2503.5 for MiTM Air Compressors by MiTM 180259
$10.85
94
18-0260 Nozzle- 4003.5 for MiTM Air Compressors by MiTM 180260
$10.85
96
34-2217 Decal- Die Cut 5004 for MiTM Pressure Washers 342217
Call for Price call for price call for price
98
851-0309 Gun/Wand Assembly (Inc. 94-98) for MiTM Pressure Washers 8510309
$622.25
99
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
100
16-0343 Gun for MiTM Pressure Washers 160343
$221.22
101
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
102
16-0342A01 Wand- W/ 36" Handle for MiTM Pressure Washers 160342A01
$315.48
104
17-0036 Quick Connect Socket for MiTM Pressure Washers 170036
$134.60
105
25-0122 O-Ring (Replacement Only) for MiTM Pressure Washers 250122
$4.68
106
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
107
851-0317 Pressure Hose Assembly (Inc. 94-96) for MiTM Pressure Washers 8510317
$639.68
108
17-0041 Quick Connect Socket for MiTM Pressure Washers 170041
$150.66
109
15-0178 Pressure Hose for MiTM Pressure Washers 150178
$639.68
111
32-0058 Battery Sm Bci#Vi 165Cca for AC1-HH04-05M Air Compressor by Mi-T-M 320058
$112.31
112
33-0004 Battery Cable Cover Red for AC1-PE03-20M Air Compressor by Mi-T-M 330004
$5.99
-
34-9017 Safety Decal Kit (Inc. 2-3, 40-41, 49, 63) for MiTM Air Compressors by MiTM 349017
Call for Price call for price call for price
110
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
13
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
18
27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066
$1.99
22
851-0385 ENGINE ASSEMBLY BY MITM
$3,598.43
23
27-0121 Bolt for ABS Air Compressor by Mi-T-M 270121
$1.99
24
28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
29
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
33
23-0119 Elbow 1/4M 1/2 Barb for AC1-HE02-05M by Mi-T-M 230119
$20.10
34
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
36
23-0360 Hose Barb for AC1-HE02-05M by Mi-T-M 230360
$13.55
42
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
50
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
53
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
55
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
56
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
57
33-0400 Push/Pull-Action Toggle Clamp for AC1-HE02-05M by Mi-T-M 330400
$66.15
63
27-9524 Bolt for ABS Air Compressor by Mi-T-M 279524
$1.99
67
23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051
$6.83
75
27-0067 Bolt for ABS Air Compressor by Mi-T-M 270067
Call for Price call for price call for price
82
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
84
10-0037 Sheave 2Bk100H for AC1-PE03-08M Air Compressor by Mi-T-M 100037
$99.22
86
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
93
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
94
18-0257 Nozzle- 0003.5 for MiTM Air Compressors by MiTM 180257
Call for Price call for price call for price
95
34-2189 Decal - Mi-T-M Stripe for ABS Air Compressor by Mi-T-M 342189
$1.99
97
34-2169 Decal - Mi-T-M for ABS Air Compressor by Mi-T-M 342169
$1.99
