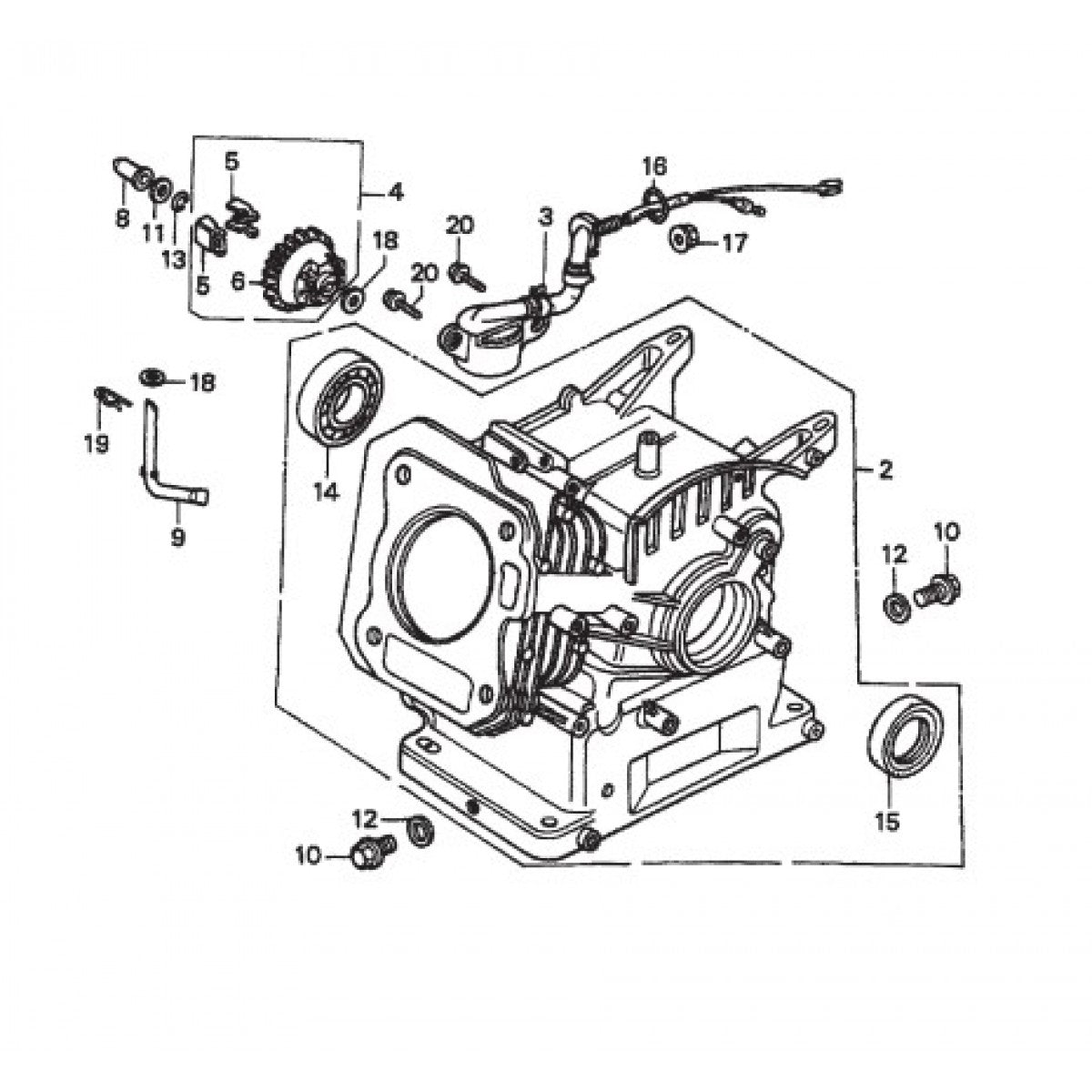

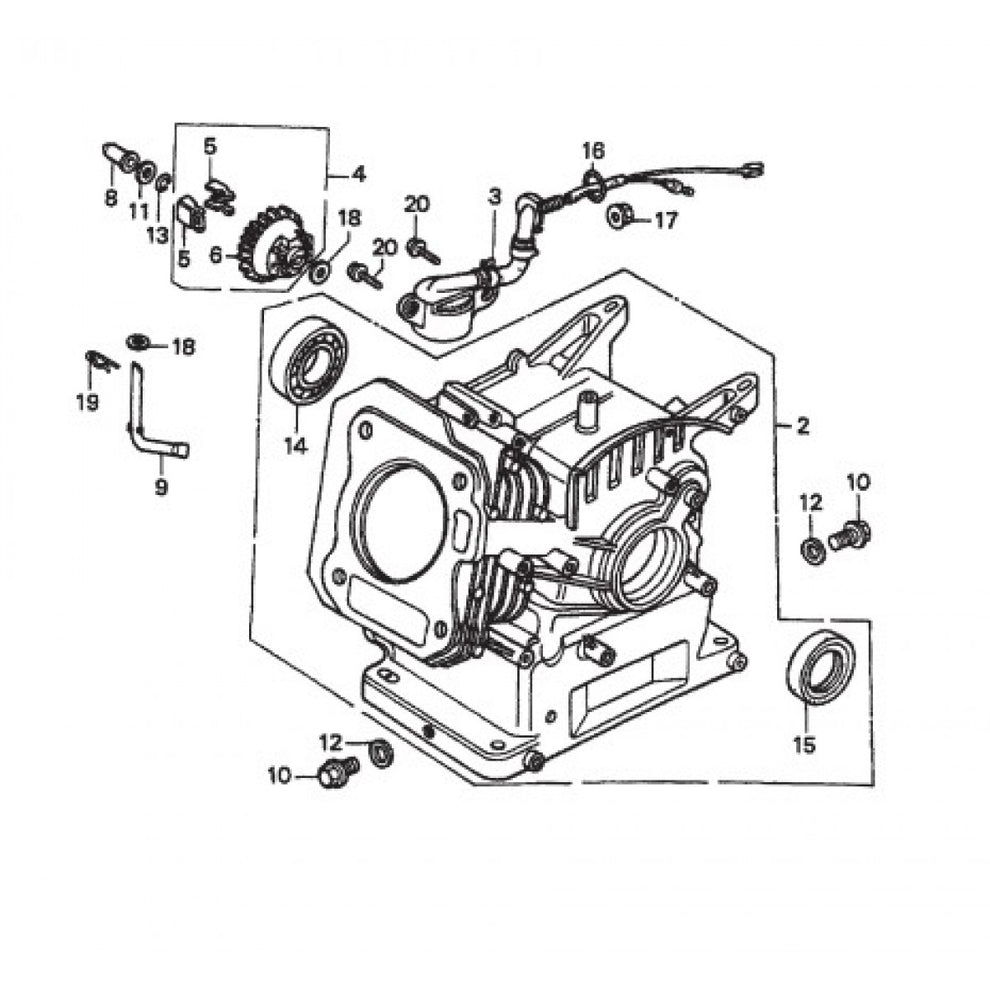

HPHA36C5H Cylinder Barrel Assembly Parts by Multiquip Whiteman

HPHA36C5H Cylinder Barrel Assembly Parts by Multiquip Whiteman

  • HPHA36C5H Cylinder Barrel Assembly Parts by Multiquip Whiteman
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
12000ZH8811 Cylinder Assy. (Oil Alert) for Multiquip Mikasa MVC70H MVC70HW Plate Tamper / Compactor
$885.48
3
15510ZE1033 Switch Assy., Oil Level for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$84.92
4
16510ZE1000 Governor Assy. .. for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$32.05
5
16511ZE1000 Weight, Governor for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$4.57
6
16512ZE1000 Holder, Governor Weight for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$26.34
8
16531ZE1000 Slider, Governor for Multiquip Mikasa MTX50HD Jumping Jack Rammer
$6.07
9
16541ZE1000 Shaft, Governor Arm for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$16.74
10
90131ZE1000 Bolt, Drain Plug for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$27.29
11
80451ZE1000 Washer, Thrust 6Mm for HPHA36C5H Trowels by Multiquip Whiteman
Call for Price call for price call for price
13
90602ZE1000 Clip, Governor Holder for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$27.29
15
91202883005 Oil Seal (25 X 41 X 6) for Multiquip Mikasa MVC70H MVC70HW Plate Tamper / Compactor
$14.59
20
957010601200 Bolt Flange (6X12) for GA36HZ GA36H GA36HA Portable Generator with Honda Gasoline Engine by MQ Multiquip
$3.25
12
90601ZE1000 Washer, Drain Plug 10.2Mm for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$27.29
14
91001ZF1003 Bearing, Radial Ball (6205) for JA Series Walk Behind Trowels by Multiquip Whiteman
$35.59
16
91353671003 O- Ring 13.5X1.5 (Arai) for CA4HC Walk Behind Trowel by Multiquip Whiteman
$27.29
17
9405010000 Nut, Flange (10Mm) for Multiquip Mikasa MVC80VH Plate Tamper Compactor
$27.29
18
58176 Washer, Flat 6Mm for Multiquip Mikasa MTR40HF Jumping Jack Rammer
Call for Price call for price call for price
19
9425108000 Pin, Lock 8 Mm for MVH120VGH Reversible Plate Compactor by Multiquip Mikasa
$27.29
View full details
