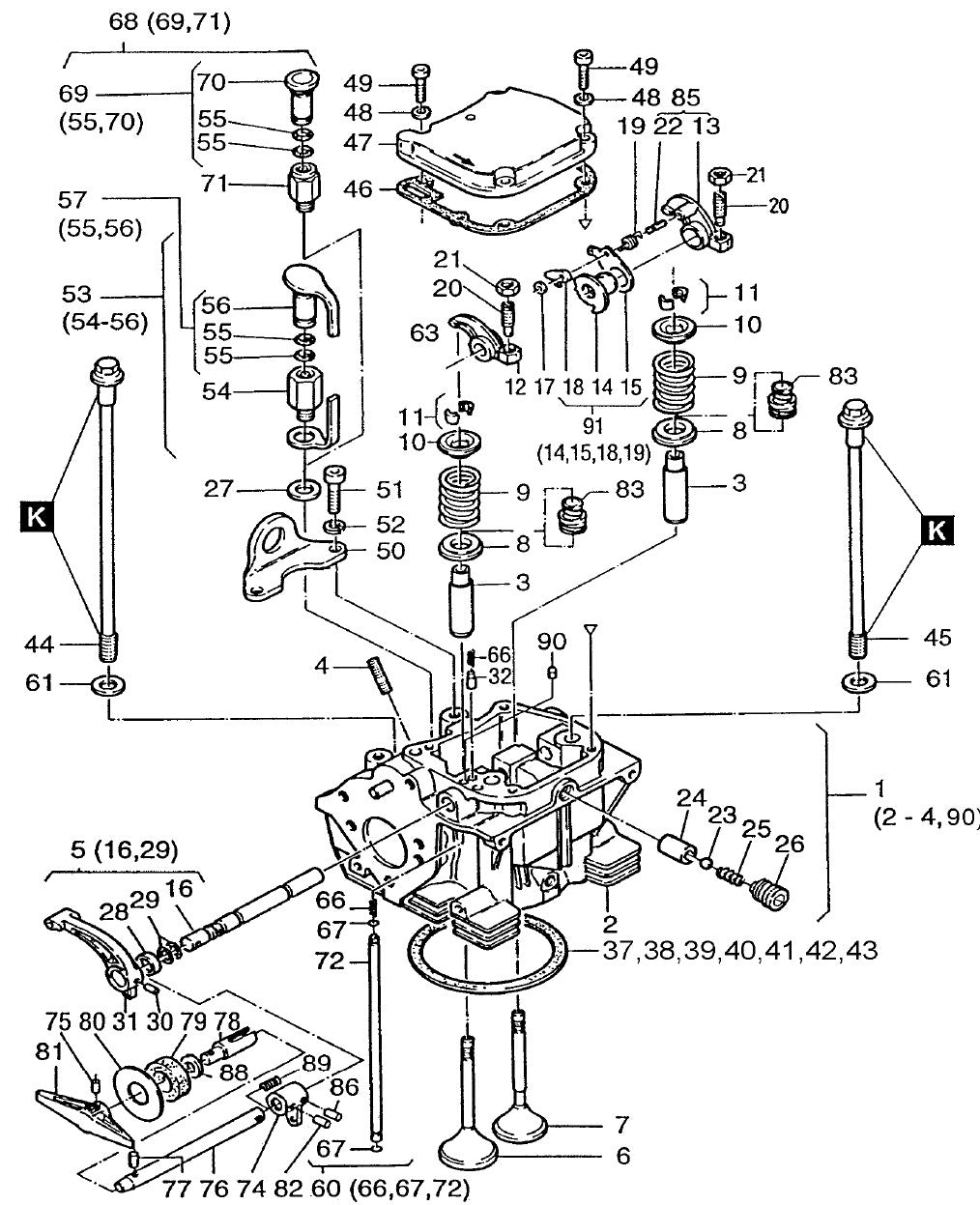

Cylinder Head HATZ 1D81Z Engine Assembly Parts For MDR9D Walk-Behind Roller By Multiquip

Cylinder Head HATZ 1D81Z Engine Assembly Parts For MDR9D Walk-Behind Roller By Multiquip

  • Cylinder Head HATZ 1D81Z Engine Assembly Parts For MDR9D Walk-Behind Roller By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
01264810 Cylinder Head Assy for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$1,641.26
1
01499610 Cylinder Head Assy for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
Call for Price call for price call for price
3
04008710 Valve Guide for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$126.83
4
50038400 Stud M 8 X 35 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$5.75
5
04068910 Rocker Shaft Assy. ���C��� for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
Call for Price call for price call for price
5
04068920 Rocker Shaft Assy for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$229.55
6
04005001 Valve Inlet for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$71.16
6
04091001 Valve Inlet for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$69.94
7
04005101 Valve Exhaust for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$87.43
7
04091100 Valve Exhaust for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$85.22
8
04005201 Washer for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$18.13
9
04005300 Valve Spring for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$18.57
10
04005401 Cup for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$31.38
11
03786300 Valve Collet for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$11.79
12
04003710 Rocker Inlet for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$164.75
15
03778401 Spring Sheet for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$3.25
17
50117200 Circlip for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$2.19
18
03365710 Ratchet F. Decompr. for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$29.61
19
03366001 Spring for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$10.90
20
03783000 Adjusting Screw for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$20.32
21
03173100 Hexagon Nut for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$4.24
23
50123800 Ball 7Mm Iii for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$2.95
24
04004700 Bush for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
Call for Price call for price call for price
25
04004800 Pressure Spring for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$4.24
26
01245200 Adjusting Screw for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$33.94
27
50001100 Joint A 12 X 15.5 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$7.89
28
04048900 Rubber Ring for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$8.55
29
40022401 O-Ring 8 X 2 Gray for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$3.85
30
50034700 Pin 4 X 22 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$7.39
31
04009810 Handle for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$15.76
32
04004100 Pin for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$7.19
35
04068800 Gask. F. Cyl. Head 0.5 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$19.28
36
04036800 Gask. F. Cyl. Head 0.6 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$19.87
37
04036500 Gask. F. Cyl. Head 0.7 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$20.32
38
04036600 Gask. F. Cyl. Head 0.8 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$22.59
39
04002700 Gask. F. Cyl. Head 0.9 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$39.11
40
04002800 Gask. F. Cyl. Head 1.0 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$26.48
41
04002900 Gask. F. Cyl. Head 1.1 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$28.05
42
04003000 Gask. F. Cyl. Head 1.2 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$30.51
43
04003100 Gask. F. Cyl. Head 1.3 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$32.22
44
04003200 Cyl. Head Screw 305 Mm for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$88.00
45
04003300 Cyl. Head Screw 258 Mm for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$90.88
46
04006111 Valve Cover Gasket 16> for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$9.42
47
01245410 Valve Cover for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$117.77
48
50081200 Lock Washer A6 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$2.19
49
50170800 Allen Screw M 6 X 25 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$2.95
50
04008100 Lifting Bracket for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$44.21
51
50366300 Allen Screw M 8X 20 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$3.85
52
50208500 Lock Washer 8 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.39
53
01493200 Device Housing for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$53.08
55
40081700 O-Ring 12 X 16 X2 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$3.85
57
01308300 Closing Plug for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$16.51
60
01269700 Oil Pressure Pipe for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$40.26
61
03457500 Disc F. Stud for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$14.96
66
04004200 Pressure Spring for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$4.24
67
50330100 O-Ring 4 X 1.2 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$7.39
68
01280600 Oil Filter Device for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$65.93
69
01275610 Closing Plug Assy 46Mm for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$33.47
74
04047920 Interm. Piece Decomp. for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$100.22
75
50132000 Roll Pin 4 X 16 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$2.95
82
50132000 Roll Pin 4 X 16 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$2.95
76
04048220 Decompression Shaft ���C��� for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$45.32
77
50034500 Roll Pin 4 X 14 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$2.95
78
04048110 Intermediate Piece for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$53.11
79
03579800 Rubber Washer for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$16.09
80
04048000 Washer 10.5 X 50 X 0.8 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$5.45
81
03778200 Handle 6 X 18 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$12.53
83
50405200 Valve Stem Seal Cap for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$14.31
85
01285010 Rocker Exhaust for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$154.40
86
50034600 Roll Pin 4 X 18 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$2.95
88
03787300 Shim 0.2 for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$5.45
89
04097200 Pres. Spring Decompr. for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$7.35
90
04038500 Oil Restrictor Valve Assy. for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$3.25
90
04104300 Oil Restrictor Vave for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$7.35
91
01557600 Gearwheel F. Decompr for Multiquip Mikasa MDR9D Walk Behind Tandem Roller
$136.58
View full details
