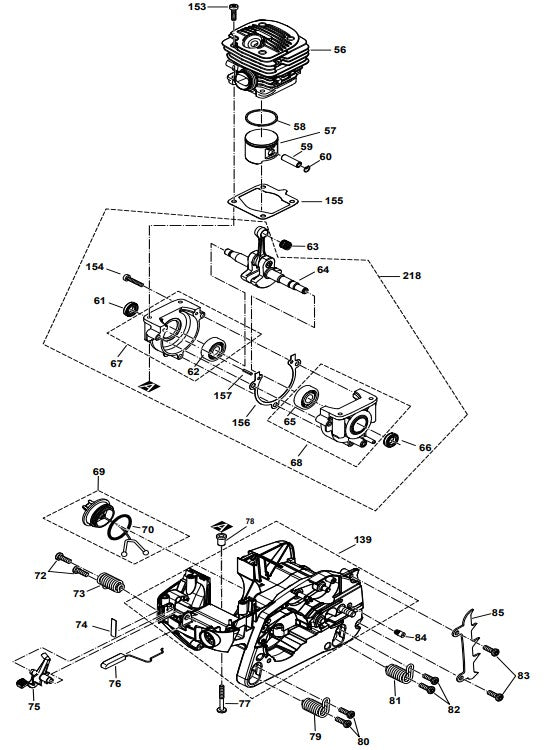

Cylinder, Piston, Crankcase Assembly Parts For EA3500SRDB Gas Chain Saw Parts by Makita

Cylinder, Piston, Crankcase Assembly Parts For EA3500SRDB Gas Chain Saw Parts by Makita

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
56
1433234 CYLINDER CPL., EA3500S BY MAKITA
$47.18
56
3190735 CYLINDER, DOLMAR, PS35 BY MAKITA
$34.50
57
3191082 PISTON, DOLMAR, PS35 BY MAKITA
$10.53
58
2573661 PISTON RING, DOLMAR, PS35 BY MAKITA
$5.99
59
3263956 PISTON PIN, DOLMAR, PS35 BY MAKITA
$5.99
60
2343236 RING SPRING 9, PS35C BY MAKITA
$3.99
61
2131415 OIL SEAL 12, PS35C BY MAKITA
$10.26
66
2131415 OIL SEAL 12, PS35C BY MAKITA
$10.26
62
2114946 BALL BEARING 6201, EA4300F BY MAKITA
$18.29
65
2114946 BALL BEARING 6201, EA4300F BY MAKITA
$18.29
63
2120937 NEEDLE CAGE, DOLMAR, PS35 BY MAKITA
$7.76
64
1424172 CRANKSHAFT CPL., EA3500S BY MAKITA
$28.44
67
1263807 CRANKCASE CPL., DOLMAR, PS35 BY MAKITA
$13.80
68
1263815 CRANKCASE CPL., DOLMAR, PS35 BY MAKITA
$15.62
69
1685073 TANK CAP CPL., EK7301 BY MAKITA
$7.76
70
2130809 O RING 29.5, EA4300F BY MAKITA
$3.99
72
2666511 H.L. TAPPING SCREW 5.5X16, EA3201S BY MAKITA
$3.99
80
2666511 H.L. TAPPING SCREW 5.5X16, EA3201S BY MAKITA
$3.99
82
2666511 H.L. TAPPING SCREW 5.5X16, EA3201S BY MAKITA
$3.99
83
2666511 H.L. TAPPING SCREW 5.5X16, EA3201S BY MAKITA
$3.99
73
2341894 COMPRESSION SPRING 12, EA3201S BY MAKITA
$7.76
79
2341894 COMPRESSION SPRING 12, EA3201S BY MAKITA
$7.76
81
2341894 COMPRESSION SPRING 12, EA3201S BY MAKITA
$7.76
75
4520254 CHOKE LEVER, EA3201S BY MAKITA
$3.99
76
4520220 THROTTLE LINKAGE, EA3201S BY MAKITA
$7.76
76
125117120 THROTTLE LINKAGE, DOLMAR PS35 BY MAKITA
$7.76
77
2666082 H.L. TAPPING SCREW 5X40, EA3201S BY MAKITA
$3.99
78
3264025 BUSH 6, PS35C BY MAKITA
$3.99
84
1685049 VENT VALVE, EA3201S BY MAKITA
$5.99
85
3463015 SPIKE BAR, EA3201S BY MAKITA
$5.99
139
1435480 ENGINE HOUSING CPL., DOLMAR, PS35 BY MAKITA
$23.91
153
2669608 H.L SOCKET HEAD BOLT M5X20, EA4300F BY MAKITA
$3.99
153
908405205 SCREW M5X20, DPC6400 BY MAKITA
$3.99
154
2668806 H.L SOCKET HEAD BOLD M5X25, PS35C BY MAKITA
$3.99
155
3467603 GASKET, DOLMAR, PS35 BY MAKITA
$3.99
156
3467611 CRANKCASE GASKET, DOLMAR, PS35 BY MAKITA
$3.99
157
9510638 SPRING PIN 316, LC1230 BY MAKITA
$3.99
62
Call for Price call for price call for price
65
Call for Price call for price call for price
67
Call for Price call for price call for price
68
Call for Price call for price call for price
74
Call for Price call for price call for price
218
Call for Price call for price call for price
View full details

Frequently asked questions

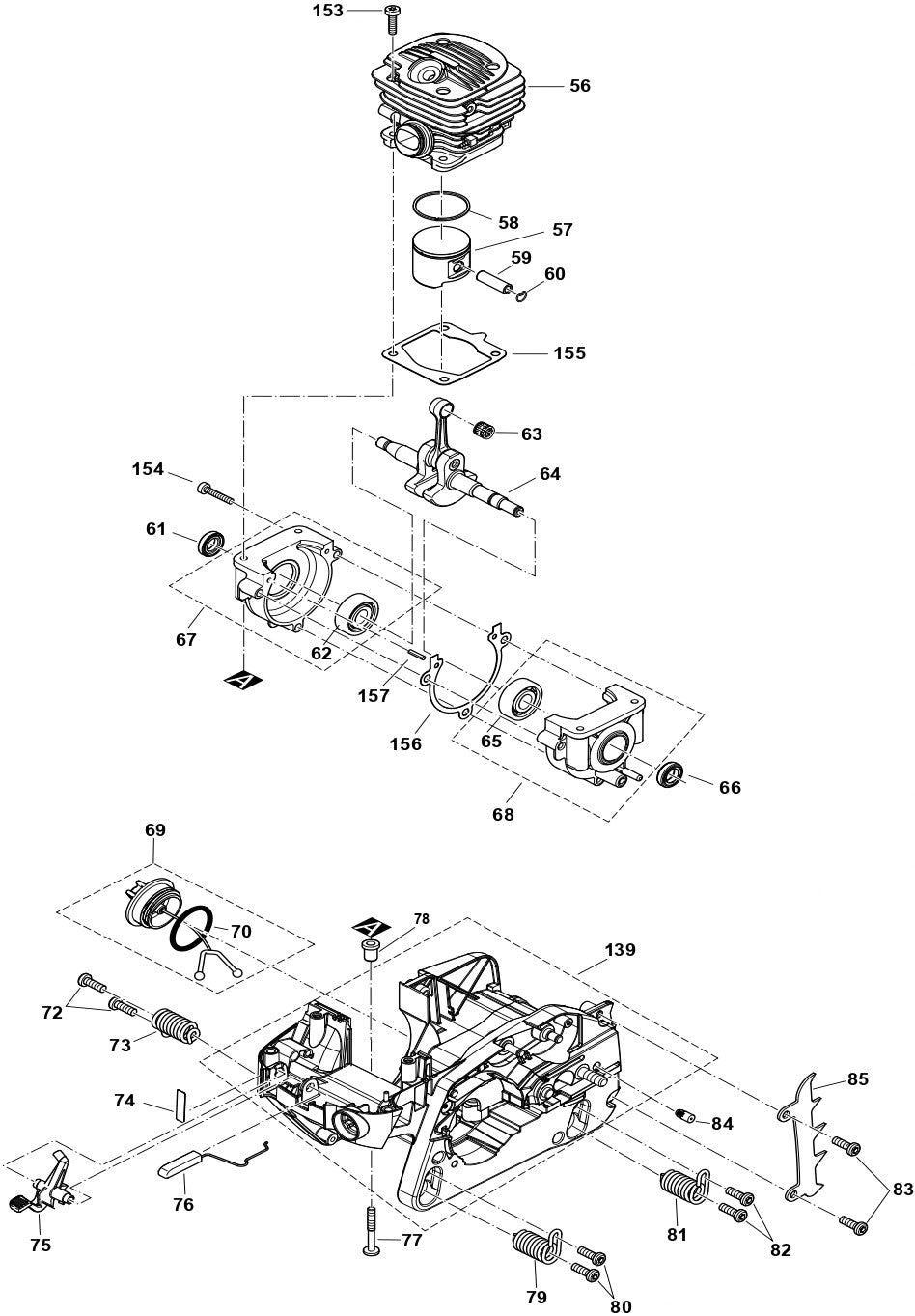

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
