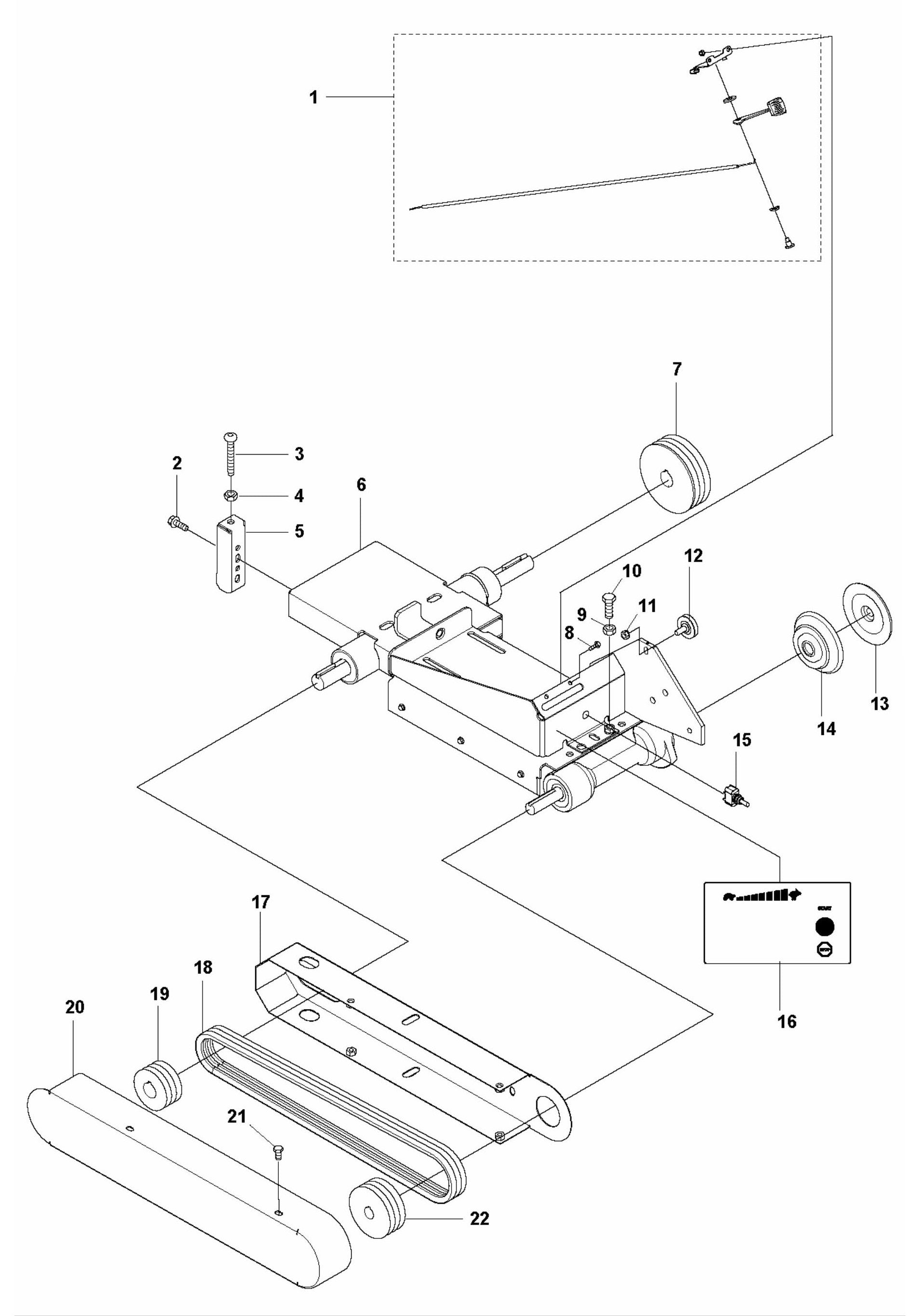

MS 610 Head Platform Assembly Parts

MS 610 Head Platform Assembly Parts

  • MS 610 Head Platform Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
587696901 Cable for PG400 Floor Grinder and Polisher by Husqvarna
$35.51
2
585975401 Screw Ehhfm for FS4600 Walk Behind Floor Saw by Husqvarna
$6.44
3
542206324 SBHCS M8 X 1.25 X 60MM, Z/P FOR FASTENERS BY HUSQVARNA
$7.72
4
731431801 Hexagon Thin Nut for BMG 444 Floor Grinder by Husqvarna
$3.99
5
591200801 BRACKET, DEPTH STOP FOR MASONRY SAW BY HUSQVARNA
$86.71
6
590377101 ARM, PIVOT MS610 HUSQ GREY FOR MASONRY SAW BY HUSQVARNA
$541.29
7
542195406 PULLEY, 3G3V 4.50OD 1.0 BORE FOR MASONRY SAW BY HUSQVARNA
$85.40
8
585980501 Screw EHHFM for FS7000 DL Concrete Walk Behind Saw by Husqvarna
$5.80
9
542020171 Nut for Husqvarna FS3500 G Walk Behind Concrete Saw
$7.26
10
542168133 HHCS, .375-24 X 1 UNF GR 5 Z/P FOR FASTENERS BY HUSQVARNA
$3.91
11
542032366 Nut for FS7000 DL Concrete Walk Behind Saw by Husqvarna
$2.90
12
523075201 Bearing for Husqvarna FS3500 G Walk Behind Concrete Saw
$17.00
13
542030951 FLANGE, OUTER FOR MASONRY SAW BY HUSQVARNA
$76.89
14
542177973 Collar for MS 355 G Masonry Saw by Husqvarna
$154.80
15
542199648 Switch for FS7000 DL Concrete Walk Behind Saw by Husqvarna
$34.20
16
592787401 Decal for MS 610 Saw by Husqvarna
$19.70
17
542195232 GUARD, INNER, BLADE BELTS,GALV FOR MASONRY SAW BY HUSQVARNA
$80.53
18
542045398 V-BELT: 3VX475 FOR CONCRETE SAWS BY HUSQVARNA
$16.83
19
542139683 Pulley for Husqvarna Soff Cut 2000 Early Entry Saw
$110.29
20
542205346 BELT GRD WLDMT,GM-GAS,PC H-ORG FOR MASONRY SAW BY HUSQVARNA
$145.69
21
592858701 Bolt for MS 610 G Saw by Husqvarna
Call for Price call for price call for price
22
542195235 PULLEY, 3G3V 3.35OD .75 BORE FOR MASONRY SAW BY HUSQVARNA
$100.17
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
