DC-1003-WSE1G (sn:10495458-11356791) Frame Assembly Parts By MiTM

DC-1003-WSE1G (sn:10495458-11356791) Frame Assembly Parts By MiTM

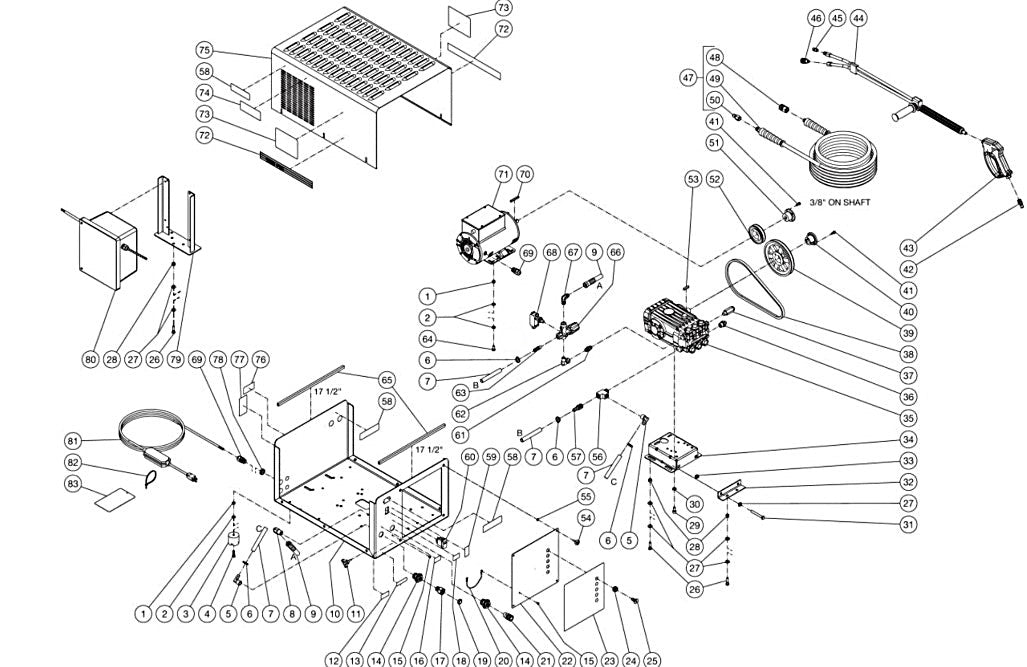

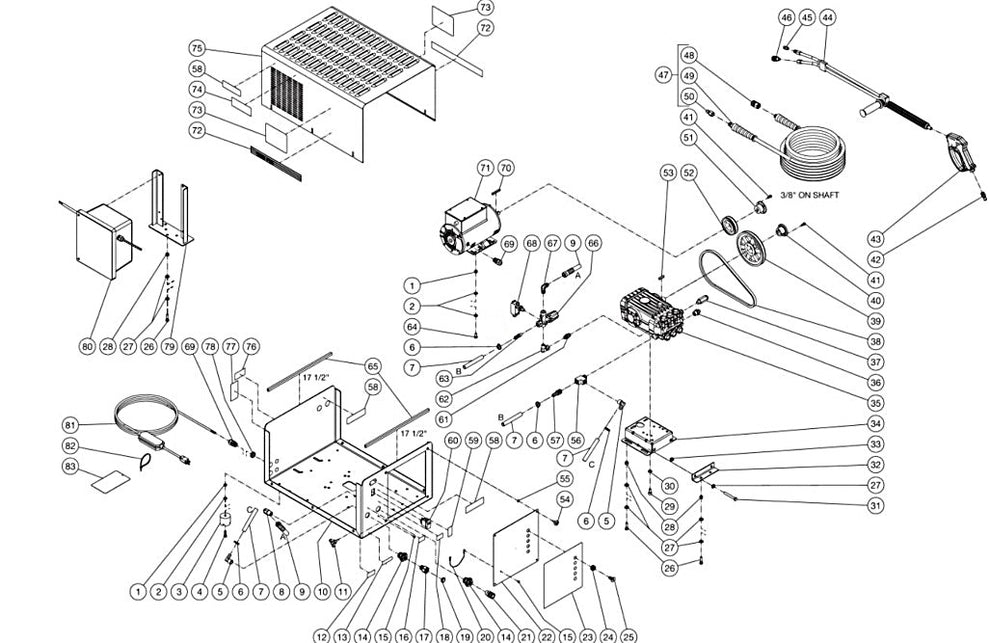

  • DC-1003-WSE1G (sn:10495458-11356791) Frame Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
30-5158 LOCKNUT BY MITM 30-5158 LOCKNUT BY MITM
$2.55
2
28-0122 Washer for MiTM Pressure Washers 280122 28-0122 Washer for MiTM Pressure Washers 280122
$5.93
3
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008 14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
4
27-5024 BOLT BY MITM 27-5024 BOLT BY MITM
$2.55
5
23-0418 Elbow 1/2 Mnpt X 1/2 Barb for Mi-T-M CA-2703-8MRB by MiTM 230418 23-0418 Elbow 1/2 Mnpt X 1/2 Barb for Mi-T-M CA-2703-8MRB by MiTM 230418
$15.76
6
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011 42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
7
15-0007 HOSE *(TWO FEET REQUIRED) BY MITM 15-0007 HOSE *(TWO FEET REQUIRED) BY MITM
$3.51
8
24-0074 90° Elbow Fitting for ABS Air Compressor by Mi-T-M 240074 24-0074 90° Elbow Fitting for ABS Air Compressor by Mi-T-M 240074
$16.62
9
15-0221 Hose 3/8X29" 4500Psi R2 Black for AC1-HE02-05M by Mi-T-M 150221 15-0221 Hose 3/8X29" 4500Psi R2 Black for AC1-HE02-05M by Mi-T-M 150221
$40.69
10
21-0193 FRAME BY MITM 21-0193 FRAME BY MITM
$1,106.51
11
7-0168 KNOB BY MITM 7-0168 KNOB BY MITM
$15.30
12
34-3553 Decal - Made In Usa for MiTM Pressure Washers by MiTM 343553 34-3553 Decal - Made In Usa for MiTM Pressure Washers by MiTM 343553
$2.99
14
23-0365 Adapter for ABS Air Compressor by Mi-T-M 230365 23-0365 Adapter for ABS Air Compressor by Mi-T-M 230365
Call for Price call for price call for price
15
53-0009 RIVET BY MITM 53-0009 RIVET BY MITM
$3.18
17
23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095 23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095
$12.57
19
19-0001 Filter-Inlet Washer W/Screen for AC1-HE02-05M by Mi-T-M 190001 19-0001 Filter-Inlet Washer W/Screen for AC1-HE02-05M by Mi-T-M 190001
$1.99
20
33-0424 Lanyard-12 Long W/2 3/16 Eyes for MiTM Pressure Washers 330424 33-0424 Lanyard-12 Long W/2 3/16 Eyes for MiTM Pressure Washers 330424
$41.64
21
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029 17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
22
21-0194 SERVICE PANEL BY MITM 21-0194 SERVICE PANEL BY MITM
$143.90
24
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001 33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
25
18-0406 Nozzle 00050 Qc for AC1-HH04-05M Air Compressor by Mi-T-M 180406 18-0406 Nozzle 00050 Qc for AC1-HH04-05M Air Compressor by Mi-T-M 180406
$7.95
25
18-0407 Nozzle 15050 Qc for AC1-HH04-05M Air Compressor by Mi-T-M 180407 18-0407 Nozzle 15050 Qc for AC1-HH04-05M Air Compressor by Mi-T-M 180407
$7.95
25
18-0408 Nozzle 25050 Qc for AC1-HH04-05M Air Compressor by Mi-T-M 180408 18-0408 Nozzle 25050 Qc for AC1-HH04-05M Air Compressor by Mi-T-M 180408
$7.95
25
18-0409 Nozzle 40050 Qc for AC1-HH04-05M Air Compressor by Mi-T-M 180409 18-0409 Nozzle 40050 Qc for AC1-HH04-05M Air Compressor by Mi-T-M 180409
$7.95
26
27-9563 BOLT BY MITM 27-9563 BOLT BY MITM
$5.10
27
28-0123 WASHER BY MITM 28-0123 WASHER BY MITM
$2.55
28
30-5159 NUT BY MITM 30-5159 NUT BY MITM
$2.55
29
27-8471 BOLT BY MITM 27-8471 BOLT BY MITM
$7.65
30
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055 29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
31
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576 27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
32
20-0584A18 Tension Bracket BY MITM 20-0584A18 Tension Bracket BY MITM
$10.13
33
30-6025 CLIP NUT BY MITM 30-6025 CLIP NUT BY MITM
$7.13
34
5-0153A18 Pump Hat BY MITM 5-0153A18 Pump Hat BY MITM
$34.43
35
3-0203 PUMP 4.0 GPM AT 3500 PSI BY MITM 3-0203 PUMP 4.0 GPM AT 3500 PSI BY MITM
$1,388.70
36
22-0371 Valve-Thermal Relief 1/2M 190F for AM2-PH09-08AB Air Compressor by Mi-T-M 220371 22-0371 Valve-Thermal Relief 1/2M 190F for AM2-PH09-08AB Air Compressor by Mi-T-M 220371
$35.85
37
22-0376 Safety Valve 3/8M 4Kpsi 6Gpm for AM2-SE75-30M Air Compressor by Mi-T-M 220376 22-0376 Safety Valve 3/8M 4Kpsi 6Gpm for AM2-SE75-30M Air Compressor by Mi-T-M 220376
$68.99
38
11-0006 Cog Belt Ax36 for AC1-HE02-05M by Mi-T-M 110006 11-0006 Cog Belt Ax36 for AC1-HE02-05M by Mi-T-M 110006
$25.30
39
10-0066 SHEAVE AK74H (7.0 PITCH DIA.) BY MITM 10-0066 SHEAVE AK74H (7.0 PITCH DIA.) BY MITM
$54.57
40
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017 9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
41
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015 27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
42
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005 17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
43
16-0446 Trigger Gun 5000 Psi for AC2-PR09-20M Air Compressor by Mi-T-M 160446 16-0446 Trigger Gun 5000 Psi for AC2-PR09-20M Air Compressor by Mi-T-M 160446
$96.66
44
16-0416 Dual Lance 36.00" for AC1-PE15-08M Air Compressor by Mi-T-M 160416 16-0416 Dual Lance 36.00" for AC1-PE15-08M Air Compressor by Mi-T-M 160416
$94.46
45
18-0110 Nozzle 4040 1/4 M for AC1-HE15-05M Air Compressor by Mi-T-M 180110 18-0110 Nozzle 4040 1/4 M for AC1-HE15-05M Air Compressor by Mi-T-M 180110
$12.68
46
17-0028 Qc 1/4Mp X 1/4 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170028 17-0028 Qc 1/4Mp X 1/4 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170028
$15.34
47
851-0262 HIGH PRESSURE HOSE ASSEMBLY (INC 47-49) BY MITM 851-0262 HIGH PRESSURE HOSE ASSEMBLY (INC 47-49) BY MITM
$283.44
48
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004 17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
49
15-0146 Hose 3/8X50' 3000Psi R1 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150146 15-0146 Hose 3/8X50' 3000Psi R1 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150146
$151.47
50
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006 17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
51
9-0037 Bushing D X 5/8 for AC1-HE02-05M by Mi-T-M 90037 9-0037 Bushing D X 5/8 for AC1-HE02-05M by Mi-T-M 90037
$19.22
52
10-0049 Sheave Ak39H for AC1-HR45-05M Air Compressor by Mi-T-M 100049 10-0049 Sheave Ak39H for AC1-HR45-05M Air Compressor by Mi-T-M 100049
$28.90
53
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048 43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
54
62-0057 Knob W/Stud M6-1.00P X 16Mm for AC1-PH65-20M Air Compressor by Mi-T-M 620057 62-0057 Knob W/Stud M6-1.00P X 16Mm for AC1-PH65-20M Air Compressor by Mi-T-M 620057
$4.85
55
28-1045 WASHER BY MITM 28-1045 WASHER BY MITM
$2.55
56
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124 23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
57
23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045 23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045
$11.46
60
32-0801 Switch Rocker 15 Amp 24 Volt for MiTM Pressure Washers by MiTM 320801 32-0801 Switch Rocker 15 Amp 24 Volt for MiTM Pressure Washers by MiTM 320801
$69.92
61
*24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002 *24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002
$6.04
62
24-0046 Elbow 3/8Mx1/2Jic Fs 90 Steel for AC2-PH11-20M Air Compressor by Mi-T-M 240046 24-0046 Elbow 3/8Mx1/2Jic Fs 90 Steel for AC2-PH11-20M Air Compressor by Mi-T-M 240046
$33.30
63
23-0120 Barb 1/4M X 1/2 Hose Brass for AC1-PE02-20M1 Air Compressor by Mi-T-M 230120 23-0120 Barb 1/4M X 1/2 Hose Brass for AC1-PE02-20M1 Air Compressor by Mi-T-M 230120
$5.84
64
27-5066 BOLT BY MITM 27-5066 BOLT BY MITM
Call for Price call for price call for price
65
33-0020 Edging *(Three Feet Required) for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 330020 33-0020 Edging *(Three Feet Required) for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 330020
$5.99
66
8-0361 Unloader W/O Chem Inj (Psi Tra for AC2-PH11-20M Air Compressor by Mi-T-M 80361 8-0361 Unloader W/O Chem Inj (Psi Tra for AC2-PH11-20M Air Compressor by Mi-T-M 80361
$184.59
67
24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092 24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092
$13.46
68
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171 22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
69
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437 32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
70
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Pressure Washers 430078 43-0078 Key 1/4 Sq X 2-1/8 for MiTM Pressure Washers 430078
$36.81
71
2-0119 Motor 2 Hp 115/230V 60 Hz 1Ph for AC1-HE15-04M Air Compressor by Mi-T-M 20119 2-0235 2-0119 Motor 2 Hp 115/230V 60 Hz 1Ph for AC1-HE15-04M Air Compressor by Mi-T-M 20119 2-0235
$535.95
72
34-2563 DECAL - 14” STRIPE BY MITM 34-2563 DECAL - 14” STRIPE BY MITM
Call for Price call for price call for price
73
34-2169 Decal - Mi-T-M for ABS Air Compressor by Mi-T-M 342169 34-2169 Decal - Mi-T-M for ABS Air Compressor by Mi-T-M 342169
$1.99
75
21-0195 HOOD BY MITM 21-0195 HOOD BY MITM
Call for Price call for price call for price
76
34-3581 DECAL- MOBILE PRO BY MITM 34-3581 DECAL- MOBILE PRO BY MITM
Call for Price call for price call for price
78
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108 32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
79
13-0227A18 Bracket-Electric Box-Black for MiTM Pressure Washers 130227A18 13-0227A18 Bracket-Electric Box-Black for MiTM Pressure Washers 130227A18
$144.48
81
32-0215 Cord 12/3 W/Gfi Plug Nema5-20P for AC1-HE15-04M Air Compressor by Mi-T-M 320215 32-0215 Cord 12/3 W/Gfi Plug Nema5-20P for AC1-HE15-04M Air Compressor by Mi-T-M 320215
$134.04
82
33-0022 CABLE TIE BY MITM 33-0022 CABLE TIE BY MITM
$1.47
-
71-1020 DECAL SET-CW SME 1000 PSI MITM BY MITM 71-1020 DECAL SET-CW SME 1000 PSI MITM BY MITM
$60.50
