DC-1502-A0E1G, DC-1502-A0E1G-W, DC-1502-H0E1H (sn:0-99999999) Pump Assembly Parts by Mi-T-M

DC-1502-A0E1G, DC-1502-A0E1G-W, DC-1502-H0E1H (sn:0-99999999) Pump Assembly Parts by Mi-T-M

  • DC-1502-A0E1G, DC-1502-A0E1G-W, DC-1502-H0E1H (sn:0-99999999) Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
27-8406 Bolt for MiTM Pressure Washers 278406 27-8406 Bolt for MiTM Pressure Washers 278406
$18.42
2
28-0203 Washer Serr 6.5 Id X 9.89 Od for MiTM Air Compressors by MiTM 280203 28-0203 Washer Serr 6.5 Id X 9.89 Od for MiTM Air Compressors by MiTM 280203
$4.43
9
26-0373 GASKET (SEE KIT 70-0015) BY MITM 26-0373 GASKET (SEE KIT 70-0015) BY MITM
$2.24
10
46-0229 Drip Pan for MiTM Pressure Washers 460229 46-0229 Drip Pan for MiTM Pressure Washers 460229
$87.78
12
46-0221 Crankcase for MiTM Pressure Washers 460221 46-0221 Crankcase for MiTM Pressure Washers 460221
$757.83
15
46-0245 Ring Snap for AC1-PE15-20M1 Air Compressor by Mi-T-M 460245 46-0245 Ring Snap for AC1-PE15-20M1 Air Compressor by Mi-T-M 460245
$4.85
16
26-0126 Seal Oil for AC1-PE15-20M1 Air Compressor by Mi-T-M 260126 26-0126 Seal Oil for AC1-PE15-20M1 Air Compressor by Mi-T-M 260126
$30.95
19
38-0032 Flange Pump Electric for AC1-PE15-20M1 Air Compressor by Mi-T-M 380032 38-0032 Flange Pump Electric for AC1-PE15-20M1 Air Compressor by Mi-T-M 380032
$87.82
20
27-8409 Bolt for MiTM Pressure Washers 278409 27-8409 Bolt for MiTM Pressure Washers 278409
$5.93
24
46-0151 Crankcase Cover for MiTM Pressure Washers 460151 46-0151 Crankcase Cover for MiTM Pressure Washers 460151
Call for Price call for price call for price
28
25-0645 O-Ring 5.28 X 1.78Mm for MiTM Pressure Washers 250645 25-0645 O-Ring 5.28 X 1.78Mm for MiTM Pressure Washers 250645
$7.49
29
46-0148 Plunger for AC1-PE15-20M1 Air Compressor by Mi-T-M 460148 46-0148 Plunger for AC1-PE15-20M1 Air Compressor by Mi-T-M 460148
$107.42
34
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114 46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
35
25-0128 O-Ring 15.08 X 2.62Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250128 25-0128 O-Ring 15.08 X 2.62Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250128
$3.99
36
25-0141 O-Ring 25.12 X 1.78Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250141 25-0141 O-Ring 25.12 X 1.78Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250141
$4.85
37
46-0158 Packing Retainer 15Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 460158 46-0158 Packing Retainer 15Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 460158
$28.58
38
26-0124 Packing 15Mm for MiTM Pressure Washers 260124 26-0124 Packing 15Mm for MiTM Pressure Washers 260124
$69.18
44
25-0053 O-Ring (See Kit 70-0028) for MiTM Pressure Washers by MiTM 250053 25-0053 O-Ring (See Kit 70-0028) for MiTM Pressure Washers by MiTM 250053
$7.49
KIT
70-0672 VALVE (INC. 6 OF 5) BY MITM 70-0672 VALVE (INC. 6 OF 5) BY MITM
$113.07
KIT
70-0015 Oil Seals Kit (Inc. 3 Each 17) for MiTM Pressure Washers 700015 70-0015 Oil Seals Kit (Inc. 3 Each 17) for MiTM Pressure Washers 700015
$139.40
KIT
70-0023 Isolator 2" Od X 1.95 for AM2-PR09-30M Air Compressor by Mi-T-M 700023 70-0023 Isolator 2" Od X 1.95 for AM2-PR09-30M Air Compressor by Mi-T-M 700023
$64.05
KIT
70-0024 Kit Packing for AC1-PE15-20M1 Air Compressor by Mi-T-M 700024 70-0024 Kit Packing for AC1-PE15-20M1 Air Compressor by Mi-T-M 700024
$54.48
3
39-0035 Valve Plug for AC1-HE02-05M1 Air Compressor by Mi-T-M 390035 39-0035 Valve Plug for AC1-HE02-05M1 Air Compressor by Mi-T-M 390035
$34.46
7
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017 39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
8
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018 39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
11
25-0052 O-Ring 9/16 X 3/4 for AC1-HE15-04M Air Compressor by Mi-T-M 250052 25-0052 O-Ring 9/16 X 3/4 for AC1-HE15-04M Air Compressor by Mi-T-M 250052
$5.99
14
48-0024 Bearing Ball for AC1-PE15-20M1 Air Compressor by Mi-T-M 480024 48-0024 Bearing Ball for AC1-PE15-20M1 Air Compressor by Mi-T-M 480024
$67.11
17
25-0060 O-Ring 55.56 X 3.53Mm for AC1-HE15-04M Air Compressor by Mi-T-M 250060 25-0060 O-Ring 55.56 X 3.53Mm for AC1-HE15-04M Air Compressor by Mi-T-M 250060
$8.44
18
46-0087 Spacer Bearing for AC1-HE15-04M Air Compressor by Mi-T-M 460087 46-0087 Spacer Bearing for AC1-HE15-04M Air Compressor by Mi-T-M 460087
$27.06
21
46-0149 Piston Guide for AC1-HE15-04M Air Compressor by Mi-T-M 460149 46-0149 Piston Guide for AC1-HE15-04M Air Compressor by Mi-T-M 460149
$101.28
22
46-0152 Connecting Rod for AC1-HE15-04M Air Compressor by Mi-T-M 460152 46-0152 Connecting Rod for AC1-HE15-04M Air Compressor by Mi-T-M 460152
$63.60
23
25-0332 O-Ring 88.57 X 2.62Mm for AC1-HE15-04M Air Compressor by Mi-T-M 250332 25-0332 O-Ring 88.57 X 2.62Mm for AC1-HE15-04M Air Compressor by Mi-T-M 250332
$12.31
25
43-0044 Pin Connecting Rod for AC1-HE15-04M Air Compressor by Mi-T-M 430044 43-0044 Pin Connecting Rod for AC1-HE15-04M Air Compressor by Mi-T-M 430044
$19.13
26
46-0167 Washer Slinger Copper for AC1-HE15-04M Air Compressor by Mi-T-M 460167 46-0167 Washer Slinger Copper for AC1-HE15-04M Air Compressor by Mi-T-M 460167
$7.02
27
25-0143 Ring Anti-Extrusion for AC1-HE15-04M Air Compressor by Mi-T-M 250143 25-0143 Ring Anti-Extrusion for AC1-HE15-04M Air Compressor by Mi-T-M 250143
$5.99
30
46-0166 Washer Copper Gasket for AC1-HE15-04M Air Compressor by Mi-T-M 460166 46-0166 Washer Copper Gasket for AC1-HE15-04M Air Compressor by Mi-T-M 460166
$5.99
31
46-0168 Nut for AC1-HE02-05M1 Air Compressor by Mi-T-M 460168 46-0168 Nut for AC1-HE02-05M1 Air Compressor by Mi-T-M 460168
$13.97
32
46-0143 Dipstick for AC1-HE02-05M1 Air Compressor by Mi-T-M 460143 46-0143 Dipstick for AC1-HE02-05M1 Air Compressor by Mi-T-M 460143
Call for Price call for price call for price
33
48-0019 Bearing Needle for AC1-HE15-04M Air Compressor by Mi-T-M 480019 48-0019 Bearing Needle for AC1-HE15-04M Air Compressor by Mi-T-M 480019
$76.05
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

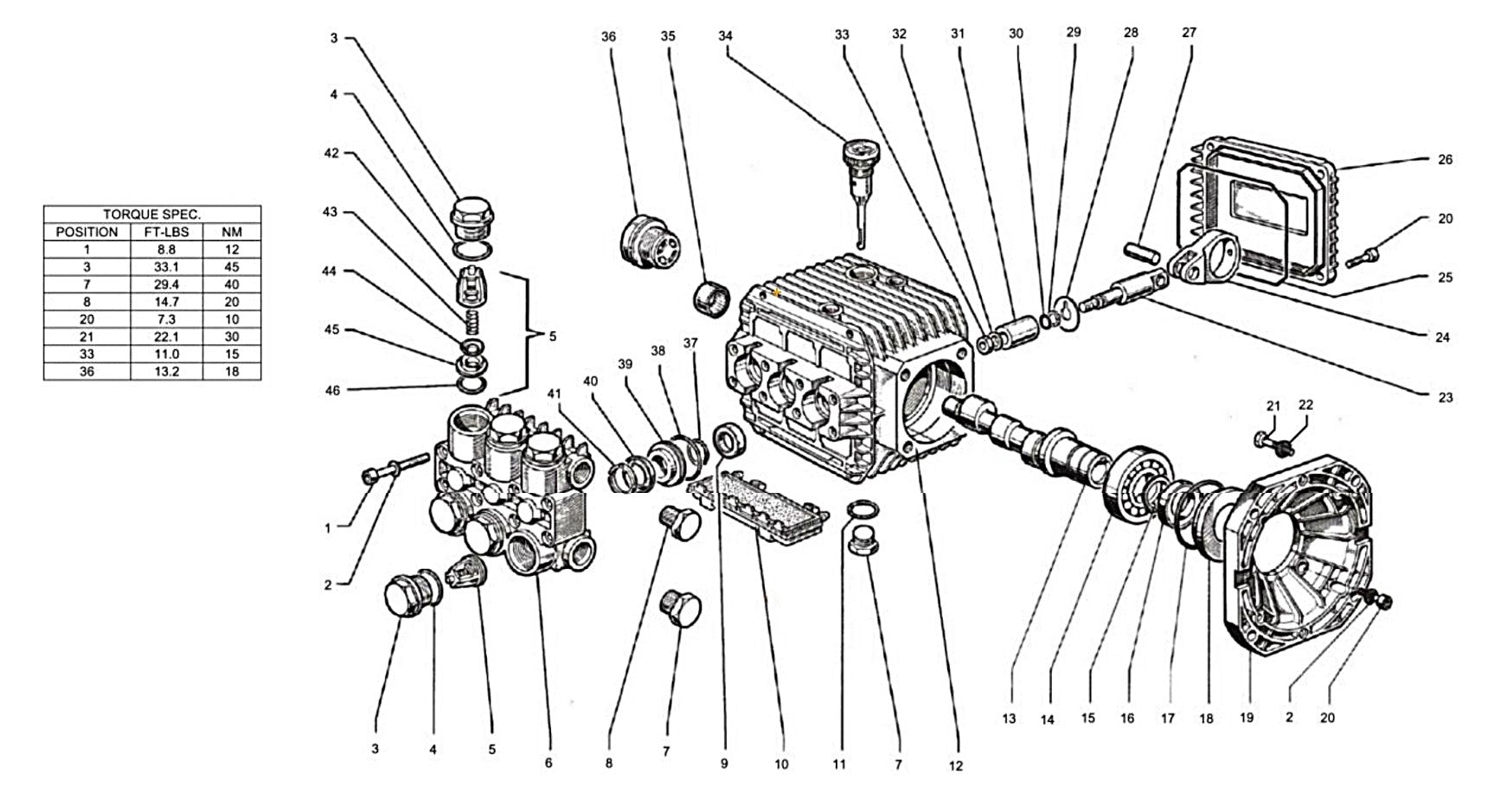

How do I use this diagram?
