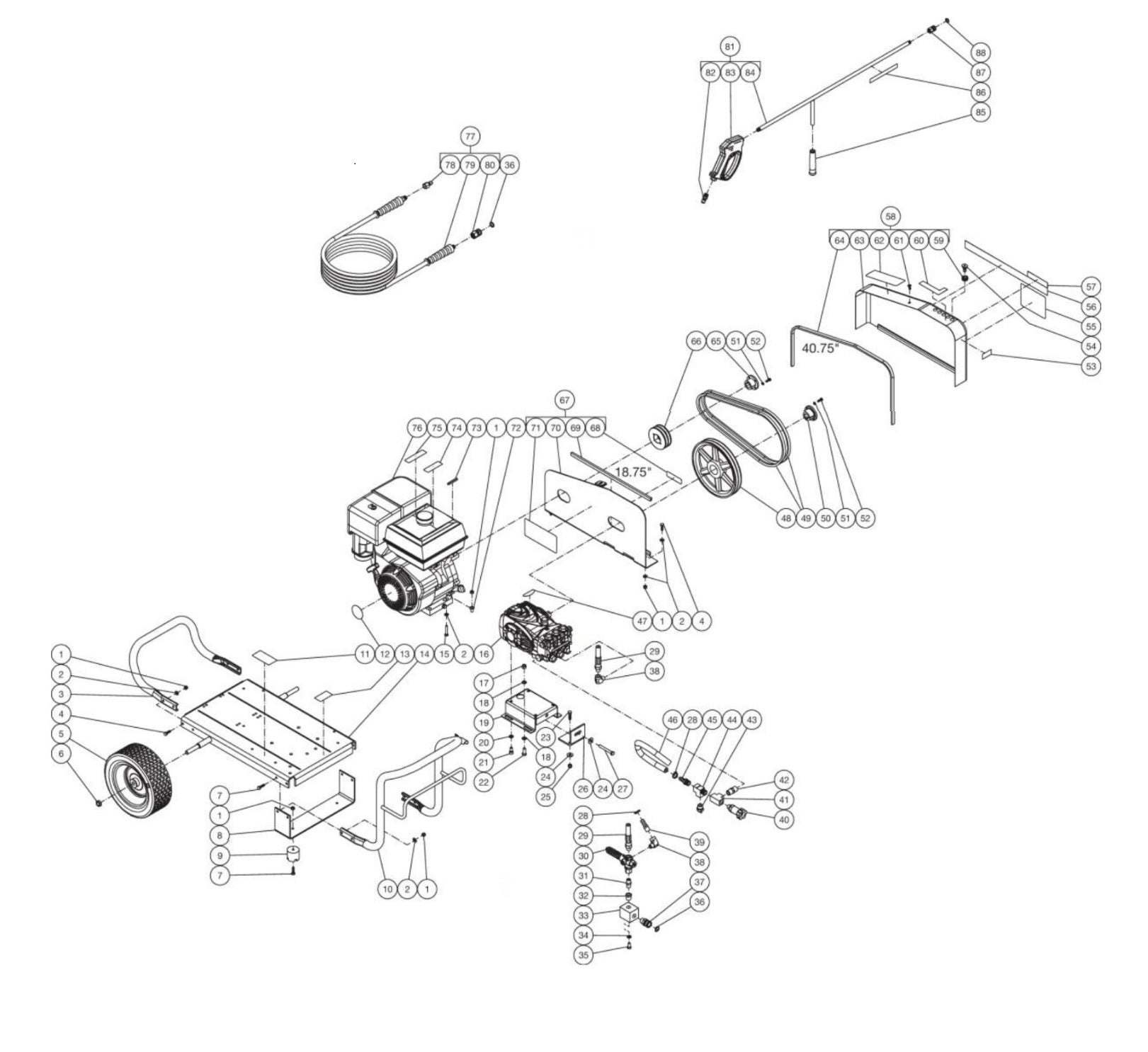

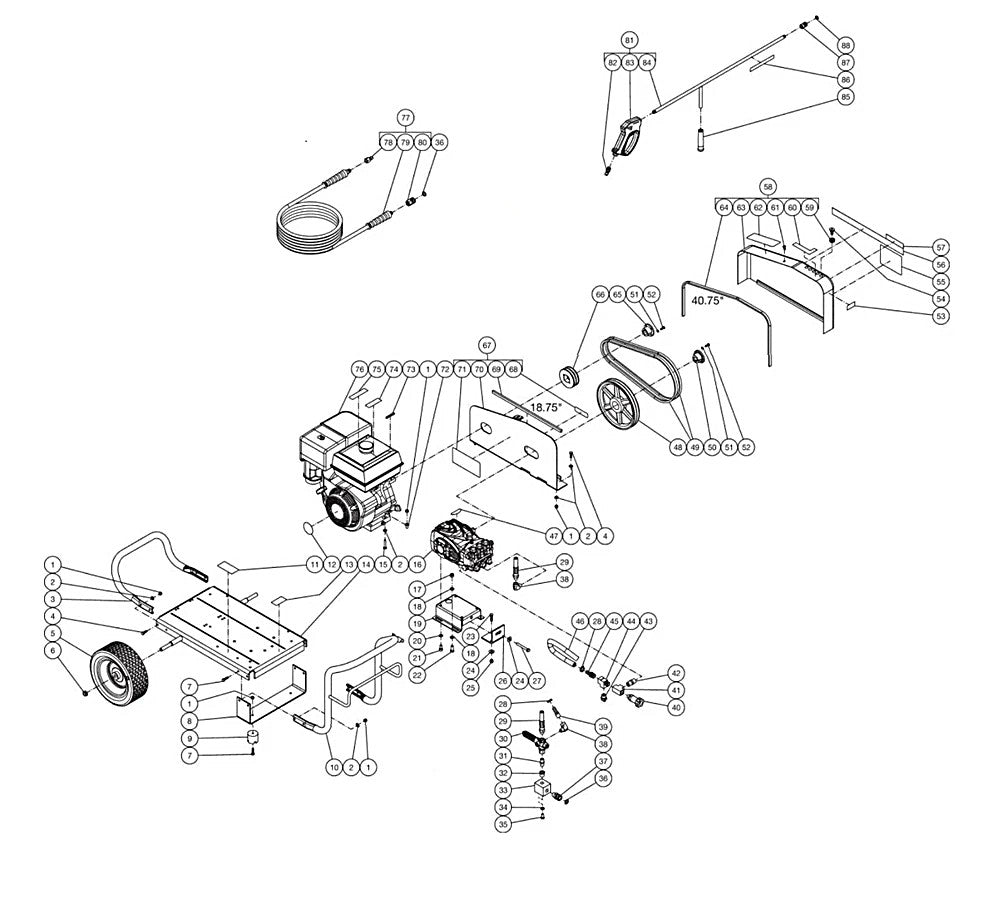

DC-2505-W4H6G Frame Assembly Parts by Mi-T-M

DC-2505-W4H6G Frame Assembly Parts by Mi-T-M

  • DC-2505-W4H6G Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
2
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
3
7-0175A18 Handle for MiTM Pressure Washers 70175A18
$132.98
6
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
7
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
8
13-0137A18 Underbracket for MiTM Pressure Washers 130137A18
$125.76
9
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
10
7-0174A18 Handle for MiTM Pressure Washers 70174A18
$324.50
14
5-0078A18 Baseplate - 16X26-1/4" Black for MiTM Pressure Washers 50078A18
$676.47
15
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
16
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
17
30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
18
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
19
5-0101A18 Pump Bracket for MiTM Pressure Washers 50101A18
$120.93
21
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
22
27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
26
13-0003A18 Bracket for MiTM Pressure Washers 130003A18
$60.57
30
8-0634 Unloader for MiTM Pressure Washers 80634
$276.21
31
24-0380 Nipple 3/8" Hex - Ss for MiTM Pressure Washers 240380
$99.68
32
24-0282 Reducer for MiTM Pressure Washers 240282
$20.67
33
51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012
$21.03
35
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
36
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
37
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
38
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
40
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
41
23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043
$25.06
42
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
44
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
46
15-0022 By-Pass Hose for MiTM Pressure Washers 150022
$20.88
47
34-4183 DECAL - PUMP (SEE 71-1044) BY MITM
Call for Price call for price call for price
48
10-0040 Sheave 2Ak104H for AC1-HR45-05M Air Compressor by Mi-T-M 100040
$90.41
51
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
53
34-3553 Decal - Made In Usa for MiTM Pressure Washers by MiTM 343553
$2.99
57
34-2897 DECAL - 2500PSI BY MITM
Call for Price call for price call for price
58
851-0218 Beltguard Cover for MiTM Pressure Washers 8510218
$343.65
61
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
64
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
66
10-0067 Sheave 2Ak41H (3.70 P.D.) for AM1-PH65-08M Air Compressor by Mi-T-M 100067
$55.22
67
851-0215 Beltguard Back for MiTM Pressure Washers 8510215
$303.21
69
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM
$6.57
72
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
73
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
74
1-0199 Engine - Mitm for MiTM Pressure Washers by MiTM 10199
$1,085.07
76
1-0086 Engine Honda 13Hp Recoil for AC2-PH08-30M Air Compressor by Mi-T-M 10086
$1,902.75
76
1-0208 Engine - Kohler for MiTM Pressure Washers by MiTM 10208
$1,893.57
74
851-0338 Assy Hose W/Qc 3000 Psi (Inc. 21-24) for MiTM Pressure Washers 8510338
$534.65
77
15-0209 Hose 3/8X50' 4000Psi R1 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150209
$151.52
79
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
80
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
81
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
82
16-0446 Trigger Gun 5000 Psi for AC2-PR09-20M Air Compressor by Mi-T-M 160446
$96.66
83
16-0418 Wand-36" W/Handle Chrome for AC2-PR09-30M Air Compressor by Mi-T-M 160418
$38.88
84
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
85
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
87
25-0122 O-RING (REPLACEMENT ONLY) BY MITM
$1.56
88
71-1032 DECAL SET BY MITM
$15.53
