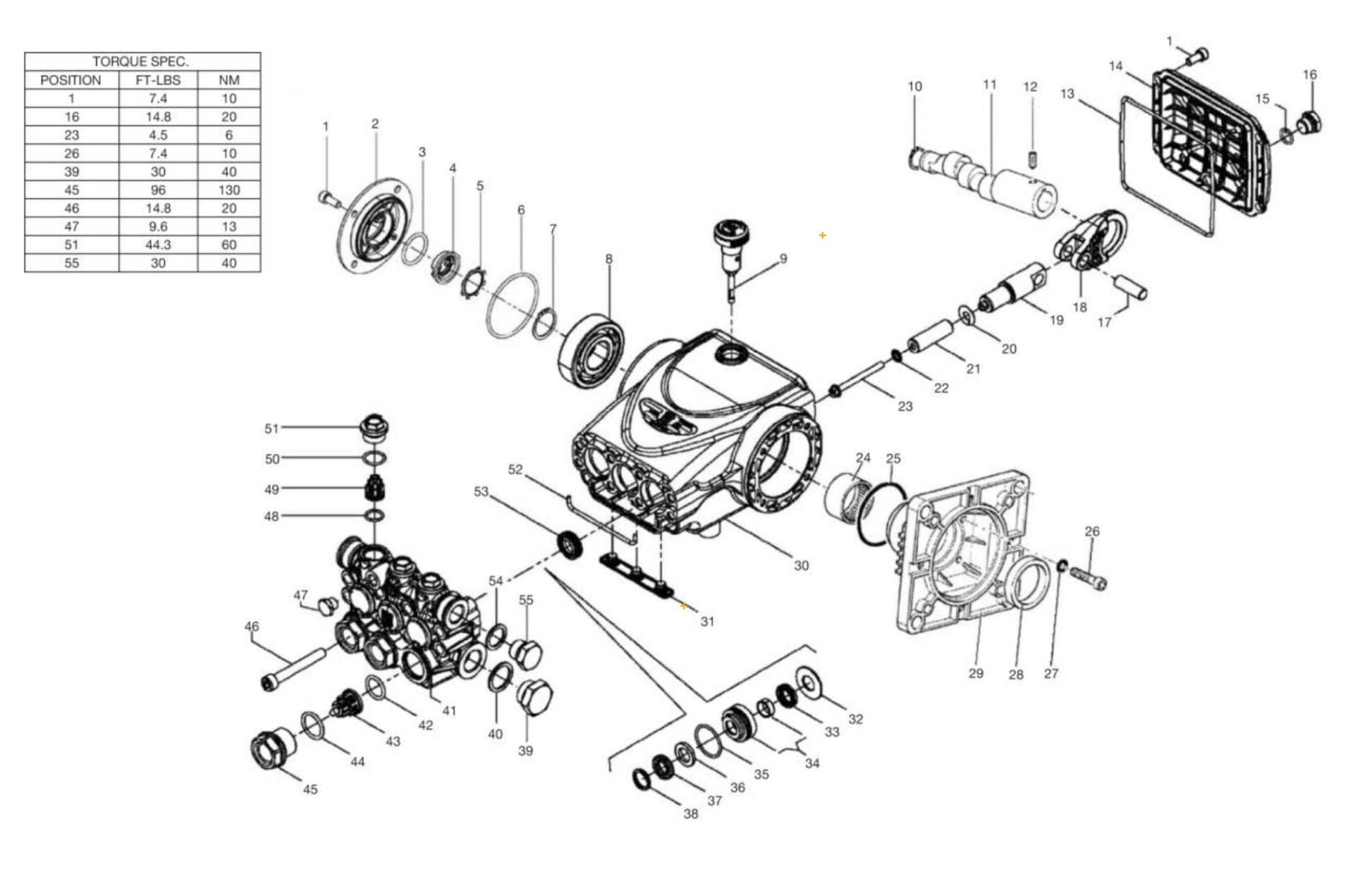

DC-3004-A0E2G, DC-3004-A0E2G-W (sn:11404205-99999999) Pump Assembly Parts by Mi-T-M

DC-3004-A0E2G, DC-3004-A0E2G-W (sn:11404205-99999999) Pump Assembly Parts by Mi-T-M

  • DC-3004-A0E2G, DC-3004-A0E2G-W (sn:11404205-99999999) Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-8401 Bolt for MiTM Air Compressors by MiTM 278401
$7.49
2
46-1724 Crankcase Cover for MiTM Pressure Washers by MiTM 461724
$70.31
3
25-0400 O-Ring 25.07 X 2.62Mm for AM2-PR09-08AB Air Compressor by Mi-T-M 250400
$5.99
4
46-1725 Oil Level Indicator for MiTM Pressure Washers by MiTM 461725
$32.31
5
46-1726 Stop Ring for MiTM Pressure Washers by MiTM 461726
$32.31
6
25-0158 O-Ring 56.82 X 2.62Mm for MiTM Pressure Washers by MiTM 250158
$12.75
7
46-0104 Circlip for MiTM Pressure Washers by MiTM 460104
$4.49
8
48-0093 Bearing for MiTM Pressure Washers by MiTM 480093
$207.54
9
46-1727 Oil Dip Stick for MiTM Pressure Washers by MiTM 461727
$53.09
7
46-1728 Crankshaft 12Mm for MiTM Pressure Washers by MiTM 461728
$539.24
11
27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
12
25-0713 O-Ring - 113.97 X 2.62Mm for MiTM Pressure Washers by MiTM 250713
$25.49
13
46-1729 Crankcase Cover for MiTM Pressure Washers by MiTM 461729
$167.31
14
25-0210 O-Ring .426 X .07 for MiTM Pressure Washers by MiTM 250210
$2.99
15
43-0079 Pin/Connecting Rod for AS2-PE05-08M Air Compressor by Mi-T-M 430079
$30.78
17
46-1730 Connecting Rod for MiTM Pressure Washers by MiTM 461730
$186.18
18
46-1731 Piston Guide for MiTM Pressure Washers by MiTM 461731
$157.04
19
28-0070 Washer - M7.5 X M15 X 0.5Mm for MiTM Pressure Washers by MiTM 280070
$10.20
20
46-1732 Plunger - 18 X 42Mm for MiTM Pressure Washers by MiTM 461732
$161.45
21
28-0071 Washer - M5 X M11.5 X 0.4Mm for MiTM Pressure Washers by MiTM 280071
$30.00
22
27-0907 Plunger Bolt - M5 X 55 for MiTM Pressure Washers by MiTM 270907
$43.85
23
48-0040 Needle Bearing/Hk 4520 for AP1-PI65-08M Air Compressor by Mi-T-M 480040
$175.01
24
28-0072 Washer-M6.4Xm10X0.7Mm for MiTM Pressure Washers by MiTM 280072
$7.49
27
26-0415 Oil Seal for MiTM Pressure Washers by MiTM 260415
$87.74
28
46-1733 Crankcase for MiTM Pressure Washers by MiTM 461733
$467.15
30
46-1734 Drip Cover for MiTM Pressure Washers by MiTM 461734
$15.30
31
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
39
28-1038 Washer for MiTM Pressure Washers by MiTM 281038
$15.93
40
27-8439 Bolt for MiTM Pressure Washers by MiTM 278439
$12.75
46
39-0032 Cap Screw for MiTM Pressure Washers by MiTM 390032
$8.25
47
26-0416 Gasket - 3 X 94Mm for MiTM Pressure Washers by MiTM 260416
$20.39
52
28-1002 Washer for MiTM Pressure Washers by MiTM 281002
$14.01
54
70-0693 Valves (Inc. 6 Of 42, 43, 48, 49) for MiTM Pressure Washers by MiTM 700693
$236.96
-
70-0694 Valve Plug (Inc. 3 Of 44, 45, 50, 51) for MiTM Pressure Washers by MiTM 700694
$282.20
-
70-0695 Oil Seals (Inc.3 Of 53) for MiTM Pressure Washers by MiTM 700695
$96.44
-
70-0696 Packing Seals(Inc. 3 Of 33, 35, 36, 37, 38) for MiTM Pressure Washers by MiTM 700696
$226.41
-
70-0697 Packing With Brass Seals (Inc. 32, 33, 34, 35, 36, 37, 38) for MiTM Pressure Washers by MiTM 700697
$199.61
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
