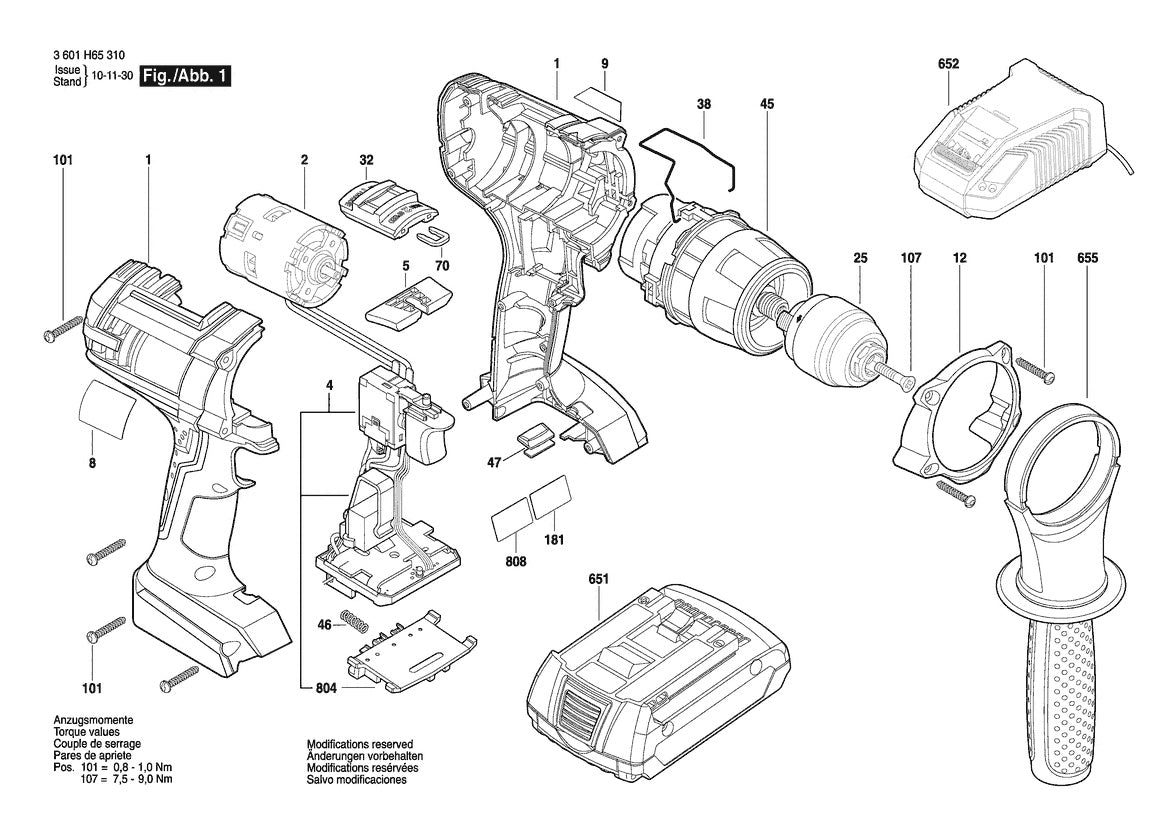

DDS181A-01 Bosch 18V Compact Tough 1 Bosch Cordless Drill Parts Diagram

DDS181A-01 Bosch 18V Compact Tough 1 Bosch Cordless Drill Parts Diagram

  • DDS181A-01 Bosch 18V Compact Tough 1 Bosch Cordless Drill Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
2609101483 Housing | Genuine OEM Bosch Part
$27.69
4
160723359P Electronics Module by Bosch
$74.45
5
2609101484 Adjusting Lever by Bosch
$3.91
8
2609136300 Warning Plate by Bosch
$3.91
9
2609136299 Manufacturer's Nameplate by Bosch
$3.91
15
2609134293 Label | Genuine OEM Bosch Part
$3.91
25
2609111940 Keyless Chuck by Bosch
$31.26
32
2609199812 Switchover Unit by Bosch
$3.91
45
2609199813 Gear Box | Genuine OEM Bosch Part
$37.75
46
1609280477 Spring | Genuine OEM Bosch Part
$3.91
47
2609101486 Lens | Genuine OEM Bosch Part
$3.91
101
2609110353 Torx Oval-head Screw by Bosch
$3.91
103
2609110835 Nut | Genuine OEM Bosch Part
$3.91
107
2603421229 Torx Flat Head Screw by Bosch
$3.91
802
2609199841 Dc Motor | Genuine OEM Bosch Part
$54.47
804
1609280478 Contact Retainer by Bosch
$17.61
808
2609136391 Nameplate | Genuine OEM Bosch Part
$3.91
851
1607A350MB Slide-in Accu Package 18v, 1,5 by Bosch
$70.27
