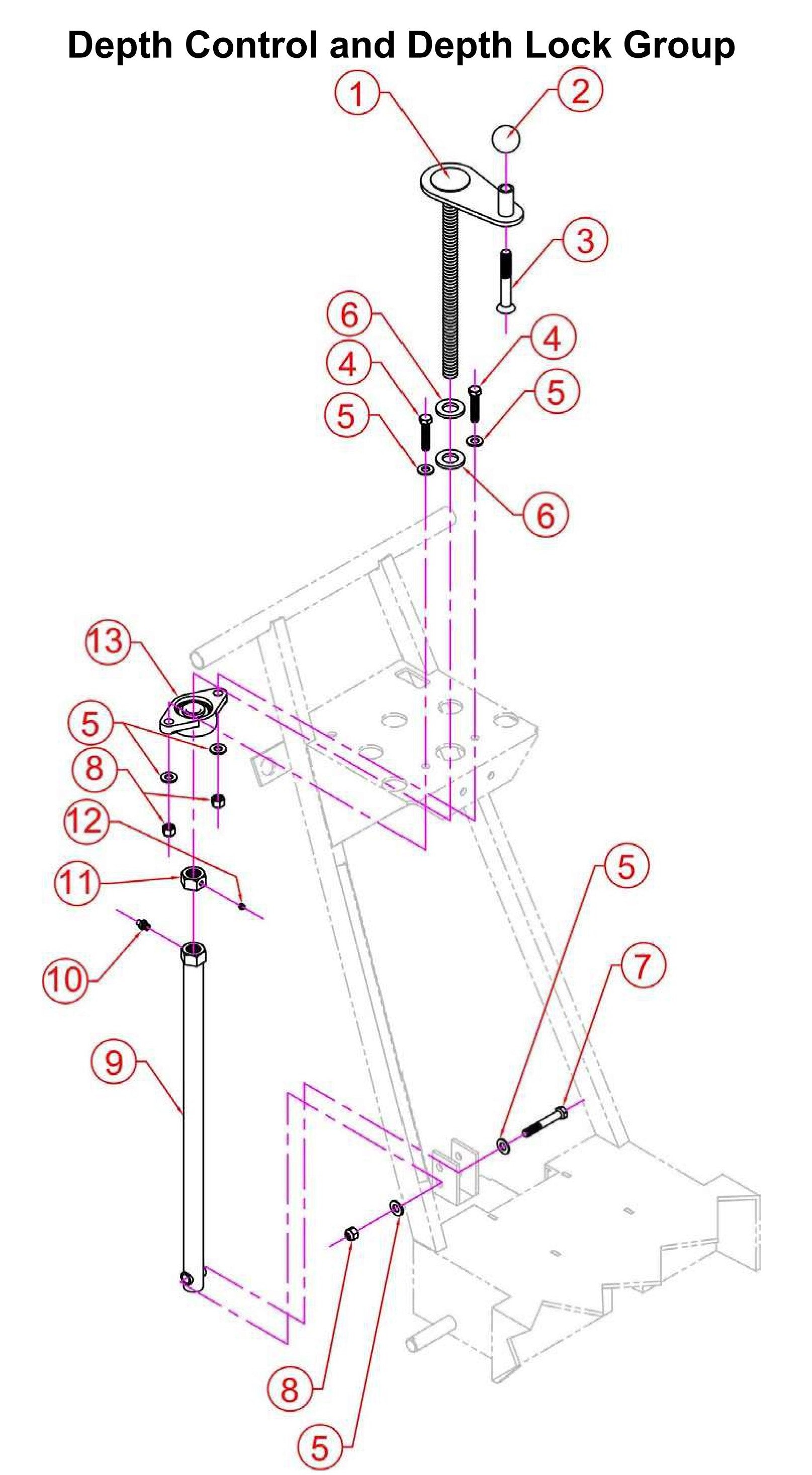

Depth Control And Depth Lock Group Parts By Norton Clippers

Depth Control And Depth Lock Group Parts By Norton Clippers

  • Depth Control And Depth Lock Group Parts By Norton Clippers
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
70184628279  Ball Knob for C13PE Concrete Saws by Norton Clipper
$36.00
4
70184649906  Hexagonal head Cap Screw for C1316 Concrete Saws by Norton Clipper
$15.77
5
70184650123 WASHER 3/8 SAE for C1316 Concrete Saws by Norton Clipper
$24.69
6
70184650129 Washer 3/4 SAE for C13PE Concrete Saws by Norton Clipper
$11.77
7
70184649906  Hexagonal head Cap Screw for C1316ES Concrete Saws by Norton Clipper
$15.77
8
70184650373 Nut 3/8"-16 UNC Nylock for C13PE Concrete Saws by Norton Clipper
$13.74
9
70184628181 DEPTH SCREW TUBE for C1316 Concrete Saws by Norton Clipper
$93.82
10
70184628182 Grease Fitting for C13PE Concrete Saws by Norton Clipper
$5.95
11
70184628265 Nut 3/4"-10 Hex Head for Depth Screw for C13PE Concrete Saws by Norton Clipper
$31.75
12
70184682129 Screw 1/4"-20 x1/2" Set Cup Point for C13PE Concrete Saws by Norton Clipper
$13.74
13
70184650406 Bearing Flange 3/4" Bore for C13PE Concrete Saws by Norton Clipper
$132.07
