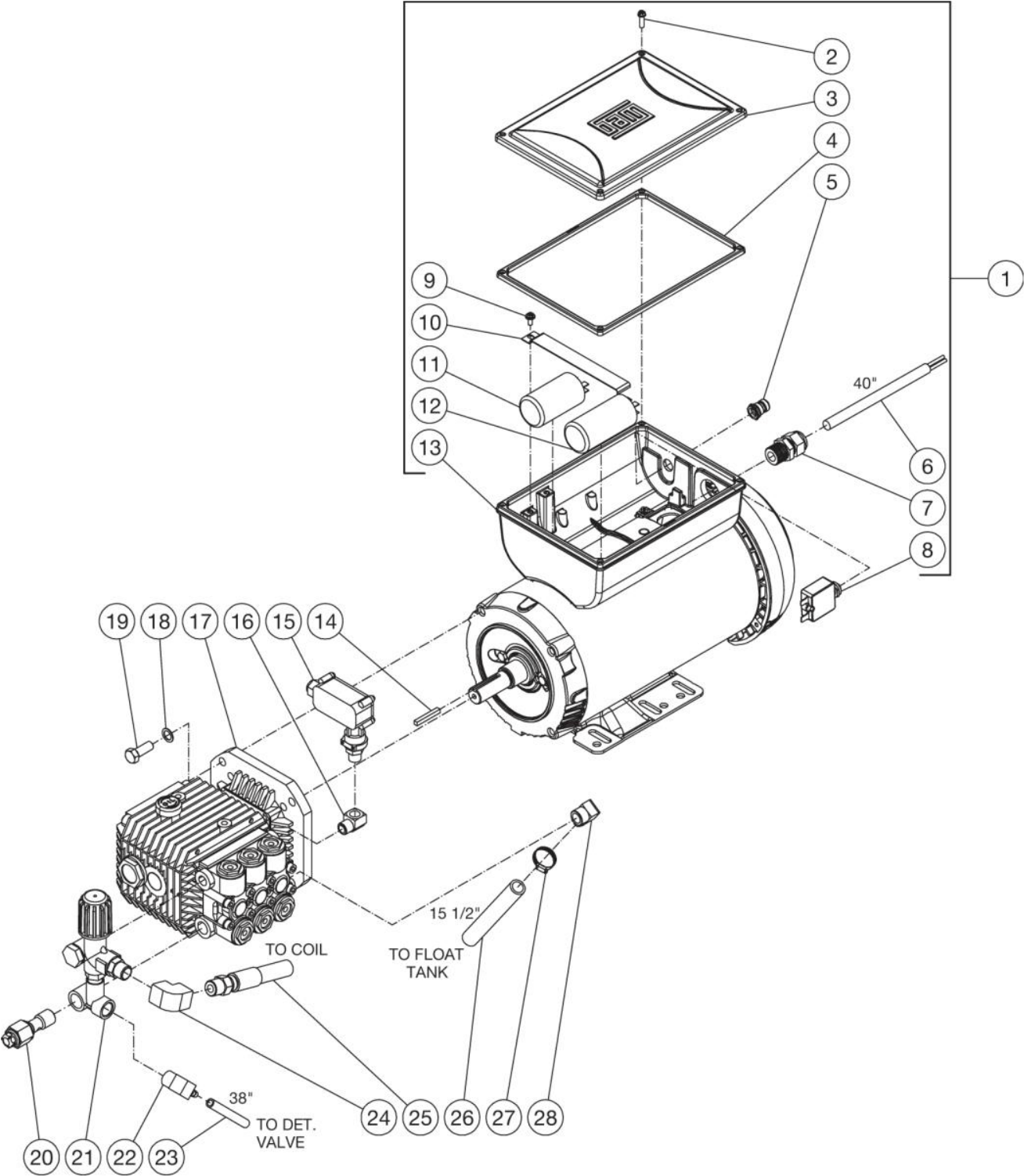

DH-1002/DH-1502-SE0E1G/DH-2003-SE0E2G (sn:15143413-99999999)Motor/Pump Assembly Parts By Mi-T-M

DH-1002/DH-1502-SE0E1G/DH-2003-SE0E2G (sn:15143413-99999999)Motor/Pump Assembly Parts By Mi-T-M

  • DH-1002/DH-1502-SE0E1G/DH-2003-SE0E2G (sn:15143413-99999999)Motor/Pump Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
850-0216 Motor Assembly 4.0Hp for AC1-PE15-20M1 Air Compressor by Mi-T-M 8500216
$996.36
1
850-0215 Motor Assembly 2.0Hp for AC1-PE15-20M1 Air Compressor by Mi-T-M 8500215
$619.38
1
850-0213 Motor Assembly 1.5Hp for AC1-PE15-20M1 Air Compressor by Mi-T-M 8500213
$538.14
2
27-3458 BOLT BY MITM
Call for Price call for price call for price
3
52-0135 COVER BY MITM
Call for Price call for price call for price
4
26-0424 GASKET BY MITM
Call for Price call for price call for price
5
32-0441 Boot, Circuit Breaker for AC1-PE15-20M1 Air Compressor by Mi-T-M 320441
$14.41
6
32-0440 Cord 12/3 for AC1-HE02-05M1 Air Compressor by Mi-T-M 320440
$9.61
7
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
8
32-0439 Circuit Breaker for AC1-PH55-20M Air Compressor by Mi-T-M 320439
$27.36
8
32-0438 Circuit Breaker for AC1-PE15-20M1 Air Compressor by Mi-T-M 320438
$19.38
9
27-3457 BOLT BY MITM
Call for Price call for price call for price
10
52-0136 CLAMP BY MITM
Call for Price call for price call for price
11
32-1262 CAPACITOR - RUN (2003) BY MITM
$78.57
11
32-1277 CAPACITOR - RUN (1502) BY MITM
$38.96
11
32-1295 CAPACITOR - RUN (1002) BY MITM
$56.03
12
32-1263 CAPACITOR - START (2003) BY MITM
$48.87
12
32-1278 CAPACITOR - START (1502) BY MITM
$91.94
12
32-1294 CAPACITOR - START (1002) BY MITM
$35.37
14
43-0072 Key 3/16" X 1-3/8" for AC1-HE02-05M1 Air Compressor by Mi-T-M 430072
$9.98
15
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
16
23-0014 Elbow 1/4"Fptx1/4Mpt 90 Brass for AC1-HR45-05M Air Compressor by Mi-T-M 230014
$9.18
17
3-0168 Pump Direct Drive for AC1-PE15-20M1 Air Compressor by Mi-T-M 30168
$810.96
17
3-0071 Pump 2.11 Gpm At 1500 Psi for AC1-PE15-20M1 Air Compressor by Mi-T-M 30071
$768.07
18
29-0155 Lockwasher for MiTM Pressure Washers 290155
$7.49
19
27-0117 Bolt for ABS Air Compressor by Mi-T-M 270117
$1.99
20
22-0213 Valve-Thermal Relief Banjo for AC1-PE15-20M1 Air Compressor by Mi-T-M 220213
$70.34
21
8-0470 Unloader for AC1-PE15-20M1 Air Compressor by Mi-T-M 80470
$179.80
22
23-0139 Barb 3/8X1/4 90Deg Barb-Brass for AC2-PH11-20M Air Compressor by Mi-T-M 230139
$37.95
23
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
24
23-0307 Elbow 3/8Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 230307
$21.24
25
15-0090 HIGH PRESSURE HOSE BY MITM
$29.84
26
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
27
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
28
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
