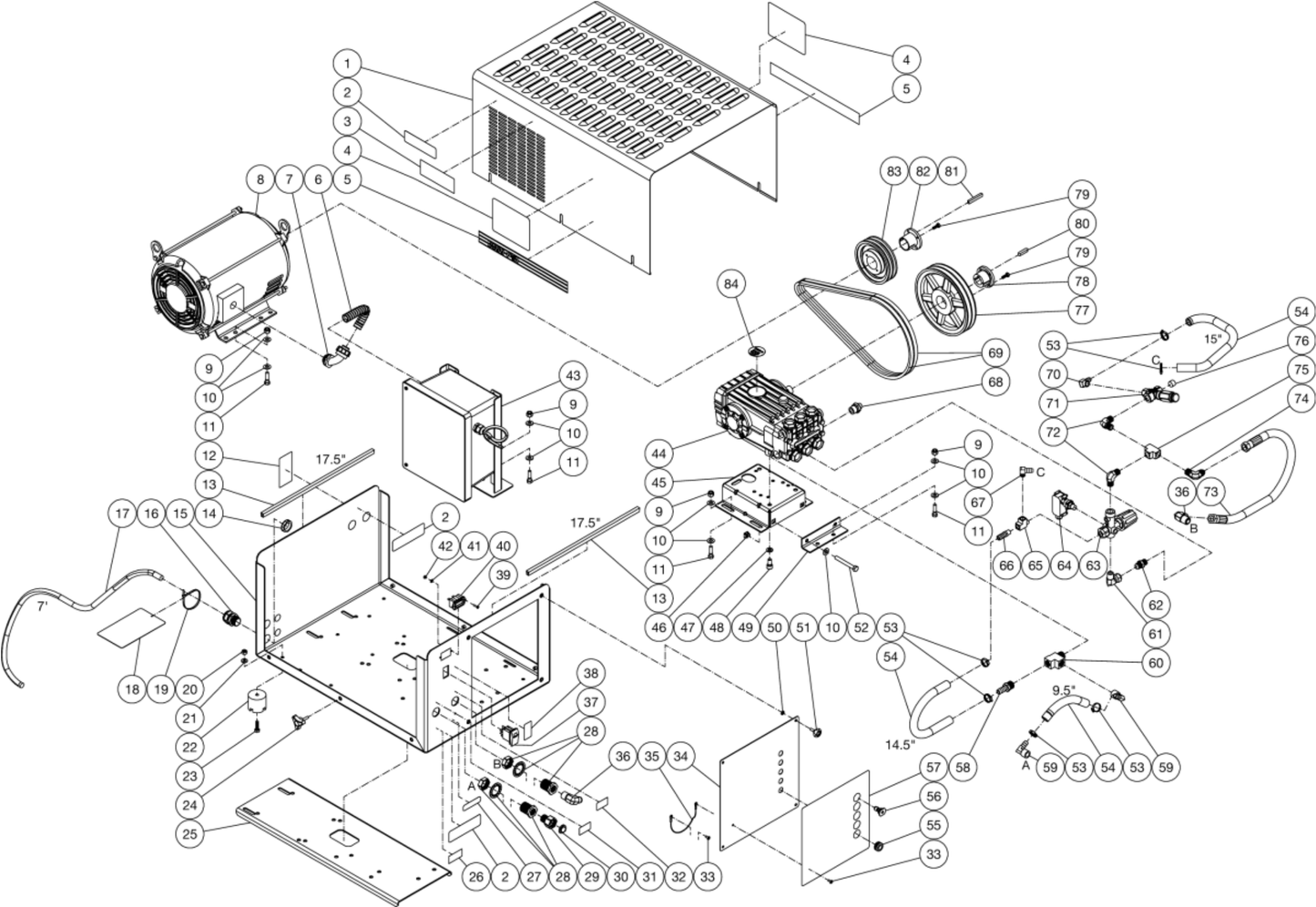

DH-2503-AE0E4G (sn:15131523-15155258) CW Unit Assembly Parts By Mi-T-M

DH-2503-AE0E4G (sn:15131523-15155258) CW Unit Assembly Parts By Mi-T-M

  • DH-2503-AE0E4G (sn:15131523-15155258) CW Unit Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
21-0195 Hood for MiTM Pressure Washers 210195
$733.89
6
32-0486 Conduit 3/4" Black for AC1-PH65-08M Air Compressor by Mi-T-M 320486
$8.14
6
32-0486 Conduit 3/4" Black for AC1-PH65-08M Air Compressor by Mi-T-M 320486
$8.14
7
32-0487 Conduit Elbow for MiTM Pressure Washers by MiTM 320487
$43.85
8
2-0110 Motor (HEG-3004-0E3G/4G) BY MITM
$1,499.58
8
2-0091 Motor 6Hp 208-230/460V 3 Phase for AC1-PH65-08M Air Compressor by Mi-T-M 20091
$1,256.97
9
30-5159 Nut for MiTM Pressure Washers 305159
$7.65
10
28-0123 Washer for MiTM Pressure Washers 280123
$7.65
11
27-9563 BOLT BY MITM
$5.10
13
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
14
32-0292 Locknut Elect 3/4"-Diecast for AC1-PH65-08M Air Compressor by Mi-T-M 320292
$2.85
15
21-0193 Frame for MiTM Pressure Washers 210193
$1,549.11
16
9-0046 Bushing 3/4 Elec .5-.75 Cord for AC1-PH65-08M Air Compressor by Mi-T-M 90046
$18.41
17
32-0025 Cord 12/4 So Per Ft for AC1-PH65-08M Air Compressor by Mi-T-M 320025
$13.61
18
34-1035 Tag - Warning Risk Of Electrocution for MiTM Pressure Washers by MiTM 341035
$24.21
19
33-0022 CABLE TIE BY MITM
$1.47
20
30-5158 LOCKNUT BY MITM
$2.55
21
28-0122 Washer for MiTM Pressure Washers 280122
$5.93
22
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
23
27-5024 Bolt for MiTM Pressure Washers 275024
$7.65
24
7-0168 Knob for MiTM Pressure Washers 70168
$30.60
25
21-0240 Plate (3004 Only) for MiTM Pressure Washers 210240
$425.43
26
34-3553 Decal - Made In Usa for MiTM Pressure Washers by MiTM 343553
$2.99
28
23-0365 Adapter for ABS Air Compressor by Mi-T-M 230365
Call for Price call for price call for price
29
23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095
$12.57
30
19-0001 Filter-Inlet Washer W/Screen for AC1-HE02-05M by Mi-T-M 190001
$1.99
33
53-0009 Rivet for MiTM Pressure Washers 530009
$9.54
34
21-0194 SERVICE PANEL BY MITM
$143.90
35
33-0424 Lanyard-12 Long W/2 3/16 Eyes for MiTM Pressure Washers 330424
$41.64
36
24-0074 90° Elbow Fitting for ABS Air Compressor by Mi-T-M 240074
$16.62
37
32-0801 Switch Rocker 15 Amp 24 Volt for MiTM Pressure Washers by MiTM 320801
$69.92
39
27-8881 SCREW BY MITM
$0.68
40
32-0668 Hour Meter/Digital for AC1-PE03-20M Air Compressor by Mi-T-M 320668
$47.99
41
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
42
30-0052 NUT (HX-0106) BY MITM
$0.68
44
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
44
3-0203 Pump 4.0 Gpm At 3500 Psi for MiTM Pressure Washers 30203
$1,944.18
45
5-0153A18 Pump Hat for MiTM Pressure Washers 50153A18
Call for Price call for price call for price
46
30-6025 Clip Nut for MiTM Pressure Washers 306025
$21.38
47
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
48
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
49
20-0584A18 Tension Bracket for MiTM Pressure Washers 200584A18
$57.12
50
28-1045 Washer for MiTM Pressure Washers 281045
$7.65
51
62-0057 Knob W/Stud M6-1.00P X 16Mm for AC1-PH65-08M Air Compressor by Mi-T-M 620057
$4.85
52
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
53
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
54
15-0007 HOSE *(TWO FEET REQUIRED) BY MITM
$3.51
55
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
56
18-0402 Nozzle 00045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180402
$7.95
56
18-0403 Nozzle 15045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180403
$7.95
56
18-0404 Nozzle 25045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180404
$7.95
56
18-0405 Nozzle 40045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180405
$7.95
56
18-0392 Nozzle 00035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180392
$11.93
56
18-0393 Nozzle 15035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180393
$11.93
56
18-0395 Nozzle 25035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180395
$11.93
56
18-0396 Nozzle 40035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180396
$11.93
58
23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045
$11.46
59
23-0418 Elbow 1/2 Mnpt X 1/2 Barb for Mi-T-M CA-2703-8MRB by MiTM 230418
$15.76
60
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
61
24-0046 Elbow 3/8Mx1/2Jic Fs 90 Steel for AC2-PH11-20M Air Compressor by Mi-T-M 240046
$33.30
62
*24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002
$6.04
63
8-0361 Unloader W/O Chem Inj (Psi Tra for AC2-PH11-20M Air Compressor by Mi-T-M 80361
$184.59
64
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
65
23-0127 Tee 1/4M X 1/4F X 1/4F Street for AC1-HE15-05M Air Compressor by Mi-T-M 230127
$16.37
66
23-0120 Barb 1/4M X 1/2 Hose Brass for AC1-PE02-08M Air Compressor by Mi-T-M 230120
$5.84
67
23-0119 Elbow 1/4M 1/2 Barb for AC1-HE02-05M by Mi-T-M 230119
$20.10
68
22-0371 Valve-Thermal Relief 1/2M 190F for AM2-PH09-08AB Air Compressor by Mi-T-M 220371
$35.85
69
11-0005 Belt (3004) for MiTM Pressure Washers 110005
$61.16
69
11-0031 Cog Belt Ax35 for AC2-SV11-30M Air Compressor by Mi-T-M 110031
$37.11
70
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
71
22-0507 REGULAR VALVE BY MITM
$125.55
72
24-0131 Elbow 3/8Mnpt X 3/8Mnpt-Steel for MiTM Pressure Washers by MiTM 240131
$24.15
73
15-0221 Hose 3/8X29" 4500Psi R2 Black for AC1-HE02-05M by Mi-T-M 150221
$40.69
74
24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092
$13.46
75
23-0041 Tee 3/8" All Female Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230041
$20.52
76
23-0244 Plug 3/8 Hex Socket Head Brass for AC1-PR07-20M Air Compressor by Mi-T-M 230244
$19.70
77
10-0007 Sheave 2Ak84H for AC2-SV11-30M Air Compressor by Mi-T-M 100007
$124.92
77
10-0104 Sheave for MiTM Pressure Washers 100104
$161.63
78
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
79
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
80
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
81
43-0174 Key for MiTM Pressure Washers 430174
$78.33
82
*9-0008 Bushing H X 1 3/8 Motor for MI-T-M 3004-0ME1 CW Series by MiTM 90008
$18.08
82
*9-0010 Bushing H X 1-1/8 Motor for Mi-T-M CA-2403-0MHB by MiTM 90010
$18.08
83
10-0041 Sheave 2Ak54H for MI-T-M 3004-0ME1 CW Series by MiTM 100041
$64.45
83
10-0067 Sheave 2Ak41H (3.70 P.D.) for AM1-PH65-08M Air Compressor by Mi-T-M 100067
$55.22
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
