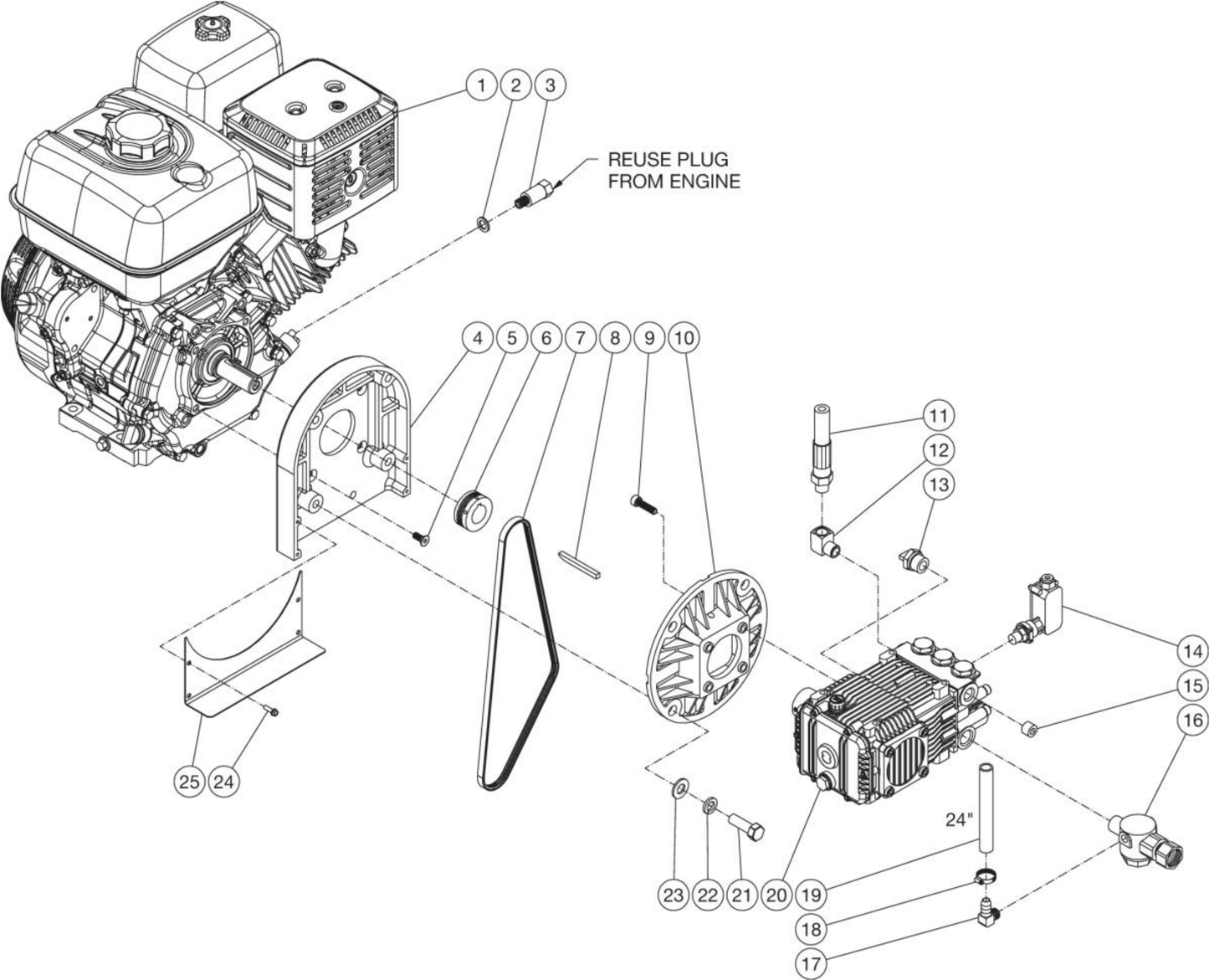

DH-3003-SP3H6A (sn:0-99999999) Engine/Pump Assembly Parts By Mi-T-M

DH-3003-SP3H6A (sn:0-99999999) Engine/Pump Assembly Parts By Mi-T-M

  • DH-3003-SP3H6A (sn:0-99999999) Engine/Pump Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
1-0086 Engine Honda 13Hp Recoil for AC2-PH08-30M Air Compressor by Mi-T-M 10086 1-0086 Engine Honda 13Hp Recoil for AC2-PH08-30M Air Compressor by Mi-T-M 10086
$1,902.75
1
1-0208 Engine - Kohler for MiTM Pressure Washers by MiTM 10208 1-0208 Engine - Kohler for MiTM Pressure Washers by MiTM 10208
$1,893.57
1
1-0245 ENGINE - VANGUARD BY MITM 1-0245 ENGINE - VANGUARD BY MITM
$1,427.16
1
1-0199 Engine - Mitm for MiTM Pressure Washers by MiTM 10199 1-0199 Engine - Mitm for MiTM Pressure Washers by MiTM 10199
$1,085.07
2
28-0605 WASHER - HONDA BY MITM 28-0605 WASHER - HONDA BY MITM
$1.35
3
24-0143 Oil Drain Honda for AC1-SE05-60M Air Compressor by Mi-T-M 240143 24-0143 Oil Drain Honda for AC1-SE05-60M Air Compressor by Mi-T-M 240143
Call for Price call for price call for price
4
38-0049 Adapter Flange for AC1-SE05-60M Air Compressor by Mi-T-M 380049 38-0049 Adapter Flange for AC1-SE05-60M Air Compressor by Mi-T-M 380049
$98.51
5
27-0418 Bolt BY MITM 27-0418 Bolt BY MITM
$1.56
6
10-0077 Sheave for AC1-SE05-60M Air Compressor by Mi-T-M 100077 10-0077 Sheave for AC1-SE05-60M Air Compressor by Mi-T-M 100077
$56.06
7
11-0037 Belt 4J Section 34" for AC1-PR06-20M Air Compressor by Mi-T-M 110037 11-0037 Belt 4J Section 34" for AC1-PR06-20M Air Compressor by Mi-T-M 110037
Call for Price call for price call for price
8
43-0088 Key Stock/Honda for AC1-SE05-60M Air Compressor by Mi-T-M 430088 43-0088 Key Stock/Honda for AC1-SE05-60M Air Compressor by Mi-T-M 430088
$34.05
9
27-8434 Screw - M8 X 30Mm for MiTM Pressure Washers 278434 27-8434 Screw - M8 X 30Mm for MiTM Pressure Washers 278434
$5.93
10
38-0051 Adapter Plate for AC1-SE05-60M Air Compressor by Mi-T-M 380051 38-0051 Adapter Plate for AC1-SE05-60M Air Compressor by Mi-T-M 380051
$51.69
11
15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194 15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194
$30.64
12
23-0034 Elbow 3/8M X 3/8F 90 Str Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230034 23-0034 Elbow 3/8M X 3/8F 90 Str Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230034
$19.33
13
22-0005 Thermal Relief Valve BY MITM 22-0005 Thermal Relief Valve BY MITM
$10.94
14
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171 22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
15
23-0244 Plug 3/8 Hex Socket Head Brass for AC1-PR07-20M Air Compressor by Mi-T-M 230244 23-0244 Plug 3/8 Hex Socket Head Brass for AC1-PR07-20M Air Compressor by Mi-T-M 230244
$19.70
16
19-0096 Filter/Water for AC1-PH65-08M Air Compressor by Mi-T-M 190096 19-0096 Filter/Water for AC1-PH65-08M Air Compressor by Mi-T-M 190096
$42.50
17
23-0119 Elbow 1/4M 1/2 Barb for AC1-HE02-05M by Mi-T-M 230119 23-0119 Elbow 1/4M 1/2 Barb for AC1-HE02-05M by Mi-T-M 230119
$20.10
18
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011 42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
19
15-0007 HOSE *(TWO FEET REQUIRED) BY MITM 15-0007 HOSE *(TWO FEET REQUIRED) BY MITM
$3.51
20
3-0194 Pump Direct Drive Gas for AC2-PE05-30M Air Compressor by Mi-T-M 30194 3-0194 Pump Direct Drive Gas for AC2-PE05-30M Air Compressor by Mi-T-M 30194
$1,089.95
20
3-0476 PUMP (4004) BY MITM 3-0476 PUMP (4004) BY MITM
$598.47
21
27-0218 BOLT BY MITM 27-0218 BOLT BY MITM
$2.55
22
29-0010 Lockwasher for MiTM Pressure Washers by MiTM 290010 29-0010 Lockwasher for MiTM Pressure Washers by MiTM 290010
$7.49
23
28-0006 Washer for MiTM Pressure Washers by MiTM 280006 28-0006 Washer for MiTM Pressure Washers by MiTM 280006
$4.49
24
27-9526 Bolt BY MITM 27-9526 Bolt BY MITM
$1.35
25
20-0384A18 BELTGUARD BY MITM 20-0384A18 BELTGUARD BY MITM
$6.75
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
