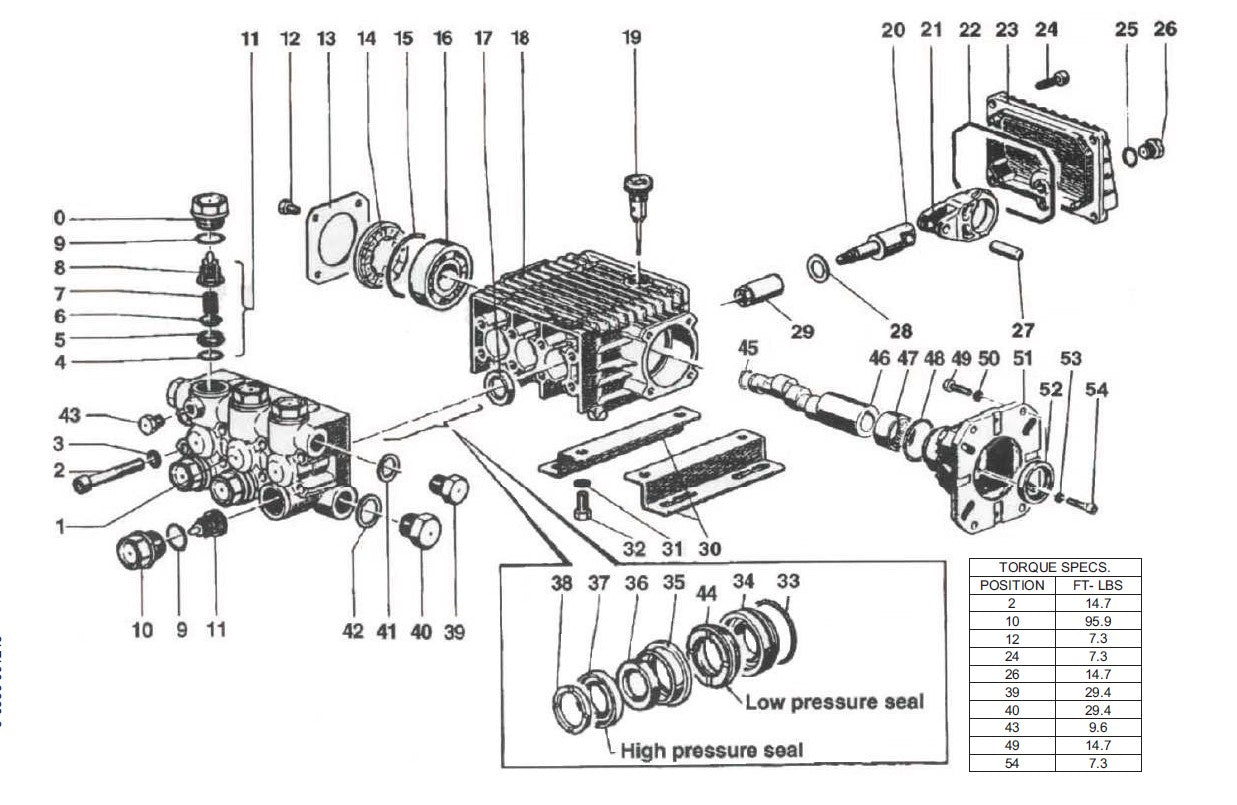

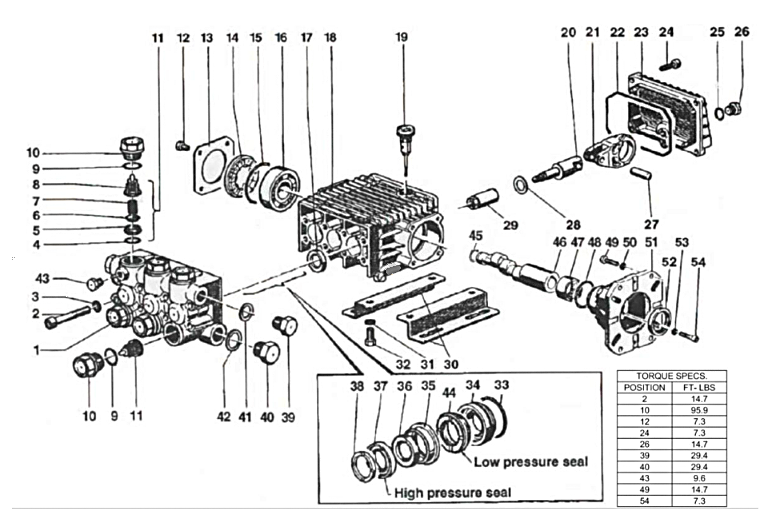

DHG-4004-D0V6G (sn:0-15122892) Pump Assembly Parts By Mi-T-M

DHG-4004-D0V6G (sn:0-15122892) Pump Assembly Parts By Mi-T-M

  • DHG-4004-D0V6G (sn:0-15122892) Pump Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
46-1391 Manifold for MiTM Pressure Washers by MiTM 461391
$1,234.65
2
27-8439 Bolt for MiTM Pressure Washers by MiTM 278439
$12.75
3
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
4
25-0053 O-Ring (See Kit 70-0028) for MiTM Pressure Washers by MiTM 250053
$7.49
5
39-0071 Valve Plug for AP1-PI65-08M Air Compressor by Mi-T-M 390071
$66.48
6
46-0565 Valve Assembly (See Kit 70-0028) for MiTM Pressure Washers by MiTM 460565
$291.41
7
27-8000 Bolt for MiTM Pressure Washers 278000
$5.93
8
46-0574 Oil Level Indicator/Spacer for AM2-PH09-08AB Air Compressor by Mi-T-M 460574
$40.14
9
46-1392 Ball Bearing for MiTM Pressure Washers by MiTM 461392
$100.76
10
26-0046 Oil Seal (See Kit 70-0391) for MiTM Pressure Washers by MiTM 260046
$46.08
11
46-0570 Crankcase for MiTM Pressure Washers by MiTM 460570
Call for Price call for price call for price
12
46-1393 Piston Guide for MiTM Pressure Washers by MiTM 461393
$528.38
13
46-0572 Connecting Rod for AS2-PE05-08M Air Compressor by Mi-T-M 460572
$106.58
14
46-1394 O-Ring for MiTM Pressure Washers by MiTM 461394
$8.25
15
46-0571 Crankcase Cover Rear for AS2-PE05-08M Air Compressor by Mi-T-M 460571
$137.34
16
24-8401 Bolt for MiTM Pressure Washers by MiTM 248401
$7.88
17
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
18
43-0079 Pin/Connecting Rod for AS2-PE05-08M Air Compressor by Mi-T-M 430079
$30.78
19
46-1395 Washer for MiTM Pressure Washers by MiTM 461395
$10.20
20
46-1396 Plunger, 13 Mm for MiTM Pressure Washers 461396
$508.23
21
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
22
28-0600 Washer for MiTM Pressure Washers by MiTM 280600
$39.59
23
46-1402 Washer for MiTM Pressure Washers by MiTM 461402
$9.11
24
39-0032 Cap Screw for MiTM Pressure Washers by MiTM 390032
$8.25
25
46-0104 Circlip for MiTM Pressure Washers by MiTM 460104
$4.49
26
46-1404 Crankshaft for MiTM Pressure Washers by MiTM 461404
$696.27
27
48-0040 Needle Bearing/Hk 4520 for AP1-PI65-08M Air Compressor by Mi-T-M 480040
$175.01
28
25-0316 O-Ring for MiTM Pressure Washers by MiTM 250316
Call for Price call for price call for price
29
38-0038 Flange Gas for AP1-PI65-08M Air Compressor by Mi-T-M 380038
$125.01
30
26-0181 Seal/Oil for AP1-PI65-08M Air Compressor by Mi-T-M 260181
$67.88
31
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
32
70-0028 Kit Valve for AM2-PH09-08AB Air Compressor by Mi-T-M 700028
$208.22
33
70-0391 Kit Oil Seal for AS2-PE05-08M Air Compressor by Mi-T-M 700391
$87.23
34
70-0552 Pressure Seal (Inc. 33-38, 44) for MiTM Pressure Washers by MiTM 700552
$320.42
35
70-0553 General Pressure Seal (Inc. 3 Of 36, 37, 44) for MiTM Pressure Washers by MiTM 700553
$289.65
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
