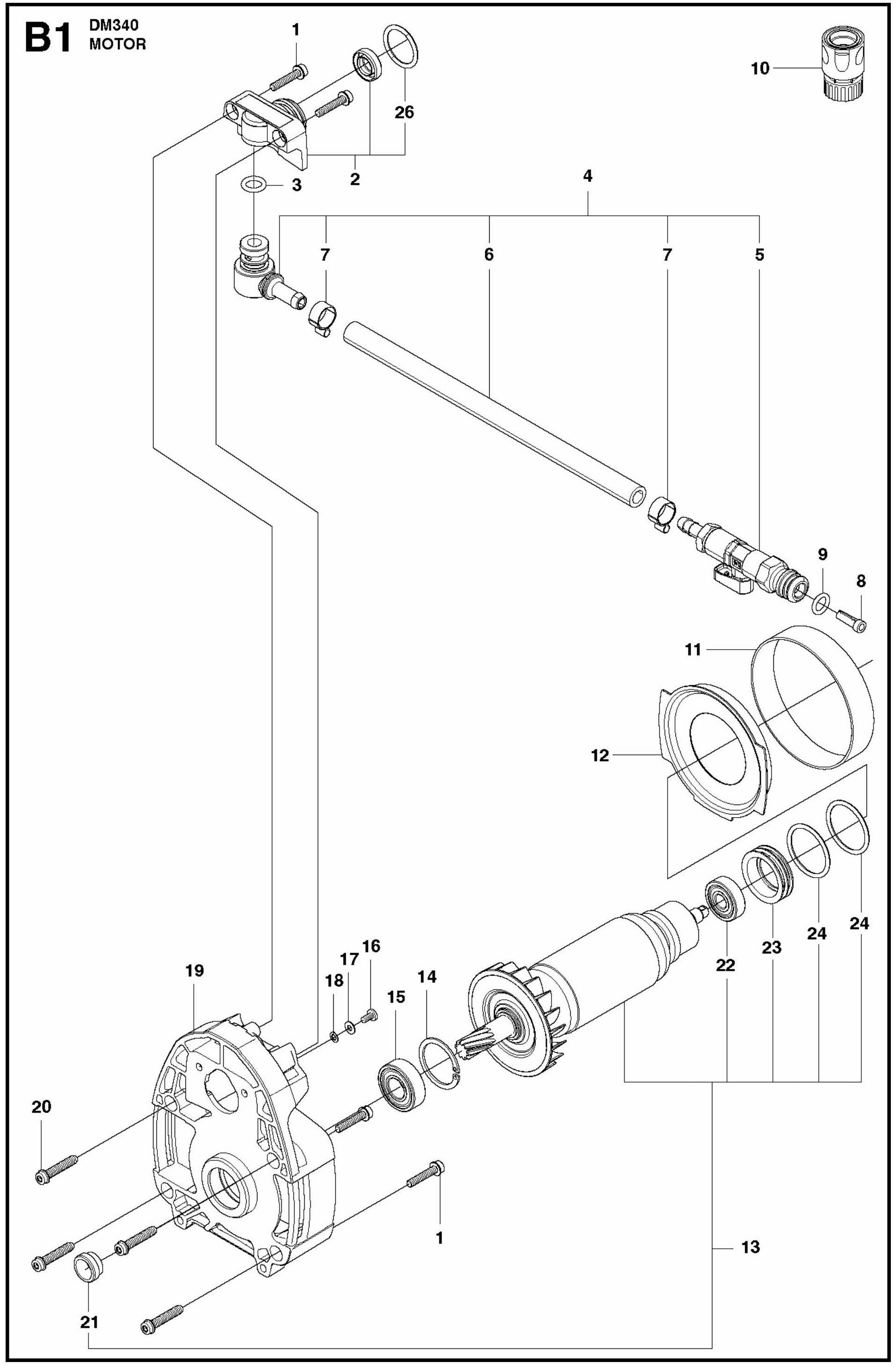

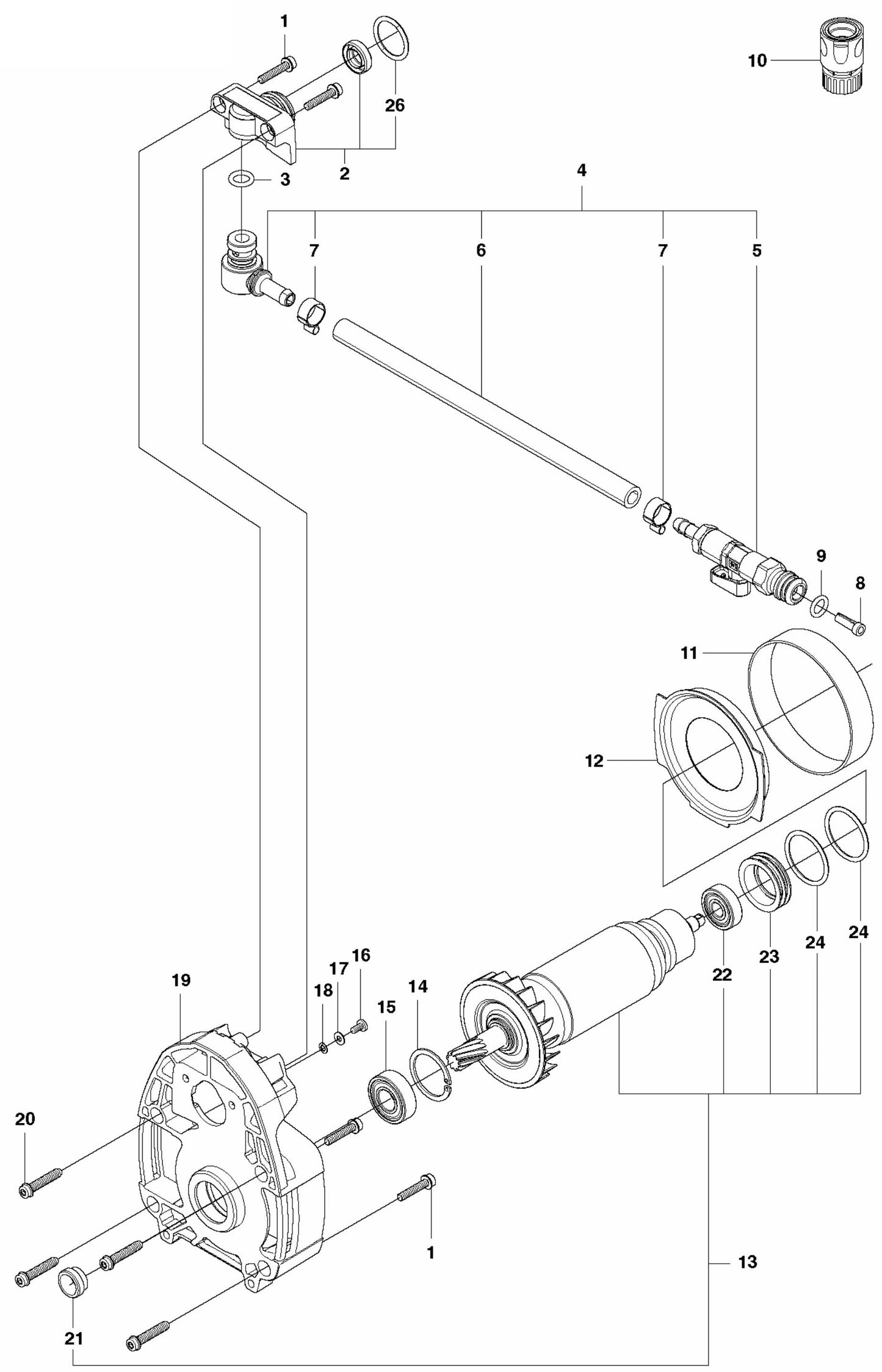

DM 340 Motor Assembly Parts-1 by Husqvarna

DM 340 Motor Assembly Parts-1 by Husqvarna

  • DM 340 Motor Assembly Parts-1 by Husqvarna
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
503200778 SCREW IHSCFM M5X25 10.9 ZN/FE FOR CORE DRILL BY HUSQVARNA
$2.90
2
598801601 BRACKET, WATER CONNECTION ASSY FOR CORE DRILL BY HUSQVARNA
$75.53
3
502496501 O-RING FOR CORE DRILL BY HUSQVARNA
$5.80
4
501072202 HOSE ASSY FOR CORE DRILL BY HUSQVARNA
$117.80
5
587437802 VALVE ASSY FOR CORE DRILL BY HUSQVARNA
$70.02
6
581893601 HOSE, PVC 8X13, L=230MM FOR POWER CUTTERS BY HUSQVARNA
$5.60
7
576129701 HOSE CLAMP FOR POWER CUTTERS BY HUSQVARNA
$10.14
8
506298801 SCREEN, WATER FITTING FOR POWER CUTTERS BY HUSQVARNA
$11.65
9
505103501 ORING FOR POWER CUTTERS BY HUSQVARNA
$10.14
10
503266003 COUPLER, QUICK, ORANGE FOR POWER CUTTERS BY HUSQVARNA
$10.60
10
503266004 1/2" HOSE COUPLER FOR POWER CUTTERS BY HUSQVARNA
$13.52
11
510021401 SPACER RING FOR CORE DRILL BY HUSQVARNA
$10.14
12
544806001 AIR CONDUCTOR FOR CORE DRILL BY HUSQVARNA
$7.26
13
525836605 ROTOR ASSY, DM340 120V FOR CORE DRILL BY HUSQVARNA
$671.65
14
735313310 CIRCLIP FOR POWER CUTTERS BY HUSQVARNA
$3.91
15
531073944 BALL BEARING FOR POWER CUTTERS BY HUSQVARNA
$47.69
16
724128701 SCREW FOR CORE DRILL BY HUSQVARNA
$2.81
17
734113601 Washer for Power Trowel by Husqvarna
$3.99
18
735213601 Lockwasher for PG 690 RC Floor Grinder by Husqvarna
$3.99
20
503218855 SCREW IHSCFT PL6X55 12.9 TBO FOR CORE DRILL BY HUSQVARNA
$3.85
21
544397601 SLEEVE FOR CORE DRILL BY HUSQVARNA
$13.97
22
503250901 BALL BEARING FOR POWER CUTTERS BY HUSQVARNA
$42.09
23
588608501 BEARING SLEEVE FOR CORE DRILL BY HUSQVARNA
$21.19
24
740441000 O-RING FOR CORE DRILL BY HUSQVARNA
$5.63
26
502496504 O-RING 25X3 FOR CORE DRILL BY HUSQVARNA
$2.90
