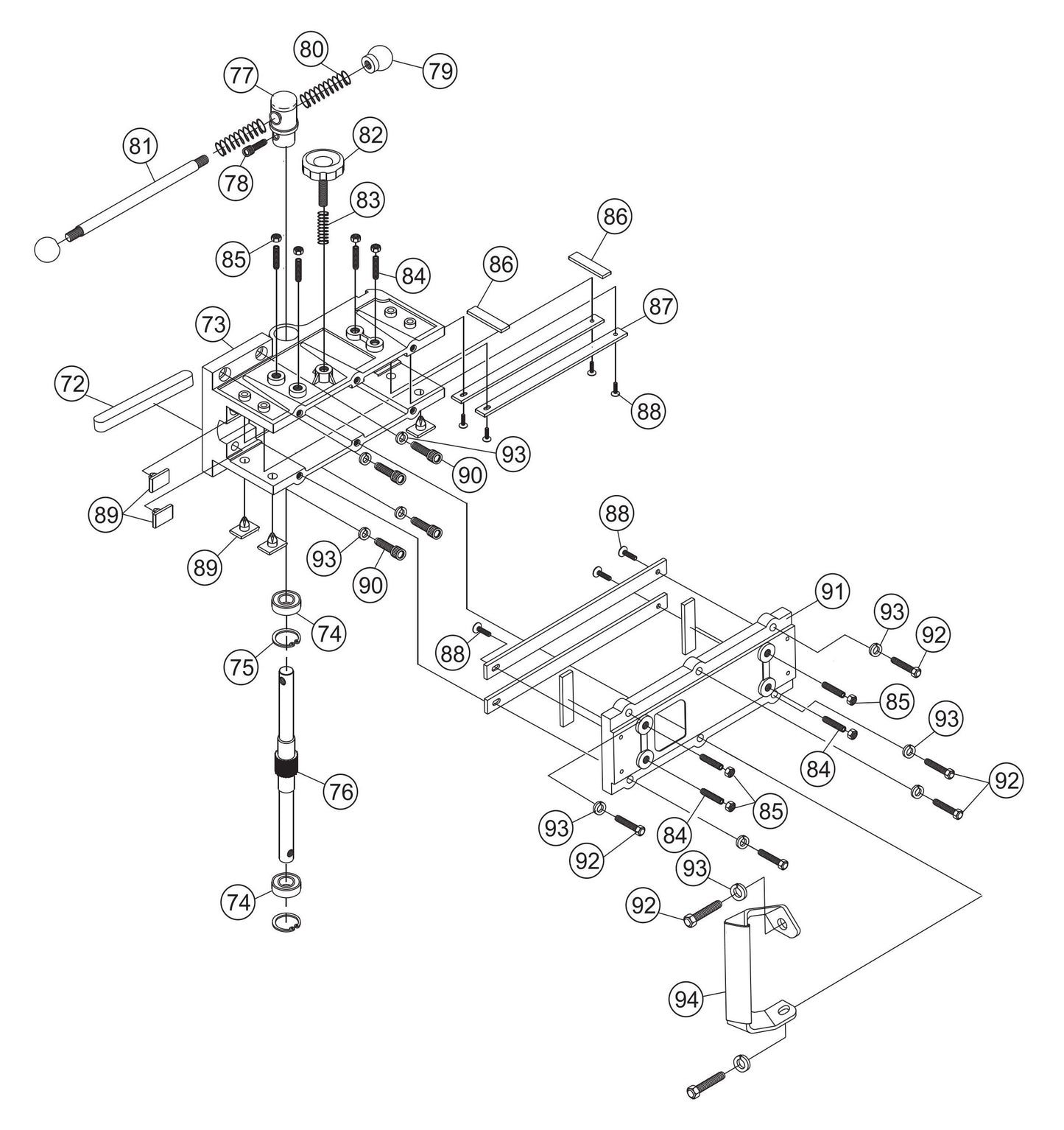

DM15A9C, CDM2CSA Cradle Assembly Parts

DM15A9C, CDM2CSA Cradle Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
72
CD2704023 Key 10x10x105MM Retd to CD2704024 by Multiquip
$16.71
73
CD2704064 Feeding House DM15A9C/CDM2CSA by Multiquip
$403.45
74
CD2704065 Bearing 6003ZZ DM15A9C/CDM2CSA by Multiquip
$13.13
75
CD2704066 Snap Ring DM15A9C/CDM2CSA by Multiquip
$3.29
76
CD2704067 Feed Shaft DM15A9C/CDM2CSA by Multiquip
$121.93
81
CD2704072 Handle Feeding DM15A9C/CDM2CSA by Multiquip
$54.07
82
CD2704073 Bolt Knob DM15A9C/CDM2CSA by Multiquip
$10.49
83
CD2704074 Spring DM15A9C/CDM2CSA by Multiquip
$3.99
84
CD2704075 Screw Set M6x20MM DM15A9C/CDM2CSA by Multiquip
$3.29
85
CD2704076 Hex Nut M6 DM15A9C/CDM2CSA by Multiquip
$4.39
86
CD2704077 Plate DM15A9C/CDM2CSA by Multiquip
$7.83
87
CD2704078 Friction Plate-Long DM15A9C/CDM2CSA by Multiquip
$15.19
88
CD2704079 Screw 5/32 x 1/2" DM15A9C/CDM2CSA by Multiquip
$4.39
89
CD2704080 Friction Plate-Short DM15A9C/CDM2CSA by Multiquip
$5.99
90
CD2704081 Screw M8 x 30MM DM15A9C/CDM2CSA by Multiquip
$3.29
91
CD2704082 Cover Feeding House DM15A9C/CDM2CSA by Multiquip
$102.80
92
CD2704083 Screw M8x20MM DM15A9C/CDM2CSA by Multiquip
$4.39
93
CD2704110 Washer, Lock M8 Use 0451290080 by Multiquip
$4.39
94
CD2704085 Handle DM15A9C/CDM2CSA by Multiquip
$13.13
View full details
