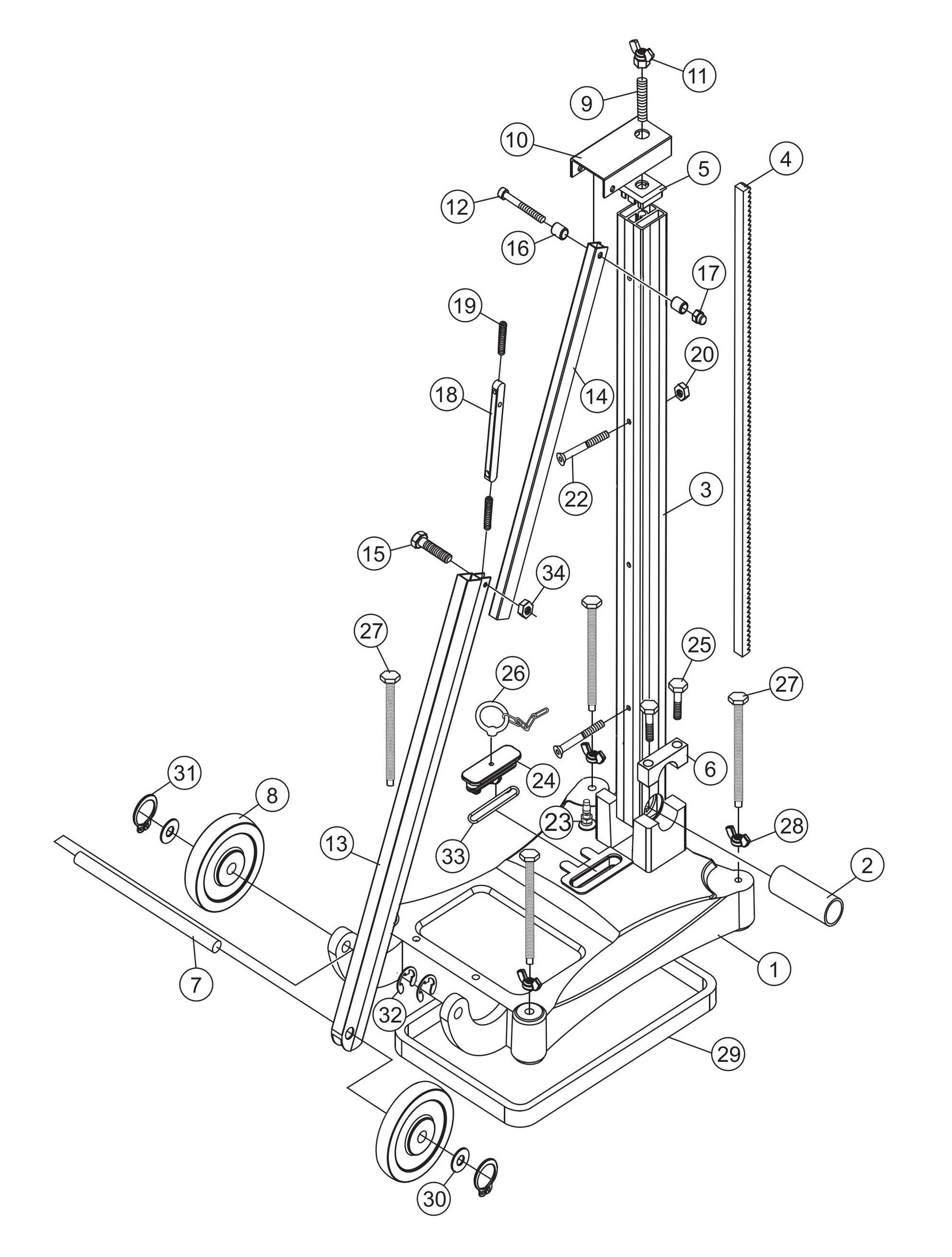

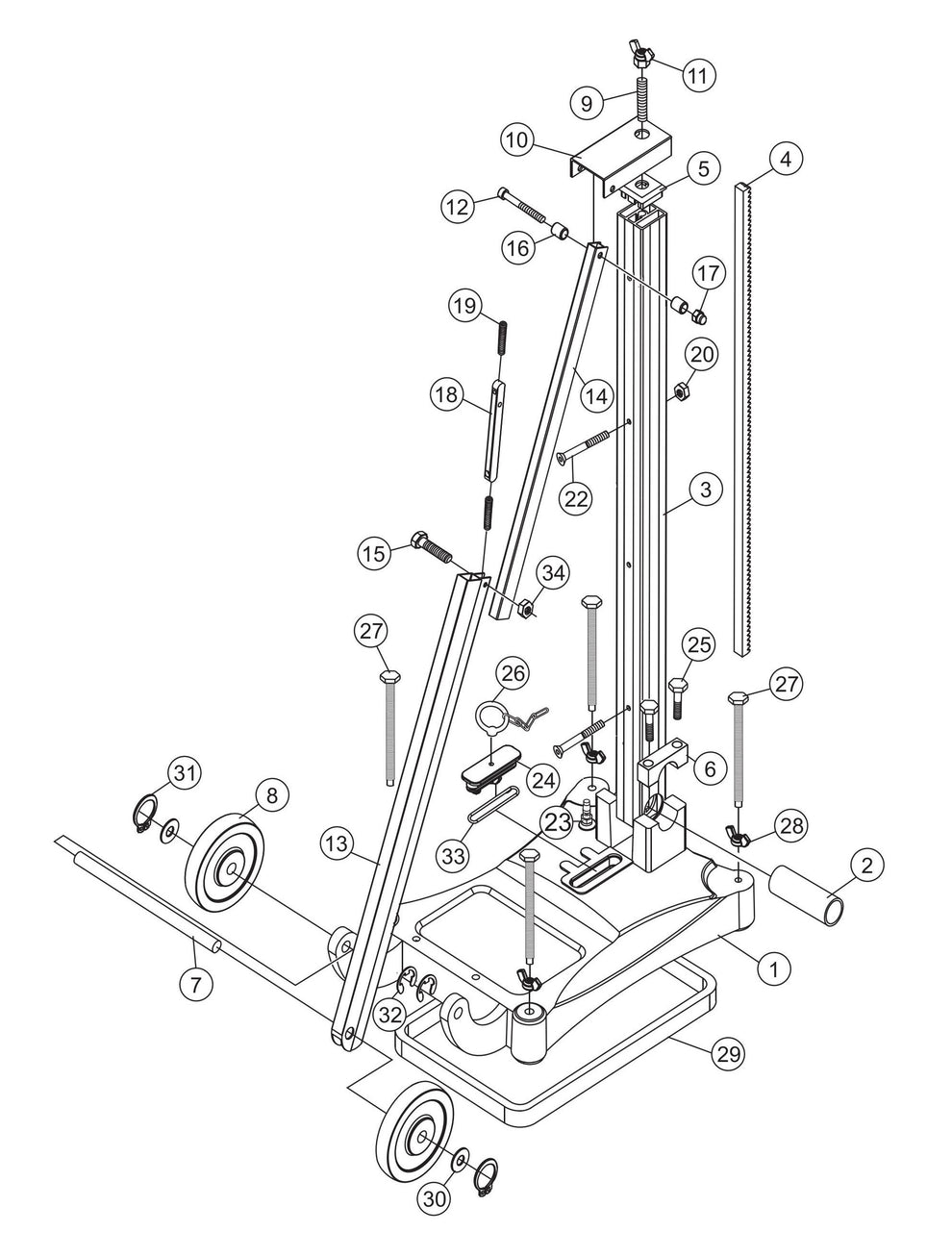

DM15A9C, CDM2CSA Drilling Rig Assembly Parts

DM15A9C, CDM2CSA Drilling Rig Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
CD290072 Base DM15A9C/CDM2CSA by Multiquip
$813.01
2
CD290073 Tube Pole DM15A9C/CDM2CSA by Multiquip
$41.08
3
CD290074 Pole DM15A9C/CDM2CSA by Multiquip
$304.18
4
CD290075 Rack DM15A9C/CDM2CSA by Multiquip
$223.45
5
CD290076 Cover Pole DM15A9C/CDM2CSA by Multiquip
$5.99
6
CD290077 Plate Fixed DM15A9C/CDM2CSA by Multiquip
$55.87
7
CD290078 Shaft Wheel DM15A9C/CDM2CSA by Multiquip
$50.26
8
CD290097 Wheels 4" DM15A9C/CDM2CSA by Multiquip
$33.19
9
CD290079 Screw 12x50MM DM15A9C/CDM2CSA by Multiquip
$50.26
10
CD290080 Metal DM15A9C/CDM2CSA by Multiquip
$3.99
11
CD290081 Nut Adjust M12 DM15A9C/CDM2CSA by Multiquip
$3.29
12
CD290082 Screw M8x60MM DM15A9C/CDM2CSA by Multiquip
$134.08
13
CD290083 Tube-2 Angle Adjust DM15A9C/CDM2CSA by Multiquip
$100.55
14
CD290084 Tube-1 Angle Adjust DM15A9C/CDM2CSA by Multiquip
$161.28
15
CD290085 Screw M6x20MM DM15A9C/CDM2CSA by Multiquip
$18.83
16
CD290086 Collar Metal DM15A9C/CDM2CSA by Multiquip
$3.29
17
CD290087 Nut DM15A9C/CDM2CSA by Multiquip
$55.87
18
CD290088 Shifter DM15A9C/CDM2CSA by Multiquip
$62.85
19
CD290089 Screw M6x35MM DM15A9C/CDM2CSA by Multiquip
$3.29
20
CD290090 Nut M6 DM15A9C/CDM2CSA by Multiquip
$5.99
21
CD290091 Spring DM15A9C/CDM2CSA by Multiquip
$3.99
22
CD290092 Screw M6x55MM DM15A9C/CDM2CSA by Multiquip
$23.66
23
CD290093 Valve DM15A9C/CDM2CSA by Multiquip
$15.97
24
CD290094 Cover Air DM15A9C/CDM2CSA by Multiquip
$5.99
25
CD290095 Screw M12x40MM DM15A9C/CDM2CSA by Multiquip
$3.29
26
CD290096 Pin Chain DM15A9C/CDM2CSA by Multiquip
$33.35
27
CD290098 Screw M12x100MM DM15A9C/CDM2CSA by Multiquip
$5.99
28
CD290099 Nut M12 DM15A9C/CDM2CSA by Multiquip
$3.99
29
CD290100 Gasket DM15A9C/CDM2CSA by Multiquip
$79.93
30
CD290101 Washer DM15A9C/CDM2CSA by Multiquip
$4.39
31
CD290102 Ring-S S1/2 DM15A9C/CDM2CSA by Multiquip
$3.29
32
CD290103 Ring-E E12 DM15A9C/CDM2CSA by Multiquip
$3.99
33
CD290104 O-Ring 3x53MM DM15A9C/CDM2CSA by Multiquip
$3.29
34
CD290105 Nut M6 DM15A9C/CDM2CSA by Multiquip
$3.29
View full details
