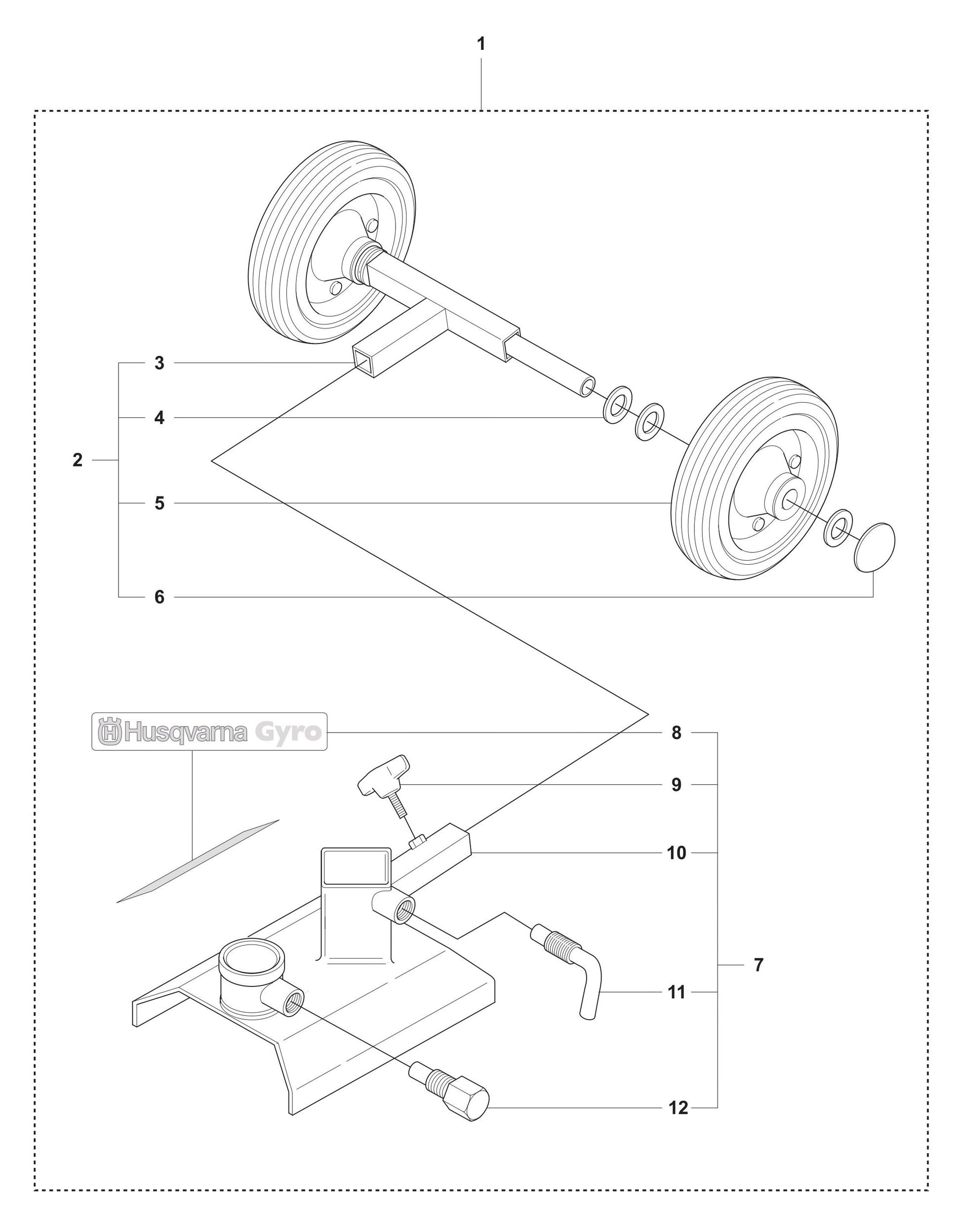

DMS 160 Base Plate Assembly-3 Parts

DMS 160 Base Plate Assembly-3 Parts

  • DMS 160 Base Plate Assembly-3 Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
506408011 Plate for DS 40 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
2
506407611 Retainer for DS 40 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
3
504020604 Shaft for DS 40 GYRO Core Drill Stand by Husqvarna
$246.00
4
531140627 WASHER FOR CORE DRILL BY HUSQVARNA
$8.70
5
531140728 WHEEL FOR CORE DRILL BY HUSQVARNA
$53.42
6
531140730 COVER PLATE FOR CORE DRILL BY HUSQVARNA
$6.67
7
506407904 Plate for DS 40 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
8
504021004 Decal for DS 40 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
9
531140602 WING SCREW FOR CORE DRILL BY HUSQVARNA
$7.03
10
531140774 Plate for DS 40 GYRO Core Drill Stand by Husqvarna
Call for Price call for price call for price
11
531140643 KNOB FOR CORE DRILL BY HUSQVARNA
$211.40
12
531140619 BC SCREW FOR POWER CUTTERS BY HUSQVARNA
$32.38
View full details
