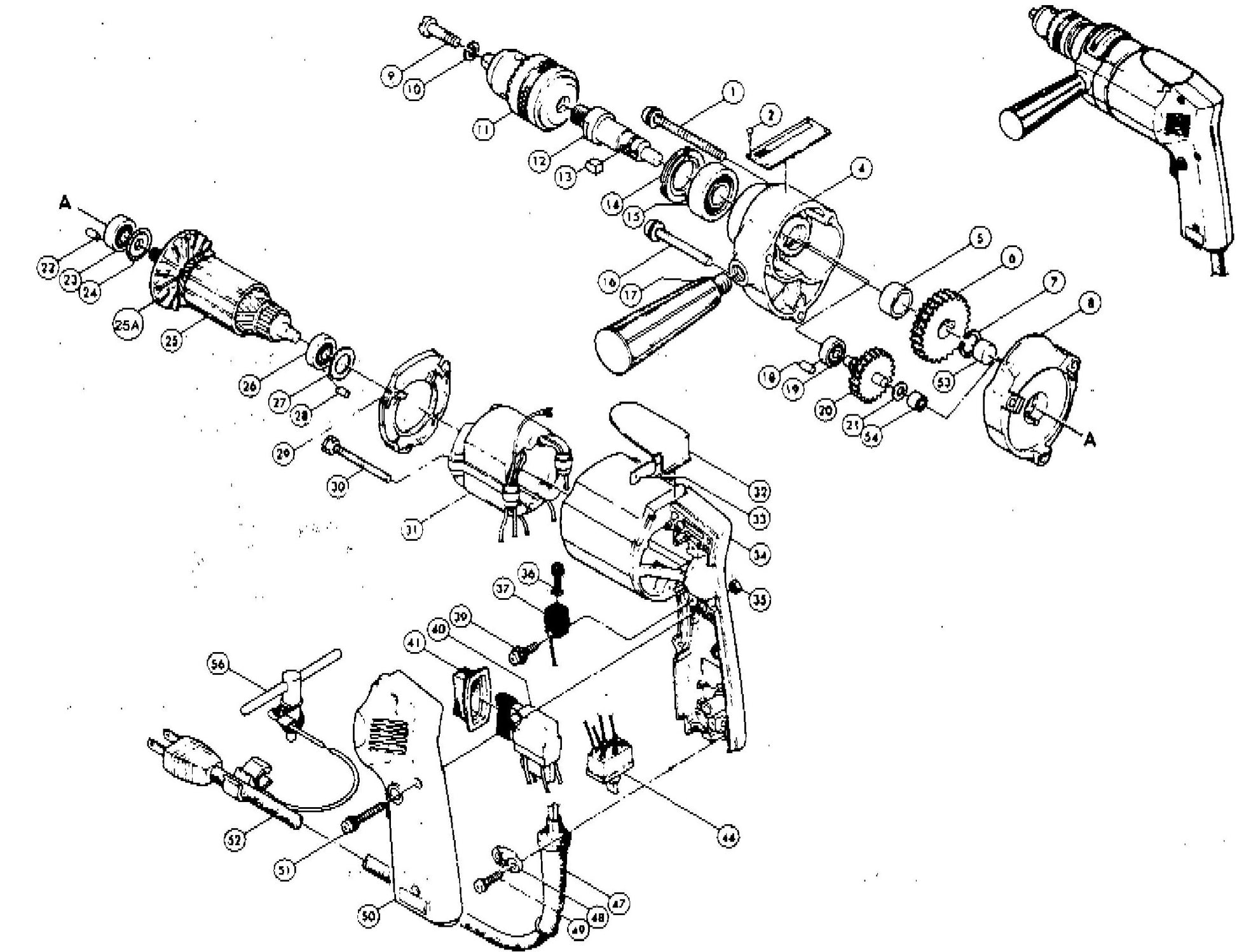

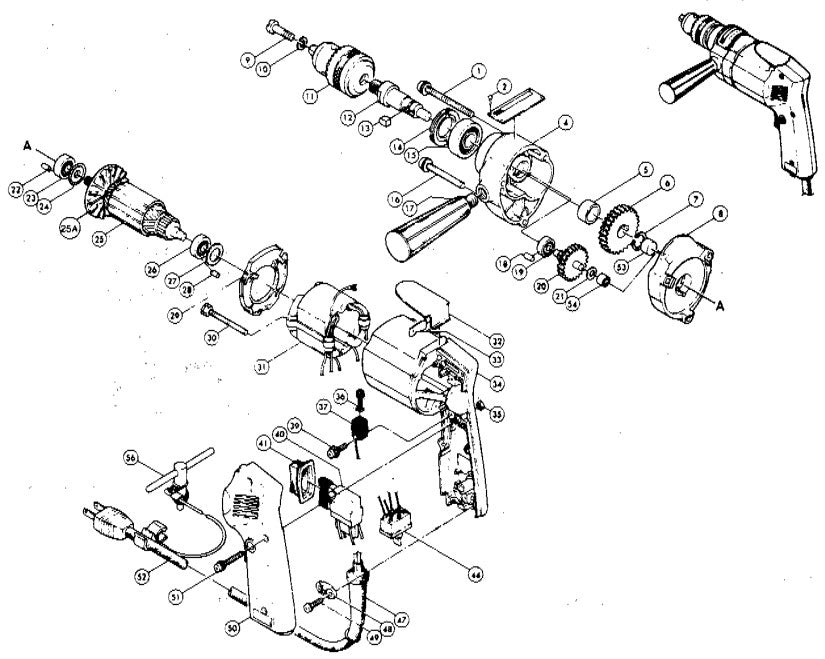

DP4700 Drill Assembly Parts By Makita

DP4700 Drill Assembly Parts By Makita

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
9112886 P.H. SCREW M5X65, 5104 BY MAKITA
$3.99
2
953106-2 9531062 Rivet 0-5 fits Makita HM1201 Demolition Hammer
$3.99
4
4115847 GEAR HOUSING, DP4700 BY MAKITA
$11.73
10
4115847 GEAR HOUSING, DP4700 BY MAKITA
$11.73
5
2570184 RING 15, 6300LR BY MAKITA
$5.99
6
221211010 GEAR PLATE WITH AXLE, UH5530 BY MAKITA
$14.72
7
9610541 RETAINING RING S14, 6302 BY MAKITA
$3.99
8
4115855 GEAR HOUSING COVER, DP4700 BY MAKITA
$12.27
15
4115855 GEAR HOUSING COVER, DP4700 BY MAKITA
$12.27
9
2514253 FLAT SCREW M6X22, NHP1310 BY MAKITA
$3.99
10
9421512 SPRING WASHER 6, 5007NB BY MAKITA
$3.99
12
3210822 SPINDLE, DP4700 BY MAKITA
$18.29
13
2542111 KEY 5, 6300LR BY MAKITA
$3.99
14
2858077 BEARING RETAINER 2236, 5008FA BY MAKITA
$5.99
15
211206-7 2112067 B. Bearing 6202Llb, 5007F fits Makita HM1211 Demolition Hammer
$12.24
16
9112739 P.H. SCREW M5X50, HR2400 BY MAKITA
$3.99
17
2734059 GRIP 32, DP4700,T1 BY MAKITA
$7.76
18
2630029 RUBBER PIN 4, 5007MG BY MAKITA
$3.99
22
2630029 RUBBER PIN 4, 5007MG BY MAKITA
$3.99
28
2630029 RUBBER PIN 4, 5007MG BY MAKITA
$3.99
19
2110162 B. BEARING 626LLB, DS4011 BY MAKITA
$12.13
20
2260444 GEAR 746, DP4700 BY MAKITA
$31.46
21
2537150 F. WASHER 6, NHP1310 BY MAKITA
$3.99
23
2110332 B. BEARING 608LB, 5007F BY MAKITA
$12.96
24
2130029 DUST SEAL 8, 6013BR BY MAKITA
$3.99
25
6151114 ARMATURE, DP4700 BY MAKITA
$110.70
25A
2418116 FAN 54, 6802BV BY MAKITA
$5.99
26
2110285 B. BEARING 627LB, 6510LVR BY MAKITA
$10.53
27
2531926 F. WASHER 14, LXSF01 BY MAKITA
$3.99
29
4115287 BAFFLE PLATE, DP4700 BY MAKITA
$3.99
30
9251834 FIELD SCREW M4X55, 1900B,T1 BY MAKITA
$3.99
31
6250966 FIELD, 6802BV, 6805BV BY MAKITA
$40.60
32
3424221 CARRY CLIP, 6510LVR, (T1) BY MAKITA
$5.99
33
2320347 LEAF SPRING, 6800DBV BY MAKITA
$3.99
34
1564825 MOTOR HOUSING, 6802BV BY MAKITA
$29.44
35
9311020 HEX NUT M4, 2705 BY MAKITA
$3.99
36
6430574 CARBON BRUSH 57, GE0600T1 BY MAKITA
$5.99
37
6435524 BRUSH HOLDER, BO5012K BY MAKITA
$3.99
39
9111246 P.H. SCREW M4X14, 6402 BY MAKITA
$3.99
44
5310038 REV. SWITCH, 6510LVR BY MAKITA
$17.79
47
6825040 CORD GUARD 1085, 4200H BY MAKITA
$5.99
48
6870011 STRAIN RELIEF, 6013BR BY MAKITA
$3.99
49
9111319 P.H. SCREW M4X18, HR3851 BY MAKITA
$3.99
50
1552838 HANDLE COVER, 6802BV BY MAKITA
$13.00
51
9111539 P.H. SCREW M4X28, JR3000V BY MAKITA
$3.99
52
6640131 CORD (2X18X8 SJT), N9501B BY MAKITA
$9.18
53
2120042 N.BEARING 810,4200N BY MAKITA
$8.87
54
2120123 N. BEARING 609, 6013BR BY MAKITA
$8.37
40
6513146 VAR. SWITCH, HP1030 BY MAKITA
$34.39
41
4211455 DUST COVER, HR2511 BY MAKITA
$5.99
10
1535513 GEAR HOUSING COMPLETE, DP4700 BY MAKITA
$13.16
15
1535521 GEAR HOUSING COVER,DP4700 BY MAKITA
$10.88
11
