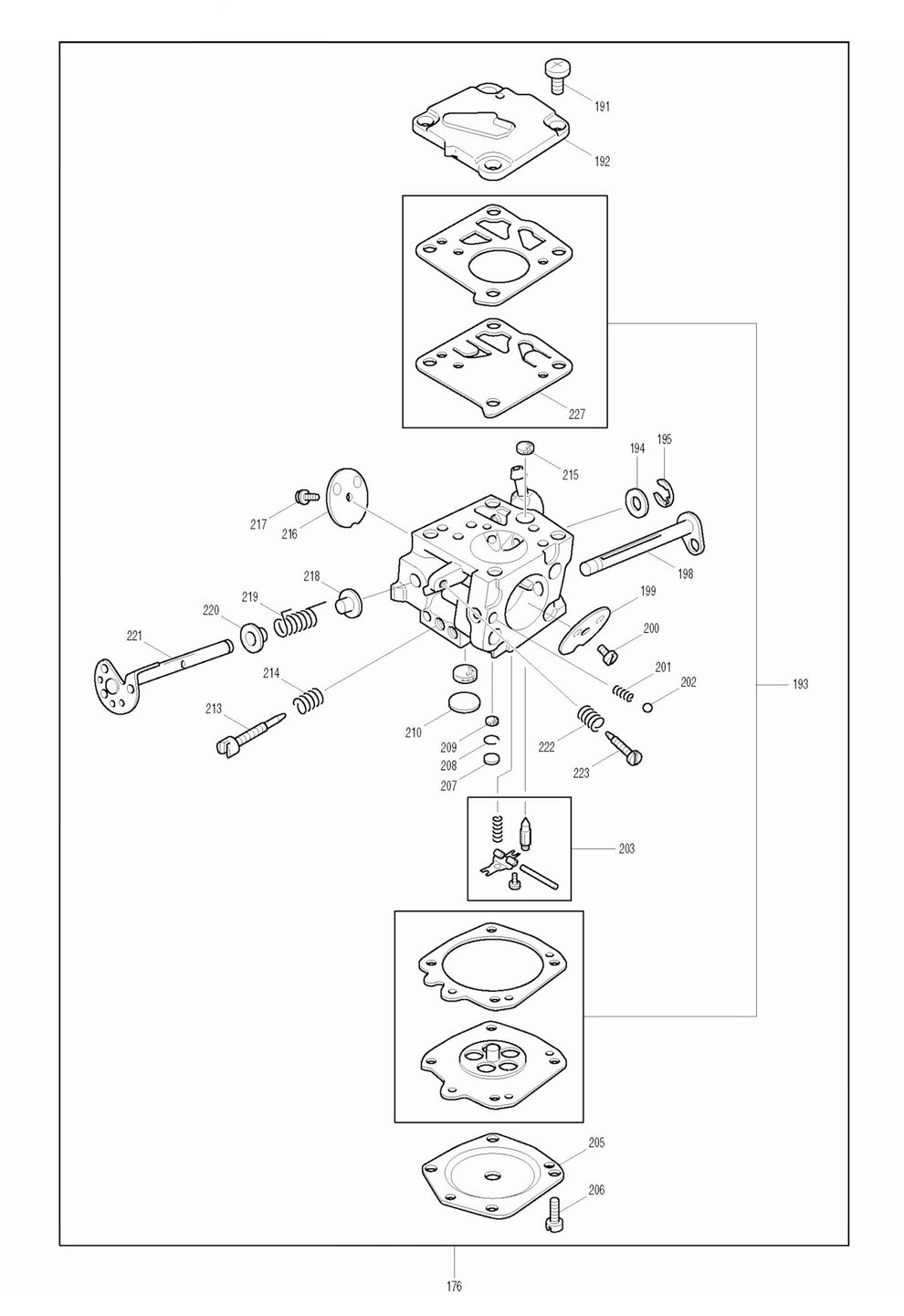

DPC9501 Carburetor Assembly Parts

DPC9501 Carburetor Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
176
122151620 CARBURETOR, DPC7000 BY MAKITA
$114.80
191
113150170 SCREW ,DCS6800I BY MAKITA
$5.99
192
113150160 PUMP COVER, DPC7000 BY MAKITA
$16.56
193
957150100 DIAPHRAGM & GASKET (TILLOTSON), DPC7311 BY MAKITA
$14.31
194
122151400 DISC, DCS6000I21 . BY MAKITA
$5.99
195
100150350 SAFETY WASHER, DCS6000I21 BY MAKITA
$7.76
198
031150020 CHOKE SHAFT, DPC9500 BY MAKITA
$24.01
199
113150261 CHOKE SHUTTER, DPC7000 BY MAKITA
$7.76
200
113150370 SCREW W/WASHER, DPC7000 BY MAKITA
$5.99
217
113150370 SCREW W/WASHER, DPC7000 BY MAKITA
$5.99
201
101150080 LOCKING SPRING, DPC7000 BY MAKITA
$7.76
202
113150380 LOCKING BALL, DPC7000 BY MAKITA
$5.99
203
957150010 CTRL. PARTS, CARB., DPC7000 BY MAKITA
$10.01
205
122151121 DIAPHRAGM COVER, DPC7000 BY MAKITA
$11.73
206
001150140 SCREW, DPC7001 BY MAKITA
$9.32
207
113150030 COVER DISC, DCS6000I21 BY MAKITA
$5.99
208
107150240 SPRING RING, DCS6000I21 BY MAKITA
$5.99
209
107150230 SCREEN FOR NOZZLE, DCS6000I21 BY MAKITA
$5.99
210
113150040 COVER DISC, DPC7311 BY MAKITA
$5.99
213
122151470 IDLE ADJ.SCREW(L), DCS6000I21 BY MAKITA
$23.35
214
144151480 SPRING(L), DCS6000I21 BY MAKITA
$7.82
215
020150180 SCREEN, DCS6000I21 BY MAKITA
$9.32
216
144151320 THROTTLE SHUTTER, DPC7000 BY MAKITA
$11.91
218
144151315 BUSHING, DCS6000I21 BY MAKITA
$7.76
220
144151315 BUSHING, DCS6000I21 BY MAKITA
$7.76
219
144151310 SPRING, DPC7000 BY MAKITA
$7.76
221
122151302 THROTTLE SHAFT, DPC7000 BY MAKITA
$28.18
222
113150240 IDLE STOP SCREW, DPC7000 BY MAKITA
$5.99
223
113150230 SPRING, DPC7000 BY MAKITA
$5.99
227
113150150 PUMP DIAPHRAGM (237144), DPC7311 BY MAKITA
$7.76
View full details
