Drum Assembly Parts By MBW

Drum Assembly Parts By MBW

  • Drum Assembly Parts By MBW
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
01056 Hair Pin, 1/8 Dia. X 2-3/8 Lg. for AP1400H Plate Compactors by MBW Genuine Parts
$3.42
15
F051808HCS Hex Head Cap Screw,5/16-18 X 1" for GP4000H Plate Compactors by MBW Genuine Parts
$2.39
16
F0518ELN Locknut ,5/16-18 Nyloc for AP1400H Plate Compactors by MBW Genuine Parts
$2.39
17
F061608FWS Flange Locking Screw, 3/8-16 X 1” for GP3000-15H Plate Compactors by MBW Genuine Parts
$3.42
20
F0616ELN Locknut,3/8-16,Nyloc for AP1400H Plate Compactors by MBW Genuine Parts
$2.39
21
F0616HN Hex Nut,3/8-16 for GP7000H Plate Compactors by MBW Genuine Parts
$2.39
22
F06PW Washer, 3/8 for GP1400H Plate Compactors by MBW Genuine Parts
$12.39
23
F081314HCS Hhcs,1/2-13 X 1-3/4 for GP7000H Plate Compactors by MBW Genuine Parts
$5.82
24
F08LW Lock Washer, 1/2” for GP3000-15H Plate Compactors by MBW Genuine Parts
$2.39
View full details

Frequently asked questions

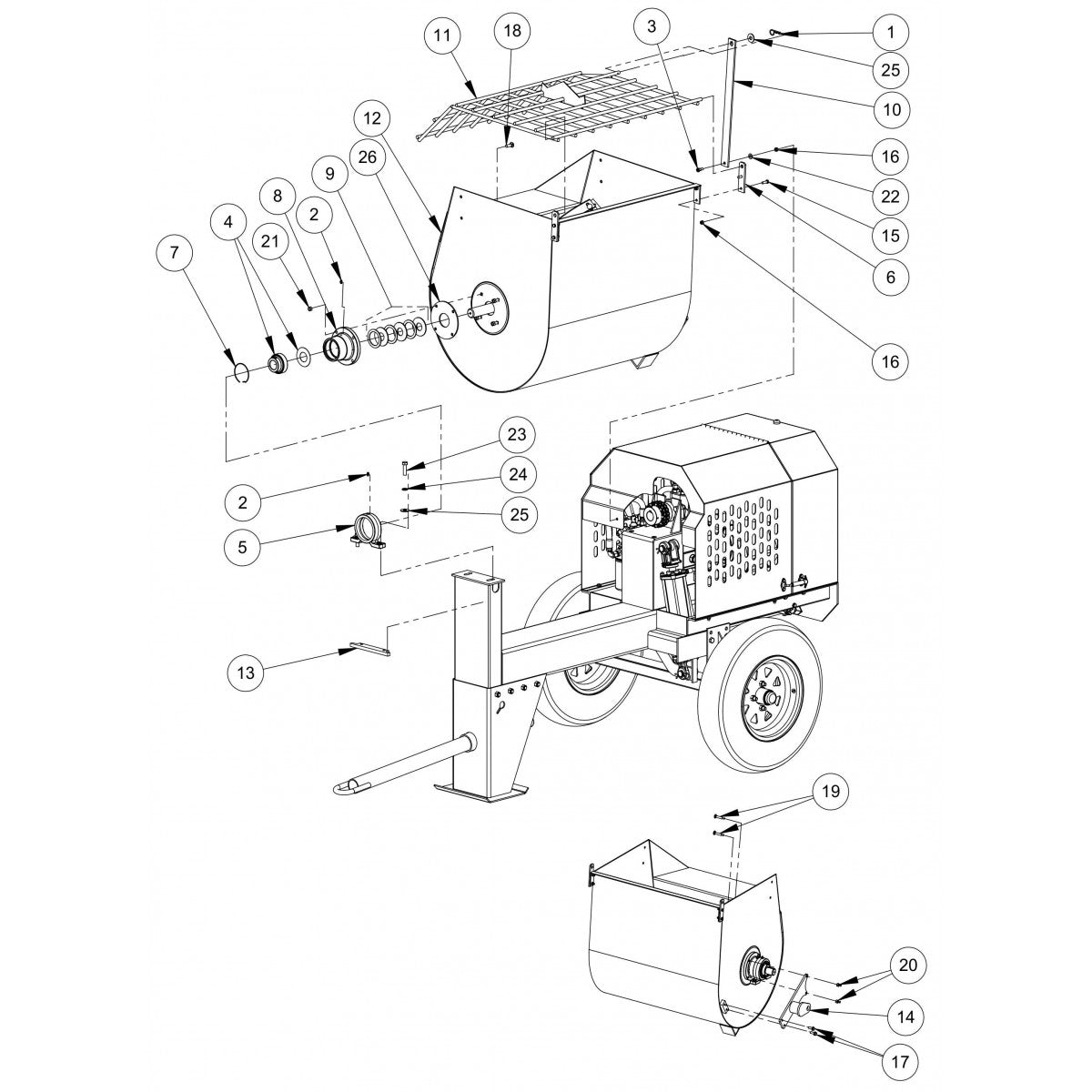

How do I use this diagram?
