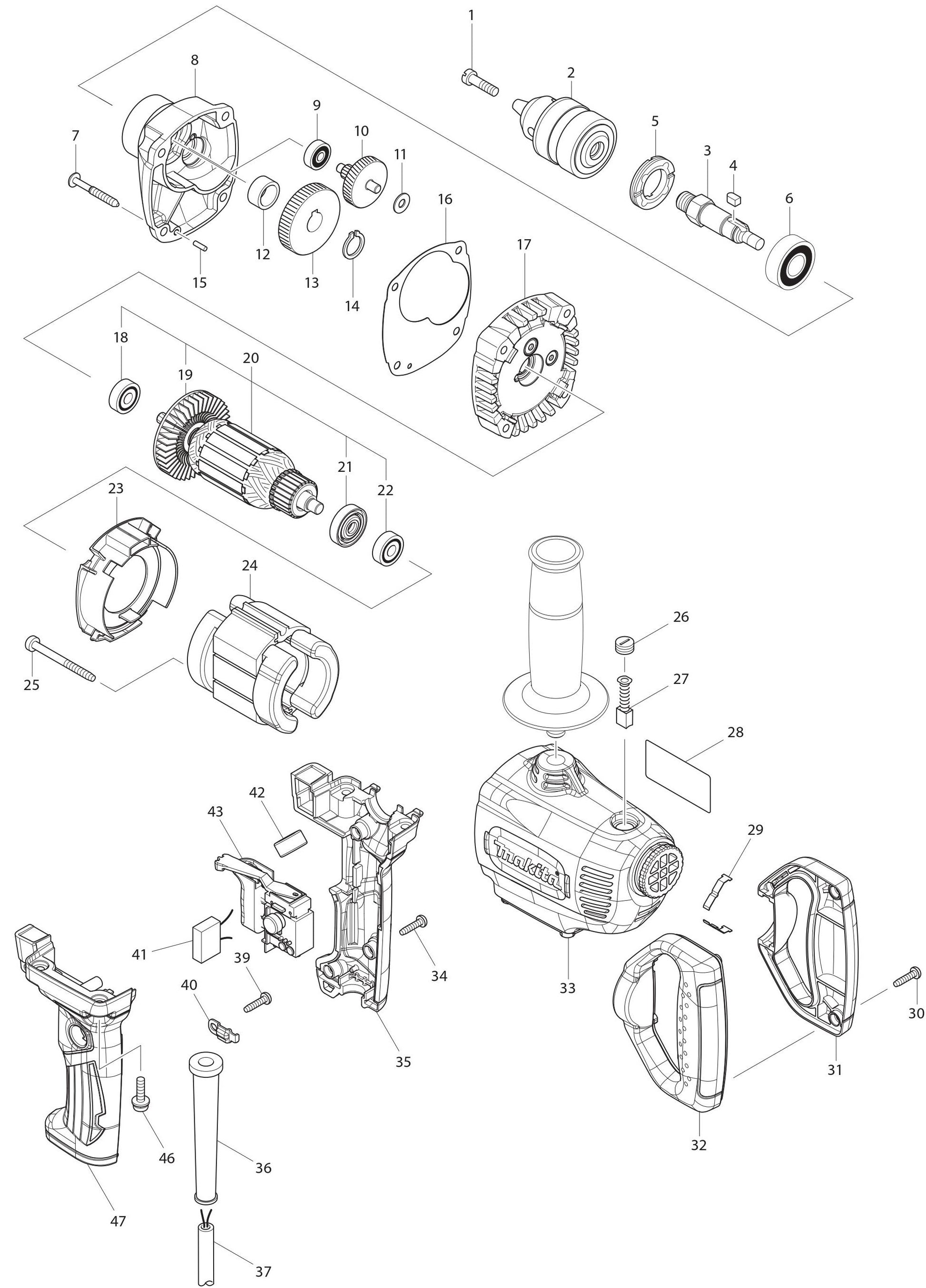

DS4012 Drill Assembly Parts By Makita

DS4012 Drill Assembly Parts By Makita

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2514415 F.H. SCREW M6X22, 6302 BY MAKITA
$3.99
3
3254941 SPINDLE, 6013BR BY MAKITA
$32.63
4
2542111 KEY 5, 6300LR BY MAKITA
$3.99
5
2858077 BEARING RETAINER 2236, 5008FA BY MAKITA
$5.99
6
211206-7 2112067 B. Bearing 6202Llb, 5007F fits Makita HM1211 Demolition Hammer
$12.24
7
2662119 TAPPING SCREW 5X40, DS4011 BY MAKITA
$3.99
8
1406209 GEAR HOUSING CPL., DS4011 BY MAKITA
$12.18
C10
263002-9 2630029 Rubber Pin 4 fits Makita HM1140C Demolition Hammer
$3.99
C10
263002-9 2630029 Rubber Pin 4 fits Makita HM1140C Demolition Hammer
$3.99
9
2110162 B. BEARING 626LLB, DS4011 BY MAKITA
$12.13
10
2260282 GEAR 741, 6013BR BY MAKITA
$28.84
11
2610081 FIBER WASHER 6, 6013BR BY MAKITA
$3.99
12
2570184 RING 15, 6300LR BY MAKITA
$5.99
13
2212611 S. GEAR 47, 6301LR BY MAKITA
$21.21
14
9610541 RETAINING RING S14, 6302 BY MAKITA
$3.99
15
2561802 PIN 3, DS4011 BY MAKITA
$3.99
16
4520660 GASKET, DS4011 BY MAKITA
$5.99
17
1406194 GEAR HOUSING COVER CPL., DS4011 BY MAKITA
$19.35
18
2110316 BALL BEARING 608LLB, 9227C BY MAKITA
$11.91
22
2110316 BALL BEARING 608LLB, 9227C BY MAKITA
$11.91
19
2418506 FAN 60, BTW450 BY MAKITA
$5.99
20
5186772 ARMATURE ASS'Y, DS4011 BY MAKITA
$40.64
21
6816598 INSULATION WASHER, KP0810 BY MAKITA
$3.99
23
4520636 BAFFLE PLATE, DS4011 BY MAKITA
$3.99
24
5258719 FIELD ASS'Y, DS4012 BY MAKITA
$28.46
C10
6541004 GARTER SPRING, N9501B BY MAKITA
$3.99
C20
6545553 CONNECTOR, KP0800 BY MAKITA
$3.99
25
266095-5 2660955 Tapping Screw 5X55 fits Makita HM0870C Demolition Hammer
$5.99
26
6435508 BRUSH CAP , 9031 BY MAKITA
$3.99
27
CB408 CARBON BRUSH SET, 1950088 BY MAKITA
$10.03
29
2322608 LEAF SPRING, DS4011 BY MAKITA
$3.99
30
265995-6 2659956 Tapping Screw - Kett fits Makita HM0860C Demolition Hammer
$3.99
31
1889217 HANDLE SET, DS4011 BY MAKITA
$7.76
32
1889217 HANDLE SET, DS4011 BY MAKITA
$7.76
33
1406186 MOTOR HOUSING CPL., DS4011 BY MAKITA
$17.24
C10
6434552 BRUSH HOLDER 6X9, TW0350 BY MAKITA
$3.99
34
2659956 TAPPING SCREW 4X18, BO4556K BY MAKITA
$3.99
35
183A337 SWITCH HANDLE SET, DS4012 BY MAKITA
$12.89
47
183A337 SWITCH HANDLE SET, DS4012 BY MAKITA
$12.89
36
6825595 CORD GUARD 8, 9557NB BY MAKITA
$5.99
37
6640644 CORD (2X18X8 SJ), BO4556 BY MAKITA
$17.64
39
2663856 TAPPING SCREW 4X14, GA7021 BY MAKITA
$3.99
40
6876813 STRAIN RELIEF, GA4030 BY MAKITA
$3.99
43
6507422 SWITCH, DS4012 BY MAKITA
$24.13
46
9112331 P.H. SCREW M5X20, TW1000 BY MAKITA
$3.99
A01
1524920 GRIP 36 COMP. 9005BT2 BY MAKITA
$6.90
D01
6545935 SPLICE, HP1620F BY MAKITA
$3.99
2
Call for Price call for price call for price
D02
Call for Price call for price call for price
28
Call for Price call for price call for price
