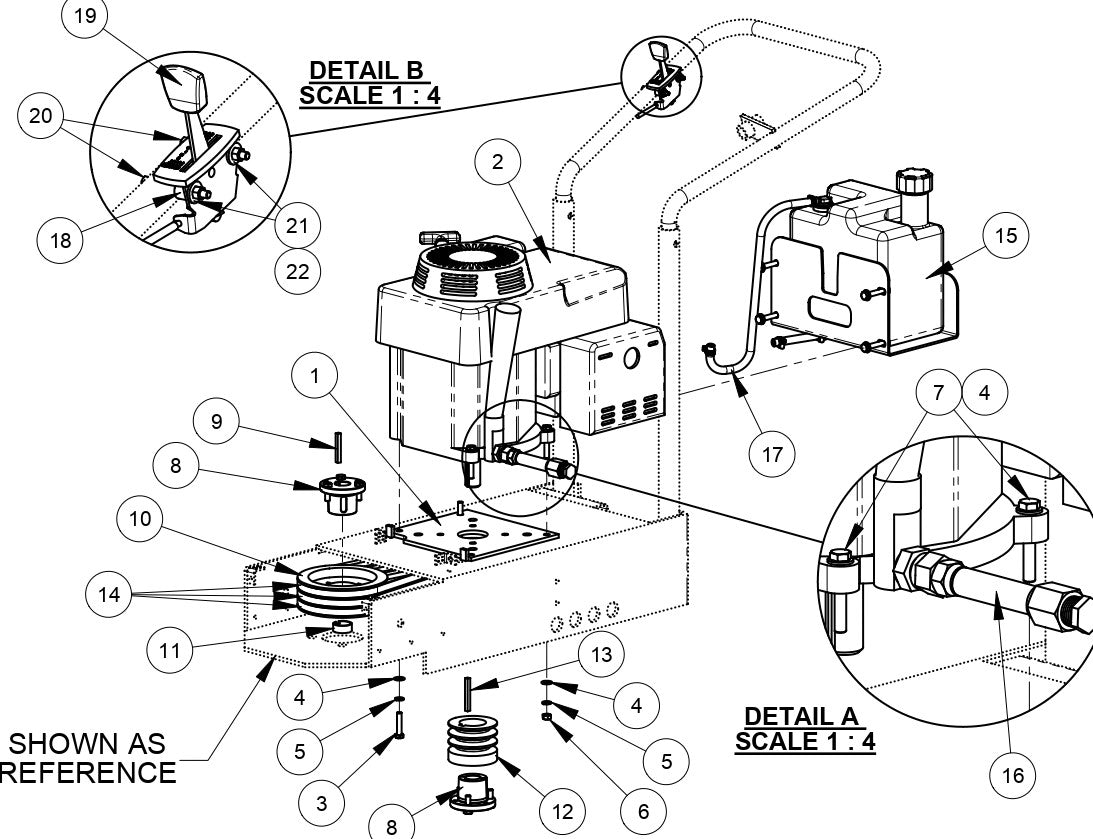

Engine Group Assembly Parts For CC100 Single Headed Floor Grinder By Diamond Products

Engine Group Assembly Parts For CC100 Single Headed Floor Grinder By Diamond Products

  • Engine Group Assembly Parts For CC100 Single Headed Floor Grinder By Diamond Products
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6048335 Motor Adapter Plate for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$108.49
2
2600259 Honda GXV390, Vertical Shaft for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$1,754.40
3
2900945 Cap Screw, Hex Hd., 5/16-24 x 1-1/2" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
4
2900022 Flat Washer 5/16" SAE 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900031 Lock Washer 5/16" Split 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900946 Hex Nut, 5/16-24 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
7
2900944 Cap Screw, Hex Hd., 5/16-24 x 2" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
8
2501044 Bushing, Taper Lock, 1" Bore, w/Fasteners for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$54.06
8
2900138 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2501357 Key, 1/4" Sq., x 2.0" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
10
2501043 Sheave, 6.00-3 Groove for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$150.48
11
6041042 Spacer, Blade Shaft for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$11.26
12
2501045 Sheave, 3.00 - 3 Groove for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$164.40
13
2501045 Sheave, 3.00 - 3 Groove for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$164.40
14
2500032 V-Belt 4L-390 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$22.60
15
6017351 Gas Tank Assy., CC100/200 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$344.40
16
6041121 Oil Drain Hose Assembly for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$91.00
16
3200462 Fitting, M20 x 1.5 to 5/8" M. JIC for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
16
3200440 Fitting. 5/8" F. to 1/2" M. JIC for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
16
3200181 Fitting, 1/2" F. JIC to 1/2" Pushlok for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$11.99
16
6010435 Hose, 1/2" I.D. x 3" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$9.35
16
3200163 Fitting, 1/2" F. Pipe to 1/2" Push Lock for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$13.01
16
3200160 Plug, 1/2-14 NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
17
6013200 1/4 x 19" Fuel LIne W/ Clamps for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$39.97
17
3200062 Hose Clamp #4 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$7.33
18
6041062 Throttle Spacer for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
19
2501046 Throttle Cable Assembly for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$84.56
20
2900597 Cap Screw, Hex Hd., M5-0.8 x 50mm for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
21
2900926 Flat Washer, M5 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
22
2900301 Lock Nut, M5-0.8 Nylon Insert for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
23
6041033 Frame Base Weldment for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
24
6041056 Handle Support for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$64.11
25
6041023 Handle Weldment for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$118.13
