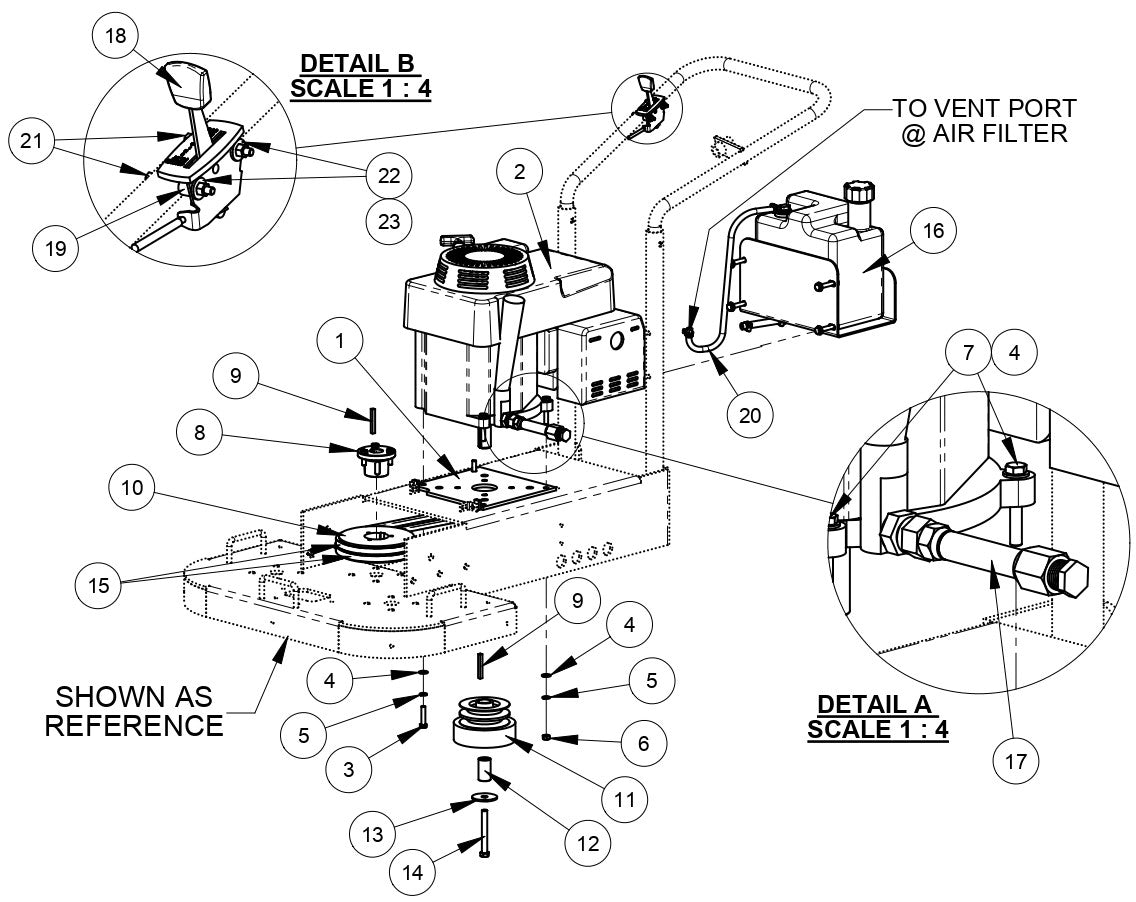

Engine Group Assembly Parts For CC200 Dual Head Floor Grinder By Diamond Products

Engine Group Assembly Parts For CC200 Dual Head Floor Grinder By Diamond Products

  • Engine Group Assembly Parts For CC200 Dual Head Floor Grinder By Diamond Products
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6048335 Motor Adapter Plate for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$108.49
2
2600259 Honda GXV390, Vertical Shaft for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$1,754.40
3
2900945 Cap Screw, Hex Hd., 5/16-24 x 1-1/2" for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
4
2900022 Flat Washer 5/16" SAE 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900031 Lock Washer 5/16" Split 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900946 Hex Nut, 5/16-24 for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
7
2900944 Cap Screw, Hex Hd., 5/16-24 x 2" for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
8
2501044 Bushing, Taper Lock, 1" Bore, w/Fasteners for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$54.06
8
2900138 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2501357 Key, 1/4" Sq., x 2.0" for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
10
2501178 Sheave, 5.80 - 2 Groove for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$122.76
11
2501161 Centrifugal Clutch W/ 2 Groove Pulley, 4.0" for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$516.78
12
6041081 Clutch Spacer for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$14.29
13
2900966 Flat Washer, 1/2" x 2" x 1/8" for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$11.22
14
2900966 Flat Washer, 1/2" x 2" x 1/8" for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$11.22
15
2501162 V-Belt, 4L400 for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$19.38
16
6017351 Gas Tank Assy., CC100/200 for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$344.40
17
6041121 Oil Drain Hose Assembly for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$91.00
17
3200462 Fitting, M20 x 1.5 to 5/8" M. JIC for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
17
3200440 Fitting. 5/8" F. to 1/2" M. JIC for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
17
3200181 Fitting, 1/2" F. JIC to 1/2" Pushlok for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$11.99
17
6010435 Hose, 1/2" I.D. x 3" for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$9.35
17
3200163 Fitting, 1/2" F. Pipe to 1/2" Push Lock for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$13.01
17
3200160 Plug, 1/2-14 NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
18
2501046 Throttle Cable Assembly for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$84.56
19
6041062 Throttle Spacer for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
20
6013200 3/16 x 19" Fuel LIne W/ Clamps for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$39.97
20
3200062 Hose Clamp #4 for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$7.33
21
2900597 Cap Screw, Hex Hd., M5x50 for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
22
2900926 Flat Washer, M5 for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
23
2900301 Lock Nut, M5 Nylon for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
24
6041032 Frame Weldment for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
25
6041056 Handle Support for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$64.11
26
6041023 Handle Weldment for CC200 DUAL HEAD FLOOR GRINDER Core Cut by Diamond Products
$118.13
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
