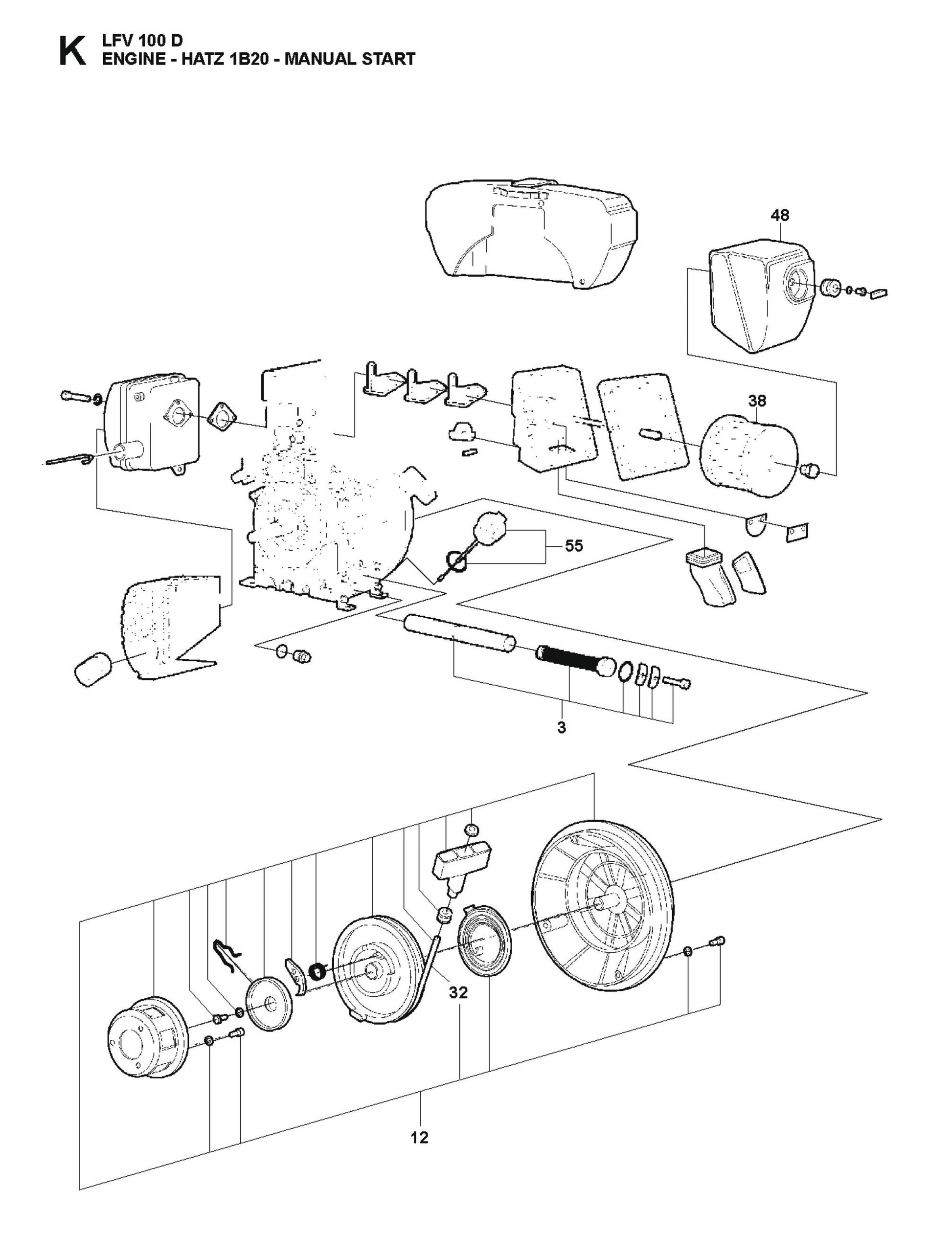

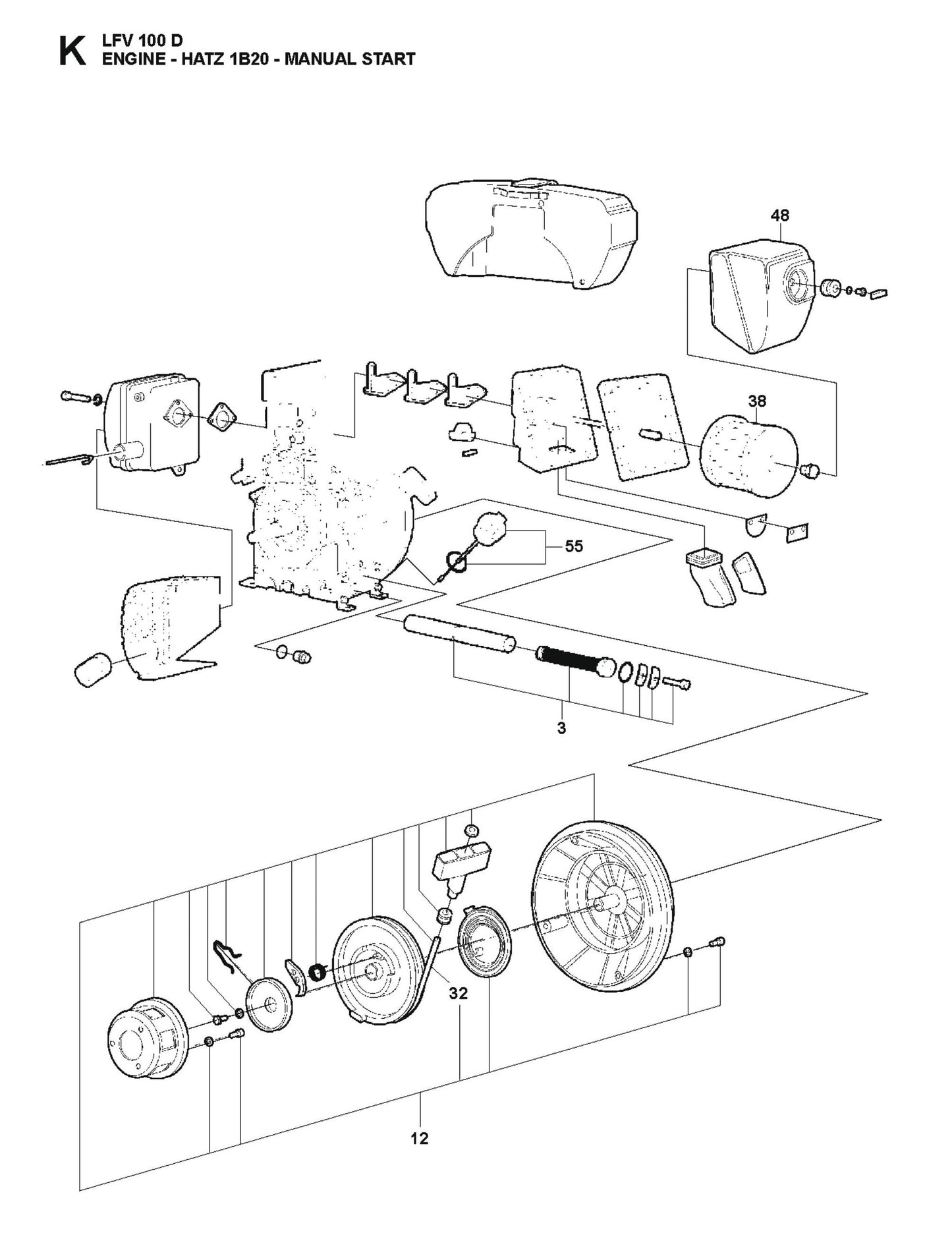

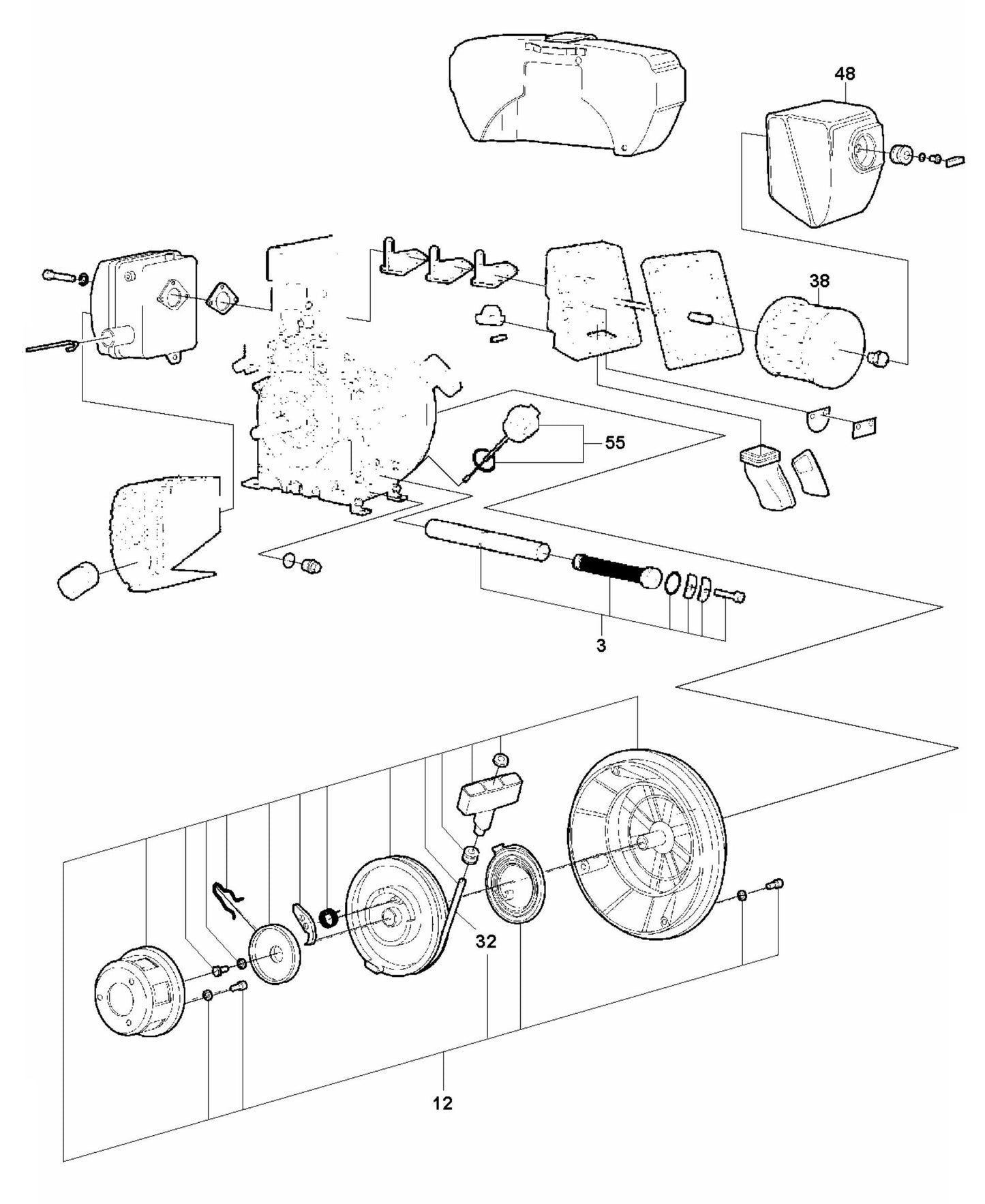

Engine-Hatz 1B20-Manual Start Assembly Parts For LFV 100 D By Husqvarna

Engine-Hatz 1B20-Manual Start Assembly Parts For LFV 100 D By Husqvarna

  • Engine-Hatz 1B20-Manual Start Parts For LFV 100 D By Husqvarna
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
594570101 OIL STRAINER CPL. FOR COMPACTION EQUIPMENT BY HUSQVARNA
$69.61
12
594568401 RECOIL STARTER CPL FOR COMPACTION EQUIPMENT BY HUSQVARNA
$321.74
32
594569001 STARTING ROPE FOR COMPACTION EQUIPMENT BY HUSQVARNA
$19.38
38
594571101 FILTER ELEMENT FOR COMPACTION EQUIPMENT BY HUSQVARNA
$29.44
48
594571301 PROTECTING COVER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$99.05
55
594578001 OIL DIPSTICK FOR COMPACTION EQUIPMENT BY HUSQVARNA
$20.84
