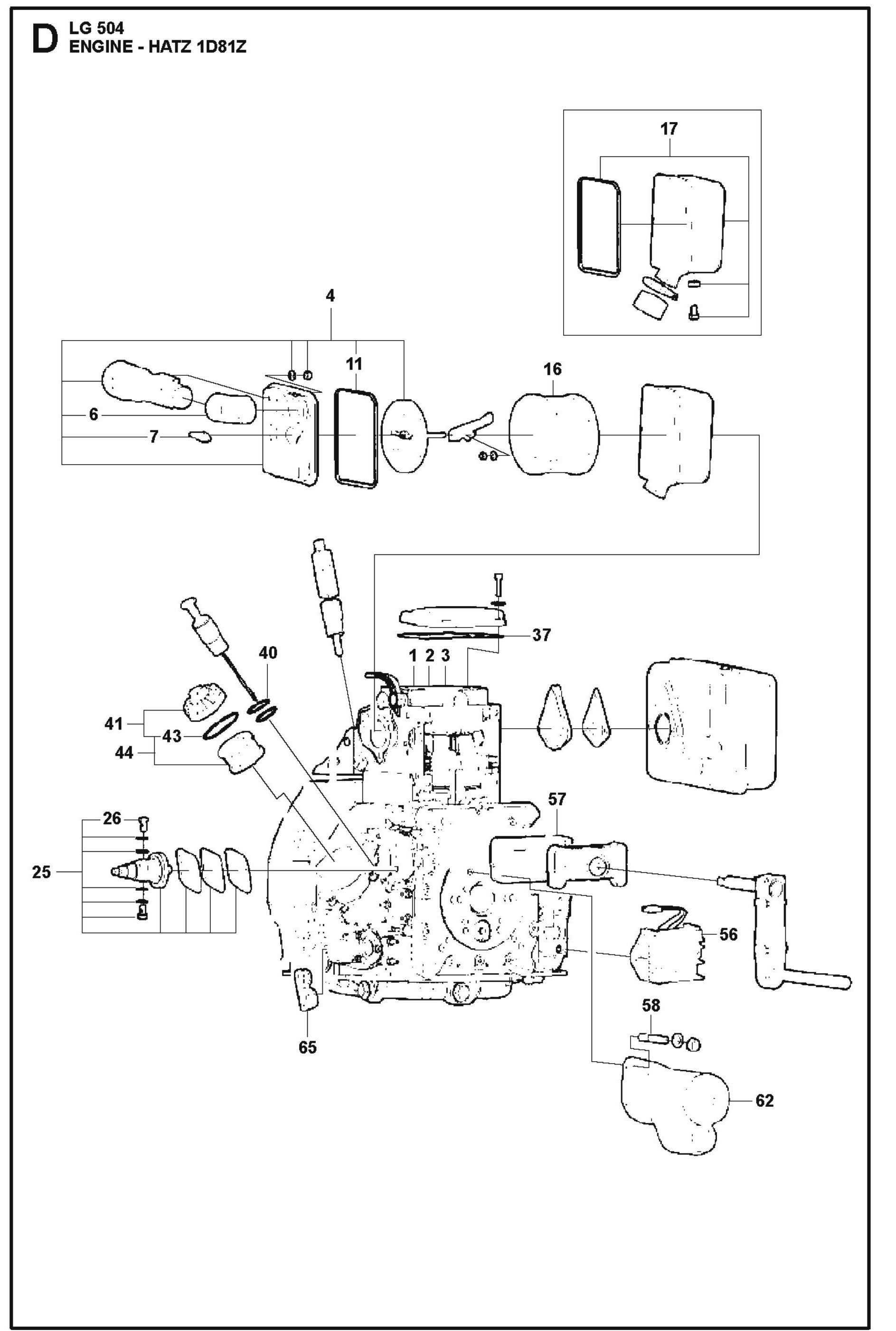

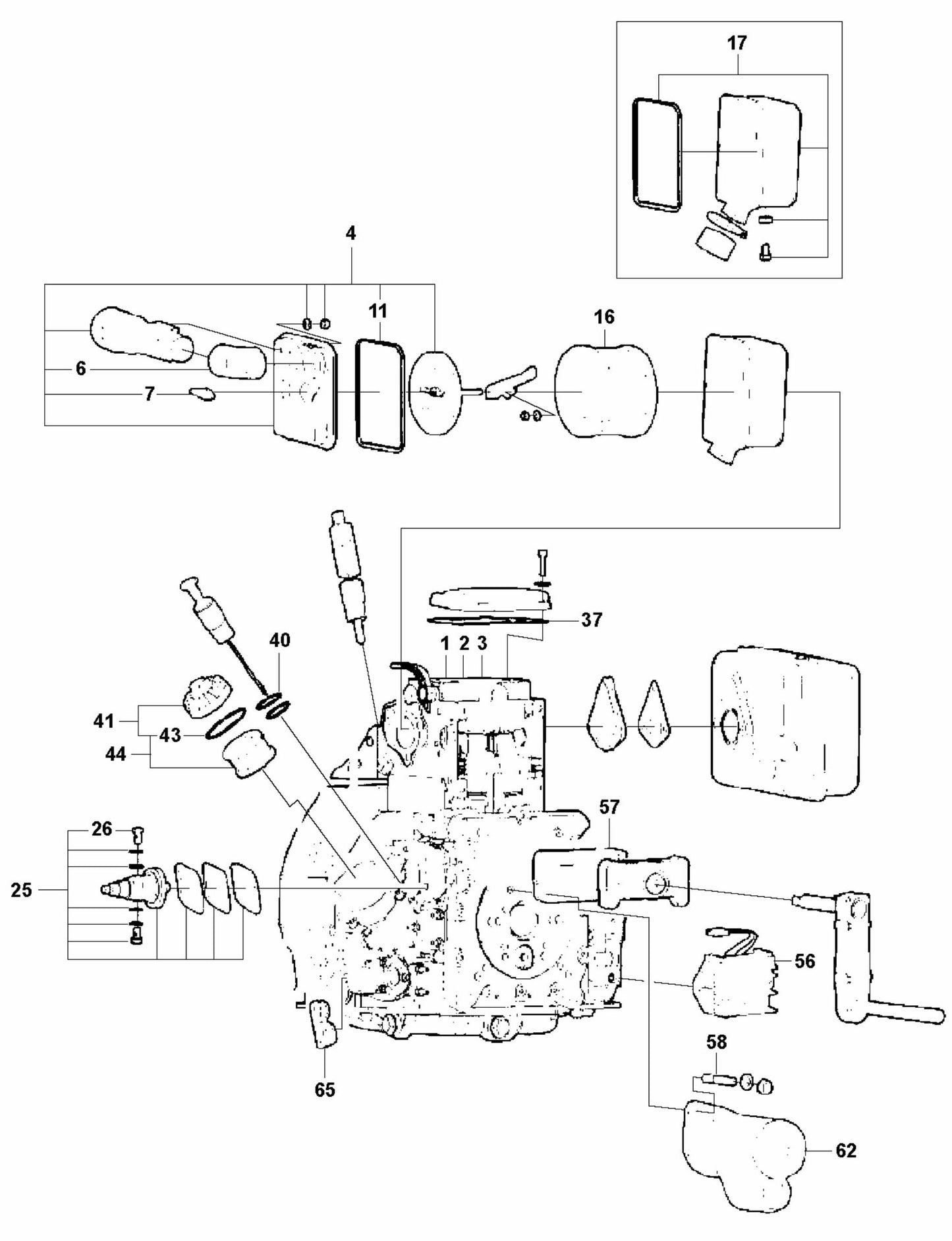

Engine- Hatz 1D81Z Assembly Parts For LG 504 Reversible Plate Compactor By Husqvarna

Engine- Hatz 1D81Z Assembly Parts For LG 504 Reversible Plate Compactor By Husqvarna

  • Engine- Hatz 1D81Z Parts For LG 504 Reversible Plate Compactor By Husqvarna
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
596241206 Engine for LG 504 Plate Compactor by Husqvarna
Call for Price call for price call for price
2
595373201 Engine for LG 504 Plate Compactor by Husqvarna
$9,289.10
3
596241207 Engine for LG 504 Plate Compactor by Husqvarna
Call for Price call for price call for price
4
594207601 AIR FILTER COVER COMPLETE FOR COMPACTION EQUIPMENT BY HUSQVARNA
$319.71
6
594313401 ELBOW FOR COMPACTION EQUIPMENT BY HUSQVARNA
$30.66
7
594571501 NUT FOR COMPACTION EQUIPMENT BY HUSQVARNA
$8.70
11
594308301 GASKET FOR COMPACTION EQUIPMENT BY HUSQVARNA
$30.66
16
594305401 Air Filter for LG 504 Plate Compactor by Husqvarna
$61.21
17
594307501 HOUSING FOR COMPACTION EQUIPMENT BY HUSQVARNA
$246.87
25
594609001 INJECTOR PUMP, COMPLETE FOR COMPACTION EQUIPMENT BY HUSQVARNA
$843.80
26
594207301 BANJO SCREW FOR COMPACTION EQUIPMENT BY HUSQVARNA
$29.44
37
594302801 GASKET FOR COMPACTION EQUIPMENT BY HUSQVARNA
$9.00
40
595131801 O-RING FOR COMPACTION EQUIPMENT BY HUSQVARNA
$4.36
41
594557301 COVER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$86.71
43
594302901 GASKET FOR COMPACTION EQUIPMENT BY HUSQVARNA
$10.14
44
595372501 GASKET FOR COMPACTION EQUIPMENT BY HUSQVARNA
$30.29
56
594606401 CHARGING RELAY FOR COMPACTION EQUIPMENT BY HUSQVARNA
$367.27
57
594560101 GASKET FOR COMPACTION EQUIPMENT BY HUSQVARNA
$25.40
58
595129501 STUD FOR COMPACTION EQUIPMENT BY HUSQVARNA
$7.26
62
594306501 STARTER MOTOR FOR COMPACTION EQUIPMENT BY HUSQVARNA
$1,160.48
65
594306801 LEVER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$12.78
