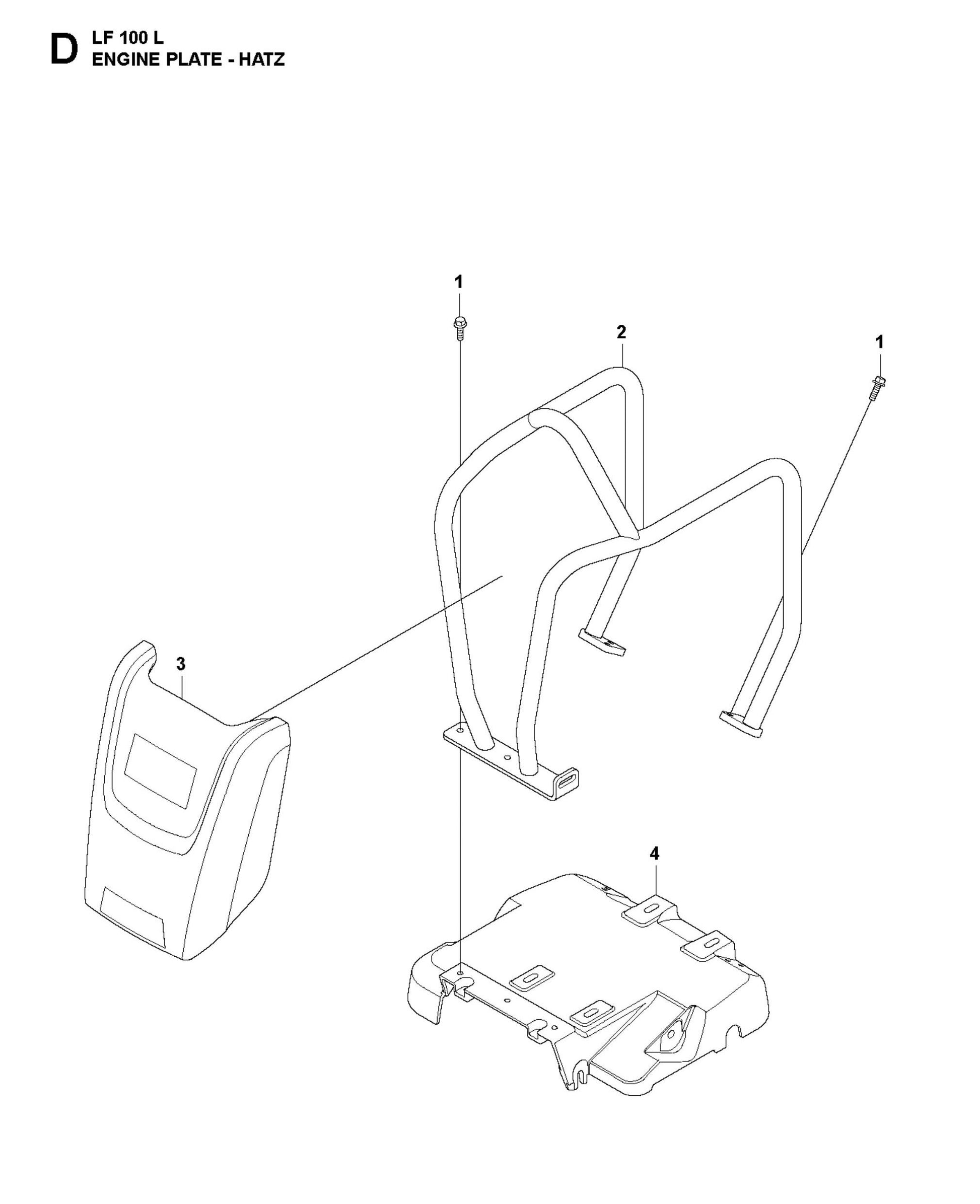

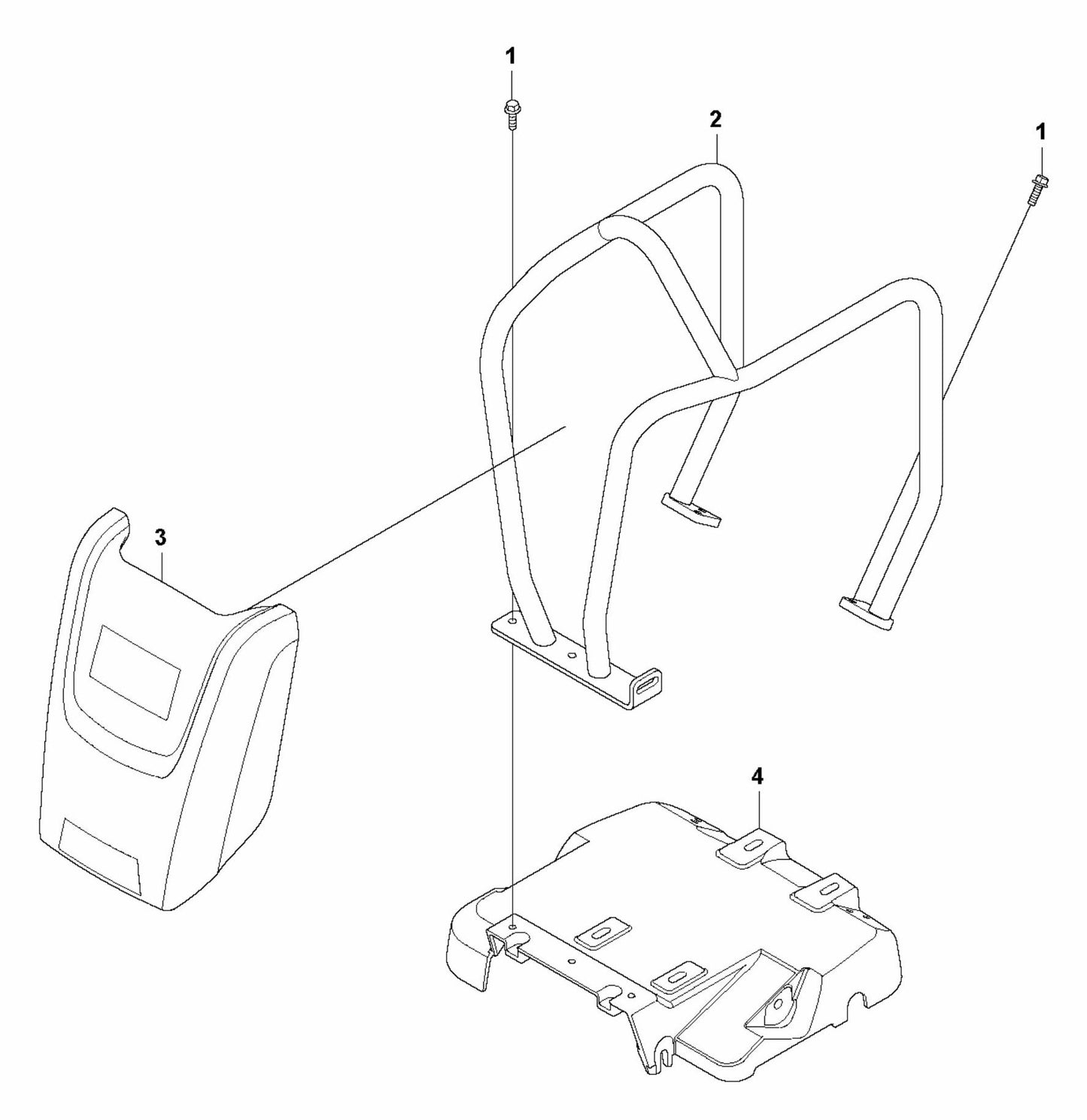

LF 100 LAT Diesel Engine Plate-Hatz Assembly Parts by Husqvarna

LF 100 LAT Diesel Engine Plate-Hatz Assembly Parts by Husqvarna

  • LF 100 LAT Diesel Engine Plate-Hatz Assembly Parts by Husqvarna
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
594120001 FLANGE SCREW QTY 10 FOR COMPACTION EQUIPMENT BY HUSQVARNA
$15.99
2
594144701 PROTECTIVE FRAME FOR COMPACTION EQUIPMENT BY HUSQVARNA
$111.15
3
594959501 COVER FOR COMPACTION EQUIPMENT BY HUSQVARNA
$345.80
4
594145501 ENGINE PLATE FOR COMPACTION EQUIPMENT BY HUSQVARNA
$407.55
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
