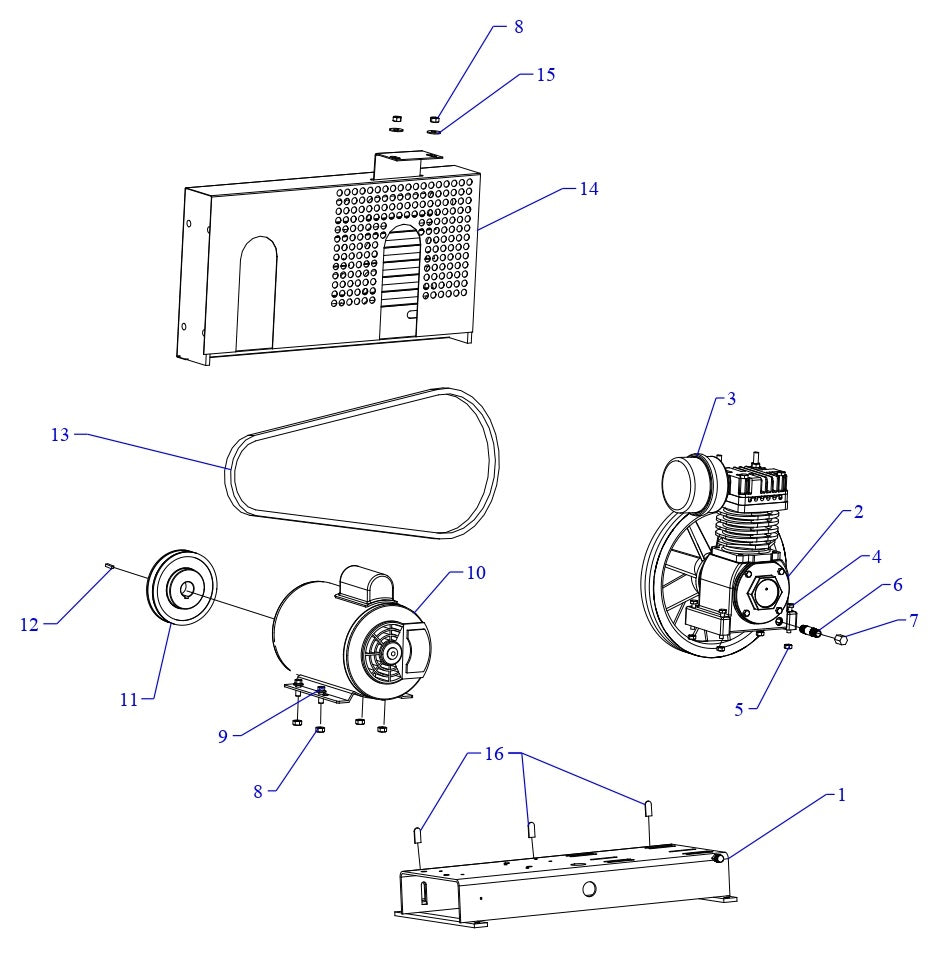

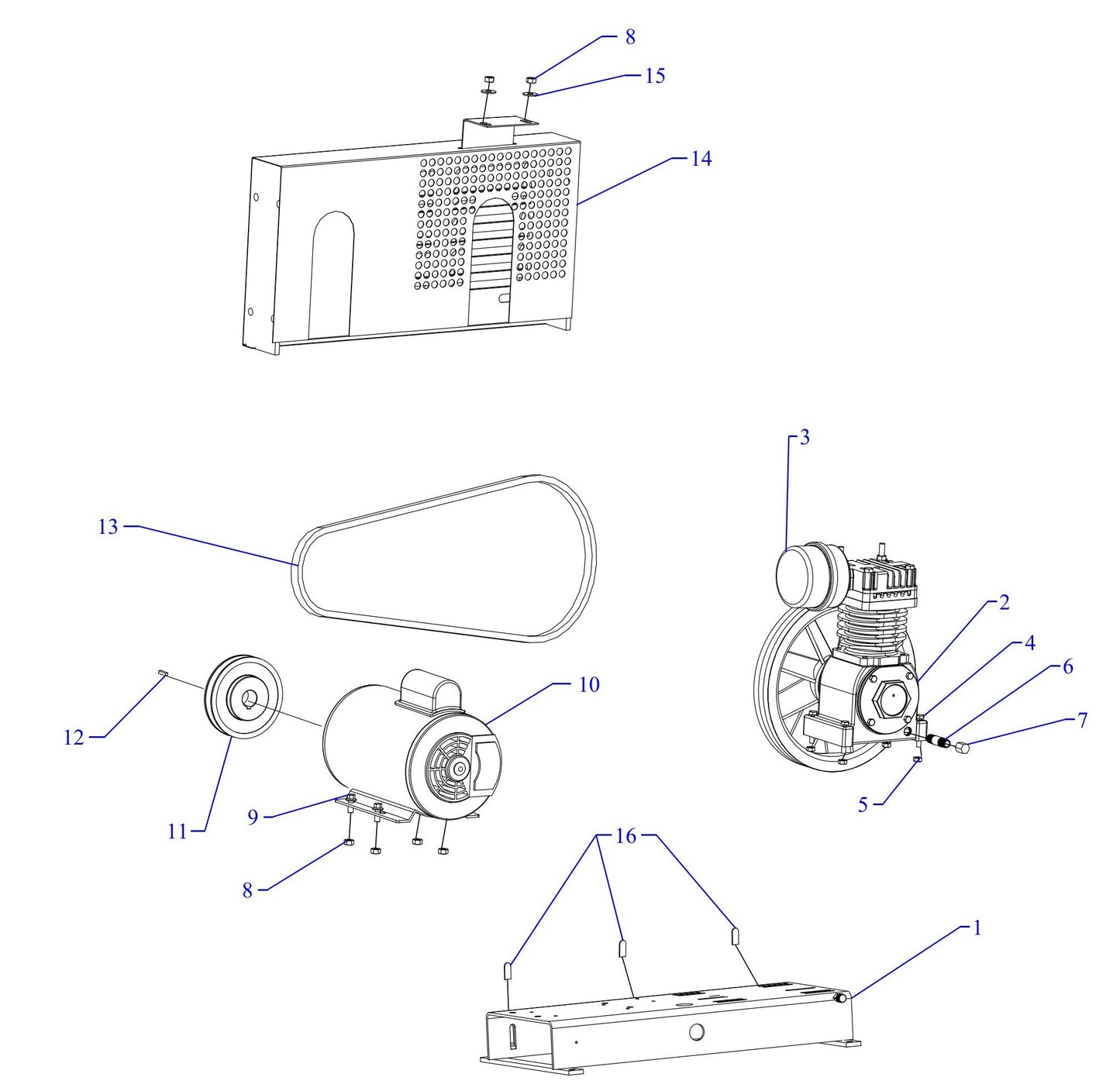

F13S-BS Single Phase Assembly Parts

F13S-BS Single Phase Assembly Parts

  • F13S-BS Single Phase Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
3201037 Base Plate 20 X 8 Assy Electric for Jenny Air Compressors 320-1037
Call for Price call for price call for price
2
4211001 Pump Cmprsr Piston Replcmt Blue F for Jenny Air Compressors 421-1001
$1,040.30
3
320-1121 Filter, W/Decal, Assy, G154S for Jenny Air Compressors G154S 3201121
$96.39
4
1201220 Screw Cap Hexhd Gr5 St Pld 1/4-20X1-3/4 for Jenny Air Compressors 120-1220
$4.04
5
1201116 Nut Lock Flange Hex Serr St Pltd 1/4-20 for Jenny Air Compressors 120-1116
$3.99
6
1221034 Nipple Steel Sch 40 1/4" X 5" L for Jenny Air Compressors 122-1034
$18.81
7
1221126 Cap Hex Mi Plated 1/4"Npt for Jenny Air Compressors 122-1126
$33.57
8
1201119 Nut Lock Flange Hex Serr St Pltd 5/16-18 for Jenny Air Compressors 120-1119
$4.04
9
1201018 Screw Flange Hex Serr St Pld 5/16-18X3/4 for Jenny Air Compressors 120-1018
$10.70
10
130-1000 Motor, 1/3Hp, 115-208-230/60/1, 1725Rpm, Odp for Jenny Air Compressors M00.33-1 1301000
$354.76
11
1541208 Pulley Ci Sg 4.0Pda 5/8Id Ak44X5/8 for Jenny Air Compressors 154-1208
$200.18
12
1201108 Key Steel Black 3/16X3/16X 1-1/2" Length for Jenny Air Compressors 120-1108
$3.99
13
154-4L450 Belt, Vee, A43, 4L-450 for Jenny Air Compressors 4L450 1544L450
$18.39
14
3201008 Beltguard Electric K Assy Blue Louvered for Jenny Air Compressors 320-1008
$230.78
15
1201075 Washer Flat Steel Plated 5/16" for Jenny Air Compressors 120-1075
$2.99
16
1041126 Cover Clip Plastic Black 0.062X7/16X1 for Jenny Air Compressors 104-1126
$4.04
-
610-1225 Filter Element, Pkg Of 4, G54Ep for Jenny Air Compressors G54EP 6101225
$46.67
-
105-1209 Oil, Pump, Synthetic, Blue, 1 Quart, Esq for Jenny Air Compressors ESQ 1051209
$29.47
