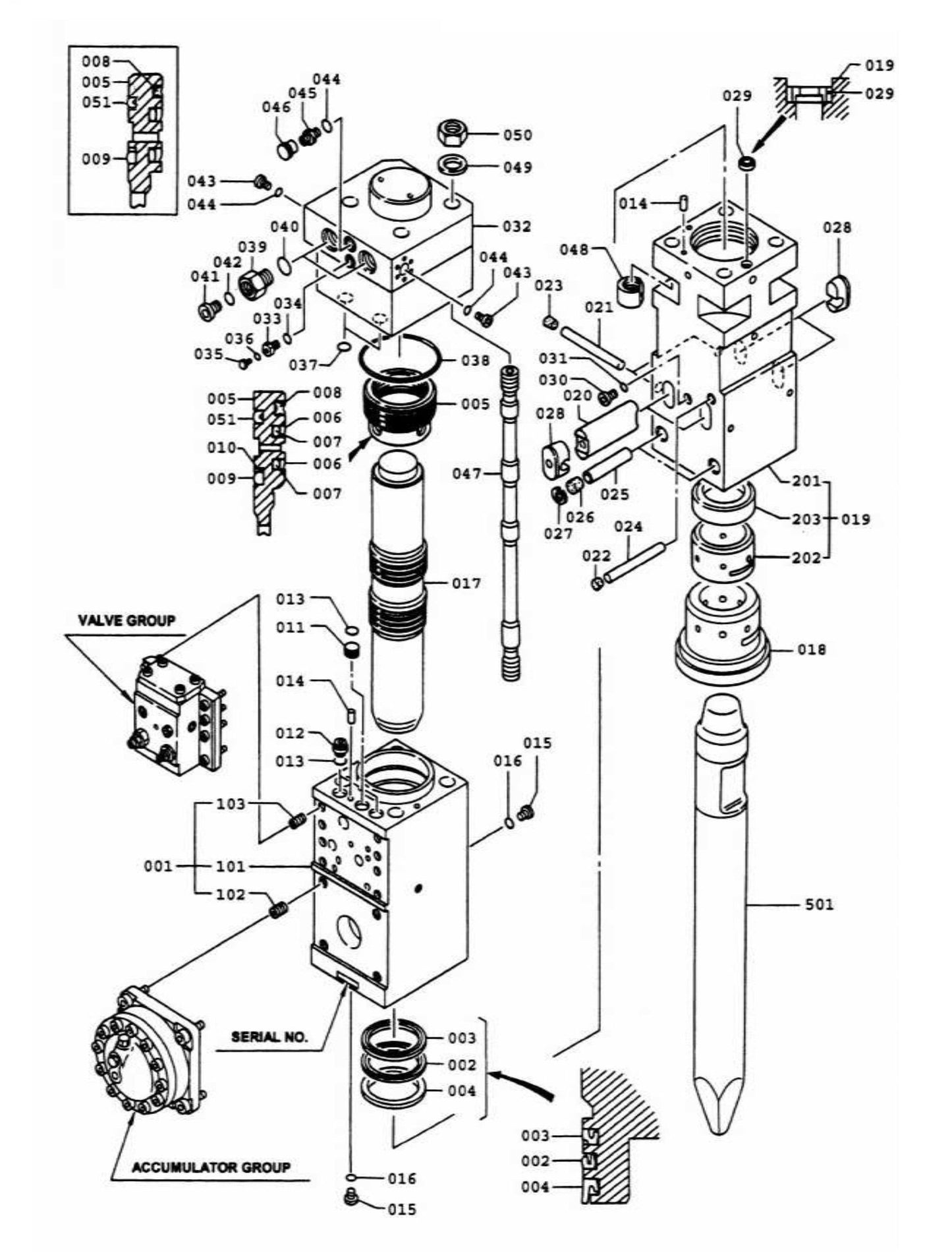

F22Qt Hydraram Parts Breakdown Assembly Parts

Name: F22Qt Hydraram Parts Breakdown Assembly Parts
Brand: danse-usa
Availability: OutOfStock

1 1

100% genuine product

Authorised dealer

View all diagrams for this Model

Ref.	Product details	Price	Action
102	KHB15G10104 Heli-Sert Insert for Fx275 breaker by FRD Furukawa Kent	Call for Price	call for price call for price
103	KHB20G10105 Heli-Sert Insert for Fx125 Breaker by FRD Kent	$28.64
003	K002400100060 Buffer Ring [/SA] for Fx275 breaker by FRD Furukawa Kent	$285.82
011	KF2210220 Plug [/SA] for Fx275 breaker by FRD Furukawa Kent	$92.52
012	KF2210121 Bushing [/SA] for Fx275 breaker by FRD Furukawa Kent	$48.77
013	K16001100029 O-Ring [/SA] for Fx275 breaker by FRD Furukawa Kent	$3.10
014	KF2210125 Knock Pin (SN ~3312) for Fx125 Breaker by FRD Kent	$26.83
015	K08489102000 GPF Plug for F6, F9 and Fx125 Breaker by FRD Kent	$9.94
016	K16001100011 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent	$4.74
029	KF2220121 Check Valve for Fx225 breaker by FRD Furukawa Kent	$69.14
031	K16001100024 O-Ring [/O] [/S] for F6, F9 and Fx125 Breaker by FRD Kent	$4.74
044	K16001100024 O-Ring [/O] [/S] for F6, F9 and Fx125 Breaker by FRD Kent	$4.74
033	KHB15G30103 Charging Valve for F6 Breaker by FRD Kent	$401.50
034	K16001100018 O-Ring for O-Ring Breaker by FRD Kent	$4.74
035	KHB20G30109 Plug for Fx125 Breaker by FRD Kent	$43.97
036	K16001100006 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent	$5.99
037	K16001100029 O-Ring [/SB] for Fx1070 breaker by FRD Furukawa Kent	$3.10
039	KF19007 Port Adapter for Fx375 breaker by FRD Furukawa Kent	$137.75
040	K16001100038 O-Ring [/SB] for Fx475 breaker by FRD Furukawa Kent	$5.15
041	K08489110000 GPF Plug for F9 Breaker by FRD Kent	$61.13
042	K16001100029 O-Ring [/SB] for Fx225 breaker by FRD Furukawa Kent	$3.10
045	K08486906000 Male Connector for F100 breaker by FRD Furukawa Kent	$117.28
046	KF2230113 Cap for Fx770 breaker by FRD Furukawa Kent	Call for Price	call for price call for price

Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
