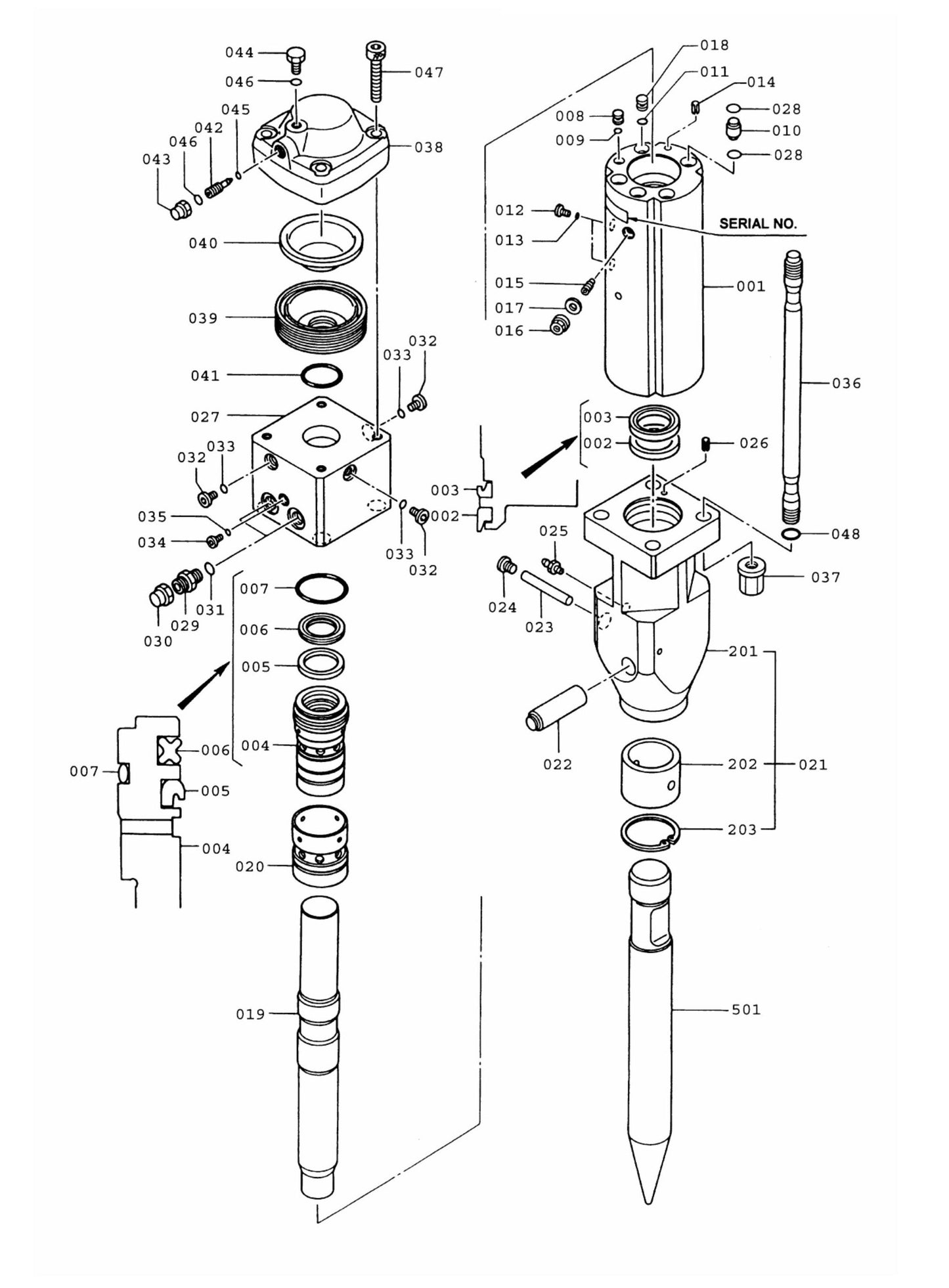

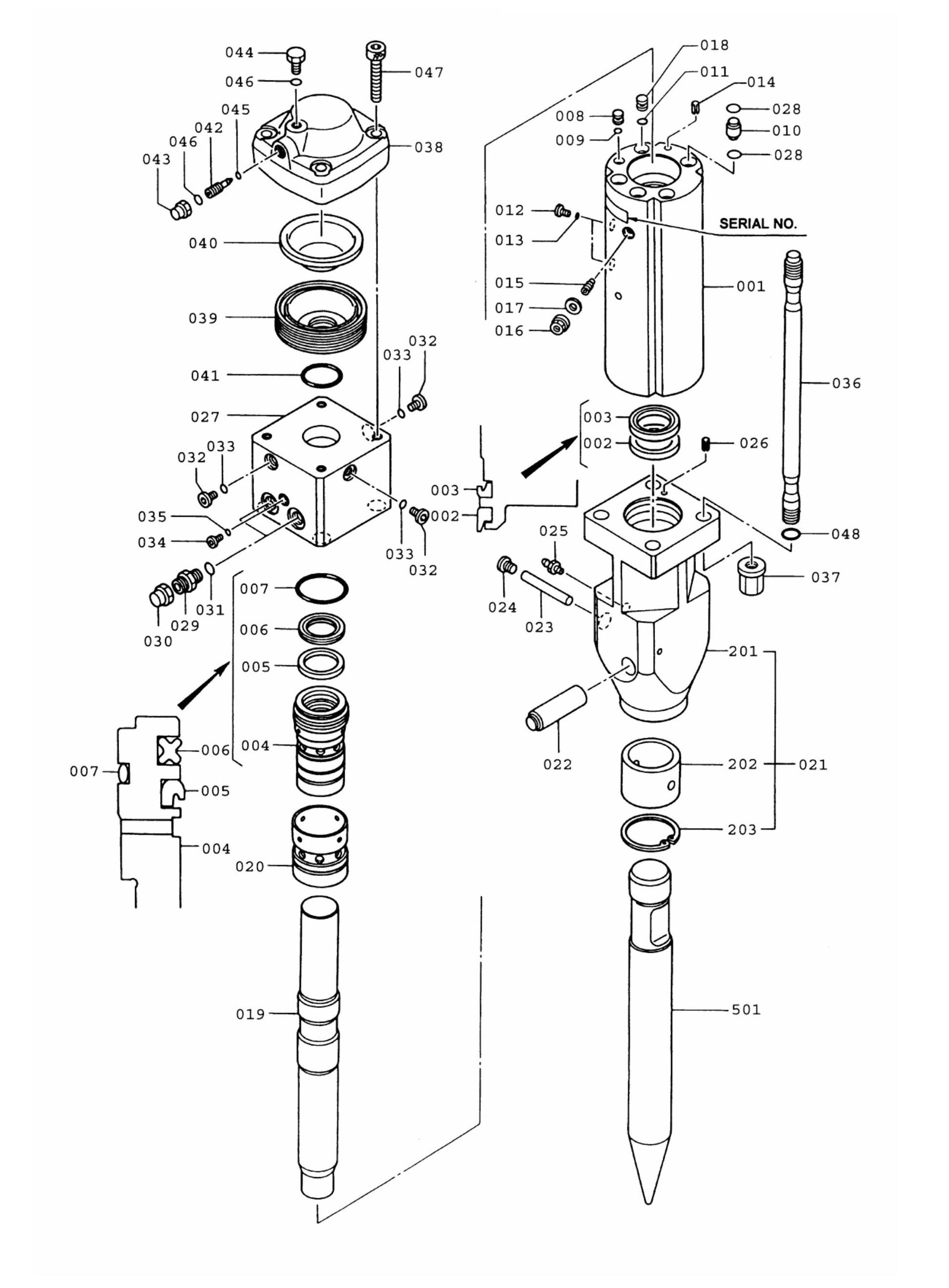

F4 TLB Side Plate Version (Serial No.5001-& Up) Hydraram Parts Breakdown Assembly Parts

F4 TLB Side Plate Version (Serial No.5001-& Up) Hydraram Parts Breakdown Assembly Parts

  • F4 TLB Side Plate Version (Serial No.5001-& Up) Hydraram Parts Breakdown Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
002
KHB4R10106 Dust Seal (K-Kf4Qt) for Fx45a Hydraulic Breaker by FRD Kent
$46.93
003
KHB4R10107 U-Packing (K-Kf4Qt) for Fx45a Hydraulic Breaker by FRD Kent
$46.94
008
KHB2R10120 Plug (Kf3,Kf4) for Fx45a Hydraulic Breaker by FRD Kent
$113.57
010
KF410121 Bush [/SA] for Fx125 Breaker by FRD Kent
$26.05
011
K16001100020 O-Ring [/SA] for Fx125 Breaker by FRD Kent
$3.95
028
K16001100020 O-Ring [/SA] for Fx125 Breaker by FRD Kent
$3.95
012
K08489101000 GPF Plug for F9 Breaker by FRD Kent
$6.72
034
K08489101000 GPF Plug for F9 Breaker by FRD Kent
$6.72
013
K16001100008 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent
$3.95
035
K16001100008 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent
$3.95
015
KF410231 Adjuster (Kf4) for Fx45a Hydraulic Breaker by FRD Kent
$79.91
016
KF410233 Nut Seal (Kf4) for Fx45a Hydraulic Breaker by FRD Kent
$146.06
017
KHB1G10532 Seal Washer (F1,F2,F3,F4,F5) for Fx25a Hydraulic Breaker by FRD Kent
$48.91
018
KF410220 Plug Kf4 W/ Oring for Fx55a Hydraulic Breaker by FRD Kent
$35.89
025
K17031200000 Grease Nipple for Fx125 Breaker by FRD Kent
$7.02
031
K16001100018 O-Ring for O-Ring Breaker by FRD Kent
$3.95
032
K08489102000 GPF Plug for F6, F9 and Fx125 Breaker by FRD Kent
$8.28
033
K16001100011 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent
$3.95
042
K00712070134 Charge Port Valve for F9 Breaker by FRD Kent
$93.28
043
KHB2G70121 Dust Cap for F6 Breaker by FRD Kent
$39.07
044
K00701070030 Plug for F9 Breaker by FRD Kent
$52.82
045
K16001100005 O-Ring for F6 and F9 Breaker by FRD Kent
$3.95
046
K16001100014 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent
$3.95
501
KF425114 Chisel (F4/Fx45) for Fx45a Hydraulic Breaker by FRD Kent
$422.16
501
KF425115 Moil (F4/Fx45) for Fx45a Hydraulic Breaker by FRD Kent
$422.16
501
KF425111 Blunt (F4/Fx45) for Fx45a Hydraulic Breaker by FRD Kent
$422.16
