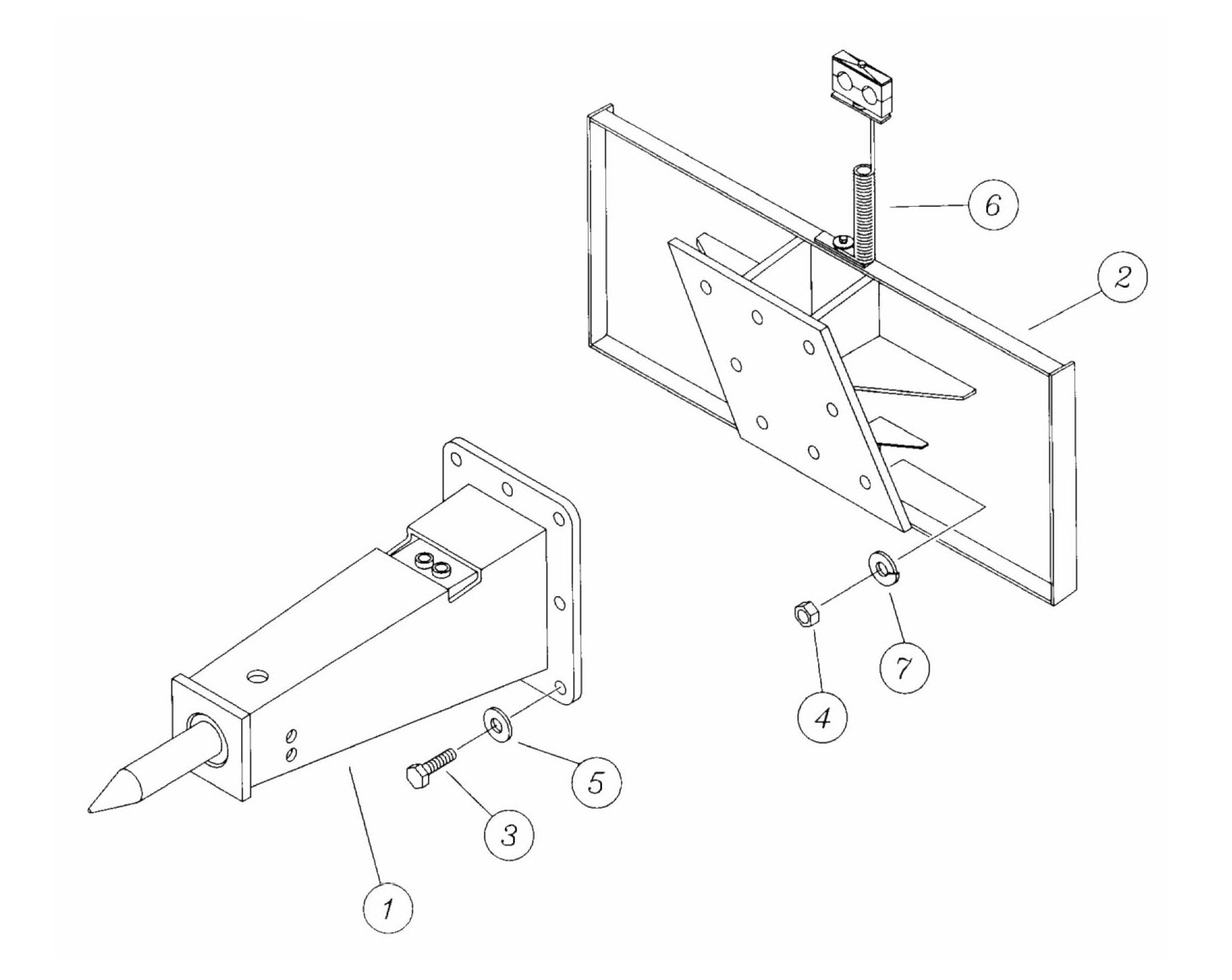

F5 Three-Boss TLB Versions (Serial No.5001 & Up) Bolted One-Piece Rigid Quick Attach Bracket Assembly Parts

F5 Three-Boss TLB Versions (Serial No.5001 & Up) Bolted One-Piece Rigid Quick Attach Bracket Assembly Parts

  • F5 Three-Boss TLB Versions (Serial No.5001 & Up) Bolted One-Piece Rigid Quick Attach Bracket Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
KF430403 Bolt ¾ - 10 UNC x 3 ¼” Long (Grade 8) for F6 Breaker by FRD Kent
$4.99
4
K02025 3/4-10 Heavy Hex Nut for Fx35a Hydraulic Breaker by FRD Kent
$10.32
5
K10278 Hardened Washer ¾” for F6 and Fx125 Breaker by FRD Kent
$2.99
6
K14950 Hose Saver Spring Bracket, ½” Hose for F6 Breaker by FRD Kent
$139.01
7
K10194 3/4" Lockwasher for Fx35a Hydraulic Breaker by FRD Kent
$3.95
7
K19611 Whip Hose, 100” (Not Shown) for F6 Breaker by FRD Kent
$265.36
