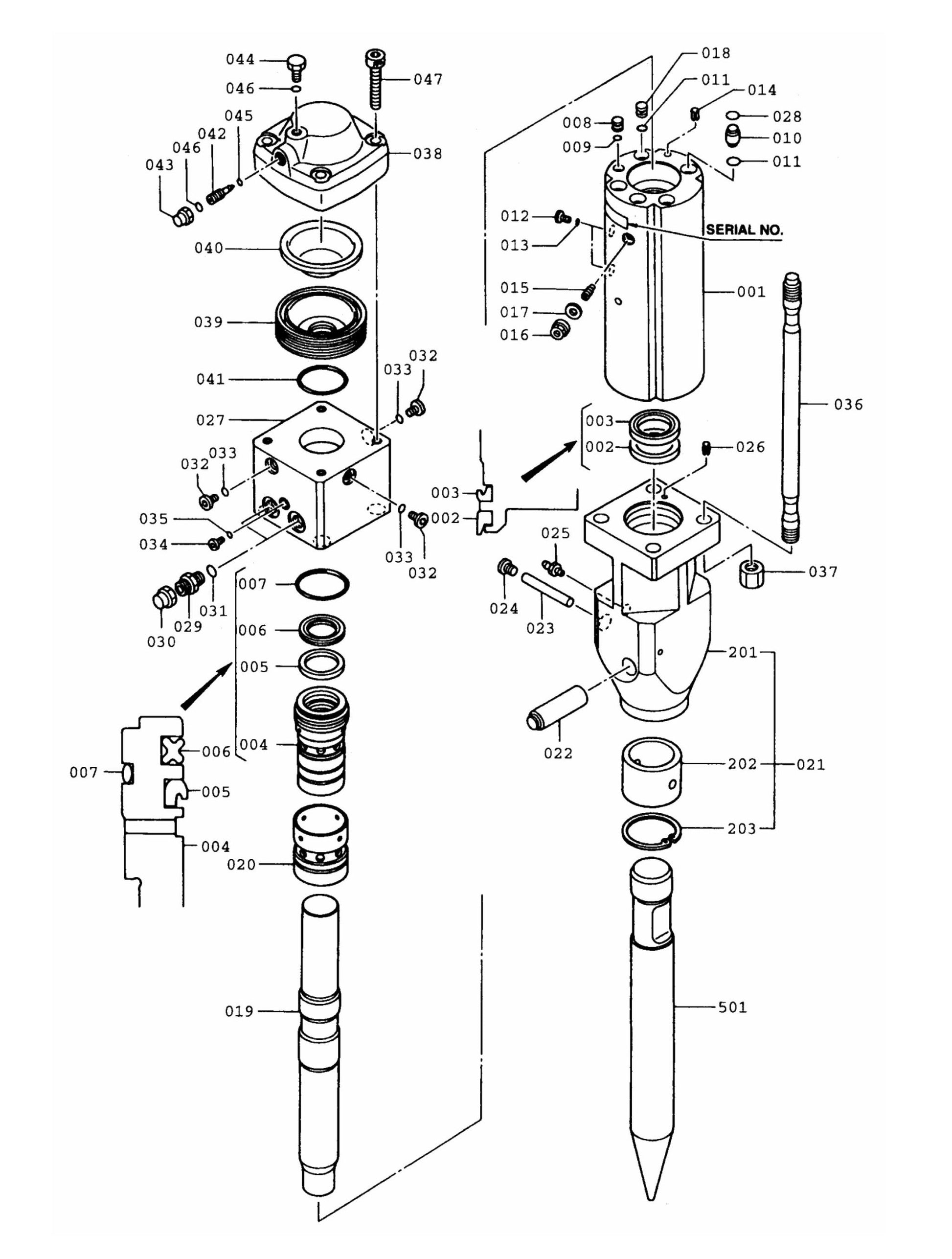

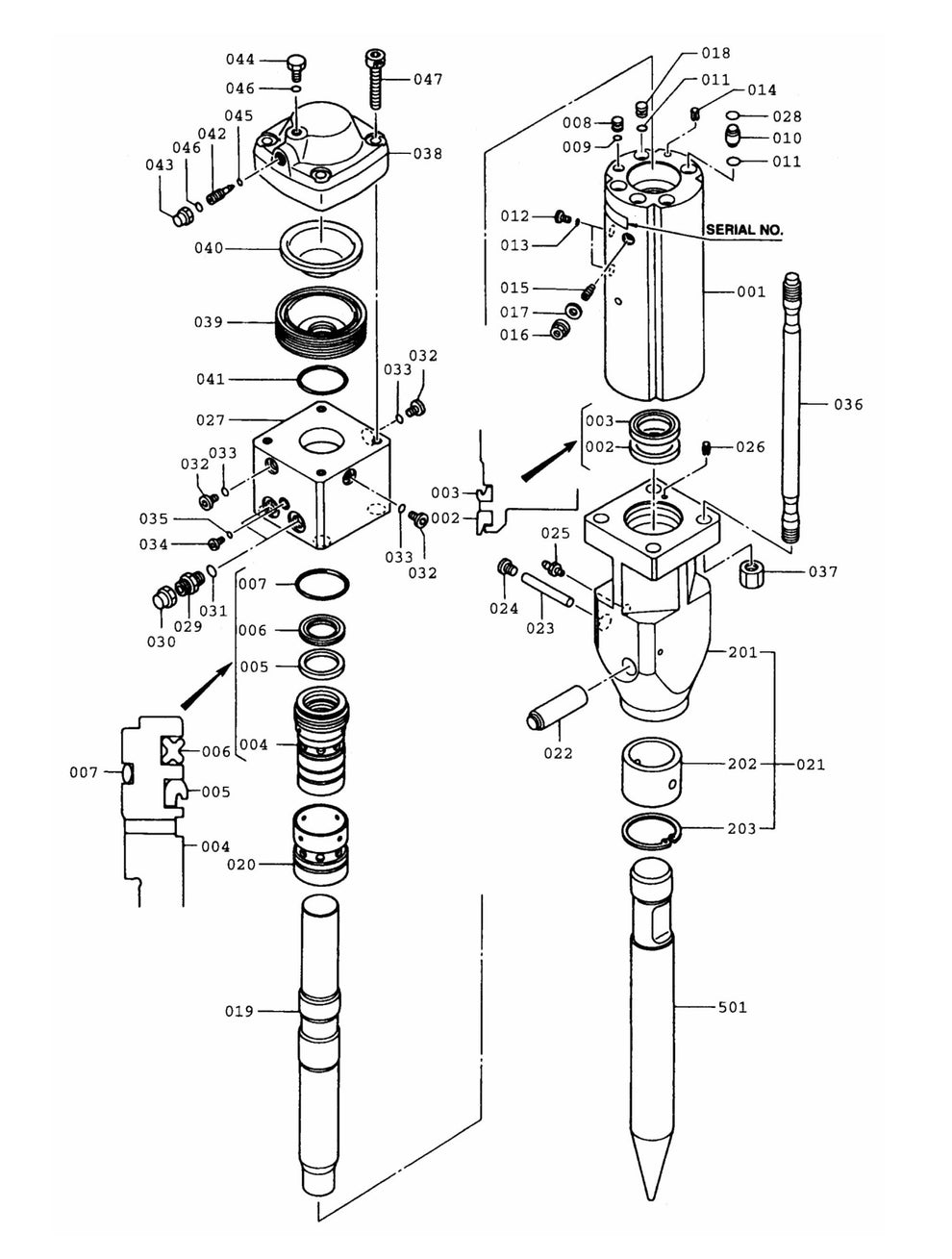

F5 Three-Boss TLB Versions (Serial No.5001 & Up) Hydraram Parts Breakdown Assembly Parts

F5 Three-Boss TLB Versions (Serial No.5001 & Up) Hydraram Parts Breakdown Assembly Parts

  • F5 Three-Boss TLB Versions (Serial No.5001 & Up) Hydraram Parts Breakdown Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
002
KF510106 Dust Seal for Fx55a Hydraulic Breaker by FRD Kent
$133.85
003
KF510107 U-Packing for Fx55a Hydraulic Breaker by FRD Kent
$52.57
008
KHB2R10120 Plug (Kf3,Kf4) for Fx45a Hydraulic Breaker by FRD Kent
$113.57
009
K16001110010 O-Ring (K-Kf4Qt) for Fx25a Hydraulic Breaker by FRD Kent
$16.40
012
K08489101000 GPF Plug for F9 Breaker by FRD Kent
$6.72
034
K08489101000 GPF Plug for F9 Breaker by FRD Kent
$6.72
013
K16001100008 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent
$3.95
035
K16001100008 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent
$3.95
015
KF410231 Adjuster (Kf4) for Fx45a Hydraulic Breaker by FRD Kent
$79.91
016
KF410233 Nut Seal (Kf4) for Fx45a Hydraulic Breaker by FRD Kent
$146.06
017
KHB1G10532 Seal Washer (F1,F2,F3,F4,F5) for Fx25a Hydraulic Breaker by FRD Kent
$48.91
025
K17031200000 Grease Nipple for Fx125 Breaker by FRD Kent
$7.02
031
K16001100018 O-Ring for O-Ring Breaker by FRD Kent
$3.95
032
K08489103000 GPF Plug for F6 and F9 Breaker by FRD Kent
$9.60
033
K16001100014 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent
$3.95
046
K16001100014 O-Ring for F6, F9 and Fx125 Breaker by FRD Kent
$3.95
038
KF570101 Accumulator Cap for F9 Breaker by FRD Kent
$1,074.95
039
KF570102 Accumulator Body for F9 Breaker by FRD Kent
$1,218.47
040
KHD61207006 Diaphragm for F9 Breaker by FRD Kent
$227.16
042
K00712070134 Charge Port Valve for F9 Breaker by FRD Kent
$93.28
043
KHB2G70121 Dust Cap for F6 Breaker by FRD Kent
$39.07
045
K16001100005 O-Ring for F6 and F9 Breaker by FRD Kent
$3.95
501
KF525111 Blunt (F5/Fx55) for Fx55a Hydraulic Breaker by FRD Kent
$545.06
501
KF525114 Chisel (F5/Fx55) for Fx55a Hydraulic Breaker by FRD Kent
$545.06
501
KF525115 Moil (F5/Fx55) for Fx55a Hydraulic Breaker by FRD Kent
$545.06
View full details
