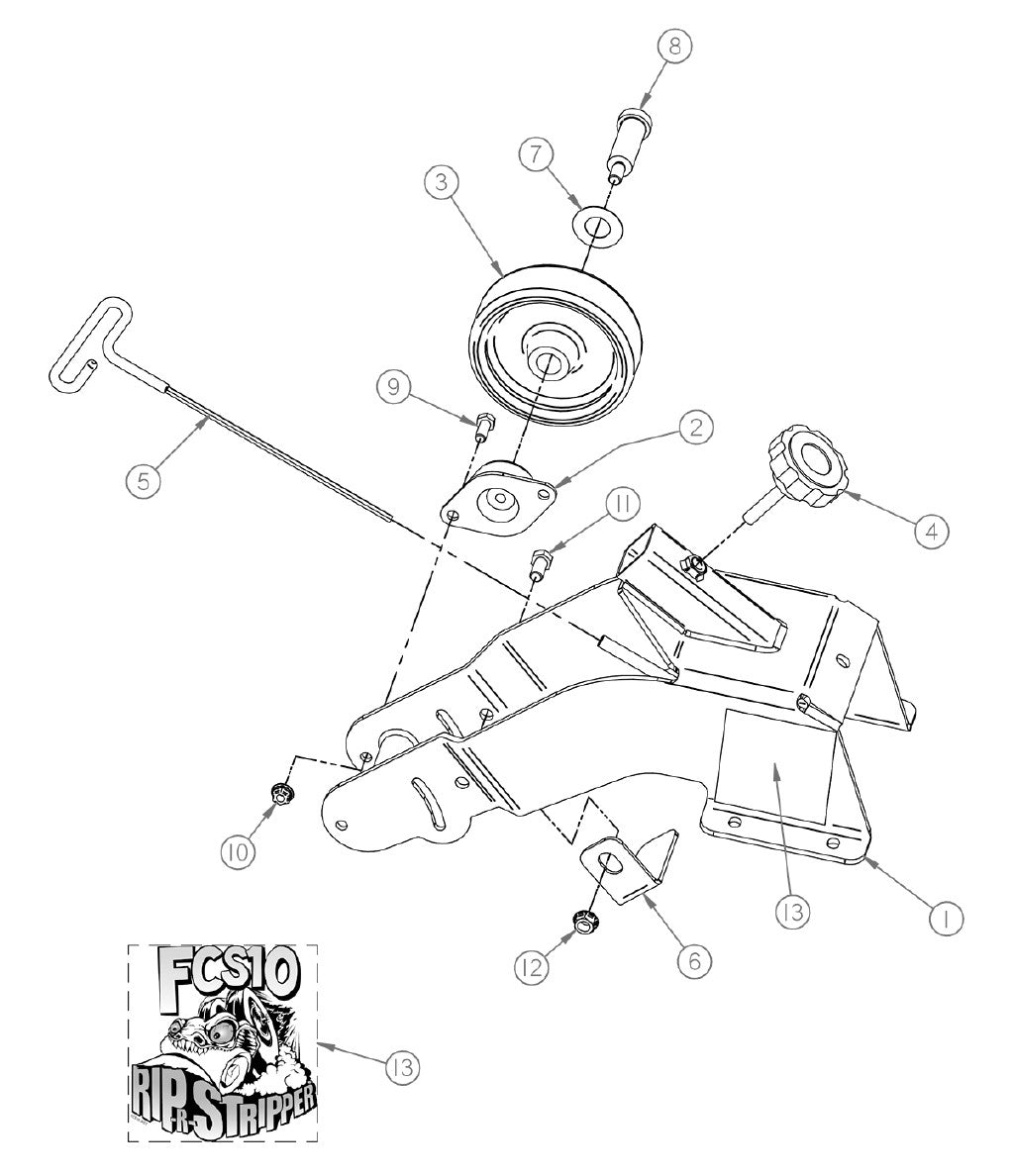

![FCS10 Replacement Parts Diagram Main Frame Assembly FCS10GEN2 Floor Covering Scraper [Beginning with Serial Number 179211] Parts By General Equipment](http://www.danseusa.com/cdn/shop/files/FCS10_20Replacement_20Parts_20Diagram_20Main_20Frame_20Assembly_20FCS10GEN2_20Floor_20Covering_20Scraper_20_5BBeginning_20with_20Serial_20Number_20179211_5D_20Parts_20By_20General_20E.jpg?v=1740993739&width=1946)
1
/
of
1
Ref.
Details
1
FCS10-0051 Main Frame by General Equipment Co. FCS100051
$338.16
2
FCS10-0110 Mount, Rubber, Axle by General Equipment Co. FCS100110
$33.09
3
FCS10-0190 Wheel, 5D by General Equipment Co. FCS100190
$47.12
4
FCS16-0150 Knob, Adjustment by General Equipment Co. FCS160150
$16.72
5
FCS16-0260 Wrench, Hex, T-Handle by General Equipment Co. FCS160260
$16.86
6
SG12-0371 Scraper, Wheel by General Equipment Co. SG120371
$11.03
7
200682 Washer, Plastic by General Equipment Co. 200682
$6.89
8
FCS10-0210 Bolt, Shoulder, Special by General Equipment Co. FCS100210
$15.31
9
15050600 Hhcs, 5/16-18 X 3/4, Zy by General Equipment Co. 15050600
$5.99
10
39050000 Nut, Whizlock, 5/16-18, Zy by General Equipment Co. 39050000
$3.99
11
15060600 Hhcs, 3/8-16 X 3/4, Zy by General Equipment Co. 15060600
$5.99
12
86060000 Nut, Hex, Flange, 3/8-16, Zy by General Equipment Co. 86060000
$3.99
13
FCS10-5051 Decal, Rip-R-Stripper by General Equipment Co. FCS105051
$10.99
