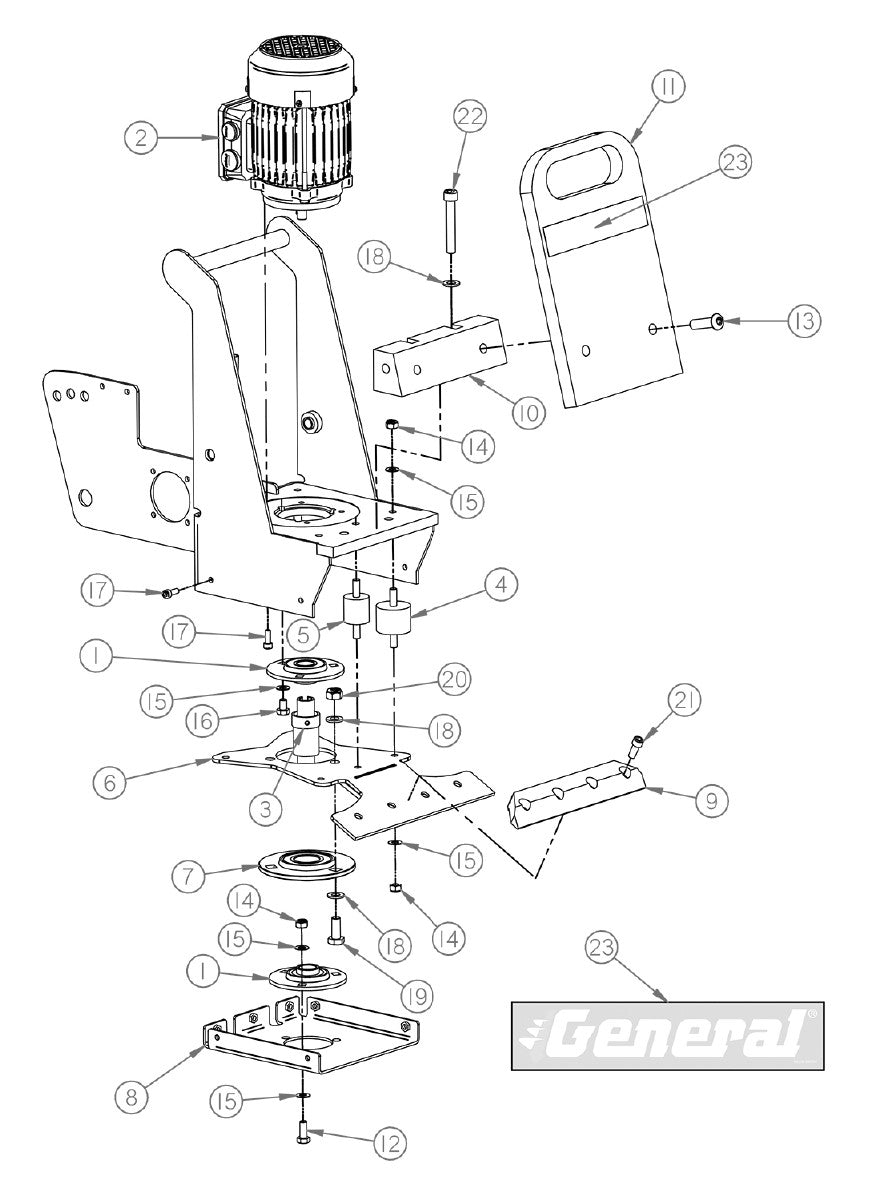

![FCS18 Replacement Parts Diagram Orbital Motor Assembly FCS18 Floor Covering Scraper [Used with Serial Number 166062 Thru 179091] Parts By General Equipment](http://www.danseusa.com/cdn/shop/files/FCS18_20Replacement_20Parts_20Diagram_20Orbital_20Motor_20Assembly_20FCS18_20Floor_20Covering_20Scraper_20_5BUsed_20with_20Serial_20Number_20166062_20Thru_20179091_5D_20Parts_20By_20G.jpg?v=1740993758&width=1946)
1
/
of
1
Ref.
Details
1
FCS18-0230 Flange Bearing by General Equipment Co. FCS180230
$223.12
2
FCS18-0220 Motor, Exciter, Electric, 115Vac, 60Hz by General Equipment Co. FCS180220
$917.32
3
FCS18-0290 Hub, Offset by General Equipment Co. FCS180290
$474.00
4
FCS18-0260 Mount, Rubber, Large by General Equipment Co. FCS180260
$31.20
5
FCS18-0270 Mount, Rubber, Small by General Equipment Co. FCS180270
$28.91
7
FCS18-0250 Flange Bearing by General Equipment Co. FCS180250
$277.38
8
FCS18-0300 Plate, Bottom by General Equipment Co. FCS180300
$739.34
9
FCS18-0280 Clamp Block by General Equipment Co. FCS180280
$422.02
10
FCS18-0330 Front Weight Mounting Block by General Equipment Co. FCS180330
$693.34
11
FCS18-0020 Weight, Front by General Equipment Co. FCS180020
$158.61
12
15082010 Hhcs, M8-1.25 X 20, Z by General Equipment Co. 15082010
$5.99
13
55071201 BHSCS 7/16-20 X 1-1/2 by General Equipment Co. 55071201
$3.99
14
53080010 Nut, Nylok, M8-1.25, Z by General Equipment Co. 53080010
$3.99
15
17080011 Washer, Flat, M8, Z by General Equipment Co. 17080011
$5.99
16
15081210 Hhcs, 1/2-13 X 1-1/2, Zy by General Equipment Co. 15081210
$5.99
17
60061610 Shcs, M6-1.00 X 16, Z by General Equipment Co. 60061610
$7.76
18
17100010 Washer, Flat, M10, Z by General Equipment Co. 17100010
$3.99
19
15102510 Hhcs, M10-1.50 X 25, Z by General Equipment Co. 15102510
$7.76
21
60050601 Shcs, 5/16-24 X 3/4, Zy by General Equipment Co. 60050601
$5.99
22
60106510 Shcs, M10-1.50 X 65, Z by General Equipment Co. 60106510
$7.76
23
GECD-5020W Decal, General, 1.38 X 7.00 by General Equipment Co. GECD5020W
$9.30
![FCS18 Replacement Parts Diagram Orbital Motor Assembly FCS18 Floor Covering Scraper [Used with Serial Number 166062 Thru 179091] Parts By General Equipment](http://www.danseusa.com/cdn/shop/files/FCS18_20Replacement_20Parts_20Diagram_20Orbital_20Motor_20Assembly_20FCS18_20Floor_20Covering_20Scraper_20_5BUsed_20with_20Serial_20Number_20166062_20Thru_20179091_5D_20Parts_20By_20G.jpg?v=1740993758&width=1445)
