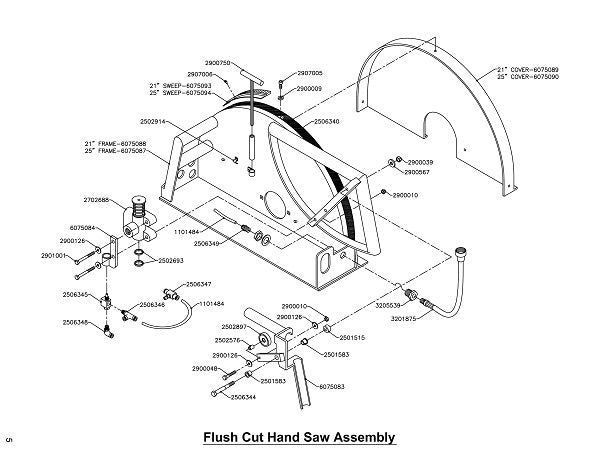

Flush Cut Hand Saw Assembly

Flush Cut Hand Saw Assembly

  • Flush Cut Hand Saw Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
7
2702688 Metro Flow Valve for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$363.33
9
2900126 1/4" Flat Washers for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
10
2901001 Cap Screw, Hex Hd., 1/4-20 x 2-1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
12
2506348 Push Quick Fitting, Male Elbow 1/8NPT x .250 OD for HS-20-F-15 20.00"- 1.61iN�� (15GPM) Flush Cut Hydraulic Hand Saw Core Cut by Diamond Products
$13.99
16
2502693 Quad Seal for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$10.57
19
3201875 Hose Assy, 3/8" x 12, 3/4" F.Garden x 1/4"MPT for HS-20-8 Hydraulic Hand Saw Core Cut by Diamond Products
$43.04
21
2501583 Bearing, 3/8" ID Flanged Bronze for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.99
22
2501515 Bushing UHMW for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$12.91
23
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
24
2502897 Bearing for HS-20-15 HyDRAULic HAND SAW Core Cut by Diamond Products
$116.08
25
2502576 1/4" x 1/2" Sleeve Bushing for HS-20-8 Hydraulic Hand Saw Core Cut by Diamond Products
$12.80
26
2900048 1/4-20 x 1 1/2" Bolt for HS 20/24 SERIES Hydraulic Hand Saw Core Cut by Diamond Products
$2.99
28
2502914 1/4" Cable/Hose Loop Clamp for HS-16-12 HyDRAULic HAND SAW Core Cut by Diamond Products
$6.48
31
2907005 1/4-20 x 5/8 SHCS for HS-20-F-15 20.00"- 1.61iN�� (15GPM) Flush Cut Hydraulic Hand Saw Core Cut by Diamond Products
$3.99
32
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
34
2900039 Lock Nut 5/16-18 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
35
2900567 Flat Washer 5/16" USS for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
